Reading/Writing Measurement Data
Data Transfer Format
Binary Transfer Format
You can select the binary transfer format from the IEEE 64-bit floating point format or the
IEEE 32-bit floating point format depending on the controller you use.
IEEE 64-bit floating point format
When you select the IEEE 64-bit floating point binary transfer format as the data transfer
format, numbers are transferred in the format shown in Figure 7-3.

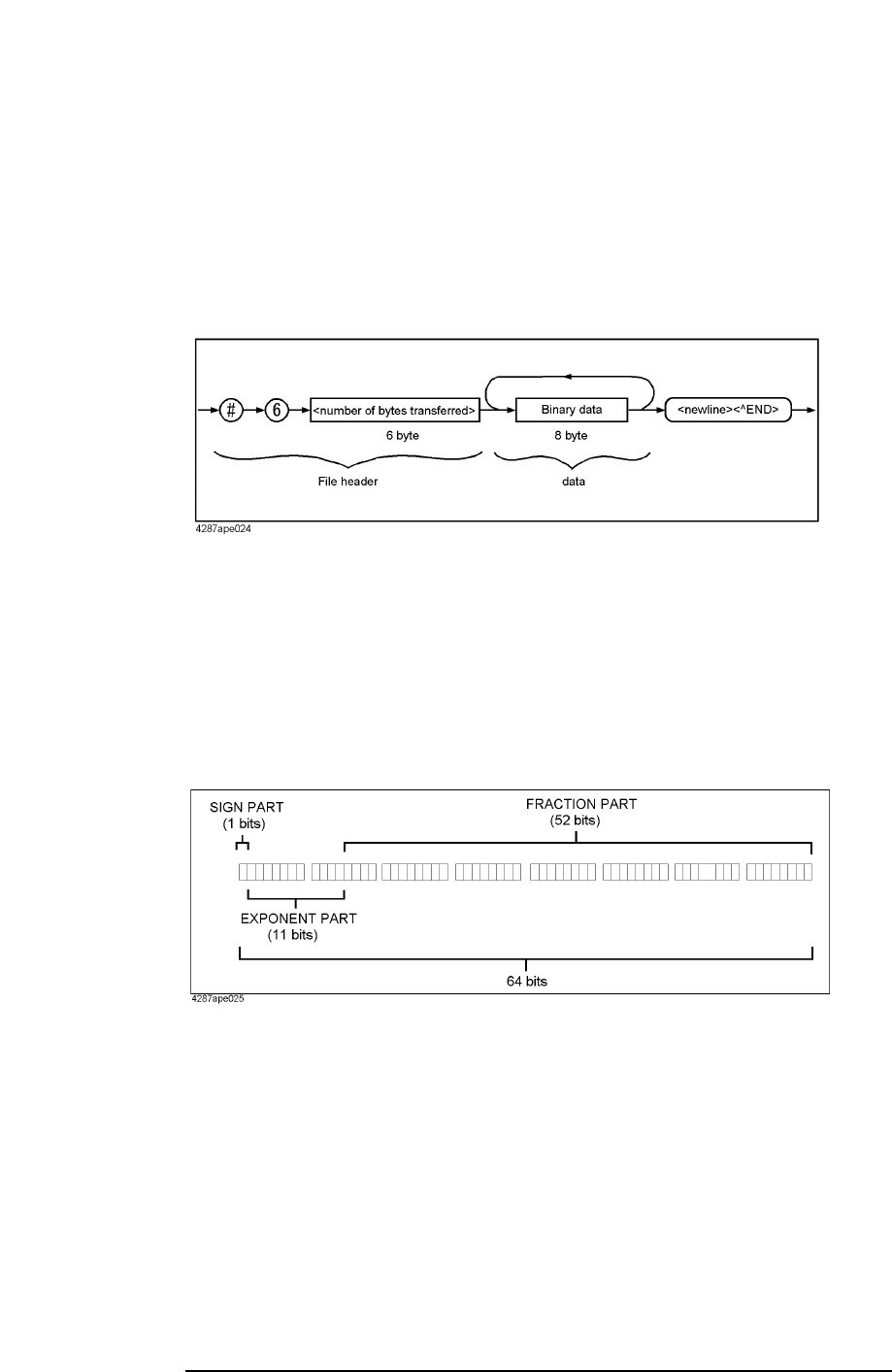

Figure 7-3 Binary transfer format
This data transfer format uses a header that consists of a sharp character (#), a number of 6
(which indicates the byte size of the <number of bytes transferred> part), and the <number
of bytes transferred> part in this order. The header is followed by the binary data (each
number consists of 8 bytes and the total is the byte size indicated by <number of bytes
transferred>) and the message terminator <new line>^END.
The binary data is expressed in the IEEE 754 64-bit floating-point number format shown in
Figure 7-4.
Figure 7-4 64-bit floating point format
