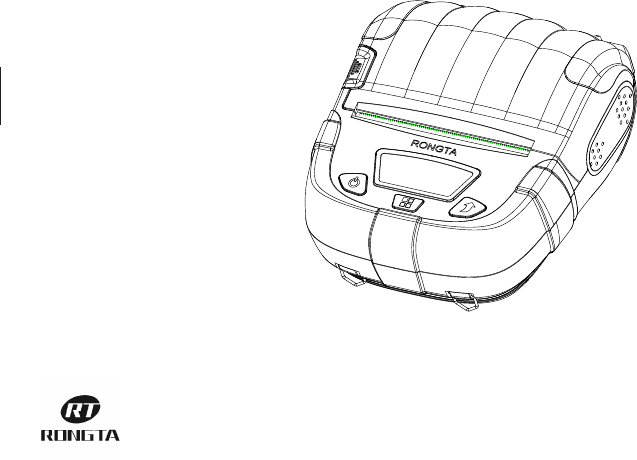

Mobile Label Printer USER’S MANUAL XIAMEN RONGTA TECHNOLOGY CO.,LTD.
Catalogue I ntroduction……………………… 1 About this manual…………………… 1 International conventions…………… 1 Related Manuals……………………… 1 Safety instructions…………………… 2 1 . Stardard Accessories……………… 5 2 . Appearance & component………… 6 3 . Preparation before use…………… 3.1 Install battery …………………… 3.2 Install print paper………………… 3.3 Battery charge…………………… 7 7 8 9 4 . P erformance…………………… 4.1 Basic Function…………………… 4.2 Setting…………………………… 4.3 Self Testing……………………… 10 10 10 12 5.
Introduction About this manual Thanks for your order about ou r ortable barcode label printer. This manual can help you learn how to use this product. Please read this manual carefully before using it and keep it for future reference. International conventions For your convenience, this manual uses the following symbols (icons) and conventions: Warning This symbol indicates a warning that improper use may result in property damage, serious injury or death.
Safety instructions Observe the following precautions when using the printer Attention Do not disassemble the printer yourself, please read this manual carefully before using Warning Turn off the power immediately after a fault. When you find the printer or charger smoke or smell, please unplug the charger and remove the battery, be careful to avoid being burned.
Attention Before changing batteries, please power off the printer and cut off the power if connnect the printer with power adpater. Attention The printer could work stably from 0°C to 40°C, but the higher or lower temperature would debase the print quality. Attention The storage time of receipts should be related to quality of the thermal paper.
Attention When Using Battery Charger Attention Before use, please read this manual and charger surface marks. Warning Please do not disasemble or refit the charger, it is strictly prohibited in the case of the power cord damage using charger, otherwise it will cause electric shock,on fire and damage of the charger.
1. Stardard Accessories Stardard accessories 0 printer(1pcs) battery(1pcs) User manual(1pcs) paper roll(1pcs) charger(1pcs) Belt buckle (1pcs) USB cable(1pcs) Label paper (1pcs) CD(1pcs) Optional accessories Note：if you need more information of optional parts, please contact your supplier.
2.
3. Preparation before use 3.1 Install battery Battery is not installed inside printer when products out factory. Install battery When tight, install battery cover Note: if first time use battery, please charge full. if store battery long time, when use again, please charge full to have best quality.
3.2 Install print paper Press open key to open cover Pull out little paper, close the cover Install paper as correct method Tear off useless paper as correct direction Note:1 0 printer paper width：80mm （adjustable）、roll diameter：50mm。 2. Note the paper roll direction, if wrong, will print blank, empty feed, and so on. 3. Must pull out little paper outside.
3.3 Battery charge Plug the power adapter plug into outlet, and put the DC plug into printer charging port. (AC:100V~240V(50-60Hz)) 9 Warning: If use the power adapter which is not offer/reconise from our company,that may be damage printer. Attention: Please do not take out of the battery. Remarks: Printer can print while charging.
4. Performance 4.1 basic function Open: hold the power button 3 sec. Off : hold the power button while printer open. Feed : click “feed”key(continuous paper:click FEED key, can feed 5mm paper.label/black label:click “feed”key,can feed paper until seam or black mark.) Awake while sleep : when printer on open status,if there is not any operation or data transmission, printer will go to sleep automatically.
11 Print Info Press power key to print slef testing page 0-9 Base on different papers to adjust the print denisty 0-4 Print Speed Setting Chinese/EngLish Language Setting Open/Close Beeping On/Off Gap/Mark/None Paer Types Setting OLED Lighting on screen to testing dead pixel
4.3 Self Testing On self testing page including print item No., interface and DPI etc. Porduct Parameters Selftest Firmware Version:GD20x_V1.00 2016-10-10 Model:.....................RPP320 Interface:................USB & wifi & BlueTooth Print Method:..........Direct Thermal Print Density:..........9 Print Speed:.............4 Font:.........................24x24GB 18030 Media Type:.............
5.Icons Introduction Print Status The icon display at screen when printing. The icon display at screen when paper ending or wrong paper install. Paper End Insert Paper 13 Cover Openning Close Cover The icon display at screen when cover open or closed in wrong operation. Battery Indicator The grids will running on charging.
6.
6.2 WIFI communication The printer can provide WIFI communication, Support STA mode, Support TPIK/AES encryption, Effective communication distance Less than or equal 20m. WIFI information can be changed by setting tool， More information pls check (Tool setting manul).
6.3 Bluetooth communication These printers can provide dual mode Bluetooth 4.0（SPP+BLE），it can communicate with apple 4S, ipad3, ipad4 later models. Effective communication distance less or equal 10m。 Bluetooth default pairing password: 0000, it can be setting up with parameter settings.
7.Maintenance and repair 7.1 Printer maintenance 1、The printer paper storehouse and external cleaning: Please screw the wet cloth gently wipe the internal printer table and paper warehouse, pay attention to completely screwed wet cloth. 2、Cleaning of printer Mechanism：Printer core must be Periodic cleaning，Especially when the print quality drops down，The cleaning methods are as follows：Use the absorbent cotton which dipped with ethyl alcohol to gently wipe the grey box part as shown in below Pic1.
8.
9. Appendix 9.1 Printer Parameters Printing Parameters 19 Printing method Line thermal printing Paper width 72mm Paper roll diameter ≤50mm Printing speed ≤90mm/s Resolution 203dpi Built-in font GB 18030（24x24） Machinery lifespan 50km（within 25% printing density） Printing command ESC/POS、CPCL Printing length More than 300m (under situation of full charge and 12.
Printing content Multiple language or graph like Chinese, English and Russian 1D barcode：UPC-A、UPC-E、CODE39、EAN-13、EAN-8、 CODABAR、CODE128、CODE98、ITF 2D barcode：QR CODE Battery type 7.4V 2700mAh Li-ion Battery Charging time 3 Hours Wire communication StandardUSB2.0 Wireless communication Dual mode Bluetooth 4.0（SPP+BLE） Printer dimension L140mm*W117mm*H60mm Weight 0.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
