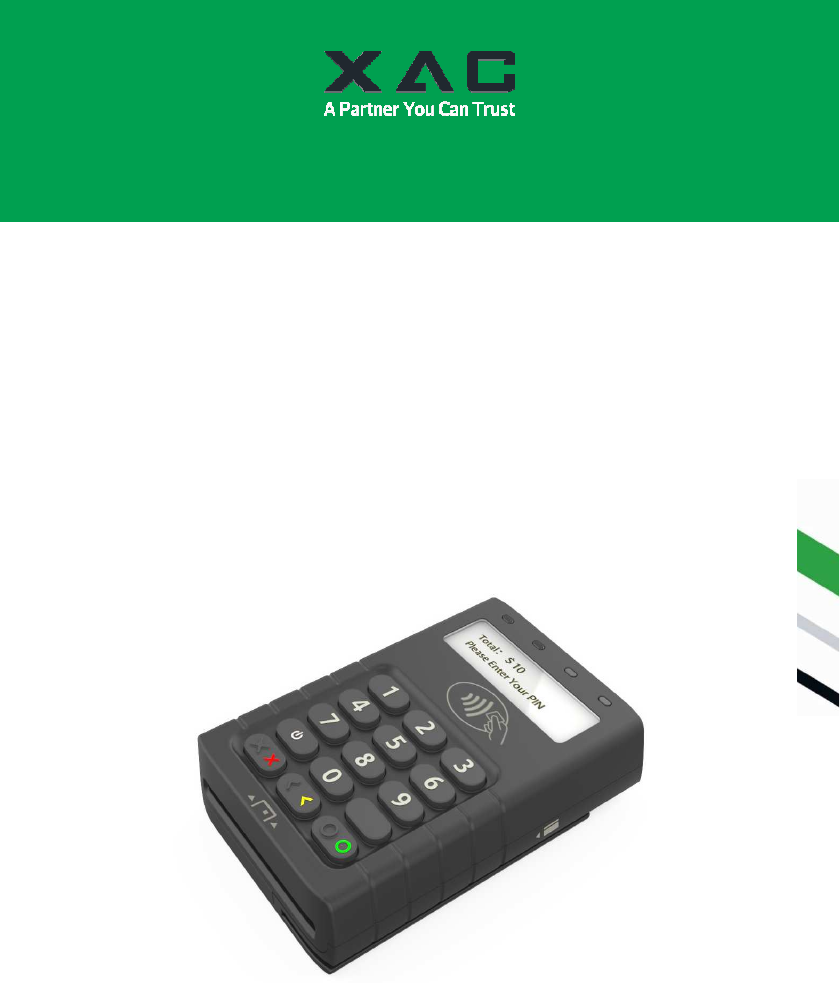

d CHIP AND PIN MOBILE PAYMENT DEVICE XCE-25-C INSTALLATION GUIDE
1. BEFORE STARTING There is a micro USB port (Figure 1) covered under the protection cover (Figure 2); this port is used for battery charging, debugging, firmware update and key injection. NOTE: The battery of xCE-25-C is built-in and rechargeable. Figure 1 Figure 2 o o Operating Temperature: 0 C to 40 C Battery Pack: 3.7V, 1050mAh Input: 5V, 500mA 2.
. CONNECTING TO SMART DEVICES Once xCE-25-C is powered on Bluetooth will be searchable. From the smart device’s Bluetooth settings, pair and connect to xCE-25-C. 4. USING THE MAGNETIC CARD READER Find the magnetic card reader slot on the right side of the device (Figure 4). Swipe the card through the slot with magnetic stripe side facing the same direction as the keypad (Figure 5). Figure 4 Figure 5 5. USING THE IC CARD READER Find the IC card reader slot on the bottom of the device (Figure 6).
7. USING THE CONTACTLESS CARD READER Contactless reader antenna is around the display and PIN pad. It will light up with LED signal when terminal is powered on and that means reader is working normally. Put contactless card to approach the antenna of card reader (Figure 9) for reading the card data during transaction.
Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.
