Data Sheet

1 2 3 4 5
A
B
C
D
SIZE
A4
REV DATE FILE BY
APPROVAL: RJ

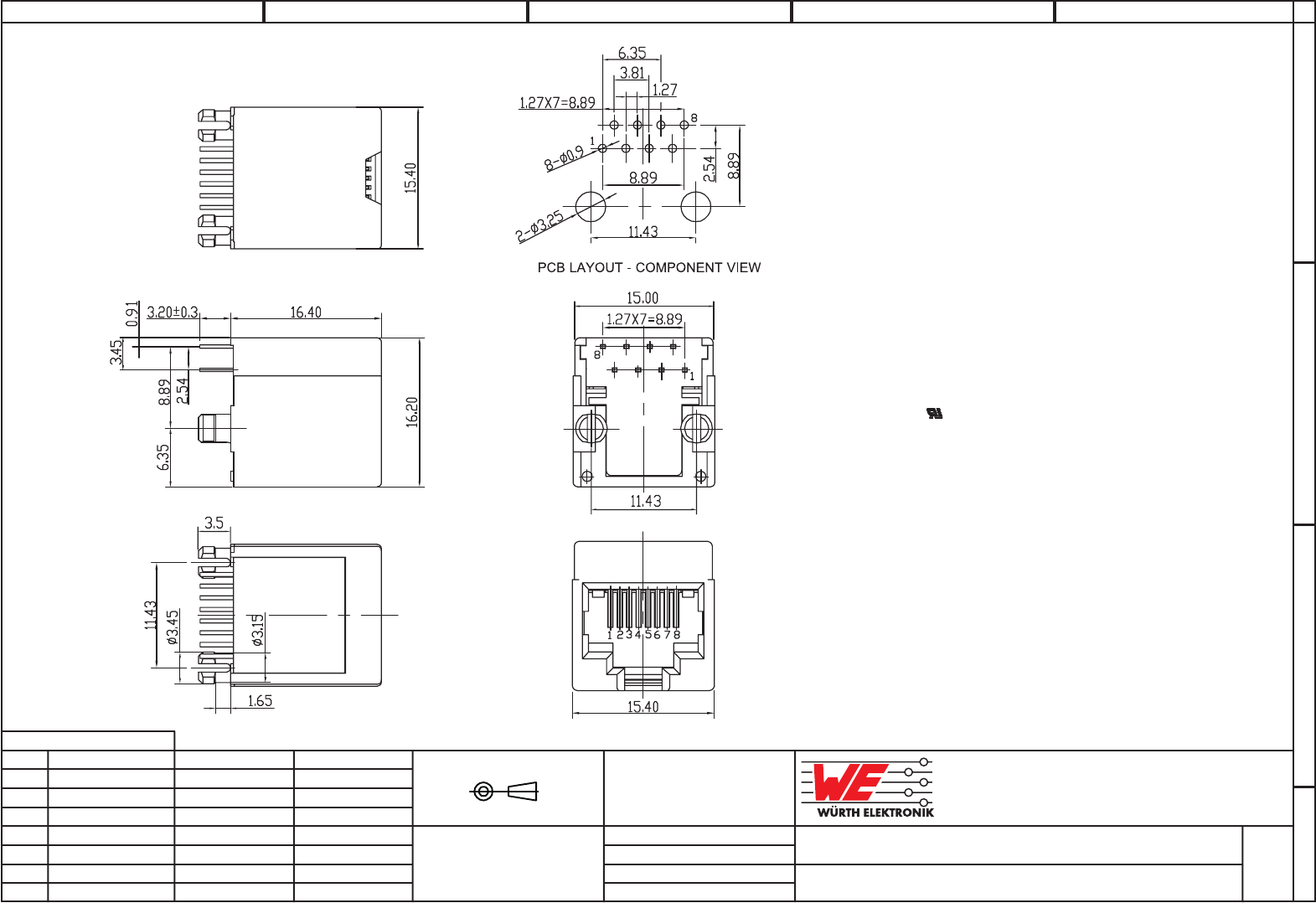

UNIT: MM DESCRIPTION: VERTICAL PLASTIC 8P8C MODULAR JACK
SCALE:
SHEET: 1/1 WERI PART NO: 615 008 138 021
DRAW:
PROJECTION: GENERAL TOLERANCE
.X =
+
/
-
0.2
.XX =
+
/
-
0.15
RoHS Compliant
TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR MATERIAL: PBT
FLAMMABILITY RATING UL94-V0
COLOUR: BLACK
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: SELECTIVE GOLD
QUALITY CLASS: 500 MATING CYCLES
ENVIRONMENTAL
OPERATING TEMPERATURE: –40 °C UP TO 85 °C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 1.5 A
WORKING VOLTAGE: 120 VAC
INSULATION RESISTANCE: >500 MOHM
DIELECTRIC WITHSTANDING VOLTAGE: 1 000 VAC/MN
CONTACT RESISTANCE: 20 mOHM MAX
STANDARD
CERTIFIED: E324776
SOLDERING
WAVE PROCESS ONLY
PACKAGING
TRAY
H 03-JAN-14 UL & TEMP UPDATE QL
