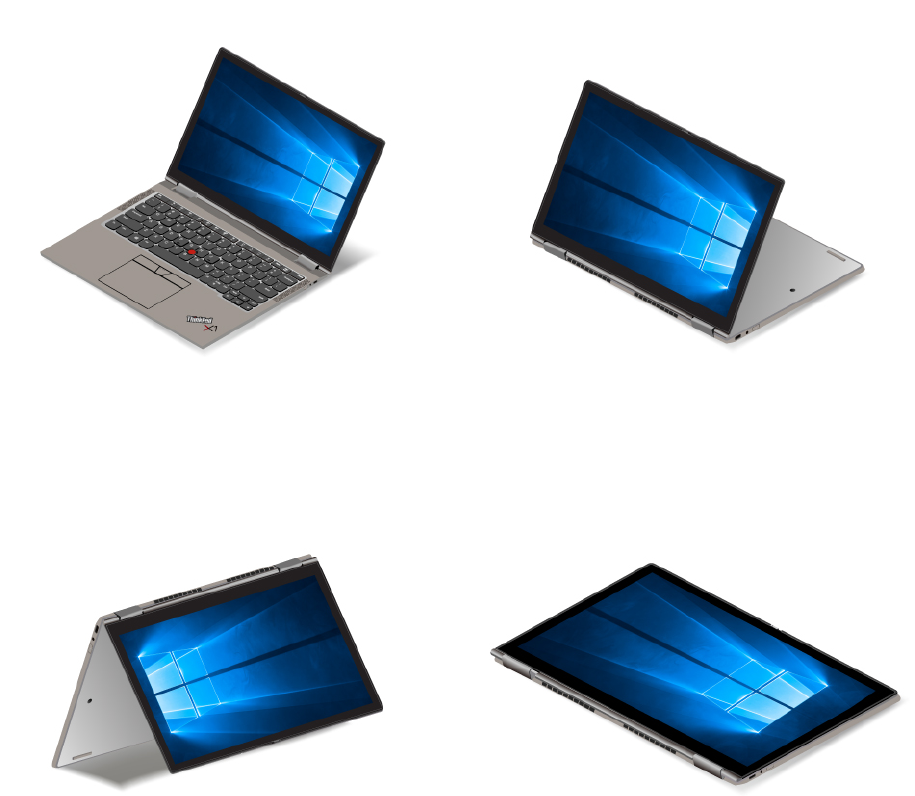

Notebook mode Stand mode Tent mode Tablet mode Chapter 2.
Use Lenovo Precision Pen (for selected models) The Lenovo Precision Pen enables a more precise and easier way of writing and sketching. Eraser button Click button Lenovo Precision pen is not waterproof. Keep the pen away from water and excessive moisture. To purchase Lenovo Precision Pen, go to https://www.lenovo.com/accessories. Charge Lenovo Precision Pen Depending on the model, your pen might not be installed with a battery.
Chapter 2.
20 X1 Titanium Gen 1 User Guide
Chapter 3. Explore your computer Lenovo apps This section provides introduction to the Vantage and Lenovo Quick Clean apps. The Vantage app The preinstalled Vantage app is a customized one-stop solution to help you maintain your computer with automated updates and fixes, configure hardware settings, and get personalized support. To access the Vantage app, type Vantage in the search box. Key features The Vantage app enables you to: • Know the device status easily and customize device settings.
Manual mode • Quiet mode: the least fan noise • Balanced mode: balanced performance and fan noise • Performance mode: the highest performance and normal fan noise on ac power on battery power Do the following to select the preferred mode: 1. Click the battery status icon in the Windows notification area. 2. Move the slider to the left or right to select your preferred mode.
Charge the computer Use ac power Notes: To maximize the life of the battery: • Use the battery until the charge is depleted and recharge the battery completely before using it. Once the battery is fully charged, it must discharge to 94% or lower before it will be allowed to recharge again. • The battery may optimize its full charge capacity based on your usage. After prolonged periods of limited use, full battery capacity may not be available until you discharge to as low as 20% and recharge completely.
Note: The actual charging speed of your computer depends on many factors, such as the remaining battery power of the computers, the wattage of the ac power adapter, and whether you are using the computers. Change the power settings For ENERGY STAR® compliant computers, the following power plan takes effect when your computer has been idle for a specified duration: • Turn off the display: After 10 minutes • Put the computer to sleep: After 10 minutes To reset the power plan: 1.
Lenovo USB-C Port Replicator (for selected models) Lenovo USB-C Port Replicator provides quick and easy connections between your computer and computer accessories. Lenovo USB-C Port Replicator is available as an option and shipped with some computer models. You can purchase one from Lenovo at https://www.lenovo.com/accessories. Overview SD card slot USB 3.2 connector Gen 2 microSD card slot HDMI™ connector USB-C (3.
26 X1 Titanium Gen 1 User Guide
Chapter 4. Secure your computer and information Lock the computer Lock your computer to a desk, table, or other fixtures through a compatible security cable lock. Note: The slot supports cable locks that conform to the Kensington NanoSaver® lock standards using Cleat™ locking technology. You are responsible for evaluating, selecting, and implementing the locking device and security feature. Lenovo is not responsible for the locking device and security feature.
Log in with your face ID Create your face ID and unlock your computer by scanning your face: 1. Open the Start menu and click Settings ➙ Accounts ➙ Sign-in options. 2. Locate the Password section and click Add to create a password. 3. Locate the Windows Hello Face section and click Set up under Face Recognition. Then, click Get Started. The camera preview starts. 4. Follow the on-screen instructions to create a Personal Identification Number (PIN) and complete the setup. 5.
• For some countries or regions, the human presence sensor is disabled according to local regulations. Use privacy protection Glance by Mirametrix is preinstalled on your computer. Turn on PrivacyAlert and PrivacyGuard switches on Glance to achieve better privacy protection. When someone is detected looking over your shoulder by the camera (with IR function), an alert icon appears on your computer screen. Meanwhile, PrivacyAlert automatically enables PrivacyGuard to prevent peeking eyes.
skip the password prompt. However, you cannot change most of the system configuration options in UEFI BIOS. If you have set both the supervisor password and power-on password, you can use the supervisor password to access your computer when you turn it on. The supervisor password overrides the power-on password. System management password The system management password can also protect the system information stored in UEFI BIOS like a supervisor password, but it has lower authority by default.
3. Select the password type. Then, follow the on-screen instructions to set, change, or remove a password. You should record all your passwords and store them in a safe place. If you forget any of your passwords, any potential repair actions required are not covered under warranty. What to do if you forget your power-on password If you forget your power-on password, do the following to remove the power-on password: • If you have set a supervisor password or a system management password and remember it: 1.
Associate your fingerprints with passwords (for selected models) Do the following to associate your fingerprints with the power-on password and hard disk password: 1. Turn off and then turn on the computer. 2. When prompted, scan your finger on the fingerprint reader. 3. Enter your power-on password, hard disk password, or both as required. The association is established.
Chapter 5. Configure advanced settings UEFI BIOS UEFI BIOS is the first program that the computer runs. When the computer turns on, UEFI BIOS performs a self test to make sure that various devices in the computer are functioning. Enter the UEFI BIOS menu Restart the computer. When the logo screen is displayed, press F1 to enter the UEFI BIOS menu.
Download and install the latest UEFI BIOS update package by one of the following methods: • Open the Vantage app to check the available update packages. If the latest UEFI BIOS update package is available, follow the on-screen instructions to download and install the package. • Go to https://pcsupport.lenovo.com and select the entry for your computer. Then, follow the on-screen instructions to download and install the latest UEFI BIOS update package.
After two consecutive failed boot attempts, the Windows recovery environment starts automatically. Then you can choose repair and recovery options by following the on-screen instructions. To know more about recovery information, visit Knowledge Base of your computer at https:// pcsupport.lenovo.com. Create and use a recovery USB device It is recommended that you create a recovery USB drive as early as possible as a backup for the Windows recovery programs.
1. If you are using the Windows BitLocker Drive Encryption feature and your computer has a Trusted Platform Module, ensure that you have disabled the feature. 2. Ensure that the security chip is set to Active. a. Restart the computer. When the logo screen is displayed, press F1 to enter the UEFI BIOS menu. b. Select Security ➙ Security Chip and press Enter. The Security Chip submenu opens. c. Ensure that the security chip for TPM 2.0 is set to Active. d. Press F10 to save the settings and exit. 3.
Chapter 6. CRU replacement Customer Replaceable Units (CRUs) are parts that can be upgraded or replaced by the customer. The computers contain the following types of CRUs: • Self-service CRUs: Refer to parts that can be installed or replaced easily by customer themselves or by trained service technicians at an additional cost. • Optional-service CRUs: Refer to parts that can be installed or replaced by customers with a greater skill level.
38 X1 Titanium Gen 1 User Guide
Chapter 7. Help and support Frequently asked questions How do I access Control Panel? • Open the Start menu and click Windows System ➙ Control Panel. • Use Windows Search. How do I turn off my computer? Open the Start menu and click How do I partition my storage drive? https://support.lenovo.com/solutions/ht503851 Power. Then, click Shut down. 1. Press and hold the power button until the computer turns off. Then, restart the computer. 2.
Error messages If you see a message that is not included in the following table, record the error message first, then shut down the computer and call Lenovo for help. See “Lenovo Customer Support Center” on page 44. Message Solution 0190: Critical low-battery error The computer turned off because the battery power is low. Connect the ac power adapter to the computer and charge the batteries. 0191: System Security - Invalid remote change requested The system configuration change has failed.
Beep errors Lenovo SmartBeep technology enables you to decode beep errors with your smartphone when a black screen occurs with beeps from your computer. To decode the beep error with Lenovo SmartBeep technology: 1. Go to https://support.lenovo.com/smartbeep or scan the following QR Code. 2. Download the proper diagnostic app and install it on your smartphone. 3. Run the diagnostic app and place the smartphone near the computer. 4. Press Fn on your computer to emit the beep again.
Self-help resources Use the following self-help resources to learn more about the computer and troubleshoot problems. Resources How to access? Use the Vantage app to: • Configure device settings. • Download and install UEFI BIOS, drivers, and firmware updates. • Secure your computer from outside threats. • Diagnose hardware problems. Type Vantage in the search box. • Check the computer warranty status. • Access User Guide and helpful articles.
• In the People’s Republic of China, the Genuine Microsoft label is required on all computer models preinstalled with any version of Windows 10. • In other countries and regions, the Genuine Microsoft label is required only on computer models licensed for Windows 10 Pro. The absence of a Genuine Microsoft label does not indicate that the preinstalled Windows version is not genuine.
Lenovo Customer Support Center During the warranty period, you can call Lenovo Customer Support Center for help. Telephone numbers For a list of the Lenovo Support phone numbers for your country or region, go to https:// pcsupport.lenovo.com/supportphonelist for the latest phone numbers. Note: Phone numbers are subject to change without notice. If the number for your country or region is not provided, contact your Lenovo reseller or Lenovo marketing representative.
• https://www.lenovo.com/warranty/llw_02 • https://pcsupport.lenovo.com/warrantylookup Purchase additional services During and after the warranty period, you can purchase additional services from Lenovo at https:// www.lenovo.com/services. Service availability and service name might vary by country or region. Chapter 7.
46 X1 Titanium Gen 1 User Guide
Appendix A. Important safety information Safety notices This information can help you safely use your computer. Follow and retain all information included with your computer. The information in this document does not alter the terms of your purchase agreement or the Limited Warranty. For more information, see Safety and Warranty Guide that comes with your computer. Customer safety is important. Our products are developed to be safe and effective. However, personal computers are electronic devices.
Protect yourself from the heat generated by the ac power adapter. When the ac power adapter is connected to an electrical outlet and your computer, it generates heat. Extended contact with your body, even through clothing, may cause a skin burn. • Do not place the ac power adapter in contact with any part of your body while it is in use. • Never use it to warm your body. • Do not wrap the cords around the ac power adapter while in use. Prevent your computer from getting wet.
Handle your computer gently. Do not drop, bump, scratch, twist, hit, vibrate, push, or place heavy objects on your computer, display, or external devices. Carry your computer carefully. • Use a quality carrying case that provides adequate cushioning and protection. • Do not pack your computer in a tightly packed suitcase or bag. • Before putting your computer in a carrying case, make sure that it is off, in sleep mode, or in hibernation mode.
• Power cords, plugs, power adapters, extension cords, surge protectors, or power supplies that are cracked, broken, or damaged. • Signs of overheating, smoke, sparks, or fire. • Damage to a battery (such as cracks, dents, or creases), discharge from a battery, or a buildup of foreign substances on the battery. • A cracking, hissing, or popping sound, or strong odor that comes from the product.
When replacing CRUs, be cautious of sharp edges or corners that might cause injury. If you suffer an injury, seek medical care immediately. Power cords and power adapters DANGER Use only the power cords and power adapters supplied by the product manufacturer. The power cords shall be safety approved. For Germany, it shall be H03VV-F, 3G, 0.75 mm2, or better. For other countries, the suitable types shall be used accordingly. Never wrap a power cord around a power adapter or other object.
Plugs and outlets DANGER If a receptacle (power outlet) that you intend to use with your computer equipment appears to be damaged or corroded, do not use the outlet until it is replaced by a qualified electrician. Do not bend or modify the plug. If the plug is damaged, contact the manufacturer to obtain a replacement.
General battery notice DANGER Batteries supplied by Lenovo for use with your product have been tested for compatibility and should only be replaced with approved parts. A battery other than the one specified by Lenovo, or a disassembled or modified battery is not covered by the warranty. Battery abuse or mishandling can cause overheat, liquid leakage, or an explosion. To avoid possible injury: • Do not open, dissemble, or service any battery. • Do not crush or puncture the battery.
The Lenovo-authorized repair facilities or technicians recycle Lenovo batteries according to local laws and regulations. When replacing the lithium coin-cell battery, use only the same type or equivalent type that is recommended by the manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of. Swallowing the lithium coin-cell battery will cause chocking or severe internal burns in just two hours and might even result in death.
Heat and product ventilation DANGER Computers, ac power adapters, and many accessories can generate heat when turned on and when batteries are charging. Notebook computers can generate a significant amount of heat due to their compact size. Always follow these basic precautions: • When your computer is turned on or the battery is charging, the base, the palm rest, and some other parts may become hot.
Electrical current safety information DANGER Electric current from power, telephone, and communication cables is hazardous. To avoid a shock hazard: • Do not use your computer during a lightning storm. • Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration of this product during an electrical storm. • Connect all power cords to a properly wired and grounded electrical outlet. • Connect properly wired outlets to any equipment that will be attached to this product.
Laser safety information CAUTION: Laser product (Human Presence Sensing® module) is installed, note the following: • Do not remove the covers. Removing the covers of the laser product could result in exposure to hazardous laser radiation. There are no serviceable parts inside the device. • Use of controls, adjustments or performance of procedures other than those specified herein might result in hazardous radiation exposure.
Limitation Values). Using headphones that do not comply with EN 50332-1 can be dangerous due to excessive sound pressure levels. Choking hazard notice CHOKING HAZARD – Product contains small parts. Keep away from children under three years. Plastic bag notice DANGER Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation. Glass parts notice CAUTION: Some parts of your product may be made of glass.
Operating environment Maximum altitude (without pressurization) 3048 m (10 000 ft) Temperature • Operating: 5°C to 35°C (41°F to 95°F) • Storage and transportation in original shipping packaging: -20°C to 60°C (-4°F to 140°F) • Storage without packaging: 5°C to 43°C (41°F to 109°F) Note: When you charge the battery, its temperature must be no lower than 10°C (50°F).
Clean the computer cover: Wipe it with a lint-free cloth dampened in mild soap and water. Avoid applying liquids directly to the cover. Clean the keyboard: Wipe the keys one by one with a lint-free cloth dampened in mild soap and water. If you wipe several keys at a time, the cloth might hook onto an adjacent key and possibly damage it. Avoid spraying cleaner directly onto the keyboard.
Appendix B. Accessibility and ergonomic information This chapter provides information about accessibility and ergonomics. Accessibility information Lenovo is committed to providing users who have hearing, vision, and mobility limitations with greater access to information and technology. This section provides information about the ways these users can get the most out of their computer experience. You also can get the most up-to-date accessibility information from the following Web site: https://www.
keyboard with all the standard keys. You can select keys using the mouse or another pointing device, or you can tap to select the keys if your computer supports multi-touch screen. • High Contrast High Contrast is a feature that heightens the color contrast of some text and images on your screen. As a result, those items are more distinct and easier to identify. • Personalized keyboard Adjust keyboard settings to make your keyboard easier to use.
– Change the size of all the items on your screen. 1. Right-click a blank area on the desktop and then click Display settings ➙ Display. 2. Change the item size by following the on-screen instructions. For some applications, your configuration might not take effect until you sign out and then sign in again. – Change the size of the items on a Web page. Press and hold Ctrl, and then press the plus-sign key (+) to enlarge or the minus-sign key (–) to reduce the text size.
Display: Position the display to maintain a comfortable viewing distance of 510 mm to 760 mm (20 inches to 30 inches). Avoid glare or reflections on the display from overhead lighting or outside sources of light. Keep the display screen clean and set the brightness to levels that enable you to see the screen clearly. Press the brightness control keys to adjust display brightness. Head position: Keep your head and neck in a comfortable and neutral (vertical, or upright) position.
Appendix C. Compliance and TCO Certified information This chapter provides regulatory, environmental, RoHS, and ENERGY STAR information about Lenovo products. Radio frequency compliance statements Computer models equipped with wireless communications comply with the radio frequency and safety standards of any country or region in which it has been approved for wireless use.
Locate the UltraConnect wireless antennas Your computer has an UltraConnect™ wireless antenna system. You can enable wireless communication wherever you are.
Locate wireless regulatory notices For more information about the wireless regulatory notices, refer to the Regulatory Notice at https:// support.lenovo.com. Class 1 laser compliance statement This product contains a laser emitter and corresponding drive circuitry. The laser output is designed to remain within Class 1 laser safety limits under all reasonably foreseeable conditions including single faults in compliance with IEC 60825-1:2007 and IEC 60825-1:2014.
Singapore Korea 무선설비 전파 혼신 (사용주파수 2400∼2483.5 , 5725∼5825 무선제품해당) 해당 무선설비가 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음 SAR 정보 본 장치는 전파 노출에 대한 가이드라인을 충족합니다. 본 장치는 무선 송수신기 입니다. 본 장치는 국제 가이드라인으로 권장되는 전파 노출에 대한 제한을 초과하지 않도록 설계되었습니다. 장치 액세서리 및 최신 부품을 사용할 경우 SAR 값이 달라질 수 있 습니다. SAR 값은 국가 보고 및 테스트 요구 사항과 네트워크 대역에 따라 다를 수 있습니다. 본 장치 는 사람의 신체에서 20mm 이상의 거리에서 사용할 수 있습니다. Environmental information of countries and regions This section provides environmental, recycling, and RoHS information about Lenovo products.
Users of electrical and electronic equipment (EEE) with the WEEE marking must not dispose of end of life EEE as unsorted municipal waste, but use the collection framework available to them for the return, recycle, and recovery of WEEE and to minimize any potential effects of EEE on the environment and human health due to the presence of hazardous substances. Lenovo electrical and electronic equipment (EEE) may contain parts and components, which at end-of-life might qualify as hazardous waste.
Dispose of a disused battery from Lenovo notebook computers Your Lenovo notebook computer has a lithium ion battery or a nickel metal hydride battery. If you are a company employee who uses a Lenovo notebook computer and need to dispose of a battery, contact the proper person in Lenovo sales, service, or marketing, and follow that person's instructions. You also can refer to the instructions at: https://www.lenovo.
