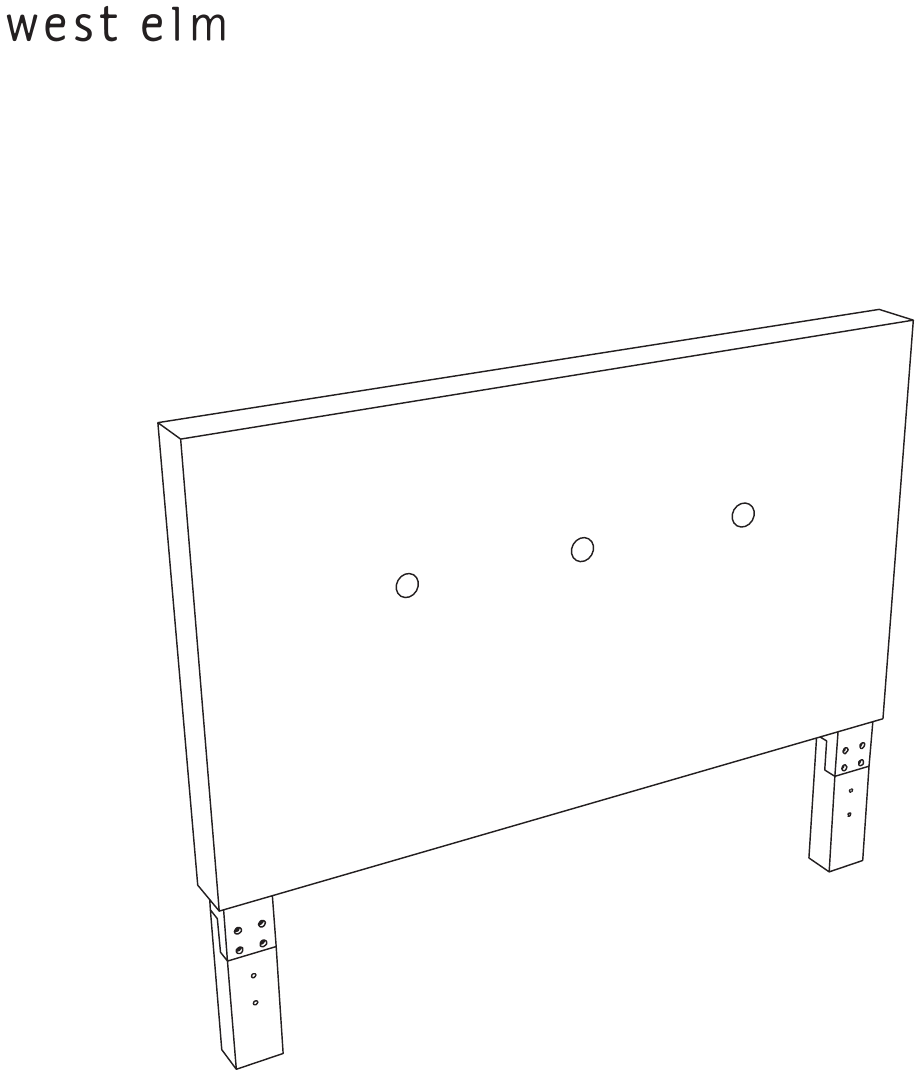

button tufted upholstered headboard

assembly instructions

Page  of 7954998/954964/954980/954972/954956/923054/9230848/9230863/9230889/9230905 - 04/07

! Do not throw away packaging materials until assembly is complete.

! Assemble this item on a soft surface, such as cardboard or carpet, to protect nish.

! Proper assembly of this item requires 2 people.

Summary of content (7 pages)

PAGE 1
button tufted upholstered headboard assembly instructions ! Do not throw away packaging materials until assembly is complete. ! Assemble this item on a soft surface, such as cardboard or carpet, to protect finish. ! Proper assembly of this item requires 2 people.
PAGE 2
button tufted upholstered headboard assembly instructions For assembly of headboard: A B bolt: 6mm dia x 60mm long 8x lock washer 8x D C metal washer 8x cap nut 8x E allen key 1x For attaching headboard to bedframe : F For use attaching to standard metal bedframes G short bolt: 6mm dia x 70mm 4x H For use attaching to wooden bedframes.
PAGE 3
button tufted upholstered headboard assembly instructions 1. Choose the legs to match your bedframe. For bedframe with mattress onl y: For bedframe with boxs pring and mattress: use tall legs use short legs 2. Fasten legs to headboard using screws (A), lock washers (B), flat washers (C), and nuts (D) in order as shown. Tighten screws with allen key (E). E D C B A CARE INSTRUCTIONS Hardware may loosen over time. Periodically check that all connections are tight. Wipe with a soft, dry cloth.
PAGE 4
button tufted upholstered headboard assembly instructions Attaching the headboard to wood bed frame : 1. Align hardware as shown and tighten.
PAGE 5
button tufted upholstered headboard assembly instructions Attaching the headboard to tall wood bed frame : 1. Align hardware as shown and tighten.
PAGE 6
button tufted upholstered headboard assembly instructions Attaching the headboard to narrow leg bed: frame 1. Align hardware as shown and tighten.
PAGE 7
button tufted upholstered headboard assembly instructions Attaching the headboard to standard metal frame : 1. Align hardware as shown and tighten.
