Quick Start Guide

VM905HD
VM905-2HD
5-inch Smart Wi-Fi 1080p
Pan and Tilt
Video Monitor
Go to www.vtechphones.com
to register your product for
enhanced warranty support and
latest VTech product news.
Quick start guide
What does HD Video Monitor do?
VTech 5-inch Smart Wi-Fi 1080p Pan and Tilt Video Monitor allows you to stay close to your
baby when you are on the move or away.
This monitor is Wi-Fi enabled, which uses your home wireless network to stream live video
and audio through the HD baby unit and 5-inch color parent unit. It allows you to maintain a
constant connection to your baby.
You can also monitor from your smartphone and mobile tablet.
VTech 5-inch Smart Wi-Fi 1080p Pan and Tilt Video Monitor uses MyVTech Baby 1080p app to
let you instantly see and hear what’s happening with your baby from anywhere in the world.
The app can be downloaded from the App Store or the Google Play
TM
Store, directly from your
smartphone or mobile tablet.
Congratulations
on purchasing your new VTech product. Before using this HD video monitor, please read
Important safety instructions.
For support, shopping, and everything new at VTech, visit our website at
www.vtechphones.com. In Canada, visit www.vtechcanada.com.
Frequency Baby unit: 2412 - 2462 MHz
Channels 11
LCD 5’’ Color LCD
(IPS 1280x720 pixels)
Nominal effective range Maximum power allowed by FCC and IC. Actual operating range may
vary according to environmental conditions at the time of use.
Power requirement 1. Parent unit power adapter:
Output: 5V DC 1000mA
2. Parent unit: 3.7V Lithium-ion battery
Baby unit power adapter:
Output: 5V DC 1500mA
Specifications are subject to change without notice.
© 2020 VTech Communications, Inc.
All rights reserved. 06/20. VM905-XHD_QSG_V1
Technical specifications
Android
TM
and Google Play
TM
are trademarks of Google Inc.
App Store is a trademark of Apple Inc., registered in the U.S. and other countries.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
UL STD.
62368-1
CERTIFIED TO
CSA STD.
C22.2 NO.62368-1
CONFORMS TO
Overview
What’s in the box
Connect, charge and power on the baby monitor
Protect your privacy and online security
x 2
x 2
Important safety
instructions
Quick start guide
Your HD video monitor package contains the following items. Save your sales receipt and
original packaging in the event warranty service is necessary.
1 LINK LED light
• On when the parent unit is linked to the
baby unit.
• Flashes when the link to the baby unit
is lost.
2
LED light
• On when the parent unit is connected to
AC power, and the battery is charging.
• Off when the parent unit is
disconnected from AC power, or when
the parent unit is connected to AC
power and the battery is fully-charged.
• Flashes when the parent unit battery is
low and needs charging.
3 3- level sound indicator light
• Green on when low sound level is
detected by the baby unit.
• Green and amber on when moderate
sound level is detected by the baby
unit.
• Green, amber and red on when high
sound level is detected by the baby
unit.
4 TALK
• Press and hold to talk to the baby unit.
• While in a submenu, press to exit.
5
• Press to zoom in/out.
6 Arrow keys
, , or
• Press to navigate leftward, upward,
rightward or downward, within the
main menu and submenus.
• While viewing image from the
baby unit, press to pan the baby
unit leftward, upward, rightward or
downward.
• While viewing zoomed image, press
to move the zoomed image leftward,
upward, rightward or downward.
7 MENU/SELECT
• Press to enter the main menu.
• While in a menu, press to choose an
item, or save a setting.
8 - VOL/ VOL +
• Increase or decrease parent unit’s
volume.
9 Microphone
10 Speaker
11 POWER key
12 Power jack
13 RESET
• Force reboot the parent unit.
14 Antenna
15 Stand
2
1
3
4
5
6
7
8
9
12
13
14
15
11
10
How the system works
Direct mode
The parent unit and the baby unit of your video monitor connect to each others in Direct mode
by default, which allows you to stream live video right out of the box. Direct mode connection
lets you stream live video from parent unit only.
• You may experience reduced signal strength if your parent unit and baby unit are far apart, or there are
obstructing factors, such as internal walls, between them. Move the parent unit closer to the baby unit to
improve the signal strength. You can also set up Router mode to connect via your home Wi-Fi network to
improve the connection between your parent unit and baby unit.
Router mode
You can continue using your video monitor
with Direct mode connection, or you
can set up your monitor in Router mode
connection.
Router mode uses your home Wi-Fi
network to connect your video monitor.
It supports streaming live video through
parent unit and smartphone app.
We recommend that you set up your
monitor in Router mode to enjoy streaming
live video via your parent unit with better
connection.
If you want to stream live video remotely
with your mobile device, download
and install the MyVTech Baby 1080p mobile app. With the mobile app, your Wi-Fi router
(not included) provides Internet connectivity to your HD video monitor system. It serves as a
communicating channel between your baby unit and mobile device, allowing you to monitor
and/or control your baby unit wherever you are. For detail, see Download app for mobile access
section in this quick start guide.
• Your parent unit detects the connection signal strength. If you have connected your video monitor with
your home Wi-Fi network, your parent unit automatically switches to direct or router mode - the one that
has stronger signal strength.
VTech cares about your privacy and peace of mind. That’s why we’ve put together a list of
industry-recommended best practices to help keep your wireless connection private and
your devices protected when online. We recommend you carefully review and consider
complying with the following tips.
Ensure your wireless connection is secure.
• Before installing a device, ensure your router’s wireless signal is encrypted by selecting
the “WPA2-PSK with AES” setting in your router’s wireless security menu.
Change default settings.
• Change your wireless router’s default wireless network name (SSID) to something unique.
• Change default passwords to unique, strong passwords. A strong password:
- Is at least 10 characters long.
- Is complex.
- Does not contain dictionary words or personal information.
- Contains a mix of uppercase letters, lowercase letters, special characters and numbers.
Keep your devices up to date.
• Download security patches from manufacturers as soon as they become available. This
will ensure you always have the latest security updates.
• If the feature is available, enable automatic updates for future releases.
Disable Universal Plug and Play (UPnP) on your router.
• UPnP enabled on a router can limit the effectiveness of your firewall by allowing other
network devices to open inbound ports without any intervention or approval from you.
A virus or other malware program could use this function to compromise security for the
entire network.
For more information on wireless connections and protecting your data, please review the
following resources from industry experts:
1. Federal Communications Commission: Wireless Connections and Bluetooth Security Tips
–
www.fcc.gov/consumers/guides/how-protect-yourself-online.
2. U.S. Department of Homeland Security: Before You Connect a New Computer to the
Internet –
www.us-cert.gov/ncas/tips/ST15-003.
3. Federal Trade Commission: Using IP Cameras Safely –
https://www.consumer.ftc.gov/articles/0382-using-ip-cameras-safely.
4. Wi-Fi Alliance: Discover Wi-Fi Security –
http://www.wi-fi.org/discover-wi-fi/security.
1
Connect the baby monitor
• The rechargeable battery in the parent unit is
built-in.
• Use only the power adapters supplied with this
product.
• Make sure the parent unit and the baby unit are
not connected to the switch controlled electric
outlets.
• Connect the power adapters in a vertical or floor
mount position only. The adapters’ prongs are
not designed to hold the weight of the parent
unit and the baby unit, so do not connect them to
any ceiling, under-the-table, or cabinet outlets.
Otherwise, the adapters may not properly connect
to the outlets.
• Make sure the parent unit, the baby unit and the
power adapter cords are out of reach of children.
• To maintain compliance with the FCC’s RF
exposure guidelines, place the baby unit at least
20cm from nearby persons.
Raise the parent unit antenna for better reception
After the parent unit is fully charged, press POWER until the welcoming screen appears.
• The parent unit is fully charged after 8 hours of continuous charging.
• The standby time varies depending on your actual use.
The battery icon indicates the battery status (see the following table).
Battery indicators Battery status Action
The screen displays and
. The light flashes.
The battery has very little
charge and may be used
for only a short time.
Charge without interruption (about
30 minutes).
The battery icon becomes
solid .
The battery is fully
charged.
To keep the battery charged, connect
it to AC power when not in use.
Parent unit icons
Local access
Mobile access
Remote access
1 set for VM905HD
2 sets for VM905-2HD
Strangulation
Hazard
Keep this cord out of reach of children.
The cord needs to be at least three feet
away from the child at all times. Do not
use with an extension cord. Do not
remove this tag.
Éloignez ce cordon des enfants. Le
cordon doit se trouver à au moins trois
pieds d’un enfant et ce, en tout temps.
N’utilisez pas de rallonge. Ne retirez pas
cette étiquette.
Mantenga este cable fuera de la alcance
de los niños. Este cable debe estar por
lo menos tres pies fuera de la alcance
del niño en todo momento. No lo use
con una extensión inalámbrica. No quite
esta etiqueta.
Risque
d’étranglement
Riesgo de
estrangulación
3
Turn on the baby unit
Slide the switch to ON to power
on your baby unit.
2
Charge the parent unit battery before use
The parent unit runs on rechargeable battery or AC power.
To continuously monitor your baby, keep the parent
unit connected to AC power. With the battery alone, the
parent unit can cordlessly run for a short time only.
For mobile access:
MyVTech Baby 1080p mobile app
Network Wi-Fi
Wi-Fi router 2.4GHz 802.11 b/g/n
Internet connection
1.5 Mbps @ 720p or 2.5 Mbps @1080p upload
bandwidth per baby unit
Requirements
Main
Menu
Options
Monitoring mode
(* For VM905-2HD only)
• View baby unit 1 or 2 in Single
mode.
• View both baby units in Patrol
mode.
• View both baby units in Split
screen.
Melodies and soothing sounds
• Select play all melodies and
soothing sounds, or play one
of the five melodies and four
soothing sounds.
• You can also set the timer to
stop playing after 15, 30 or 60
minutes, or playing non-stop.
Alerts - Sound, motion and temperature
• Turn on/off sound, motion and
cry detection alerts.
• Select the sound and motion
detection sensitivity levels.
• Turn on/off temperature alert.
• Select maximum and minimum
temperatures for alert range.
• Turn on/off Auto Wake Up
function.
Parent unit settings
• Adjust parent unit screen
brightness.
• Turn on/off dim mode.
Main
Menu
Options
Baby unit settings
• Turn on/off Night Vision.
• Turn on/off baby unit’s status LED.
• Adjust baby unit’s speaker
volume.
General settings
• Connect to home Wi-Fi network.
• Connect mobile phone.
• Turn on/off Low Battery Tone.
• Turn on/off No Link Alert.
Status icons
Direct mode
Parent unit, baby unit 1 and baby unit 2
(For VM905-2HD only) are connected to
each others directly.
Router mode
Parent unit, baby unit 1 and baby unit 2
(For VM905-2HD only) are connected to
home Wi-Fi network.
Baby unit 1 and 2 are being viewed in
Patrol mode (For VM905-2HD only).
Baby unit 1 and 2 are being viewed in
Split mode (For VM905-2HD only).
Night vision is turned on.
Motion alert is turned on.
Sound detectioin alert is turned on.
Cry alert is turned on.
Melodies and soothing sounds are
turned on.
Night light is turned on.
Parent unit speaker is muted.
Temperature alert is turned on.
1
11
10
2
3
7
8
9
4
5
6
12
1 Microphone
2 Camera lens
3 Light sensor
4 LED indicators
• Flash yellow and blue alternately
when the baby unit is in pairing
mode.
• Yellow is steady on when the baby
unit is connecting to the Internet.
• Yellow and blue are steady on when
the baby unit is idle.
• Flash yellow and blue slowly during
video streaming.
• Flash yellow and blue quickly and
alternately when the baby unit is
updating its firmware.
5 Infrared LEDs
Allow you to see clearly in a dark
surrounding.
6
ON/OFF switch
7 Antenna
Connect to router with Wi-Fi.
8 Speaker
9 Temperature sensor
10 Power jack
11 Threaded socket for wall mounting
12 Pair/reset button
• Press and hold for three seconds to
enter pairing mode.

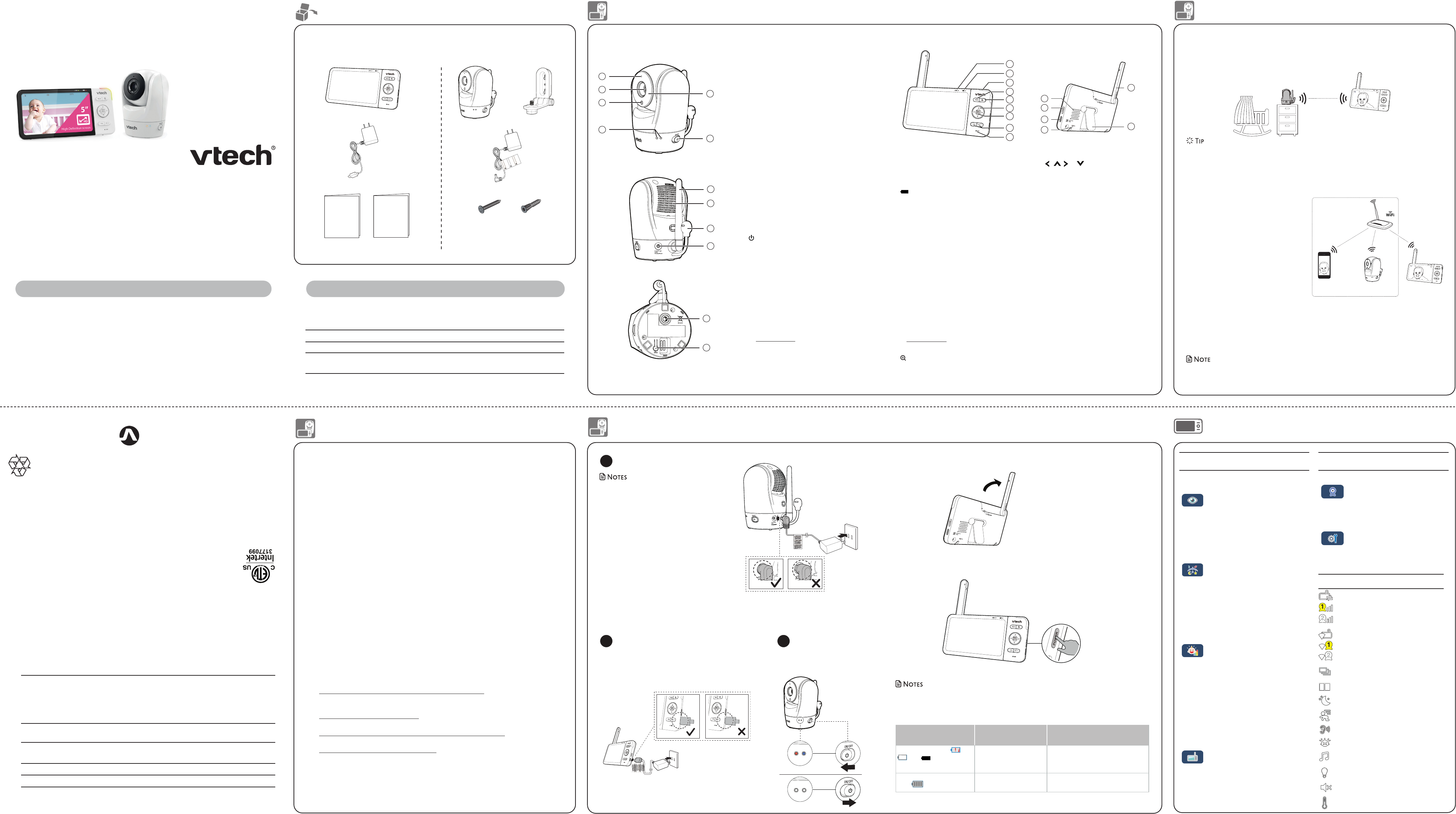

Baby unit overview
Parent unit overview
