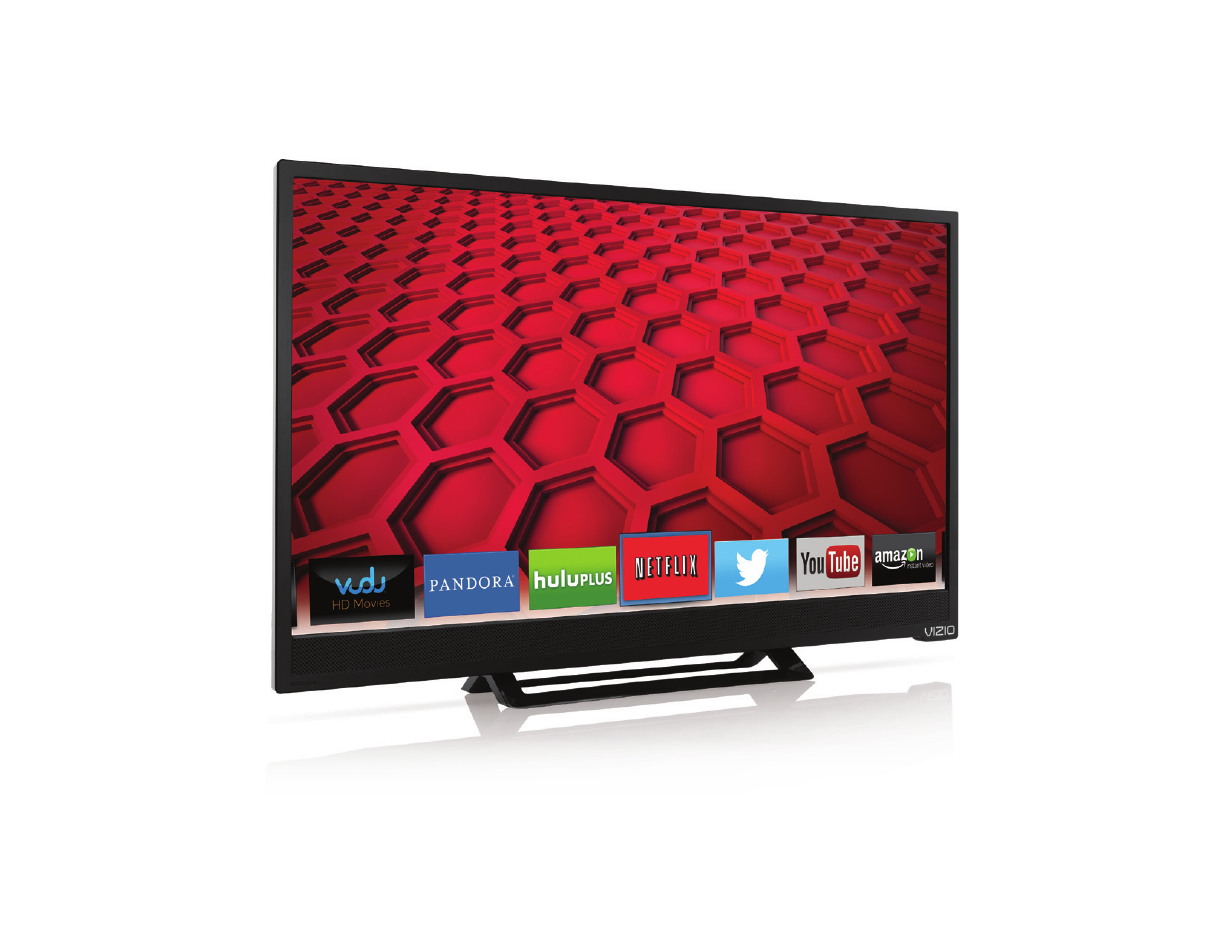

VIZIO USER MANUAL Model: E231i-B1 & E241i-B1
This product qualifies for ENERGY STAR in the “factory default” setting and this is the setting in which power savings will be achieved. Changing the factory default picture settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR rating. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited.
Welcome THANK YOU FOR CHOOSING VIZIO IMPORTANT SAFETY INSTRUCTIONS And congratulations on your new VIZIO HDTV. Your TV is designed and manufactured to operate within defined design limits. Misuse may result in electric shock or fire. To prevent your TV from being damaged, the following instructions should be observed for the installation, use, and maintenance of your TV. Read the following safety instructions before operating your TV. Keep these instructions in a safe place for future reference.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel.
• WARNING: Keep your TV away from moisture. Do not expose your TV to rain or moisture. If water penetrates into your TV, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock. • Do not use your TV if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your TV yourself. • Avoid using dropped or damaged appliances.
TELEVISION ANTENNA CONNECTION PROTECTION If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and static charges.
Table of Contents Installing the TV................................................. 3 Changing the Input Source................................................ 22 Inspecting the Package Contents...................................... 3 Changing the Screen Aspect Ratio.................................... 22 Installing the TV.................................................................... 3 Adjusting the Picture Settings............................................. 23 Installing the TV Stand........
Changing the Analog Audio Language.......................... 38 Using VIZIO Internet Apps Plus® (V.I.A. Plus)....... 54 Changing the Digital Audio Language............................ 38 Using the V.I.A. Plus App Dock............................................. 54 Naming Devices Attached to the TV................................... 39 Using the Hot Keys............................................................ 54 Changing the Names of the Inputs.................................
1 Installing the TV INSPECTING THE PACKAGE CONTENTS INSTALLING THE TV Before installing your new TV, take a moment to inspect the package contents. Use the images below to ensure nothing is missing or damaged. After removing the TV from the box and inspecting the package contents you can begin installing the TV.
1 To install the base: 2. Align the stand and hook it into the bottom of the TV as shown. 1. Place the TV screen-down on a clean, flat surface. To prevent scratches or damage to the screen, place the TV on a soft surface, such as a blanket.
1 3. Using a Phillips screwdriver, tighten four (4) T4 12mm screws into the base to secure it to the TV. When you are finished, place the TV on a stable, level surface. To ensure proper ventilation, leave at least 1” of space between the back of the TV and any other objects (walls, etc).
1 Installing the TV on a Wall To mount your TV on a wall, you will need a wall mount. Consult the information below to find the appropriate mount for your TV model: Installing a TV on a wall requires lifting. To prevent injury or damage to the TV, ask someone to help you. E231i-B1 & E241i-B1 Screw Size: M4 Screw Pitch: 0.7mm Hole Pattern: 100mm (V) x 100mm (H) Be sure the mount you choose is capable of supporting the weight of the TV.
2 Controls and Connections Ethernet - Connect an Ethernet cable from a home network. RGB PC - Connect a VGA cable from a computer. PC Audio In - Connect a 3.5mm audio cable from a PC. Coaxial - Connect a coaxial cable from cable, satellite, or antenna. USB - Connect a USB thumb drive to play photo, music, or video. Head Set - Connect a head set or other device with a 3.5mm jack. Component/Composite - Connect a component or composite device. HDMI - Connect an HDMI device.
2 POWER - Press and hold to turn TV off or on. INPUT - Press to change input source.
2 FRONT PANEL REMOTE SENSOR & POWER INDICATOR When using the remote, aim it directly at this sensor. If the base is installed, the remote must be at or above the level of the sensor. The power indicator lights up for a few seconds when the TV is powered on. To keep the power indicator on when the TV is on, see Turning the Power Indicator On or Off on page 49.
2 REMOTE CONTROL APP LAUNCHER Quickly launch the pictured App. INPUT Change the currently-displayed input. POWER Turn the TV on or off. A/V CONTROLS Control USB media player. INFO Display the info window. CLOSED CAPTIONS Open the closed caption menu. MENU Display the on-screen menu. EXIT Close the on-screen menu. ARROW Navigate the on-screen menu. OK Select the highlighted menu option. GUIDE Display the info window. BACK Go to the previous on-screen menu. V BUTTON Open the V.I.A. Plus Dock.
2 Replacing the Batteries 1. Remove the battery cover. 2. Insert two batteries into the remote control. Make sure that the (+) and (-) symbols on the batteries match the (+) and (-) symbols inside the battery compartment. 3. Replace the battery cover.
3 Connecting Your Devices CONNECTING A DEVICE Your TV can be used to display output from most devices. 1. Verify that your device has a video port that matches an available port on the TV (HDMI, Component, etc). Cable/Satellite Box 2. Turn the TV and your device off. 3. Connect the appropriate cable (not included) to the TV and the device. 4. Turn the TV and your device on. Set the TV’s input to match the connection you used (HDMI-1, HDMI-2, etc.).
3 CONNECTING A DEVICE - AUDIO AND VIDEO CABLE TYPES AV CABLE COAXIAL CABLE AV cables (or Composite cables) are the traditional way of connecting your devices to your TV. Video signals are sent over the yellow connector while audio is sent over the red and white connectors. Coaxial cables are are the traditional way of connectiong antennas and cable television signals to your TV. Coaxial cables carry both audio and video signals through a single connector.
3 CONNECTING A DEVICE - AUDIO AND VIDEO CABLE TYPES COMPONENT CABLE HDMI CABLE Component cables are designed to carry high definition video signals along with additional audio connections. Colors are delivered with color information split up three different ways over three connectors for video (separated into Red, Blue and Green signals) and the left and right audio connectors (Red and White). HDMI is the intelligent, all-digital interface that delivers both dazzling quality and unmatched ease of use.
3 CONNECTING A COMPUTER Your TV can be used to display output from a personal computer. To use your TV as a PC display: 1. Connect a VGA cable (not included) to your PC and the RGB port on the back of the TV. This cable transmits video. 2. Connect a 3.5mm cable (not included) to your PC and the PC Audio In port on the back of the TV. This cable transmits audio. 3. Set your PC’s resolution to match the resolution of your TV. See Appendix B - Specifications. Personal Computer AUDIO 3.
3 CONNECTING AN AUDIO DEVICE Your TV can output sound to an audio device, such as a receiver or sound bar. 1. Verify that your device has a video port that matches an available port on the TV (HDMI or RCA). Home Audio Receiver 2. Turn the TV and your audio device off. 3. Connect the appropriate cable (not included) to the TV and the device. 4. Turn the TV and your device on. VIZIO Sound Bar HDMI CABLE BEST 3.5MM CABLE GOOD BACK OF TV 16 • CEC 2-WAY COMMUNICATION • 2.0-5.
3 CONNECTING AN AUDIO DEVICE - AUDIO CABLE TYPES 3.5MM CABLE HDMI CABLE 3.5mm cables are the traditional way of connecting your devices to your audio device. Audio signals are sent over a single cable. HDMI technology transmits crystal-clear digital multi-channel surround audio through a single HDMI cable. Audio Return Channel-enabled (ARC) TVs allow audio to be sent over an already connected HDMI cable, eliminating the need for a separate audio cable. See Connecting an Audio Device - ARC on page 18.
3 CONNECTING AN AUDIO DEVICE - ARC Without HDMI ARC With HDMI ARC Built-in Tuner Built-in Tuner VIZIO Internet Apps Plus VIZIO Internet Apps Plus Your TV Without an HDMI ARC setup, your TV will transmit audio signals from the built-in tuner and VIA apps to your home audio receiver through a separate audio connection. 3.
3 CONNECTING TO YOUR NETWORK Your TV is Internet-ready. It can be connected to your home network with a Wired or Wireless connection. Connecting to a Wired Network (Best) Connecting to a Wireless Network 1. Ensure you have a router or modem broadcasting a high-speed wireless signal (802.11n recommended). 2. Use the Guided Network Setup to configure the TV. See Using Guided Setup on page 50. 1. Connect an Ethernet cable to your router and to the Ethernet port on the back of the TV. See below. 2.
Completing the First-Time Setup The first time you turn on the TV, the Setup App will guide you through each of the steps necessary to get your TV ready for use. Before you begin the first-time setup: • Your TV should be installed and the power cord should be connected to an electrical outlet. 4. Use the Arrow buttons on the remote to highlight your country, and then press the OK button. • Your devices should be connected. • If you have a wireless network, have the wireless password ready. 5.
Completing the First-Time Setup 8. Use the Arrow buttons on the remote to highlight your TV source and press OK. If you have cable TV, select whether you have a cable box or if you connect the TV directly to a cable from the wall. 9. If the TV Signal screen appears, the TV will need to scan for channels, which takes several minutes. Use the arrow buttons on the remote to highlight Begin Scan and press OK. 10. Use the Arrow and OK buttons on the remote to select the input your TV source is connected to.
5 Using the On-Screen Menu NAVIGATING THE ON-SCREEN MENU Your TV features an easy-to-use on-screen menu. To open the on-screen menu, press the MENU button on the remote. You can also open the on-screen menu by pressing the VIA button and selecting HDTV Settings from the VIA Dock, then pressing OK.
5 CHANGING THE INPUT SOURCE CHANGING THE SCREEN ASPECT RATIO External devices such as DVD players, Blu-ray Players, and video game consoles can be connected to your TV. To use one of these devices with your TV, you must first change the input source using the Input menu. The TV can display images in five different modes: Normal, Stretch, Panoramic, Wide, and Zoom. Each mode displays the picture differently. To change the screen aspect ratio: To change the input source: 1.
5 VIZIO Wide Zoom VIEWING VIDEO WITH THE MENU OPEN Normal Panoramic When the on-screen menu opens, it covers the left-hand portion 2D 3D of the picture. The picture can be displayed in Exit three different ways: Contrast Color Tint Sharpness • Full-sized and aligned to the right edge of the menu The picture extends off of the right side of the screen. Sleep Picture 2. Press OK to cycle through the three display methods. 3. Press the Up Arrow button on the remote to the menu.
5 ADJUSTING THE PICTURE SETTINGS Your TV display can be adjusted to suit your preferences and viewing conditions. • Game mode reduces throughput delays and optimizes the picture settings for displaying game console output. Changes made while a preset picture mode is selected are automatically saved as a new custom picture mode (see Custom Picture Modes on pages 30 through 32). Automatically-created custom picture modes are given generic names, beginning with "Custom 1.
5 Adjusting the Advanced Picture Settings • Reduce Block Noise - Reduces pixelation and distortion for mpeg files. Select Off, Low, Medium, or High. To adjust the advanced picture settings: 1. From the PICTURE menu, use the Arrow buttons to highlight More, and then press OK. 2. Use the Arrow buttons to highlight Advanced Picture, and then press OK. The ADVANCED PICTURE menu is displayed. 3.
5 Adjusting the Professional Picture Settings Professional Picture Settings allow you to make precise adjustments to the picture and to create picture modes to save groups of picture settings. Adjusting the Color Tuner Settings The Color Tuner settings allow you to adjust the HSB color and 11 point white balance, turn color channels off for testing, and display color bar, flat, and ramp test patterns.
5 To turn color channels off and on: To adjust the 11 Point White Balance settings: 1. From the PROFESSIONAL PICTURE menu, use the Arrow buttons to highlight Color Tuner, and then press OK. The Color Tuner menu is displayed. 1. From the Color Tuner menu, use the Arrow buttons to highlight Color Tuner, and then press the Left/Right Arrow buttons until the 11 Point White Balance menu is displayed.
5 To show or hide the Color Bar Test Pattern: To show or hide the Flat Test Pattern: 1. From the Color Tuner menu, use the Arrow buttons to highlight Color Bar Test Pattern, and then press the Left/ Right Arrow buttons until the Color Bar Test Pattern menu is displayed. 1. From the Color Tuner menu, use the Arrow buttons to highlight Flat Test Pattern, and then press the Left/Right Arrow buttons until the Flat Test Pattern menu is displayed. Flat Test Pattern Color Bar Test Pattern Off Off 2.
5 To show or hide the Ramp Test Pattern: Creating a Custom Picture Mode 1. From the Color Tuner menu, use the Arrow buttons to highlight Cvolor Tuner, and then press the Left/Right Arrow buttons until the Ramp Test Pattern menu is displayed. Custom picture modes allow you to save a group of custom settings for various viewing conditions and video sources. • Custom picture modes can be created manually.
5 Renaming a Custom Picture Mode Locking a Custom Picture Mode Automatically-created custom picture modes are given generic names, beginning with "Custom 1," but you can rename custom picture modes to make them easy to remember. Custom picture modes can be locked with a unique passcode to prevent accidental changes to their settings. To rename a custom picture mode: 1. Set the Picture Mode to an existing custom setting. See Adjusting the Picture Settings on page 25. 2.
5 Deleting a Custom Picture Mode Custom picture modes that are no longer needed can be deleted. Inputs assigned to a deleted custom picture mode become assigned to the Calibrated picture mode. To delete a custom picture mode: 1. From the PROFESSIONAL PICTURE menu, use the Arrow buttons to highlight Delete Picture Mode, and then press OK. The DELETE PICTURE MODE window is displayed. To delete the user created Custom 1 picture mode, select the Delete button. Delete Cancel 2.
5 ADJUSTING THE AUDIO SETTINGS the left and right speakers. • Lip Sync - Adjusts the synchronization between the display image and the accompanying audio track. To adjust the audio settings: 1. Press the MENU button on the remote. The on-screen menu is displayed. 2. Use the Arrow buttons on the remote to highlight Audio and press OK. The AUDIO menu is displayed. 3.
5 Changing the Equalizer Settings Deleting the Custom Audio Mode The graphic equalizer has several pre-set modes and allows you to create one custom mode. To delete the custom audio mode that has been created: To select a pre-set audio mode: 1. Press the MENU button on the remote. The on-screen menu is displayed. 1. Press the MENU button on the remote. The on-screen menu is displayed. 2. Use the Arrow buttons on the remote to highlight Audio and press OK. The AUDIO menu is displayed. 2.
5 SETTING TIMERS Setting the Auto Power Off Feature This TV has several timers to save energy and can turn off the screen when the TV is only being used to play audio. To help save energy, your TV is set by default to turn off after 10 minutes without a video or audio signal. This feature can be deactivated. Setting the Sleep Timer To set the Auto Power Off feature: When activated, the TV’s sleep timer will turn the TV off after a set period of time. 1.
5 USING THE NETWORK CONNECTION MENU Changing the Manual Setup Settings Your TV is Internet-ready, featuring both an Ethernet port and built-in high-speed Wireless-N. Connecting to a Wireless Network To connect to a wireless network whose network name (SSID) is being broadcast: If your TV is connected to a network with an Ethernet cable, you will not see the wireless network connection menu. You must disconnect the Ethernet cable to set up a wireless network connection. 1.
5 Finding MAC Addresses for Network Setup Connecting to a Hidden Network The security settings on your router may require you to enter the TV's MAC address in the router's settings. To connect to a wireless network whose network name (SSID) is not being broadcast: To find the TV's MAC address: 1. From the NETWORK menu, highlight Hidden Network and press OK. The ENTER ACCESS POINT NAME screen is displayed. 1. From the NETWORK menu, highlight Manual Setup and press OK.
5 SETTING UP THE TUNER Selecting a Tuner Input You can use the TV’s Tuner menu to: Select the type of tuner input you will be using.You can select either Antenna (Over-the-air) or Cable (Out-of-the-wall) connections. • Select a Tuner Input • Perform an Auto Channel Scan 1. From the TUNER menu, highlight Tuner Mode and press OK. The TUNER MODE menu displays.
5 Adding New Channels To add a single new analog channel: Occasionally, you may need to add a new range of channels or add a new analog channel. You can do this by using the Partial Channel Search and Add Analog Channel options. This is quicker than scanning all possible channels. 1. From the TUNER menu, highlight Add Analog Channel and press OK. The ADD ANALOG CHANNEL menu is displayed. To add a range of new channels: 2.
5 Skipping Channels After a channel scan is completed, you may find that some channels are too weak to watch comfortably. There may also be some channels you do not want to view. You can remove these channels from the TV’s memory with the Skip Channel feature. Channels that have been removed with the Skip Channel feature can still be viewed if the channel is entered using the Number Pad. If you wish to completely block a channel from being viewed, use the parental controls.
5 LISTENING TO ALTERNATE AUDIO Changing the Digital Audio Language Changing the Analog Audio Language Some digital over-the-air (free), cable, and satellite channels broadcast programs in more than one language. The TV’s Digital Audio feature allows you to listen to audio in alternate languages. Some analog over-the-air (free) and cable channels broadcast programs in more than one language.
5 SETTING UP CLOSED CAPTIONING Changing the Appearance of Digital Closed Captions Your TV can display closed captions for programs that include them. Closed captions display a transcription of a program’s dialogue. Digital closed captions can be displayed according to your preference. See the diagram on the next page for an explanation of the parts of the closed caption area.
5 • Background Color - Change the color of the background directly behind the text. Typical choices include: • Background Opacity - Change the transparency of the background directly behind the text. • Opaque background, transparent window—Only a strip of background appears behind the text, expanding as the text appears. This is the typical "As Broadcast" mode. • Window Color - Change the color of the closed captioning box.
5 RENAMING DEVICES ON THE INPUT MENU Inputs can be renamed to make them easier to recognize on the Input menu (see Changing the Input Source on page 23). For example, if you have a DVD player connected to the Component input, you can rename that input to display “DVD Player.” To change the name of an input: Input Port VIZIO 1. Press the MENU button on the remote. The on-screen menu is displayed. 2. Use the Arrow buttons on the remote to highlight Devices and press OK. The DEVICES menu is displayed.
5 CHANGING THE TV SETTINGS Viewing System Information To view a summary of the TV settings: Using the System menu, you can: • View system information • Set up parental controls • Change the on-screen menu language SYSTEM Wide System Information Menu Language Parental Controls • Adjust the CEC settings CEC Power Indicator Zoom Normal Panoramic 2. Use the Arrow buttons on the remote to highlight System and press OK. The SYSTEM menu is displayed.
5 Using the Parental Controls Enabling or Disabling Program Ratings The TV’s parental controls allow you to prevent the TV from displaying certain channels or programs without a password. To manage program content according to its rating, you must enable the Program Rating feature.
5 Blocking and Unblocking Content by Rating A channel may sometimes broadcast programs that are meant for children, and at other times broadcast programs that are meant for mature audiences. You may not want to block the channel completely using a channel lock, but you may wish to block certain programs from being viewed. When this is the case, you can use the TV’s Rating Block feature to block content based on its rating. For a list of content ratings and their definitions, visit www.tvguidelines.org.
5 Changing the On-Screen Menu Language Setting the Time & Local Settings Your TV can display the on-screen menu in different languages. To ensure the correct time is displayed when you press the INFO button, set the TV’s time zone: To change the on-screen menu language: 1. Press the MENU button on the remote. The on-screen menu is displayed. 2. Use the Arrow buttons on the remote to highlight System and press OK. The System menu is displayed. 1. Press the MENU button on the remote.
5 Adjusting the CEC Settings Turning the Power Indicator On or Off The CEC function on your TV enables you to control HDMI-connected devices with the included remote without any additional programming. The Power Indicator on the front of your TV normally does not glow when the TV is on. You can change this setting if you prefer the light to be on. To turn the Power Indicator Light on or off: Not all HDMI devices support CEC. See your device’s user manual for details. 1.
5 USING THE RESET & ADMIN MENU USING THE GUIDED SETUP MENU You can use the TV’s Reset & Admin menu to restore the TV to its factory default settings. Using Guided Setup Restoring the TV to Factory Default Settings All of the on-screen menu settings can be reset to the factory defaults. If you restore the TV to the factory default settings, all changes you have made to the settings will be lost! The TV’s Setup App can be used to easily set up the TV tuner or to connect the TV with your network.
5 USING THE INFO WINDOW The Info Window can be displayed by pressing the INFO or GUIDE button on the remote: • Press the INFO or GUIDE button one time to display channel, input, and display information. • Press the INFO or GUIDE button two times to display the program title, program rating, audio information, and the start and end times of the program.
6 Using the USB Media Player USING THE USB MEDIA PLAYER Playing USB Media The USB Media Player allows you to connect a USB thumb drive to your TV and play music, video, or photos. To play your USB media: 1. Connect your USB thumb drive to the USB port on the side of the TV. 2. Use the Arrow buttons to highlight Yes and press the OK. If the dialog box disappears, press the V button on the remote to go the next step. 3. Use the Arrow buttons to highlight your USB device in the list and press OK. 4.
6 Back Button Highlight this button and press OK to return to the previous screen. Connected Sources Displays connected USB devices. VIZIO Progress Bar Displays the duration of the currently-playing song. The blue bar will lengthen as the song progresses. Album Art If included on the USB thumb drive and associated with your music, the album art will display here.
6 Back Button Highlight this button and press OK if you would like to return to the previous screen. Connected Sources Displays connected USB devices.
6 Folder Contents Back Button Highlight this button and press OK if you would like to return to the previous screen. Connected Sources Displays connected USB devices. VIZIO Photo Current Folder Displays the folder path. This area displays the contents of the currently selected folder. You can browse files and folders using the Arrow and OK buttons on the remote. VIZIO_2GB\Photo\root USB1: Current Folder root Start Fullscreen Slideshow A.jpg B.jpg C.jpg D.jpg E.jpg F.jpg H.jpg I.
7 Using VIZIO Internet Apps Plus® (V.I.A. Plus) Vizio Internet Apps Plus (V.I.A. Plus) delivers popular online content to your TV. V.I.A. Plus features a selection of Apps that allow you to watch movies and TV shows, listen to music, get weather and news information, and more–all on demand. Using the Hot Keys Use the following colored buttons on the remote to perform common V.I.A. Plus tasks: • Yellow - Not used. • Blue - Change the size of the main display window when an App is open in the sidebar.
7 USING THE FULLSCREEN V.I.A. PLUS APPS WINDOW The Fullscreen V.I.A. Plus Apps Window allows you to add and store Apps. The Apps on the first page are displayed in the Dock and Apps on additional pages can be moved to the Dock. 4. To exit from an open App or to close the App Dock, press the Exit button on the remote. To open the Fullscreen V.I.A. Plus Apps Window: 1. Press the V Button on the remote twice. 2. Highlight an App by using the Arrow buttons on the remote. 3.
7 FULLSCREEN V.I.A. PLUS APPS WINDOW OVERVIEW The Fullscreen V.I.A. Plus Apps Window allows you to add, delete, and organize your Apps. The My Apps tab displays Apps that are already installed on your TV. The Apps on the first page are displayed in the V.I.A. Plus App Dock. Apps with a small lock icon in the right-hand corner cannot be deleted. • All Apps: Displays every App that is available for download.
7 CUSTOMIZING THE V.I.A. PLUS APPS WINDOW Deleting an App from the My Apps Tab You can add, delete, and move Apps around on your My Apps tab for a custom look and feel. Adding an App to the My Apps Tab To delete an App from your TV: 1. Use the Arrow buttons on the remote to highlight the App you wish to delete. 2. Press and hold the OK button. The following options appear: To add an App to your TV: 1. Use the Arrow buttons on the remote to highlight the App you wish to add.
7 Moving an App in My Apps You can organize your Apps on your My Apps tab by moving them where you want. To move the Apps on your My Apps tab: 3. Use the Arrow buttons to move the App to the desired location and press OK to place the App. When you can move the App, it appears as shown below. Note: App location, appearance, and availability subject to change without notice. 1. Use the Arrow buttons on the remote to highlight the App you wish to move. 2. Press and hold the OK button.
Troubleshooting & Technical Support A DO YOU HAVE QUESTIONS? LET US HELP! YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORT The VIZIO support team is highly trained and is based in the United States. We can help with: • New Product Setup • Connecting Your Devices • Technical Problems • And More Phone: (877) 878-4946 (TOLL-FREE) Email: techsupport@VIZIO.com Web: www.VIZIO.
A The TV displays “No Signal.” • Press the INPUT button on the remote control to select a different input source. There is no sound. • Press Volume Up on the remote control. • Press the MUTE button on the remote to ensure mute is off. • If you are using cable TV, satellite, or an antenna connected directly to the TV, scan for channels. See Scanning for Channels on page 38. • Check the audio settings. See Adjusting the Audio Settings on page 33. • Ensure the speakers are set to On.
A The TV has pixels (dots) that are always dark or always lit. • Your HDTV is precision-manufactured using an extremely high level of technology. However, sometimes pixels may not display correctly. These types of occurrences are inherent to this type of product and do not constitute a defective product. The buttons on the remote aren’t working. • The Red and Yellow colored buttons below the V button do not work with this television. • Ensure you are only pressing one button at a time.
B Specifications E231i-B1 E241i-B1 23” Class 24” Class 22.95” 23.54” 21.49” x 14.67” x 4.43” 21.49” x 13.94” x 2.11” 21.55” x 14.55” x 4.39” 21.55” x 13.80” x 2.11” 6.39 lbs 6.17 lbs 7.05 lbs 6.83 lbs LED LED 60 Hz 60 Hz 1366 x 768 1920 x 1080 0.372 mm (H) x 0.372 mm (V) 0.271 mm (H) x 0.
B E231i-B1 E241i-B1 Audio Outputs: 3.5mm Analog Stereo Output 3.5mm Analog Stereo Output OSD Language: English, Spanish, French English, Spanish, French XRT112 XRT112 Certifications: UL, CUL, FCC Class B, HDMI (CEC, ARC), Dolby Digital Plus UL, CUL, FCC Class B, HDMI (CEC, ARC), Dolby Digital Plus Compliance: Energy Star 6.0 Energy Star 6.0 120V @ 60 Hz 120V @ 60 Hz Power Consumption: 20W 25.
C Limited Warranty ON PARTS AND LABOR Covers units purchased as new in United States and Puerto Rico Only. VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one (1) year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion.
D Legal & Compliance FCC Class B Radio Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
D VIZIO Internet Applications Disclaimer VIZIO SOFTWARE LICENSE AGREEMENT VIZIO Internet Applications (“VIA”) affords the opportunity to access third party Internet product offerings or services (“VIA Services”) on certain VIZIO TVs. The VIA Services accessible herein are provided as per our agreement with these third parties. These agreements are subject to change, interruption, suspension (including termination) at any time and for various reasons.
D related information, including but not limited to information about your use of the VIZIO Software, the VIA Services, content viewed and attached peripherals, products or services purchased, that is gathered periodically to facilitate the provision of software updates, product support and other services to you, including additional or different VIA Services related to the VIZIO Software and to verify compliance with the terms of this License Agreement.
D AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY BY JURISDICTION. 11. Disclaimer of Warranties. YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT USE OF THE VIZIO SOFTWARE AND VIA SERVICES (AS DEFINED ABOVE) IS AT YOUR SOLE RISK AND THAT THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY AND EFFORT IS WITH YOU.
