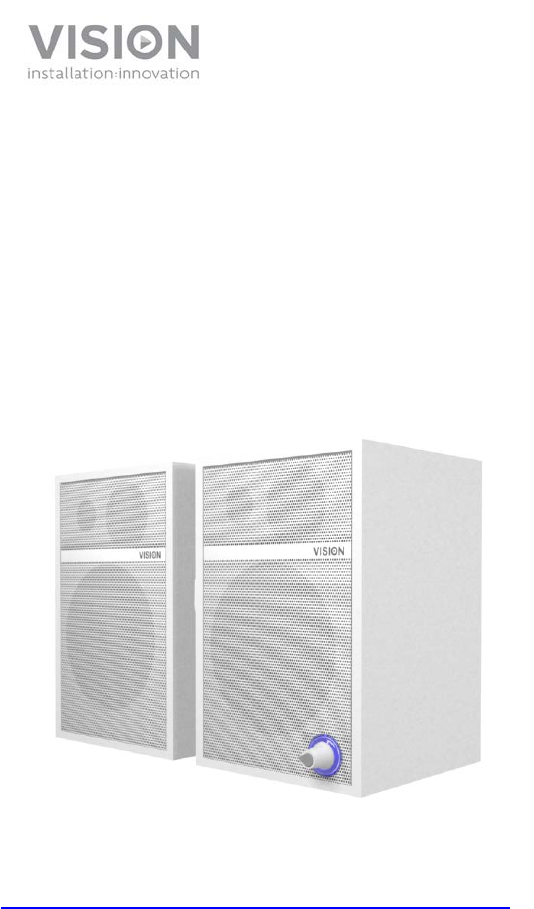

SP-1400P POWERED SPEAKERS OWNERS MANUAL www.visionaudiovisual.
DECLARATION OF CONFORMITY Where applicable Vision products are certified and comply with all known local regulations to a ‘CB Certification’ standard. Vision commits to ensure all products are fully compliant with all applicable certification standards for sale in the EU and other participating countries. The product described in this owner manual is in compliance with RoHS (EU directive 2002/95/EC), and WEEE (EU directive 2002/96/EC) standards.
USE ONLY DOMESTIC AC OUTLETS Connecting the unit to an outlet supplying a higher voltage may create a fire hazard. HANDLE THE POWER CORD WITH CARE Do not disconnect the plug from the AC outlet by pulling the cord; always pull the plug itself. Pulling the cord may damage it. If you do not intend to use your unit for any considerable length of time, unplug the unit. Do not place furniture or other heavy objects on the cord, and try to avoid dropping heavy objects on it. Do not tie a knot in the power cord.
INSTALLATION 1. FIT BRACKETS TO WALL Position brackets over load-bearing studs and use appropriate screws to fix brackets to wall. Ensure they are level. NOTE: Do not position the top of bracket closer than 140mm to ceiling. 2. FIT LOUDSPEAKERS TO MOUNTS Lower loudspeakers onto brackets as shown.
3. CONNECT LOUDSPEAKERS TOGETHER Use the included speaker cable as shown on previous page. If cable provided is not long enough use unshielded speaker cable with gauge of 0.75mm or higher. 4. CONNECT INPUTS To the minijack and/or phono connectors on the rear panel. Input connectors Figure-8 (C7) Power Socket 5. CONNECT POWER Connect C7 (figure-8) power into rear of master loudspeaker.
. TIGHTEN BRACKET SCREWS Set desired angle and lock off side screws.
OPERATION 1. TURN ON/OFF Press the volume dial on the front of the master loudspeaker to bring out of standby. To turn off press-and-hold the dial. When turned on the product will resume the last input and volume level. When mains power is activated the unit will come out of standby automatically. Active Loudspeaker (Contains amplifier) Slave Loudspeaker Volume Dial Long Push = on / off Short push = input 1 / input 2 2. SWITCH INPUTS Short-press the volume dial to change input. 3.
TROUBLESHOOTING If your system is not operating properly, please refer to the following information. If the problem persists, disconnect from power and contact your AV reseller immediately. Problem Correction No power light Press volume control. Check power source and power input cable. Check fuse in power cable plug. Power light on but no sound Turn the volume dial on the master loudspeaker up. Hum or noise Check that all input cables shielded properly.
SPECIFICATIONS PRODUCT DIMENSIONS: 185 x 148 x 250 mm (length x width x height for each speaker) PRODUCT WEIGHT: 4.1 kg / 9.0lb (per pair) CONSTRUCTION MATERIAL: MDF COLOUR: White TECHNICAL DETAILS: Amplifier Output: 2 x 30w watts (RMS) Woofer: 4″ Tweeter: 1.5″ Silk Input 1: Minijack (3.
WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale. If the product is DOA (dead on arrival), you have 21 days from purchase date to notify the national distributor via your AV reseller.
