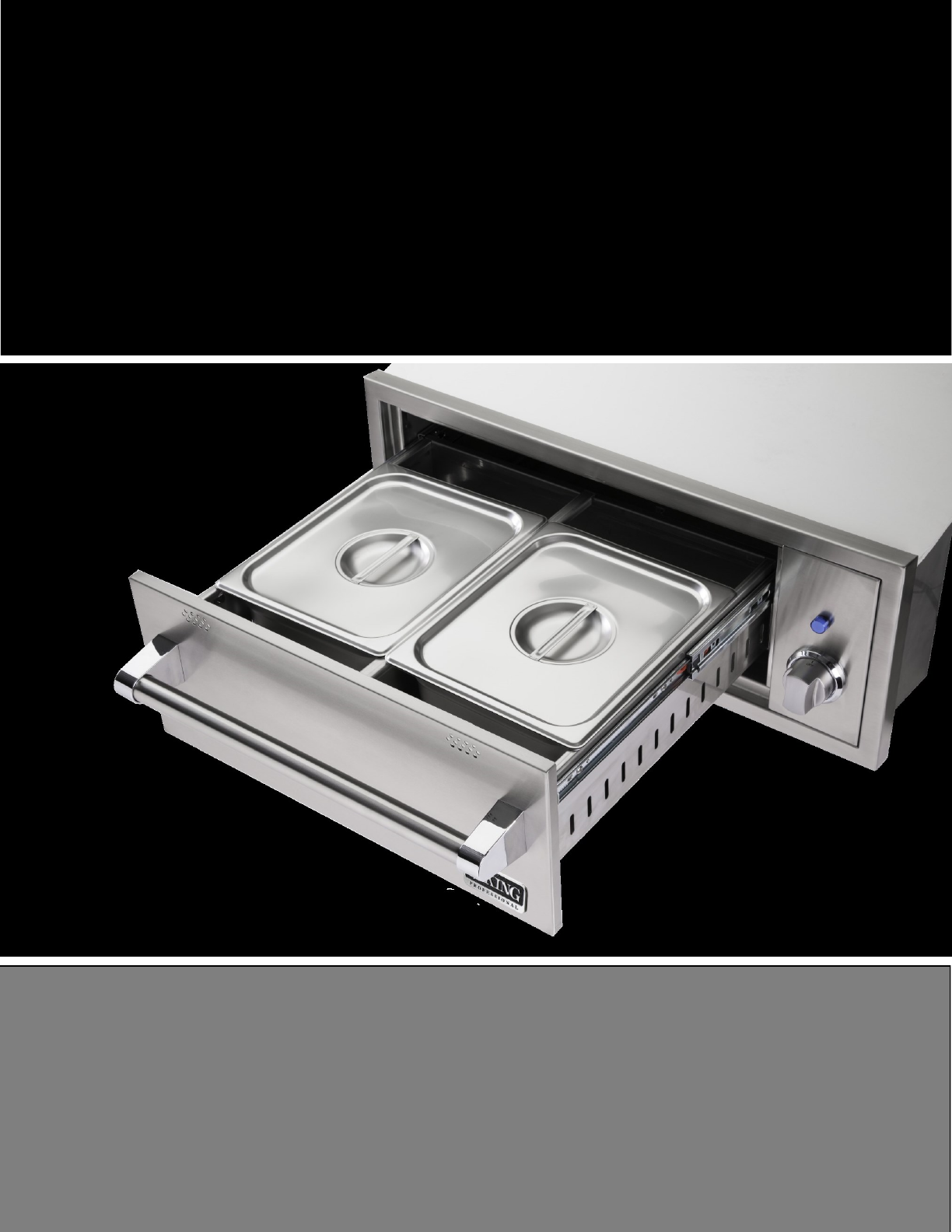

Professional Warming Drawer and Warming Drawer Cabinet Care & Use/Installation Instructions Models: (C)VQEWD5300SS (C)VQEWD5420SS
IMPORTANT SAFETY INSTRUCTIONS WARNING: Read this manual carefully and completely before using your warming drawer to reduce the risk of: 1. Fire 2. Burn hazard, personal injury or property damage 3. Unapproved installation or service This product is designed for indoor or outdoor installation. Improper installation, adjustment, alteration, service or maintenance can cause personal or property damage and may void the warranty. Read this manual thoroughly before installation, use or service.
Electrical Information WARNING: ELECTRICAL GROUNDING 1. Warming drawer must be installed in accordance with the local electric code or, in the absence of local codes, the latest edition of the National Electrical Code ANSI/NFPA No. 70, or the Canadian Electrical Code CGA 1.6b 2005. 2. Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor appliance. This type of outlet should be installed by a qualified electrician. 3.
Warming Drawer Installation (C)VQEWD5300SS Typical Island Installation ((C)VQEWD5300) 1) Provide a 10” x 28 ½” cutout to the front of the island. 2) Provide support beams using metal studs. 3) Pull the drawer out of the drawer casing to gain access on the mounting holder at the front of the casing. 4) Insert the drawer casing into the island opening. 5) Secure the drawer casing with screws at the inside front top and bottom, using the pre-punched mounting holes.
Warming Drawer Cabinet Installation (C)VQEWD5420SS Typical Island Installation ((C)VQEWD5420) 1) 2) 3) 4) 5) Provide a 19 3/8” x 40 ¼” cutout to the front of the island. Provide support beams using metal studs. Pull the drawer out of the drawer casing to gain access on the mounting holder at the front of the casing. Insert the drawer casing into the island opening. Secure the drawer casing with screws at the inside front top and bottom, using the pre-punched mounting holes.
Warming Drawer Features (C)VQEWD5300SS Item Description 6 Part Number Item Description Part Number 1 Heating Element 32624 8 Handle Bracket 36007 2 Thermostat 33483 9 Drawer Assembly 80826 3 Heat on Light 32630 10 Steam Pan Guide 32603 4 Chrome Bezel 36001 11 Steam Pan 32640 5 Control Knob 36005 12 Steam Rack 31967 6 Roller Guides 32217 13 Steam Pan Lid 32633 7 Drawer Handle 30013 14 Power Cord (not pictured) 32623
Warming Drawer Cabinet Features (C)VQEWD5420SS Item Description Part Number Item Description Part Number 1 Heating Element 32624 8 Handle Bracket 36007 2 Thermostat 33483 9 Drawer Assembly 80826 3 Heat on Light 32630 10 Steam Pan Guide 32603 4 Chrome Bezel 36001 11 Steam Pan 32640 5 Control Knob 36005 12 Steam Rack 31967 6 Roller Guides 32217 13 Steam Pan Lid 32633 7 Drawer Handle 30013 14 Storage Drawer 80879 Item Description Part Number 15 Tank Drawer 801
Temperature Controls The temperature control dial is used to select the temperature of the warming drawer. The warming drawer should only be opened when adding or removing food. Continuous opening of the drawer allows warm air to escape and make the food colder. Do not use aluminum foil to line the drawer. It is an excellent heat insulator and will trap heat beneath it. This may affect the performance of the warming drawer and the interior finish.
Heating Instructions 1. Dry Heat a) The main function of the warming drawer is to maintain food at a desired serving temperature. b) Place previously prepared foods directly into the empty steam pans (no water) and set the moisture vent control. c) Set the temperature control dial. The heat-on blue indicator light will illuminate until the desired temperature is reached. 2. Moist Heat a) b) c) d) e) f) The warming drawer also seals moisture within the drawer to keep the food moist.
Trouble Shooting Guide and Obtaining Service Problem What To Do 1. Check if the unit is plugged in to an electrical outlet. 1. Warming drawer will not heat up. 2. Check to ensure the GFCI has not been tripped. 2. Heat-on indicator light does not illuminate. 3. Check if the temperature control dial is set properly. 4. Check if the circuit breaker has not been tripped. 1. Call Preferred Customer Service (888-845-4641) 2. Provide the following information: If service is required: a.
Viking Range, LLC Limited Warranty I. Limited Lifetime Warranty The stainless steel housing is warranted to be free from defects in material and workmanship when subjected to normal domestic use and service for the lifetime of the original purchaser. This warranty excludes surface corrosion, scratches, and discoloration which may occur during regular use. This warranty is limited to the replacement of the defective parts, with the owner paying all other cost including labor. II.
Viking Range, LLC Common Area Limited Warranty The Viking Range, LLC Limited Warranty covers residential installations only and is not-transferable to any other party. This ‘non-residential’ warranty applies when the product is installed in a common area where more than a single party has the rightful access to its use or in locations considered beyond normal residential use such as B&Bs, and private clubs.
Electrical Wiring Diagram 13
Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 For more information, please call: 1-888-845-4641 or visit www.vikingrange.com In the US or www.brigade.ca in Canada ©Viking Range, LLC. Made in the USA Viking Range, LLC. As product improvement is an ongoing process we reserve the right to change specifications and design without notice.
