Installation Manual

www.veclesusclub.com
How to Connect VS701MS
The Best Backup Camera System for Trucks

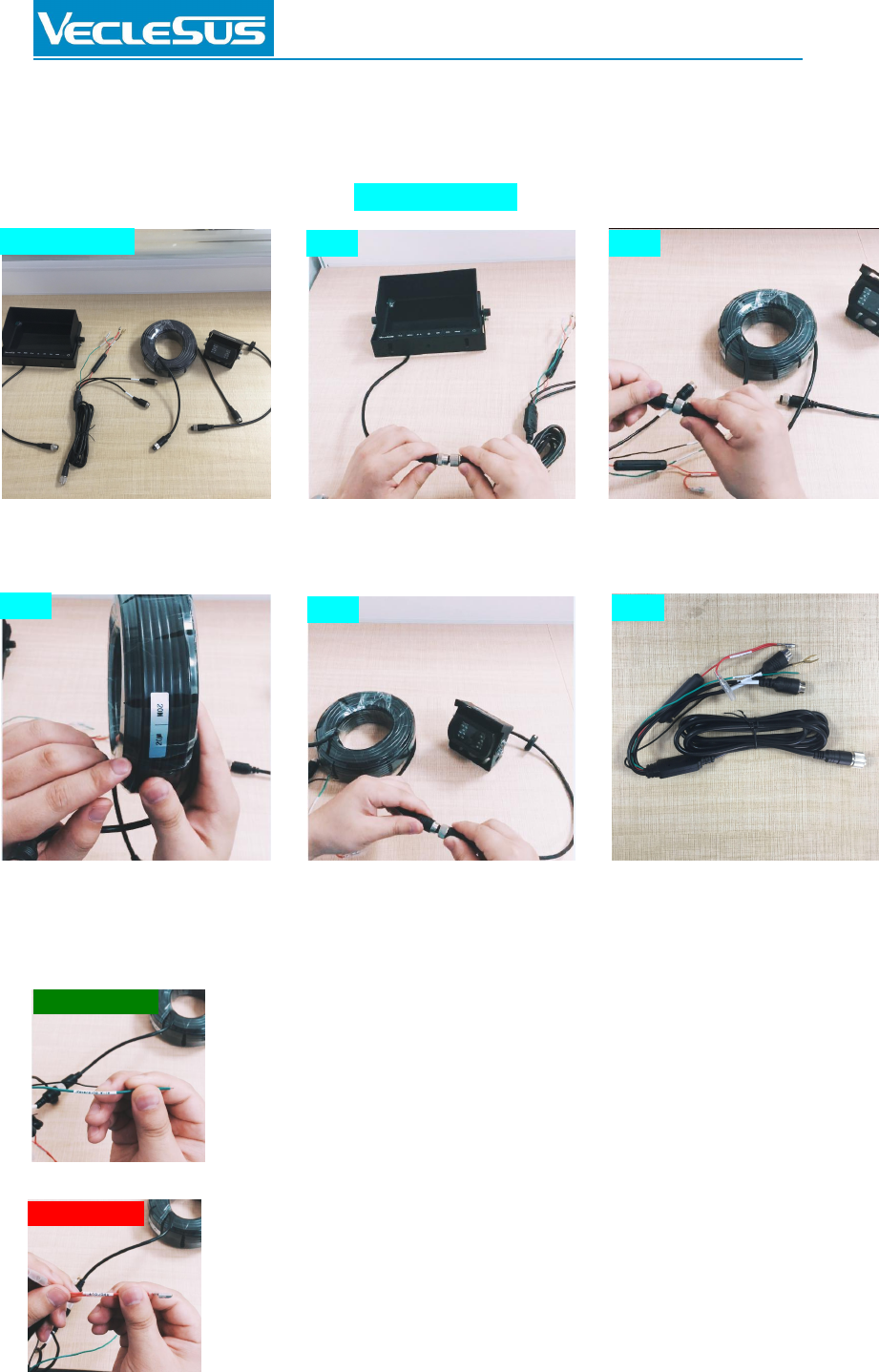

Wiring Steps
The main parts
Step 1
Step 3
Step 2
It’s easy to connect this backup
camera system
①Firstly, connect the power cord to
the monitor, don't forget to tighten it.
②Secondly, choose CH2 from the
other end of the power cable, then
connect to the extension cable
③The extension cord is about
66ft, it is suitable for most large
vehicle, I think you'll like it!
④Connect the 66ft extension
cable to the backup camera,
don't forget to tighten it.
⑤It’s important step to connect
this colored lines
Reversing Wire(The thin green line)
Step 4
Step 5
Just as its name implies, it needs to be connected to the reverse power, such
as reversing light, reverse gear power or any other wires which can get power
only reversing. I hope you could find this wire in your car.
Reversing Wire
power cable
Power Cable(The thin red line)
This wire needs to be connected to +12-24 V power supply, Many of the
lines in the center console are accessible, you'd better use a multimeter to
test if the voltage meets the requirement.
