Rugged Tablet PC T70C User’s Guide
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Features Platform: Intel® Cedar Trail Platform (N2600+NM10) GPU: Intel ATOM N2600 1.6GHz Dual core Chipset: Intel® NM10 Express Chipset System Memory: 2GB DDRIII 800 SO‐DIMMM Storage: ‐ 1 x 32G SATA Slim Half‐Size Solid State Disk LCD Panel: 7‐inch LED Backlight Screen 7“ XGA (1280x800) 400nits LCD, or 500nits LCD (option) Touch Panel 5‐wire Resistive Touch Screen Audio: ‐1 x High Quality Speaker (2W) ‐Internal Microphone : 1 x in front Bezel TPM: 1 x Compatible with TPM1.
Mechanical & Environmental Physical Characteristics : Dimension & Weight : Rugged Design Drop : 5ft drop (MIL-STD-810G Method 516.6 Procedure IV) METAL Vibration : Operating : MIL-STD-810G Method 514.6 Category 4 Fig 514.6C-1、C-2、C-3 Non-Operating : MIL-STD-810G Method 514.6 Category 24, Fig 514.
2D Symbologies: Data Matrix, PDF417, Micro PDF 417, Maxicode, QR, Aztec, EAN.UCC composite.

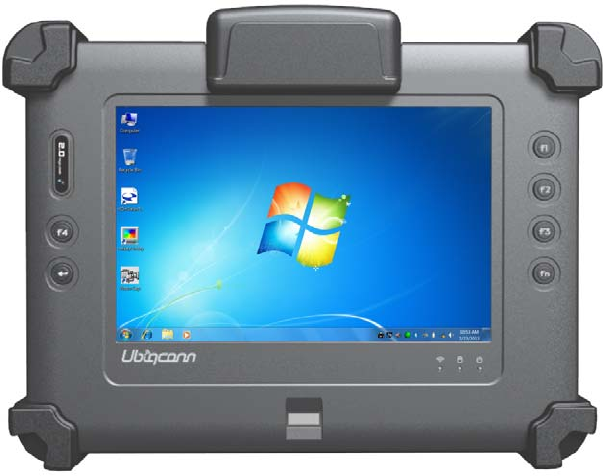

Getting to know your tablet Before starting to set up the T70C, get familiar with the locations and purpose of controls, connectors and I/O ports, which are illustrated in the figures below. When placed upright, the front panel of the T70C appears as shown in below.
Camera / 2 Mega-pixel (Front-facing) The built-in camera can be used as a communication device for allowing you to capture images, record videos, and have video chats. It is 2M pixels and can be used for transmitting live image through network for video conference. Camera / 5 Mega-pixel (Rear-facing) The built-in high resolution camera can be used as a communication device for allowing you to capture images, record videos, and have video chats.
3.5mm Headphone Jack Allows you to connect an external 3.5mm 4-conductor TRRS (stereo-plus-mic) headphone for personal listening and sound recording. MicroSD Card Slot The MicroSD (SDHC) card slot allows you to transfer/record video and pictures to your tablet, while adding extra storage capacity. Ethernet Port The 10/100Mbps Ethernet port allows you to connect to other computers/networks through a local area network (LAN).
Trigger Buttons (F1 / F4) Please press F1 or F4 function keys to trigger to scan the barcode when the optional barcode scanner snap-on module is installed. If your system does not install this module, these buttons can be programmable to execute specific software application. When you program your application, please write this directory as listed below into your configuration file, then the system will aware and execute this application. F1_EXE="c:\windows\explorer.
specific command. It provides you to adjust brightness, volume, launch webcam, switch monitor (via docking) and RF device ON/OFF. This user interface provides specific mobile utility to let you easily setup some helpful functions and aware the system status directly. This utility also let you adjust some function to fit the requirements, such as brightness and volume adjustment, webcam launch, monitor switching and RF device ON/OFF.
For battery capacity status: The T70C is equipped with one internal battery and one optional external battery. The battery capacity status shown below advises you, that only one internal battery is embedded with the system which is fully charged, and there is no 2nd optional battery installed in the system. If the system installs both the 1st internal battery and 2nd optional battery, the illustration shown below indicates its current charging status and capacity.
For RF status: The following RF status shows you that the system is equipped with Wi‐Fi, or Bluetooth functions. Either Wi‐Fi or Bluetooth function is operation in the T70C, if you want to close the function, please refer section for how to disable it. The following signal strength shows you that the Wi‐Fi function is connecting currently, the stronger the signal strength, the more scale will show on the bar. If there is no module in the system, there will be no status scale in the following status bar.
Brightness Control For brightness adjustment, press the Brightness icon. When you press it, the brightness control panel is appeared as follows: You can click or to reduce or increase the LCD brightness. Also, you can slide the scale bar to set the brightness. Volume Control For Volume adjustment, press the Volume icon.
incrementally. Also, you can slide the scale bar You can tick the Mute to set the audio volume. to mute the audio. Launch Webcam Utility For Webcam Launch, press the Webcam Or can access the Webcam icon to launch the Webcam utility. icon located on desktop. Monitor Switch For Monitor switch, press the Monitor Switch to pop‐up the selection bar for choosing the display mode within following four options.
screen and external display device. The resolution on these two display modes are same, it is not available to adjust the resolution on the external display mode. You can click Extend to display the different contents on the screen and external display device. You only can adjust the resolution on the external display device. You can click Projector only projector/monitor only.
an USB 2.0 compliant system. 1. Connect the external device to the system. 2. The USB ports support hot plug-in connections. Install the device driver before using the device. Using the External Audio System At the right side of your Tablet PC, you will find the headphone jack for connecting 3.5mm 4‐conductor TRRS (stereo‐plus‐mic) headphone jack. To connect to a headphone jack: 1. Locate the headphone jack that you want to use to the target device. 2.
Function Key (s) Function Description To save changes and exit the BIOS SETUP UTILITY To jump to the Exit Screen or exit the current screen Main Screen Setup Utility When you enter the BIOS SETUP UTILITY, the Main screen will appear and display the system overview. The Standard CMOS Setup screen is displayed above. Each feature may have one or more option settings.
Board Version The system will automatically displays the information of PCB version of mainboard. Processor Type The system will automatically displays the information of Processor Type and speed. System Memory Speed The system will automatically displays the information of System Memory Speed. L2 Cache RAM The system will automatically displays the information of L2 Cache RAM. Total Memory The system will automatically displays the information of Total Memory.
Set Supervisor Password This field let you set or clear the Supervisor account’s password. Set User Password This field let you set or clear the User account’s password. TPM Support Lets you activate or de-activate the TPM function by selecting Enabled or Disabled option. (For the non-TPM SKU, this item will display “no detected”.) Boot Management Setup This page allows you to set the search drive sequence where the system will try to boot up first.
Exit Control Exit Saving Changes When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the BIOS SETUP UTILITY. Exit Discarding Changes When you select this option, it will pop-out the following message, “Discard changes and exit setup?”. Select [OK] to exit the BIOS SETUP UTILITY without saving any changes.
Maintaining the LCD Display Only operate touch panel using a polyacetal stylus pen (tip R0.8 mm or more) or a finger. Do not scratch the surface of the screen with any hard objects. Do not operate touch panel with hard or sharp tips such as a ball point pen or a mechanical pencil as it would make permanent scratch to the surface of touch screen. Do not spray corrosive liquid directly on the screen or allow excess liquid to drip down inside the device.
