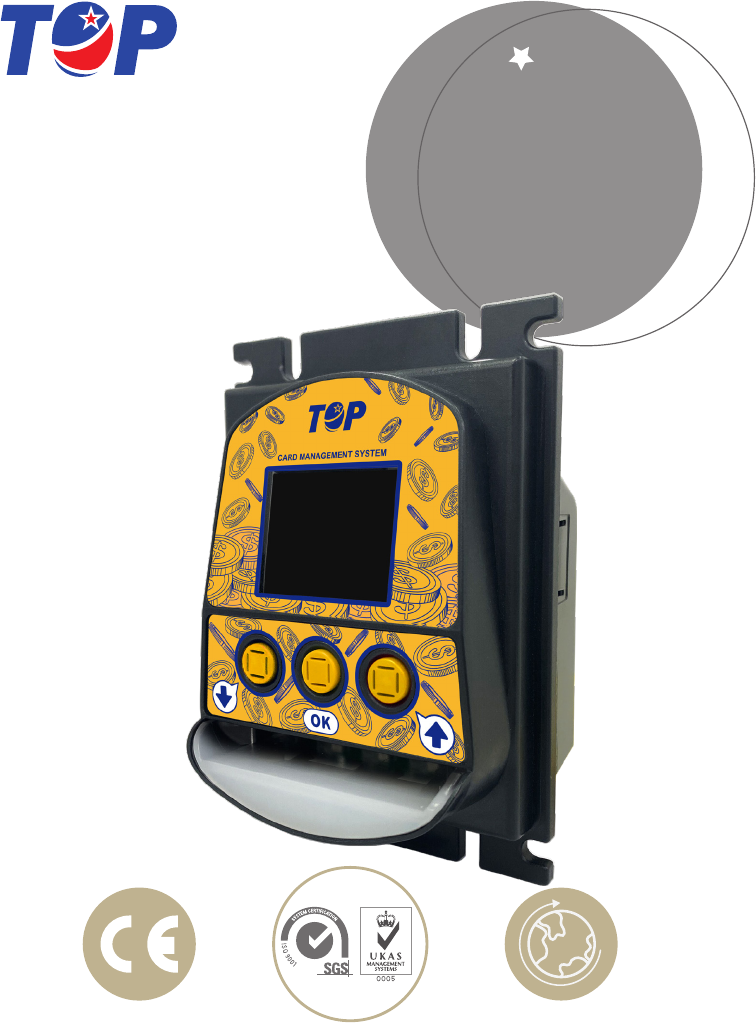

CMS505 1. Product Introduction 1-1. Overview The card management system can save labor costs, and reduce auditing stress. All top-ups and cash settlements are completed at the cash register to avoid unnecessary cash handling. This solves the problem of miscalculation and difference between the cash and computer accounts of other branches, and decrease the time cost of checking and reconciling. Easy to install and use, no need for network cable connection between devices.
Card Reader 2. Product Specifications 2-1. General Specifications Communication RS232/PULSE Interface Contact card(ISO 7816)、non-contact card Card type (Mifare1 S70) Installation site Indoors 2-2. Electronic Specifications Input power +12V DC Standby:1.5~1.6W Power Consumption Working:2.3W Max.:2.5W Ambient: 0~60 Temperature Range (° C) Storage:-10~80 Humidity:20~70%RH(no condensation) 2-3. Machine Specifications Weight 229 ±12g Dimension 133 x 92 x 75 mm Screen Size 1.8 Inch Screen 3.
CMS505 4. Product Dimension 84.1 3.311 133.1 5.24 36.5 1.437 115.9 4.563 117.3 4.618 51 2.008 4 .157 75.1 2.957 51 2.008 84.1 3.311 92.2 3.
Card Reader 5. Installation Instructions 5-1. Board description 1. Dig holes according to the recommended shape and size. 105.6 4.157 136.6 5.378 20 .787 20 .787 136 5.354 136.6 5.378 94 3.701 20 .787 20 .787 110 4.331 6 94 3.701 6 .23 105.6 4.157 4 孔* 2. Put the CMS505 into the iron frame according to the direction shown in the figure, and lock the nut.
CMS505 3. Put the CMS505 into the board according to the direction shown in the figure and lock the nut. Nuts CMS505 5-2. iron plate description board 1. Put the CMS505 into the stud on the iron plate according to the direction shown in the figure, and lock the nut to complete.
Card Reader 6.
CMS505 7. Wiring Connector Interface Voltage Use J2 Power +12V DC Power Cable WELPower Power +12V DC R7U02 Extension RS232/ CN4 Data Transfer UART Wire WEL-R7U02 Pag.
Card Reader WEL-R7U02 PIN NO COLOR PIN DEFINE PIN NO COLOR PIN DEFINE PIN1 YELLOW NC PIN1 RED +12V DC PIN2 GREEN NC PIN2 ORANGE GND PIN5 RED +12V DC PIN3 YELLOW NC PIN7 BLUE NC PIN4 GREEN NC PIN8 PURPLE NC PIN5 BLUE NC PIN9 ORANGE GND PIN6 PURPLE NC 8
CMS505 CU-R961-1 PIN NO COLOR PIN DEFINE PIN1 YELLOW NC PIN2 GREEN NC PIN5 RED +12V DC PIN7 BLUE NC PIN8 PURPLE NC PIN9 ORANGE GND 9
Card Reader WEL-R7U06 PIN NO COLOR PIN DEFINE PIN NO PIN DEFINE PIN1 BLUE GND PIN2 TXD PIN6 WHITE VCC PIN3 RXD PIN7 BLACK RXD PIN5 GND PIN8 PURPLE TXD 10
CMS505 2WIR-CP2102N--00 4 3 2 1 PIN NO PIN DEFINE PIN NO COLOR PIN DEFINE PIN1 GND PIN1 BLUE GND PIN2 USB DP PIN6 WHITE NC PIN3 USB DM PIN7 BLACK RXD PIN4 USB +5V PIN8 PURPLE TXD 11 1 2 7 8
Card Reader 2WIR-CMS3000C-00 1 2 3 4 6 5 7 8 9 10 11 12 PIN NO COLOR PIN DEFINE PIN NO COLOR PIN DEFINE PIN1 BLACK GND PIN7 BLUE PAY- PIN2 BROWN NOTE PIN8 WHITE TICKET_IN PIN3 GREEN PAY+ PIN9 PURPLE HOP_OUT PIN4 ORANGE TICKET_OUT PIN10 GRAY METER_OUT PIN5 YELLOW HOP_N PIN11 PINK INHIBIT_IN PIN6 RED +12V DC PIN12 WHITE/GREEN CREDIT_OUT 12
CMS505 2WIR-CMS100G1-0B PIN NO COLOR PIN DEFINE PIN1 BLACK GND PIN2 RED +12 DC 13
2WIR-CMS100H1-0A PIN NO COLOR PIN DEFINE PIN NO COLOR PIN DEFINE PIN1 YELLOW GND PIN1 YELLOW GND PIN7 RED RXD PIN7 BLACK TXD PIN8 BLACK TXD PIN8 RED RXD
CMS505 8. Function Description Setting Button ↓ ↑ ok 8-1. Setting and Display 1. ok Button : Open points, Set value confirmation, service request(press and hold 3 second ) 2. ↓ Button: Scroll down/sub 3. ↑ Button: Scroll up/add 4. Setting Button : Setting mode 8-2.
Card Reader 8-2-1. GAME 1. Mode : Hopper or Pulse mode 2. Play : Key in 3. Level : Signal level 8-2-2. Signal Signal time width setting, units in ms 8-2-3. System 1. Card key : Card Key Setting 2. Version : Version Check 3.
CMS505 8-3.
Card Reader 9. Troubleshooting Message Card limit Version Err Game no link Mode error No link Write Error Narrative Preventive action Card used over 100K Replace card times Download the Firm.
