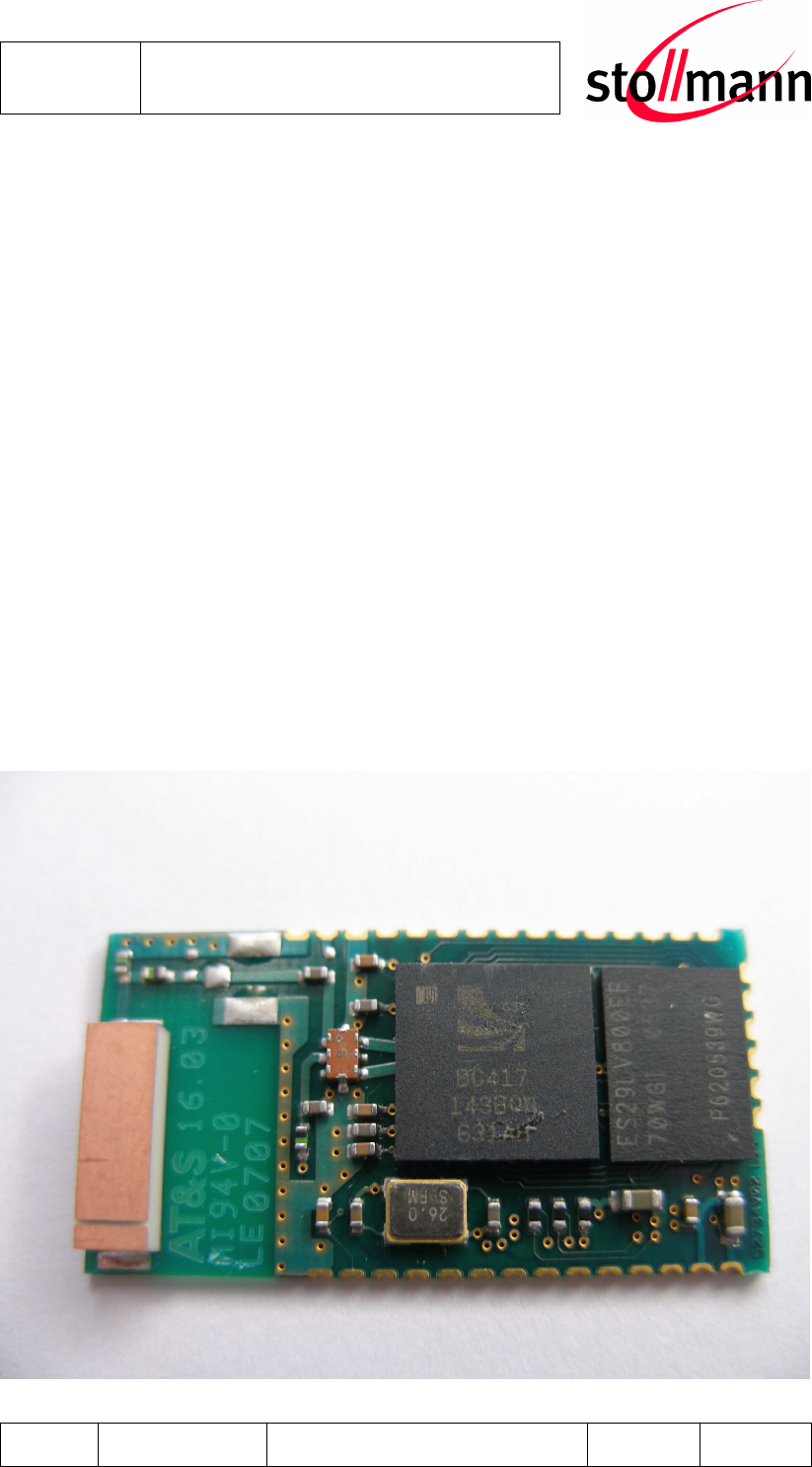

BlueMod+B20 Stollmann Hardware reference E + V GmbH BlueMod+B20 Hardware reference Author: bg Date of Saving: 28.03.07 Ref: BlueMod+B20_HWreference_V101.doc Revision: 1.
BlueMod+B20 Stollmann Hardware reference E + V GmbH Note This device was developed for the purpose of communication in an office environment. It is intended solely for our industrial clients for physical integration into their own technical products after careful examination by experienced technical personnel for its suitability for the intended purpose. The device was not developed for or intended for use in any specific customer application.
BlueMod+B20 Stollmann Hardware reference E + V GmbH Table of contents 1 Introduction........................................................................................................ 6 1.1 Feature Summary ......................................................................................... 6 1.2 Applications .................................................................................................. 6 1.2.1 Cable Replacement Serial Point-to-point........................................
BlueMod+B20 Stollmann Hardware reference E + V GmbH 4.2.2.1 5 SPP Pin Configuration .................................................................. 19 Electrical Characteristics.................................................................................. 20 5.1 Absolute Maximum Ratings ........................................................................ 20 5.2 Electrical Requirements .............................................................................. 20 5.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 8.3 RoHS Declaration ....................................................................................... 32 9 Related Documents ......................................................................................... 32 10 Ordering Information..................................................................................... 32 11 Life Support Policy........................................................................................
BlueMod+B20 Stollmann Hardware reference E + V GmbH 1 Introduction This Hardware Reference Guide documents how the BlueMod+B20 can be integrated into customer systems. It addresses developers of hardware environments for the BlueMod+B20. For detailed information about software interfaces refer to the software reference manual. 1.1 Feature Summary • Bluetooth specification V2.0+EDR (Enhanced Data Rate) • CSR BlueCore4-External inside • Complete Co-location and Co-existence with 802.
BlueMod+B20 Stollmann Hardware reference E + V GmbH Bluetooth RS-232 BlueMod +B20 1.2.2 BlueRS+ Control Unit Cable Replacement Multipoint Since several devices may be connected with a master device via Bluetooth, several end devices can also be multiplexed via Bluetooth. This adaptation is shown below for a desktop device.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 1.2.4 PC Client BlueMod+B20 as Bluetooth Client can establish connections with other Bluetooth interfaces, e.g. in PCs. oth Blueto BlueMod+ B20 PCMCI A BluePCMCIA+ USB BlueUSB+ Author: bg Date of Saving: 28.03.07 Ref: BlueMod+B20_HWreference_V101.doc PC Revision: 1.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 2 Block Diagram BlueMod+B20 onboard antenna 26MHz BlueCoreTM 4 External Flash 8Mb 3.3V Combo Filter VCC 1 RESET 4 SPI 4 UART 4 PCM 12+2 PIO USB 2 GND Figure: BlueMod+B20 block diagram Author: bg Date of Saving: 28.03.07 Ref: BlueMod+B20_HWreference_V101.doc Revision: 1.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 3 Application Interface 3.1 Power Supply The BlueMod+B20 requires a power supply with the following characteristics: 3.3V ± 0.1V low noise (≤10mV) >80mA peak Due to the technological requirements and the pulsed radio transmission the supply needs to be fed by an ultra fast (response time ≤20µs) linear regulator placed as close as possible to the VSUP pin (22).
BlueMod+B20 Stollmann Hardware reference E + V GmbH 3.2 Reset The BlueMod+B20 is equipped with circuitry for generating Power Down Reset from the internal core voltage. A reset is generated when the core voltage falls below typically 1.5V and is released when it rises above typically 1.6V. Via Pin 31 an external reset is generated by holding RESET# at ≤ 0.3V for ≥ 5ms. It is strongly recommended to use external Power ON Reset circuitry, which holds RESET# at ≤ 0.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 3.3 Serial Interface The interface functionally corresponds to V.24 / RS-232 but has TTL-level. • Transmission speeds 1200 – 2764800 bps (asynchronous) • Character representation: 8 Bit, even/odd/no Parity, 1 or 2 stop bits • hardware flow-control with UART_RTS and UART_CTS (active low) RXD BlueMod+B20 Host TXD CTS RTS 3.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 3.5 I2C Interface PIO[8:6] can be used to form a master I2C interface. The interface is formed using software to drive these lines. Therefore, it is suited only to relatively slow functions i.e. EEPROM. +1.8V PIO[8] PIO[6] PIO[7] 2.2k 2.2k 2.2k 10nF VCC A0 WP A1 SCL A2 SDA GND Example EEPROM connection BluMod+B20 interfaces directly to EEPROM devices including the following: • • • • • • • • 3.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 3.7 PCM Interface PCM or Pulse Code Modulation is a sampling technique for digitising analogue signals. The PCM interface for voice applications is provided via the PCM_OUT, PCM_IN, PCM_CLK and PCM_SYNC pins. The PCM interface can act as master or as slave device. In master mode, clock frequencies of 128kHz, 256kHz or 512kHz can be generated, when using the internal 4MHz clock. In slave mode, clock frequencies up to 2048kHz are accepted.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 3.8.3 USB Self-Powered Mode In USB self-powered mode, the BlueMod+B20 is powered from its own power supply and not from the USB Vbus line. In order to detect when the USB Vbus line is powered up, the USB Vbus line is monitored by PIO4 through a voltage divider . BlueMod+B20 PIO2/USB-Pull_Up Rpu 1k5 USB_DP Rs 27R D+ USB_DN Rs 27R D- PIO4/USB_ON Rvb1 22k VBUS +3.3V Rvb2 47k GND VSUP Connections in self powered mode 3.8.
BlueMod+B20 Stollmann Hardware reference E + V GmbH BlueMod+B20 PIO2/USB-Pull_Up USB_DP Rs 27R D+ USB_DN Rs 27R D- L PIO4/USB_ON VBUS Regulator +3.3V C C GND VSUP Connections in bus powered mode 3.9 Serial Peripheral Interface BlueMod+B20 uses a 16-bit-data and16-bit-address Serial Peripheral Interface (SPI). This interface is used for configuration, firmware flash and debug purposes only. 3.9.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 4 Pin Description 4.1 Pin Numbering 35 GND 1 ANT GND 34 AIO0 33 AIO1 32 RESET 31 SPI_MISO 30 SPI_CSB 29 SPI_CLK 28 SPI_MOSI 27 UART_CTS 26 UART_TX 25 UART_RTS 24 UART_RX 23 VSUP 22 GND 21 2 GND PCM_SYNC 20 PCM_IN 19 PCM_OUT 18 PCM_CLK 17 USB_DP 16 USB_DN 15 3 PIO0 4 PIO1 5 PIO2 6 PIO3 7 PIO4 8 PIO5 9 PIO6 10 PIO7 11 PIO8 12 PIO9 13 PIO10 14 PIO11 Figure 4.1 BlueMod+B20 Pin Numbering Author: bg Date of Saving: 28.03.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 4.2 Pin Description 4.2.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 4.2.2 Application Specific Pin Description 4.2.2.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 5 Electrical Characteristics 5.1 Absolute Maximum Ratings Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “Electrical Requirements” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 5.4 Digital I/O VSUP = 3.3V, Tamb = 25°C Symbol Item Condition Limit Max Min Low-Level Input Voltage High-Level Input Voltage Low-Level Output Voltage High-Level Output Voltage Low -Level Output Current High-Level Output Current VIL VIH VOL VOH IOL IOH 5.5 Unit - 0.8 V 0.7xVSUP - V IOL = 4mA - 0.2 V IOH = -4mA VSUP-0.2 - V VOL = 0.55V - 4 mA VOH = 2.3V /100k PU VOH = 2.3V /10k PU - -4 mA AIO-Interface VSUP = 3.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 5.7 Power consumption and power down modes 5.7.1 HCI Configuration tbd 5.7.2 SPP Configuration The following values are approximate power consumption values in the different states: VSUP = 3.3V, Tamb = 25°C Condition Device Role Master Idle, all functions available, no 7- 25 Bluetooth link Bluetooth connected, no data 5 traffic Bluetooth connected, data 22 traffic 115 kbit/s Device in reset Author: bg Date of Saving: 28.03.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 5.8 RF performance Vcc = 3.3V , Tamb = +20°C, 50 Ω antenna Frequency [GHz] Unit Limit BT Min Typ Max Spec 2.402 -83 -81 -78 2.441 -83 -81 -78 2.480 -83 -81 -78 Maximum received signal at 0.1% BER -20 - - Transmitter Unit Limit BT Min Typ Max Spec RF transmit power 50 Ω load, at antenna 1 5 - -6 to +4 dBm RF power control range 25 35 - ≥16 dB RF power range control resolution - 0.5 1.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 5.9 Power-up time The time until the BlueMod+B20 is able to accept link requests or serial data is about tbd seconds after power-up. Author: bg Date of Saving: 28.03.07 Ref: BlueMod+B20_HWreference_V101.doc Revision: 1.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 6 Mechanical Characteristics 6.1 Dimensions 14,5 28 2,2 0,9 Figure 6.1 BlueMod+B20 dimensions Author: bg Date of Saving: 28.03.07 Ref: BlueMod+B20_HWreference_V101.doc Revision: 1.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 6.2 Recommended Land Pattern 15,1 14,5 0,3 3,5 2,7 BlueMod+B20 1,3 0,9 1,275 1,825 1,675 0,3 1,3 1,275 16,58 28 top view Figure 6.2 BlueMod+B20 land pattern Author: bg Date of Saving: 28.03.07 Ref: BlueMod+B20_HWreference_V101.doc Revision: 1.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 6.3 Re-flow Temperature-Time Profile The data here is given only for guidance on solder and has to be adopted to your process and other re-flow parameters for example the used solder paste. The paste manufacturer provides a re-flow profile recommendation for his product. Our used temp. profile for reflow soldering 30 +20/-10s Temp.[°C] 230°C -250°C max.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 6.4 Restricted Area The mother board should have no bare conductors or vias in this restricted area, because it is not covered by stop mask print. BlueMod+B20 top view 6.5 3,5 2,7 Housing Guidelines The individual case must be checked to decide whether a specific housing is suitable for the use of the internal antenna.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 7 Safety Guidelines 8 Regulatory Information 8.1 Declaration of conformity 8.1.1 FCC Compliance 8.1.1.1 FCC Statement This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device my not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 8.1.1.
BlueMod+B20 Stollmann Hardware reference E + V GmbH The radiated output power of BlueMod+B20 is far below the FCC radio frequency exposure limits. Nevertheless, the BlueMod+B20 shall be used in such a manner, that the potential for human contact during normal operation is minimized. 8.1.1.4 RF-exposure Statement The radiated output power of BlueMod+B20 is far below the FCC radio frequency exposure limits.
BlueMod+B20 Stollmann Hardware reference E + V GmbH Figure 8.1 Qualification Design Certificate Author: bg Date of Saving: 28.03.07 Ref: BlueMod+B20_HWreference_V101.doc Revision: 1.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 8.
BlueMod+B20 Stollmann Hardware reference E + V GmbH 12 History Version 0.50 Release Date 17.05.2006 0.60 0.70 23.05.2006 30.08.2006 0.90 06.03.2007 1.00 12.03.2007 1.01 28.03.2007 Author: bg Date of Saving: 28.03.07 By Change description GJ Correction: RESET# is active LOW active LOW signal names end with # sign GJ Correction: AIO pinning BG/ first combined version JW BlueMod+B20/Bluemod+B29 FH/ AA B29 removed, JW Enhanced 8.
