User's Manual

1
DateCode Number: Series Model number Draft
TVLink RS868
19-11-2010
TELECO AUTOMATION SRL - Via dell’Artigianato, 16 - 31014 Colle Umberto (TV) ITALY
TELEPHONE: ++39.0438.388511 FAX: ++39.0438.388536
Radio connection for safety devices supplied by batteries
Description
Bidirectional radio device for the connection of the safety devices in the automatic
openings sector.
The connection is carried ou between a Master device (RCSP or TVPRP868C04x)
for the motor control and a Slave device (TCSP) which is positioned on the door and
is connected to the 8,2KOhm resistive safety edge or (optional) to an infra-red low
-consumption safety edge. Every Master device can manage one Slave.
In the same installation set there can be more systems which can operate without
interference. The action ray is 10mt.
The answer time during the motion is not higher than 100ms. The Slave peripheral
devices are powered by battery and have a duration of 2 years with two batteries.
1-Slave device (TCSP).
This device is powered by battery and it is activated by the Master unit only when
required. It sends to the Master unit the following information:
-Survival signal: it is used to verify periodically if the unit is correctly connected via
radio, the at battery signal is also sent during the transmission.
-Flat battery signal: it is sent at every transmission.
-Motion control signal: when the Master unit receives an “autotest”request, it sends
a signal to the Slave unit in order to activate it; when the signal has been sent, there
will be an answer coming from the Slave unit in order indicate that the safety device
is functioning and so it is possible to proceed with the motion. During the motion, the
Master unit waits for receiving some signals from the Slave unit indicating the correct
functioning. If this doesn’t happen, it sends an alarm signal.
-Alarm signal: the Slave device sends an alarm signal if one of the inputs has been
activated.
-Inputs function: The Slave unit is supplied with two inputs for the safety devices
connection (one input is 8,2KOhm resistive type and the other one can be selected
between 8,2KOhm resistive type and optional infra-red type); the selection of this
input is done through the Dip1.
A working time (optional) can be selected through the Dips 2-3-4 for a maximum
time of 90 sec.; when the time is nished, an alarm signal will be sent.
Use optional low-consumption infra-red safety edges mod. TPS-S1102L.
-Programming of the Slave unit into the Master unit: this operation is done by
pushing the P1 push-button after the Master unit is “learning” mode, the successful
“learning” is indicated by two ashings of the LED.
It is possible to check the correct alignment by pushing the P1 push-button when the
Slave device has been memorized: push and hold down the P1 push-button, if the
safety edge is correctly aligned the LED will have a xed light.

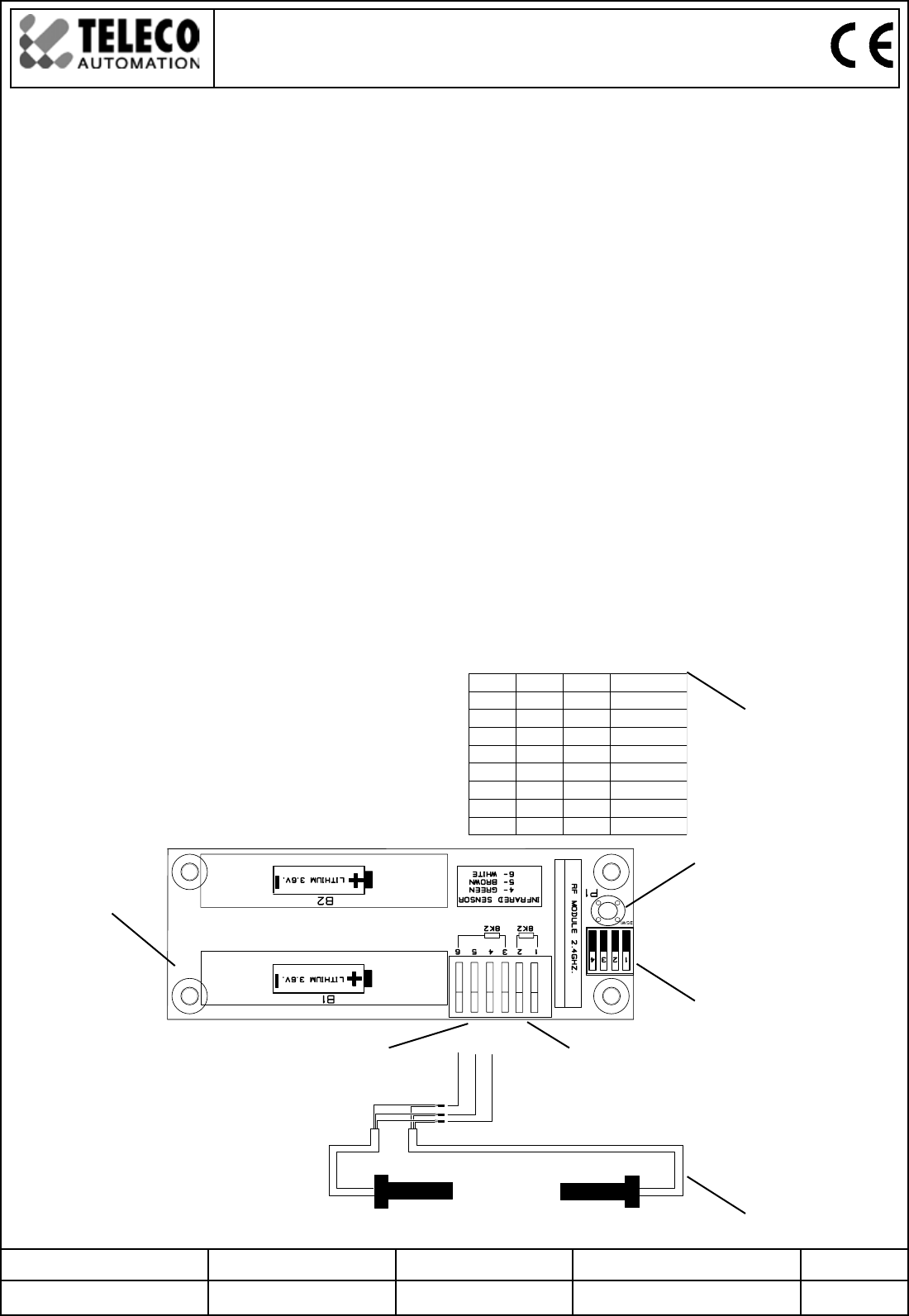

GREEN WIRE
BROWN WIRE
WHITE WIRE
OFF
ON
50 sec
60 sec
70 sec
OFF
80 sec
OFF
DIP4DIP2
ON
10 sec
W. T.
OFF
OFF
ON
ON
DIP1: Safety edge selection
OFF: 8.2K resistive edge
ON: Infrared edge
40 sec
30 sec
OFF
ON
ON
ON
OFF
OFF
ON ON
OFF
ON
OFFOFF
ON
OFF
20 sec
DIP3
ON
DIP2-3-4: Working time
TCSP240C04
P1
(optional) Dip-switch functions:
DIP1 OFF: selection of the 8,2KOhm safety edge, input of terminal boards 3-6
DIP1 ON: selection of (optional) infra-red safety edge (low consumption), input of
terminal boards 4-5-6
DIP2-3-4: selection of working time (see table)
Connections:
1-2 connection of 8,2KOhm resistive safety edge. Stop function. Alarm A1.
4-5-6 connection of (optional) infra-redsafety edge (4=signal, 5=positive,
6=negative) A2
3-6 connection of 8,2KOhm resistive safety edge. Alarm A2.
Attention: if the input 1-2 ands 3-4 is not used , it is necessary to bridged with a
8,2Kohm resistance.
Technical specication of the Slave unit:
Frequency 2,4Ghz
Power supply 3,6Vdc 2700mAh (lithium battery)
Dimensions 115x65x40mm
Attention:
-Never let the batteries into the TCSP safety edge if it has not been memorized in the
Master unit
-Never let the batteries into the TCSP safety edge if the Master unit has not been powered
FCC Compliance
“This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.”
Change or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
A1 input
A2 input
T
TCSP240C04ALB
Optional
Optional
Optional
