50M Wireless USB Adaptor User Manual MT-WN715N REV: V1.
Certification FCC IC CE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

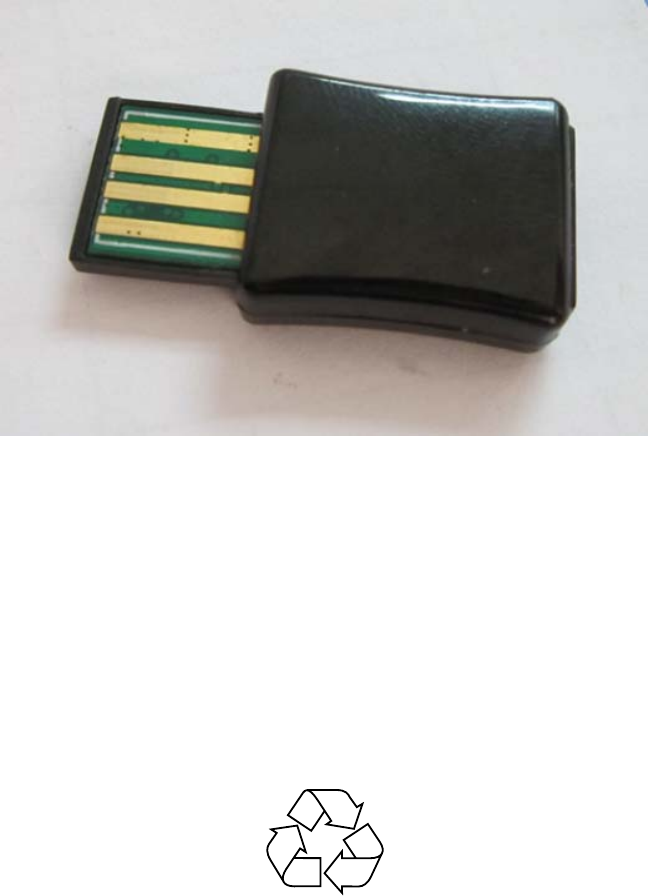

Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. Package Contents The following items should be found in your package: ► 150M USB Wireless Adapter ► Quick Installation Guide ► CD-Rom Make sure that the package contains above items. If any of the above items is missing or damaged, please contact the store you bought this product from.
Content 1. Introduction .......................................................................................... 1 1.1. Product Overview ................................................................................................................................... 1 1.2. Main Features ......................................................................................................................................... 1 1.3. Standards ................................................................
150M Wireless USB Adaptor User Manual 1. Introduction 1.1. Product Overview This USB Wireless adapter is a powerful USB 2.0 Adapter that installs quickly and easily with PCs. The Adapter can be used in ad hoc mode to connect directly with other wireless adapters for peer-to-peer file sharing, or in infrastructure mode to connect with a wireless access point or router. The adapter connects with 802.11n networks at up to 150Mbps, and is backwards compatible with 54Mbps 802.11g or 11Mbps 802.11b devices.
150M Wireless USB Adaptor User Manual 1.5. System Requirements ► Available USB 1.1 or USB 2.0 slot ► 300 MHz processor and 32 MB of memory ► CD-ROM drive ► An 802.11b/g/n access point (for Infrastructure Mode) or another 802.11b/g/n wireless adapter (for Ad Hoc; Peer-to-Peer networking mode.
150M Wireless USB Adaptor User Manual 2. Hardware and Driver Installation 2.1. Insert the Adapter Plug the USB Wireless Adapter into an available USB port on your computer, and the Found New Hardware Wizard (windows 7) screen will appear; Close the wizard, then clicks the following steps to install; 2.2. Driver and Software Installation Turn on the computer and insert the included CD in the CD-ROM drive. Click the Start button and choose Run and enter D:\drivers\windows\setup.
150M Wireless USB Adaptor User Manual Select “Ralink Conf iguration Tool” and Click Install; Click “Install”; 4
150M Wireless USB Adaptor User Manual Click “Finish” to finish the driver installation; 5
150M Wireless USB Adaptor User Manual 3. System configuration The USB Wireless Adapter provides two modes: Station mode and Access Point mode, the default is Station mode. You can select remote wireless AP to connect to Internet in station mode. But in the AP mode, the wireless USB adapter act as a wireless access point which wireless client can connect to share an Internet connection with others.
150M Wireless USB Adaptor User Manual Select Available Network tab and click Refresh button to refresh current available wireless network, you can double click it after highlighting a wireless network you want to connect, If it is encrypted, you need to enter Network Key and confirm it and it will be OK.(Note: profile will detect the Authentication and Encryption of current wireless network, you don‟t need to change it.) Click to enter the encryption code.
150M Wireless USB Adaptor User Manual Click to connect the wireless network. 3.2.2. Add to profile Select a wireless network and click the “red” button to create this profile (the following picture). Input the profile name and select Network Type, you should select “Infrastructure-connection to AP”, then click .
150M Wireless USB Adaptor User Manual If it is encrypted, you need to enter Network Key to confirm it and then click next.(Note: profile will detect the Authentication and Encryption of current wireless network, you don‟t need to change it .) . You can select “Use Pre-logon Connection” and click The wireless network connection be added to the profile list.
150M Wireless USB Adaptor User Manual 3.2.3. Profile Management Select a profile and you can delete, edit and export to computer as a Wireless profile file. Also you can click the “Red” button to display the Profile list. Select a profile and click the “red” button to save the current profile as a profile to your computer. Give the saved profile file a name and click save.
0M Wireless USB Adaptor User Manual 3.2.4. Wi-Fi protect setup Wi-Fi Protect Setup (WPS) function can let you create a safety network easily. You can through PIN Input Config (PIN) ‟or ‟Push Button (PBC)‟to encrypt your network. You only need to push the WPS button in the router which support WPS function and click the functions in this adapter, then the router will be encrypted to WPA2-AES mode automatically.
150M Wireless USB Adaptor User Manual Click “Start PBC” and click the WPS button of your wireless router at the same time, Please wait a moment, the connection between the adapter and the router will be established automatically. Method 2: PIN Select “PIN” in WPS Method then click next. Select the appropriate configuration mode, and you will get a number in PIN Code, then click next.
150M Wireless USB Adaptor User Manual Click “Start PIN” button, then Input the PIN code of the adapter’s WPS page into the router’s WPS configure page, then click “connect”, please wait a moment, the connection between the adapter and the router will be established automatically. 3.2.5. Available Network The Available Network tab, displays a list of infrastructure and ad-hoc networks available for connection.
150M Wireless USB Adaptor User Manual The section of the window displays the Available Networks. Double-click the network to which you wish to connect. 3.3. Link Information Click the “Red” button to show the link information. The Status tab displays the detailed information of current device and wireless connection.
150M Wireless USB Adaptor User Manual Click to empty the statistics. 3.4. Advanced Click “Red” button to change the advanced configuration. Here you can change “Wireless Mode” and select your country’s region code.
150M Wireless USB Adaptor User Manual Here you can install certif icate, including “User certificate” and “Issuer certificate”. Click select certificate file, and click button to install.
150M Wireless USB Adaptor User Manual 4. Troubleshooting This chapter provides solutions to problems that may occur during the installation and operation of the USB Wireless Adapter. Read the descriptions below to solve your problems. 1. The USB Wireless Adapter does not work properly? Reinsert the USB Wireless Adapter into your PC’s USB slot. Right click My Computer and select Properties. Select the device manager and click on the Network Adapter. You will find the Adapter if it is installed successfully.
