11.5.1 Create a Preset

1. From (Home) navigate as follows: (Preset)

2. Touch (Create).

3. Enter a preset name, then touch (Next).

4. From the list of motors, touch a motor to add.

5. Manage motor settings as necessary (Section 11.6.7).

11.5.2 Edit a Preset

1. From (Home) navigate as follows: (Preset)

2. In the preset area, touch the preset file to edit.

3. Touch (Edit).

4. From the list of motors, touch the motor to add/edit.

5. Manage motor settings as necessary (Section 11.6.7).

11.5.3 Copy a Preset

1. From (Home) navigate as follows: (Preset)

2. In the preset area, touch the preset file to copy.

3. Touch (Copy).

4. Enter a name, then touch (Next).

11.5.4 Delete a Preset

1. From (Home) navigate as follows: (Preset)

2. In the preset area, touch the preset file to delete.

3. Touch (Delete).

4. Touch (Confirm).

11.5.5 Save a Preset

1. From (Home) navigate as follows: (Preset)

2. Touch the save button (Figure 11).

3. From the Save Current Preset screen, touch Save or

Save As.

NOTE: For Save As, enter a new preset name.

4. Touch (Confirm).

11.5.6 Load a Preset

1. From (Home) navigate as follows: (Preset)

2. In the preset area, touch the preset file to load.

3. Touch (Confirm).

11.5 Preset Instructions

[Name 2]

DEFAULT

[Name 2]

[Name 1]

[Name 4]

[Name 3]

[Name 5]

[Name 6]

B C D

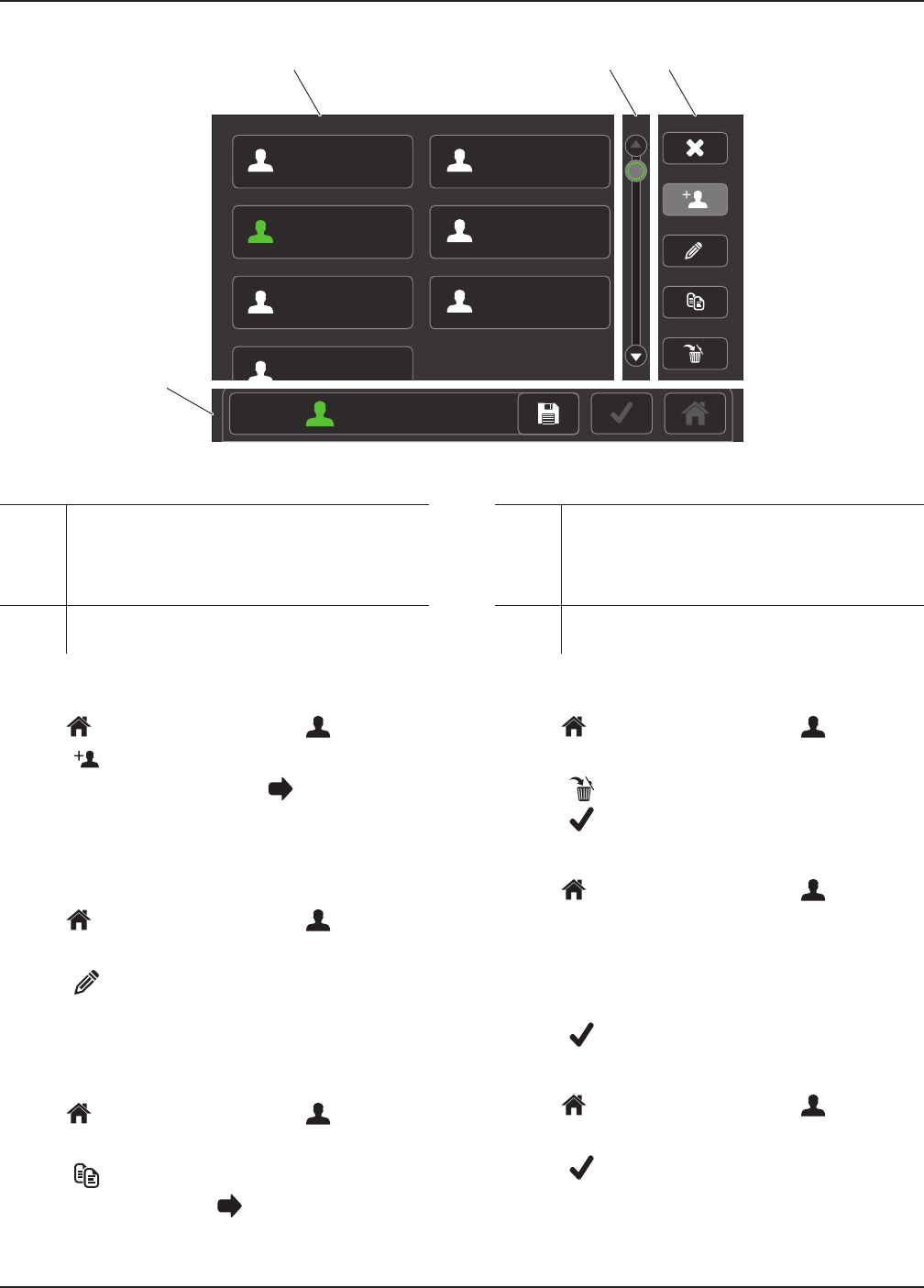

Figure 11 – Preset Screen

A Navigation Bar Area – Provides navigational

buttons and displays the active preset.

NOTE: The save button will appear within this

area if the active preset has been modified.

C Vertical Slider Bar Area – Contains a vertical

slider bar used to scroll up and down.

B Preset Area – Contains the DEFAULT preset

and created (or imported) presets.

D Preset Options Area – Contains the following

buttons: Cancel, Create, Edit, Copy, and Delete

0000221359, Rev. D Effective Date: Jun 1, 2017 10:00:55 AM

Print Date: Jun 08, 2017 08:54:46 AM
