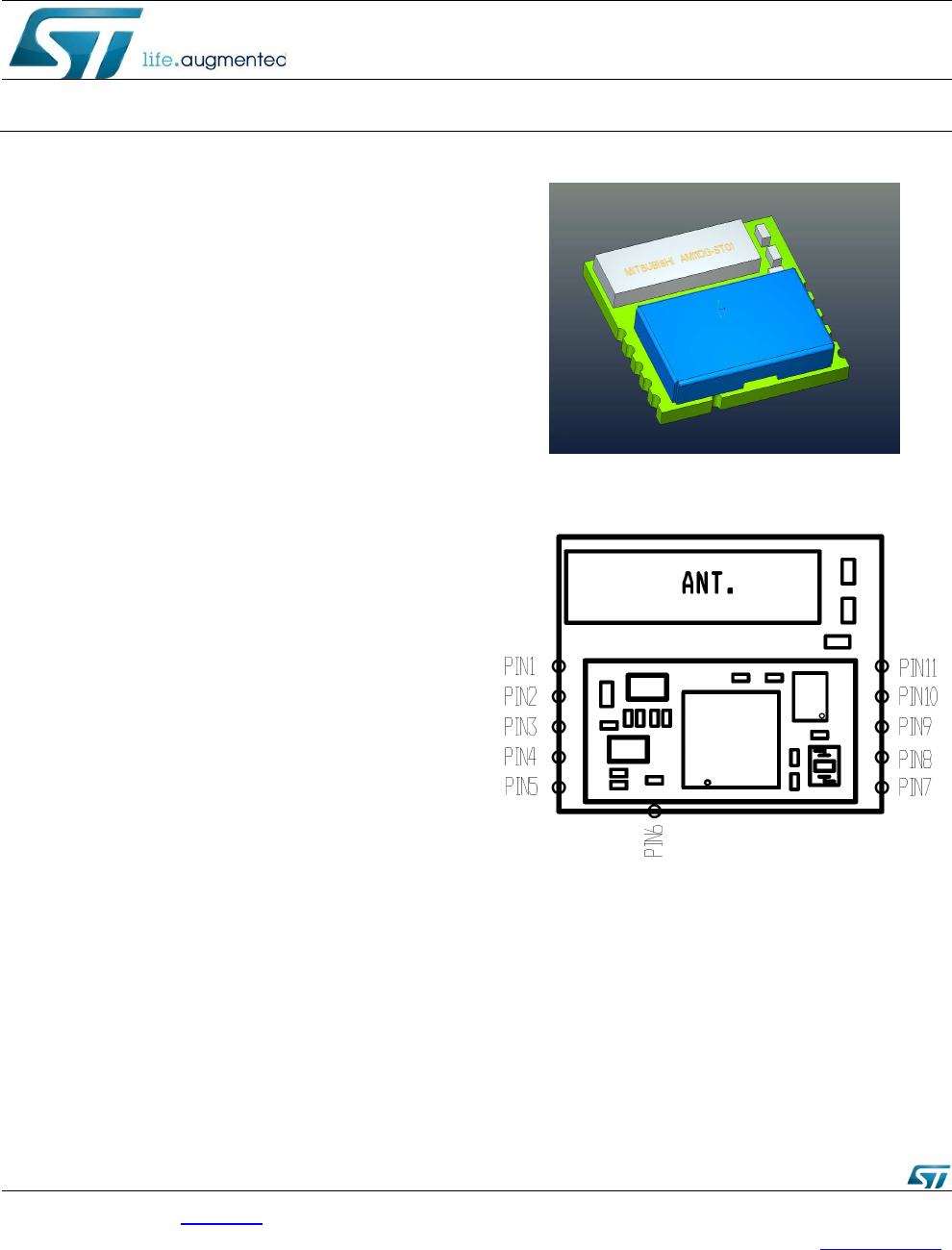

SPSGRF-868 / 915 SubGiga (868 or 915 MHz) programmable transceiver module Datasheet Features • Programmable Radio features - Modulation schemes: 2-FSK, GFSK, MSK, GMSK, OOk, ASK Air data rate from 1 to 500 kbps On board antenna Preliminary module picture • RF features - • 11.5 mm x 13.5 mm x 2.
SPSGRF 1 Description The SPSGRF is an easy to use sub-gigahertz transceiver module, with many programmable features. The module provides a complete RF platform in a tiny form factor. The SPSGRF enables electronic devices with wireless connectivity, not requiring any RF experience or expertise for integration into the final product. The SPSGRF, being a certified solution, optimizes the time to market of the final applications.
SPSGRF 5 Hardware Specifications General Conditions (VIN= 3.3V and 25°C) Absolute Maximum Ratings Rating Storage temperature range Min -40 Typical - Max +85 Unit °C Supply voltage, VIN -0.3 - + 3.9 Volts I/O pin Voltage -0.3 - + 3.
SPSGRF Pin Assignment Name Type Pin # Description ALT Function V max. Tolerant Initial State SPI Interface SPI_CLK I 7 SPI CLOCK (Max. 8 MHz) Vin SPI_MOSI I 9 SPI MOSI (MASTER out SLAVE in) Vin SPI_MISO O 8 SPI MISO (MASTER in / SLAVE out) Vin SPI_CS I 10 SPI “Chip Select” (SPI slave select) Vin Vin 5 Vin (1.8V + 3.6V max.) GND 6 GND 11 SHUTDOWN input (active high.) (1.8V + Vin max). Programmable Input / Output & Analog Temperature output (1.8V + Vin max.).
SPSGRF Module Current Consumption SPSGRF-868 module Symbol Idd Parameter Supply current Test Conditions Operating mode Tx , +11.6 dBm , 2-FSK , 868 MHz Operating mode Tx , - 7 dBm , 2-FSK , 868 MHz Operating mode Rx , 8685 MHz Command mode Shutdown High Level -Vdd (with other I/O in High impedance) Typ. Unit 22 mA 9 mA 10 mA 0.6 mA 0.1 µA Typ. Unit 22 mA 9 mA SPSGRF-915 module Symbol Idd Parameter Supply current Test Conditions Operating mode Tx , +11.
SPSGRF Module RF typical performances The RF performances of the SPSGRF-868 and SPSGRF-915 modules are depending from many factors, related to the Customer hardware application board where the module is connected and also to the Customer application firmware. To give some basic information to the Customer which will be the module integrator, may be useful to furnish the RF measures taken in an anechoic chamber using a dongle with inside connected the SPSGRF-868 or the SPSGRF-915 module.
SPSGRF SPSGRF-868 or 915 modules conducted typical performances before the RF antennas circuits (negative RF power signal values measured) Parameter Test Condition Tx RF Conducted Power (before the Antennas circuits) Operating mode Tx , -1 dBm , 2-FSK , 868 MHz Tx , -1 dBm , 2-FSK , 915 MHz Operating mode Tx , -2 dBm , 2-FSK , 868 MHz Tx , -2 dBm , 2-FSK , 915 MHz Operating mode Tx , -3 dBm , 2-FSK , 868 MHz Tx , -3 dBm , 2-FSK , 915 MHz Operating mode Tx , -4 dBm , 2-FSK , 868 MHz Tx , -4 dBm , 2-FSK ,
SPSGRF Mechanical dimensions PRELIMINARY 11.5 mm 13.5 mm 2 mm Recommend land pattern Recommended land pattern top view Rev 1.
SPSGRF 6 Hardware design notes SPSGRF-868 and SPSGRF-915 modules support SPI hardware interfaces. Notes All unused pins should be left floating; do not ground. All GND pins must be well grounded. The area around the module should be free of any ground planes, power planes, trace routings, or metal for 6 mm from the module antenna position, in all directions. Traces should not be routed underneath the module.
SPSGRF Soldering profiles 8 RoHS compliance ST Bluetooth modules comply with the ECOPACK2 level of RoHS compliance grade. 9 Ordering Information Order code Description Packing MOQ SPSGRF-868 868 MHz Spirit1 transceiver module (Region 1,Europe) Jedec tray 2448 pcs SPSGRF-915 915 MHz Spirit1 transceiver module (Region 2,The Americas) Jedec tray 2448 pcs Rev 1.
SPSGRF 10 Regulatory compliance FCC certification This module has been tested and found to comply with the FCC part 15 rules. These limits are designed to provide reasonable protection against harmful interference in approved installations. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
SPSGRF must accept any interference received, including any interference that may cause undesired operation. Product manual instructions This section applies to OEM final products containing the SPSGRF-915 module, subject to FCC compliance.
SPSGRF CE certification for SPSGRF-868 module The SPSGRF-868 module has been certified according to the following standards: EN 300 220-2 V2.4.1 EN 301 489-01 V1.9.2 EN 301 489-03 V1.4.1 EN60950-1:2006 + A11:2009 + A1:2010 + A12:2011 The module is CE certified: P a g e | 16 Rev 1.
