Sonic Radio Model - Quick Installation Guide

Radio Model Name: CIC WL Fusion 2

Sonic Innovations, Inc. 2501 Cottontail Lane – Somerset, NJ 08873 – United States of America Page 1

Main +1 888 423 7834 www.sonici.com

The CIC WL Fusion 2 radio model is a low power, short range, inductive radio transceiver working at 3.84 MHz. It can be seen below:

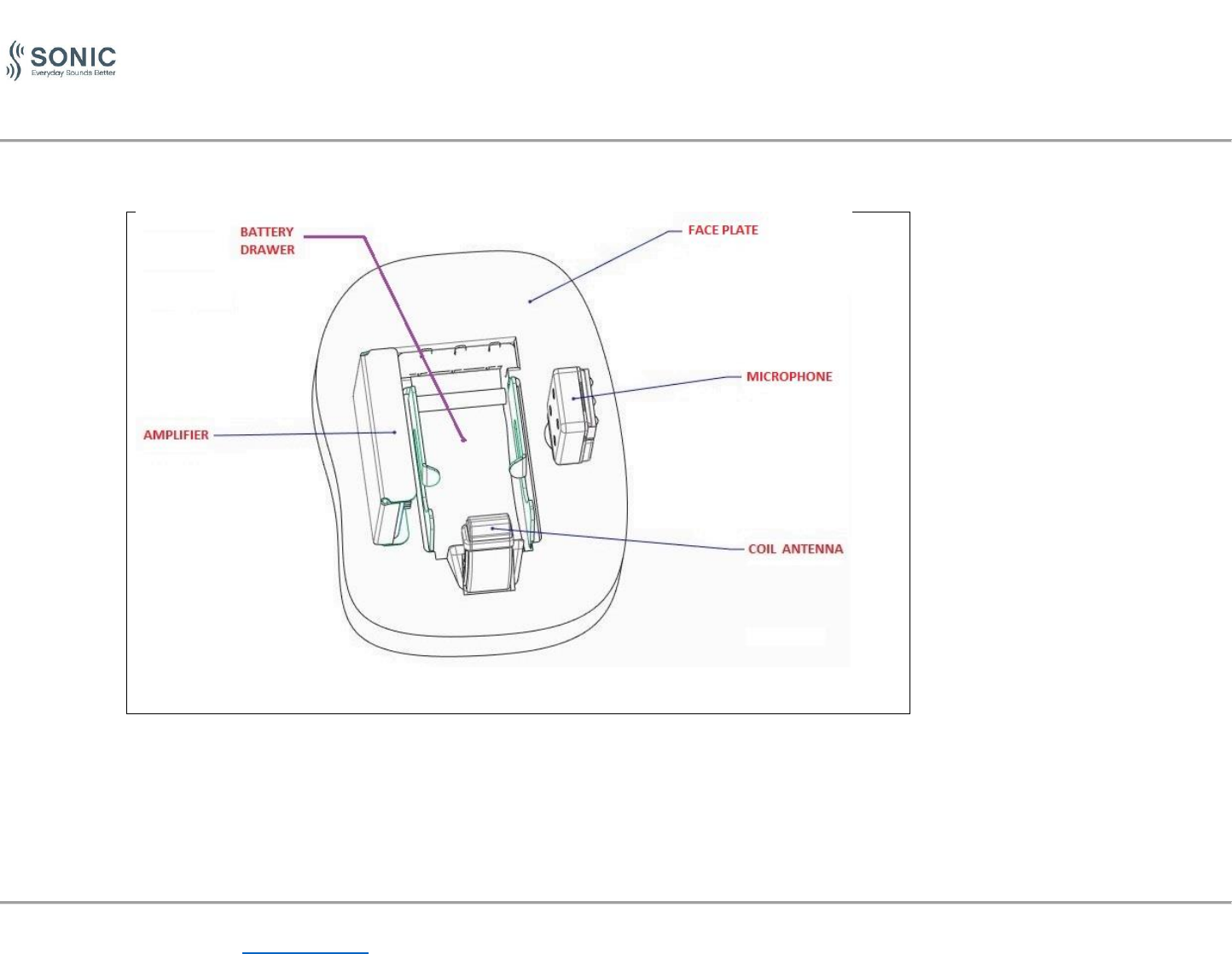

CIC WL Fusion 2 - Typical Radio Model Assembly

The most important parts of the module are an amplifier (containing a Digital-Signal-Processor (DSP), a radio Front-End (FE), memory and smaller components), a

battery and a coil antenna, all mounted on a plastic faceplate. The microphone is also mounted on the faceplate and externally to it there is normally also an audio

receiver/speaker and some optional push buttons, but they are not part of the radio model. The radio model is intended to be installed in Sonic and affiliated wireless

hearing aid devices of CIC WL (Completely-In-the Canal, with Wireless option) and IIC WL (Invisible-In-the Canal, with Wireless option) wearing styles.

Summary of content (5 pages)

PAGE 1
Sonic Radio Model - Quick Installation Guide Radio Model Name: CIC WL Fusion 2 The CIC WL Fusion 2 radio model is a low power, short range, inductive radio transceiver working at 3.84 MHz. It can be seen below: CIC WL Fusion 2 - Typical Radio Model Assembly The most important parts of the module are an amplifier (containing a Digital-Signal-Processor (DSP), a radio Front-End (FE), memory and smaller components), a battery and a coil antenna, all mounted on a plastic faceplate.
PAGE 2
Sonic Radio Model - Quick Installation Guide Radio Model Name: CIC WL Fusion 2 The DSP, FE, memory and smaller components in the amplifier are all mounted on a flexible Printed-Circuit-Board (PCB), which is connected to the antenna through two short wires. The DSP is the main processor controlling the amplifiers functionality and the FE is a complete radio transceiver, including both transmitter, receiver and local oscillators.
PAGE 3
Sonic Radio Model - Quick Installation Guide Radio Model Name: CIC WL Fusion 2 1. End product labelling requirements For an end product using the module “CIC WL Fusion 2”, there MUST be a label containing, at least, the following information: This device contains FCC ID: ZTOF2CIC01 IC: 9799A-F2CIC01 The label must be affixed on an exterior surface of the end product such that it will be visible upon inspection in compliance with the modular approval guidelines developed by the FCC.
PAGE 4
Sonic Radio Model - Quick Installation Guide Radio Model Name: CIC WL Fusion 2 When the device is so small or for such use that it is not practicable to place the statement above on it, the information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC ID label must be displayed on the device.
PAGE 5
Sonic Radio Model - Quick Installation Guide Radio Model Name: CIC WL Fusion 2 3. Caution Any changes or modifications NOT explicitly APPROVED by Sonic Innovations, inc. may void the FCC / IC authorization to operate this equipment. 4. RF-exposure statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.
