User's Manual

Page 1 of 2
Rev. 04-02-2010
Quick-Start Guide
SwitchLinc
TM
Dimmer – INSTEON
®
Remote Control
Dimmer Switch (Dual-Band)
Model: 2477D
Preparation
Installation should be performed only by a qualified electrician or
by a homeowner who is familiar and comfortable with electrical
circuitry. If you have any questions regarding installation, we
suggest consulting an electrician. If you have any questions
regarding setup, contact Smarthome Tech Support.

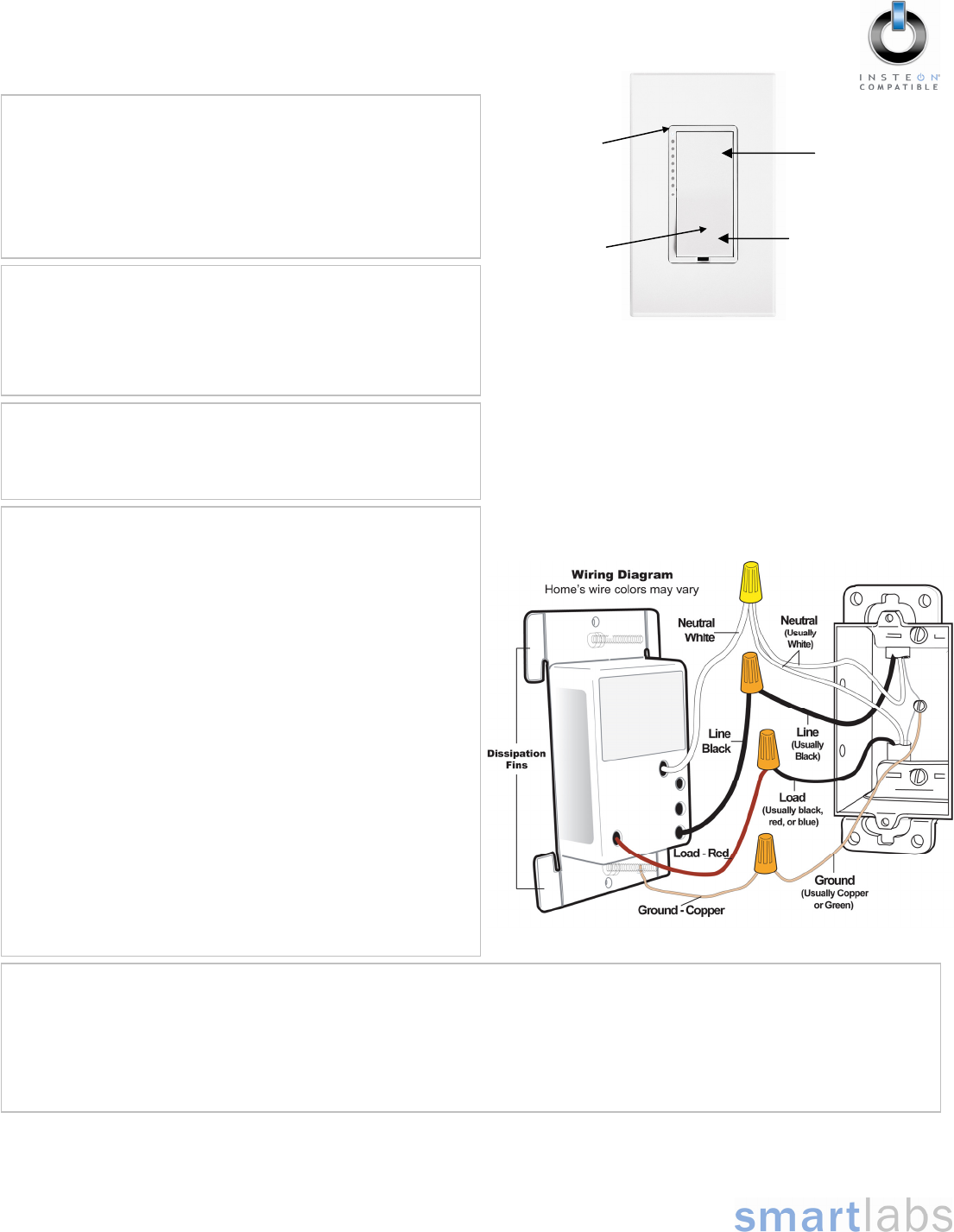

LED ba
r
Set button
Figure 1
Introduction
Remotely control any light in your home at the touch of a button.
Use the paddle on SwitchLinc to control other Linked INSTEON
devices. Or send commands to SwitchLinc from an INSTEON
Controller.
SwitchLinc also works as an INSTEON signal repeater and can
be used to bridge the power phases in your home (like an Access
Point, #2443). Use indoors only.
Using SwitchLinc
Tap the paddle top to turn your light on (to its programmed On-Level and Ramp Rate)
Tap the paddle bottom to turn your light off (at its programmed Ramp Rate)
Press & hold the paddle top to brighten your light
Press & hold the paddle bottom to dim your light
Double-tap the paddle top to turn your light to full-bright instantly
Double-tap the paddle bottom to turn your light off instantly
Paddle bottom
(OFF/DIM)
Paddle top
(ON/BRIGHT)
Tools Needed
Phillips and Standard screwdriver
Wire cutter / stripper
Voltage tester to identify wires inside the junction box
Installation (Typical, 2-Way Circuit)
Note: For Multi-Way Circuit installation, refer to the Owner’s Manual.
1) At the circuit breaker or fuse panel, disable the circuit
supplying power to the switch
2) Remove the faceplate from the existing switch, then unscrew
the switch and pull it out from the junction box
3) Disconnect the wires from the switch you are replacing and
ensure you have 1/2” of bare wire on the ends
4) To correctly identify the LINE, LOAD, NEUTRAL, and
GROUND wires, enable power to the switch from the circuit
breaker or fuse panel, use a line voltage meter, then turn the
breaker off again. See Figure 1 to properly connect your
wires to the INSTEON device.
Note: Mechanical switches don’t utilize NEUTRAL wires, but
they are usually available in the back of the switch box.
5) Ensure that all wire connectors are firmly attached and that
there is no exposed copper except for the GROUND wire
6) Orient SwitchLinc with the LED bar at the left, gently place it
into the junction box, and then screw it into place
7) Enable power to the switch from the circuit breaker or fuse
panel
8) Test that SwitchLinc is working properly by turning the light
on and off
9) Reinstall the faceplate
