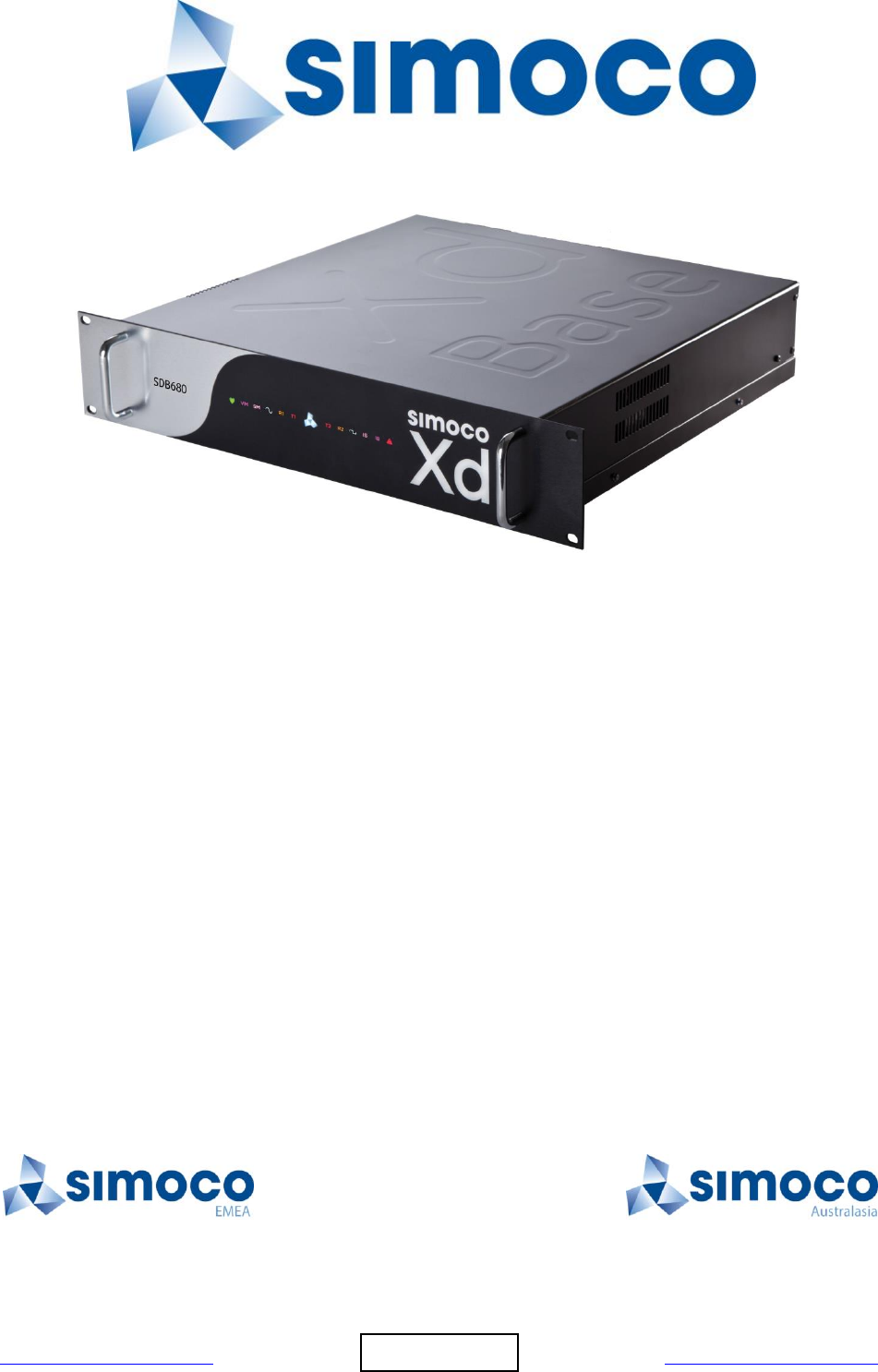

SDB680 BASE STATION INSTALLATION GUIDE TNM-I-E-0046, Issue 1.0 August 2014 Field House, Uttoxeter Old Road Derby DE1 1NH Tel: +44 (0) 1332 375500 FAX: +44 (0) 1332 375501 http://www.simocogroup.com ©Simoco 2014 1270 Ferntree Gully Road, Scoresby Victoria, 3179 Australia Tel: +61 (0)3 9730 3999 FAX: +61 (0)3 9730 3988 http://www.simocogroup.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 PREFACE Before installation, commissioning or operation, this document should be read in full. In particular, the following parts MUST be read: Appendix A – Simoco Digital Management Terminal (SDMT) Getting Started Information. DECLARATION This Installation Guide covers the SDB680 50 W Base Station for installation in Wall Mount and Rack Mount variants. Any performance figures quoted are subject to normal manufacturing and service tolerances.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 ERRORS AND OMISSIONS The usefulness of this publication depends upon the accuracy and completeness of the information contained within it. Whilst every endeavour has been made to eliminate any errors, some may still exist. It is requested that any errors or omissions noted should be reported to either of the following who are part of the Simoco group: Field House Uttoxeter Old Road, Derby. DE1 1NH. UK 1270 Ferntree Gully Road, Scoresby Victoria.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 TABLE OF CONTENTS Page Title Page ...................................................................................................................................... 1 Preface .......................................................................................................................................... 2 Table of Contents (This List) .......................................................................................................
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 LIST OF FIGURES Page Figure 1. Layout of Rear Panel. ................................................................................................... 16 Figure 2. 2-pin IP67 DC Power Connector. .................................................................................. 17 Figure 3. Mounting holes drilling template (dimensions in mm). ................................................... 21 Figure 4. Wall Mount Assembly. .....................................
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 PERSONAL SAFETY SAFETY PRECAUTIONS These Safety Precautions, Warnings and Cautions advise personnel of specific hazards which may be encountered during the procedures contained in this document and that control measures are required to prevent injury to personnel, and damage to equipment and/or the environment.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 DANGEROUS VOLTAGES Dangerous voltages exist in this equipment, for the appropriate Safety precautions, refer to the relevant Electrical Safety Regulations appropriate to the country of operation. EQUIPMENT SAFETY INSTALLATION AND MAINTENANCE The SDB680 Series of base stations should only be installed and maintained by qualified personnel. CAUTIONS CAUTION Before drilling any walls, first check for any buried cables or pipes. CAUTION EQUIPMENT DAMAGE.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) NOTICE The Waste Electrical and Electronic Equipment (WEEE) Directive became law in most EU countries during 2005. The directive applies to the disposal of waste electrical and electronic equipment within the member states of the European Union.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 SIMOCO SUPPORT CONTACT INFORMATION At Simoco we welcome your comments, feedback and suggestions. Departmental contacts have been provided for your quick reference below. UK Customer Services Email: Tel: Fax: customer.service@simocogroup.com UK: 08717 411 050 International: +44 (0) 1332 375 671 UK: 08717 411 049 International: +44 (0) 1332 376 672 Sales E-mail sales@simocogroup.com Marketing E-mail marketing@simocogroup.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 If you still require further technical assistance after raising a support ticket, please contact us via the email addresses or via the Technical Support Helpline numbers overleaf. Technical Support Email Addresses Simoco EMEA: techsupport@simocogroup.com Simoco Australasia: inquiry.aus@simocogroup.com Simoco Americas: techsupport@simocogroup.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 ABBREVIATIONS The following abbreviations are used throughout this document. Wherever practicable, whenever the abbreviation is first used, the full meaning is given with the abbreviation in parenthesis, after that only the abbreviation will be used. Abbreviation Meaning 2U AC BNC COSHH CTS DAC DC DMR ESDS Devices GPS IEC I/P IP MAC NC O/P PA PC PSU RF RSSI RTS Rx SDB SDMT Tx USB VAC VDC VSWR WEEE Two Units (U = vertical measurement of 44.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 RECOMMENDED TOOLS AND TEST EQUIPMENT The following list of Tools, Electrical Engineering Test Equipment and Materials are required to carry out the Assembly procedures contained in this document. TOOLS 1. Electric Drill (preferably with Hammer Action). 2. 7.5 mm Drill Bit. 3. Spirit Level. 4. Pozidriv Screwdriver. TEST EQUIPMENT 5. Anritsu/Wiltron S331A Test Set. 6. Earth Bonding Test Set. 7. Dummy Load. 8. Wattmeter (50 Ω Test Set). CABLES 9.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 ENVIRONMENTAL CONDITIONS OPERATING TEMPERATURE RANGE For the 50 W SDB680 Base Stations, the operating temperature range is: −30 °C to +60 °C (−22 °F to +140 °F) ambient temperature. The storage temperature range is −40 °C to +80 °C (−40 °F to +176 °F). Ambient temperature is defined as the temperature of the air at the intake to the cooling fans.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 If multiple bases are fitted in a rack, auxiliary extractor fans may be required to ensure that adequate cooling is provided. If any other configuration is employed, the performance of the system will depend on how closely you comply with the airflow requirements described above. In a wall mount installation, it is recommended that at least 20 cm of clear space is allowed above and below the equipment for ventilation.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 POWER SUPPLIES For type approval reasons, this product should not be operated with unapproved supplies. The equipment must be installed so that the IEC connector for the Wall or Rack Mount can be easily removed and/or the power socket should be readily accessible. Mains protective Earth should be checked for low impedance (<0.3 Ω). All mains wiring must comply with local wiring regulations.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 ELECTRICAL CONNECTIONS This section gives an overview of the external connections that are made to the SDB680 Base Station. It also provides details of the pin-outs for these connections. GENERAL All cabling should be installed so that the equipment can be accessed for servicing purposes without straining the cables or connectors used.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 Mating connectors should be galvanically compatible with nickel outer and gold centre pin to minimise passive intermodulation. A minimum of 85 dB transmit-receive isolation should be provided by the antenna system and associated filters. It is recommended that a good quality flexible co-axial cable is used, e.g. with double-screening braid and multi-strand copper inner.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 P4 USB B The Universal Serial Bus (USB) Type B connector is used as the peripheral connection. The connector pin-outs are detailed below in Table 4. Table 4. USB Type B Connector Pin-outs. Pin Function 1 2 3 4 Vcc (+5 V) Data Data + Ground P5 Ethernet The P5 Ethernet connector uses standard network cable wiring for an RJ45, which is detailed below in Table 5. Table 5. Ethernet RJ45 Connector Pin-outs.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 S1 Facilities Connector The 25-way D Type facilities connector can be programmed for any combination of digital inputs and outputs. The connector pin-outs for the Facilities Connector are shown below in Table 7. Table 7. Facilities Connector Pin-outs.
SDB680 – INSTALLATION GUIDE 1 TNM-I-E-0046 WALL MOUNT INSTALLATION This Procedure should be followed when installing all new DMR Base Stations with a Wall Mount cabinet. TOOLS, TEST EQUIPMENT AND MATERIALS REQUIRED The following Tools, Test Equipment and Materials will be required to perform this procedure: Electric Drill (preferably with Hammer Action) 7.5 mm Drill Bit Spirit Level Screwdriver 4 x M4 x 12 Screws (supplied) 4 x Rawlplugs (supplied) 4 x No.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 Figure 3. Mounting holes drilling template (dimensions in mm). Wall Mount Brackets Inner Chassis Plate securing points Figure 4. Wall Mount Assembly. 1.2 FITTING THE SDB680 BASE STATION 10.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 Figure 5. Keyhole Standoff mounting locations. Figure 6. Base Station secured to Wall Mount. 1.3 ELECTRICAL CONNECTIONS 12. Refer to the Electrical Connections section, for full details of all connections and the connector pin-outs. 13. Using a suitable test set, e.g. an Anritsu/Wiltron S331A, check the Tx and Rx antenna connections for a VSWR of 1.5:1 or better at the relevant Tx and Rx Frequencies. 14.
SDB680 – INSTALLATION GUIDE 2 TNM-I-E-0046 RACK MOUNT INSTALLATION PROCEDURE The SDB680 Base Station is designed to be fitted in a standard 403 mm (19”) rack. This procedure should be followed when installing all new SDB680s into a 19” racking system.
SDB680 – INSTALLATION GUIDE 2.2 4. TNM-I-E-0046 FITTING THE SDB680 BASE STATION To fit the SDB680 into a rack on a support shelf, carry out the following: 4.1. Hook the support shelves onto either side (internal) of the rack at equal heights. 4.2. Fit the M6 cage nuts into the appropriate positions on the front rack mounting support rails. 4.3.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 5.3.2. Adjust the rack mount support assemblies to the correct length and secure them to the rear rack mounting support rails using the four M6 x 16 mm pan head pozidriv retaining bolts and cage nuts (two each per side). 5.3.3. Tighten the four M6 nuts that secure the front and rear rack mount support brackets together. 5.4.
SDB680 – INSTALLATION GUIDE 3 TNM-I-E-0046 CONFIGURATION OF NEW TIER II BASE STATION This Procedure should be followed when configuring all new Tier II SDB680 Base Stations after their initial installation in a new system. TOOLS, TEST EQUIPMENT AND MATERIALS REQUIRED The following Tools, Test Equipment and Materials will be required to perform this procedure: Dummy Load Personal Computer Software Applications: Simoco Digital Management Terminal (SDMT) Simoco IP Configuration Tool Notes (i).
SDB680 – INSTALLATION GUIDE 3.3 TNM-I-E-0046 INSTALLING THE SIMOCO IP CONFIGURATION SERVER 6. Refer to the Simoco IP Configuration Tool User Manual [3] and install the Simoco IP Configuration Server software in accordance with Section 1.3 – Software Installation. 7. After installing the Simoco IP Configuration Tool software, ensure that the PC on which the software is installed is connected to the Ethernet switch via a CAT 5 Ethernet cable. 3.4 IP ADDRESS CONFIGURATION 8.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 13.2. On the Site View tab of the Navigation Pane, from the navigation tree, click on the ‘System’ branch to expand it. Click on the ‘Site 1’ node displayed. 13.3. On the Ribbon bar, select the ‘Add Digital Base’ button to add a digital base to Site 1 on the navigation tree. 13.4. On the Site View tab of the Navigation Pane, from the navigation tree, select the new DMR Base that has just been added to the navigation tree.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 Note. To complete the software configuration update procedure for the selected DMR Base, the base must be re-booted. 13.9.4. Select the Reboot button to enable the base to use the new configuration. Figure 11. Write Base(s) page.
SDB680 – INSTALLATION GUIDE 4 TNM-I-E-0046 CONFIGURATION OF NEW TIER III BASE STATION This Procedure should be followed when configuring all new Tier III SDB680 Base Stations after their initial installation in a new system. TOOLS, TEST EQUIPMENT AND MATERIALS REQUIRED The following Tools, Test Equipment and Materials will be required to perform this procedure: Dummy Load Personal Computer Software Applications: SDMT Simoco IP Configuration Tool Notes (i).
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 5.1. Install the SDMT software in accordance with Section 1.2 – Software Installation. 5.2. Prepare the SDMT software for use in accordance with Section 2.2 – SDMT Preparation. 5.3. Create or establish a connection to a suitable Microsoft SQL Server database in accordance with Section 2.2.3 – Database Connection. 4.4 INSTALLING THE SIMOCO IP CONFIGURATION SERVER 6.
SDB680 – INSTALLATION GUIDE 12. TNM-I-E-0046 Refer to the Simoco IP Configuration Tool User Manual [3] and configure the IP Address for the relevant MAC Address listed in the data grid of the main screen in accordance with Section 2.2 – Configuring an IP Address. 4.6 CONFIGURING THE DMR BASE 4.6.1 Platform and Application Software Update 13. On the PC, open an internet browser and access the Simoco webpage. 14. On the Simoco webpage, select ‘Partner Login’ and login to the Partner Portal area.
SDB680 – INSTALLATION GUIDE 21. TNM-I-E-0046 On the SDMT, on the System I/O Page, carry out the following: 21.1. In the System Monitor area, on the navigation tree, right click on the Base that you wish to upload the software to. Menu options will be displayed. 21.2. From the menu options, select ‘Update’ > ‘Update Software’. 21.3. In the Comms History area, confirm that a ‘Starting Update Software’ message is displayed. 21.4.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 28.2. In the Comms History area, confirm that a ‘Starting Write All Config’ message is displayed. 28.3. The progress of the write operation will be displayed in the ‘Current Message Progress’ area. 28.4. In the Comms History area, after a short delay, confirm that a ‘Completed Write All Config’ message is displayed. 28.5.
SDB680 – INSTALLATION GUIDE 5 TNM-I-E-0046 BASE CONFIGURATION TIER II TO TIER III This Procedure should be followed when configuring a Tier II SDB680 Base Station into a Tier III SDB680 Base Station. TOOLS, TEST EQUIPMENT AND MATERIALS REQUIRED The following Tools, Test Equipment and Materials will be required to perform this procedure: PC with the following Software Applications installed: SDMT Simoco IP Configuration Tool Notes (i).
SDB680 – INSTALLATION GUIDE 7. TNM-I-E-0046 Refer to the Simoco IP Configuration Tool User Manual [3] and configure a Tier II IP Address for the relevant MAC Address listed in the data grid of the main screen in accordance with Section 2.2 – Configuring an IP Address. 5.4 CONFIGURING THE DMR BASE 5.4.1 Platform and Application Software Update 8. On the PC, open an internet browser and access the Simoco webpage. 9. On the Simoco webpage, select ‘Partner Login’ and login to the Partner Portal area.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 13.7.1. On the Upload to Base(s) page, select the ‘Browse’ button for the Application Software File. An Open file dialogue window will be displayed. 14. On the ‘Open’ file window, navigate to and select the latest version of the DMR Tier III Application Software downloaded at Para 10. Select the Open button to load the file into the SDMT. 15. On the SDMT main screen, on the Upload to Base(s) page, select the ‘Browse’ button for the Cerebral Platform File.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 21. On the ‘Open’ file window, navigate to and select the relevant software licence file. Select the Open button to load the file into the SDMT. 22. On the SDMT main screen, on the System I/O page, carry out the following: 22.1. In the System Monitor area, on the navigation tree, right click on the VAC for the system. Menu options will be displayed. 22.2. From the VAC menu options, select ‘Update’ > ‘Update Software’. 22.3.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 23.4.3. The progress of the write operation will be displayed in the ‘Current Message Progress’ area. 23.4.4. In the Comms History area, after a short delay, confirm that a ‘Completed Write All Config’ message is displayed. 23.4.5. When the write operation is completed, the success or failure of the operation for each VAC, Site or Base will be indicated in the Comms History area. 5.4.5 24.
SDB680 – INSTALLATION GUIDE 6 TNM-I-E-0046 BASE CONFIGURATION TIER III TO TIER II This Procedure should be followed when configuring a Tier III Base Station into a Tier II SDB680 Base Station. TOOLS, TEST EQUIPMENT AND MATERIALS REQUIRED The following Tools, Test Equipment and Materials will be required to perform this procedure: PC with the following Software Applications installed: SDMT Simoco IP Configuration Tool Notes (i).
SDB680 – INSTALLATION GUIDE 6.3 TNM-I-E-0046 CONFIGURING THE DMR BASE 6.3.1 Changing the Platform and Application Software 9. On the PC, open an internet browser and access the Simoco webpage. 10. On the Simoco webpage, select ‘Partner Login’ and login to the Partner Portal area. 11.
SDB680 – INSTALLATION GUIDE TNM-I-E-0046 16. On the ‘Open’ file window, navigate to and select the latest version of the DMR Tier II Cerebral Platform software downloaded at Para 11. Select the Open button to load the file into the SDMT. 17. On the SDMT main screen, carry out the following: 17.1. On the Upload to Base(s) page, carry out the following: 17.1.1. Select the base you wish to upload the software to. 17.1.2.
SIMOCO GROUP Global Headquarters: Field House, Uttoxeter Old Road, Derby DE1 1NH UK: Tel: Fax: 08717 411 050 08717 411 049 International: Tel: Fax: +44 (0) 1332 375 671 +44 (0) 1332 375 672 www.simocogroup.
