User Manual

1. 3.5 mm Stereo headphone output

2. VGA output, max resolution 1080p@60Hz

3. SD/Micro SD card reader

4. RJ-45 Gigabit Ethernet port

5. USB-A 3.0 port x2 with BC 1.2 charging

max output 5V/1.5A

6. USB-A 2.0 port

7. DP output, max resolution 4K@30Hz

8. HDMI output, max resolution 4K@30Hz

9. USB-C PD port, PD charging up to 100W

Features

• Power Deliver charge up to 100W

• 1x VGA port max support 1080p@60

• 1x HDMI port max support 4K@30

• 1x DP port max support 4K@30

• Windows support MST function

• SD/Micro SD can be read simultaneously

• Both 2x USB 3.0 ports support BC 1.2

charging

Package contents

• USB-C Triple 4K Video Docking Station

• Quick Start Guide

System Requirements

• USB-C Port (Thunderbolt 3 compatible)

device with DP Alt mode support

• Windows

10 / 8 .1/ 8 / 7 (32/64 bit)

• USB-C charger or laptop power adapter

Dear Valued Customer

(JUST WANTED YOU TO KNOW)

WE REALLY

APPRECIATE

YOUR PURCHASE

~thank you~

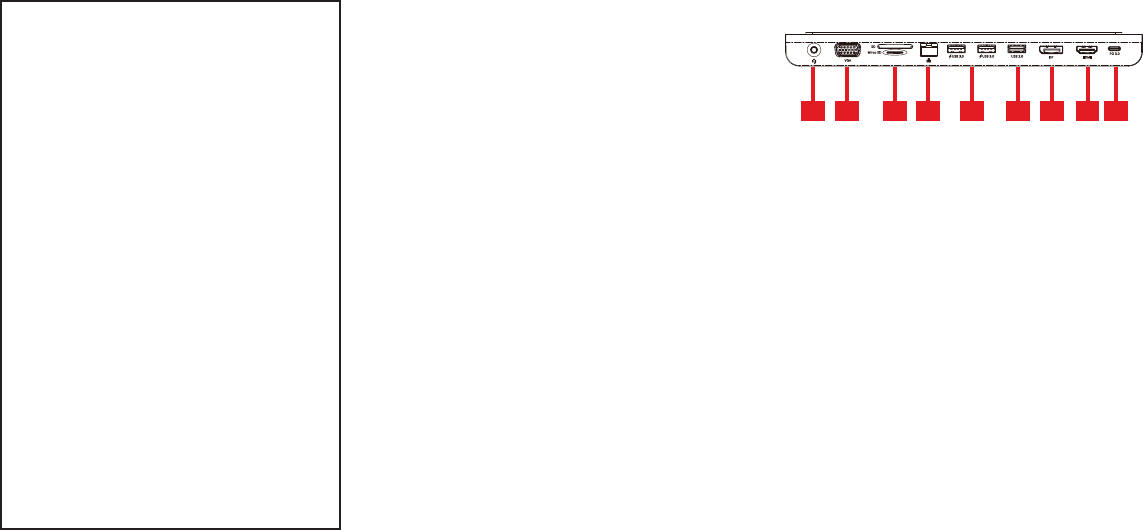

Layout

8 9

1 2 3

4 5 6

VGA

Mirco SD

USB 3.0 USB 2.0

DP HDMI

PD 3.0

USB 3.0

PAGE 1
Features Dear Valued Customer (JUST WANTED YOU TO KNOW) WE REALLY APPRECIATE YOUR PURCHASE • • • • • • • Power Deliver charge up to 100W 1x VGA port max support 1080p@60 1x HDMI port max support 4K@30 1x DP port max support 4K@30 Windows support MST function SD/Micro SD can be read simultaneously Both 2x USB 3.0 ports support BC 1.
PAGE 2
Note: SST display rule 1. 2. HDMI split mode 4K@30Hz DP split mode 4K@30Hz VGA X not support HDMI split mode 1080p HDMI split mode 1080p VGA split mode 1080p HDMI split mode 720p DP split mode 720p VGA split mode 720p DP Alt mode support is required All devices connecting to this docking station will reconnect when PD power is removed.
