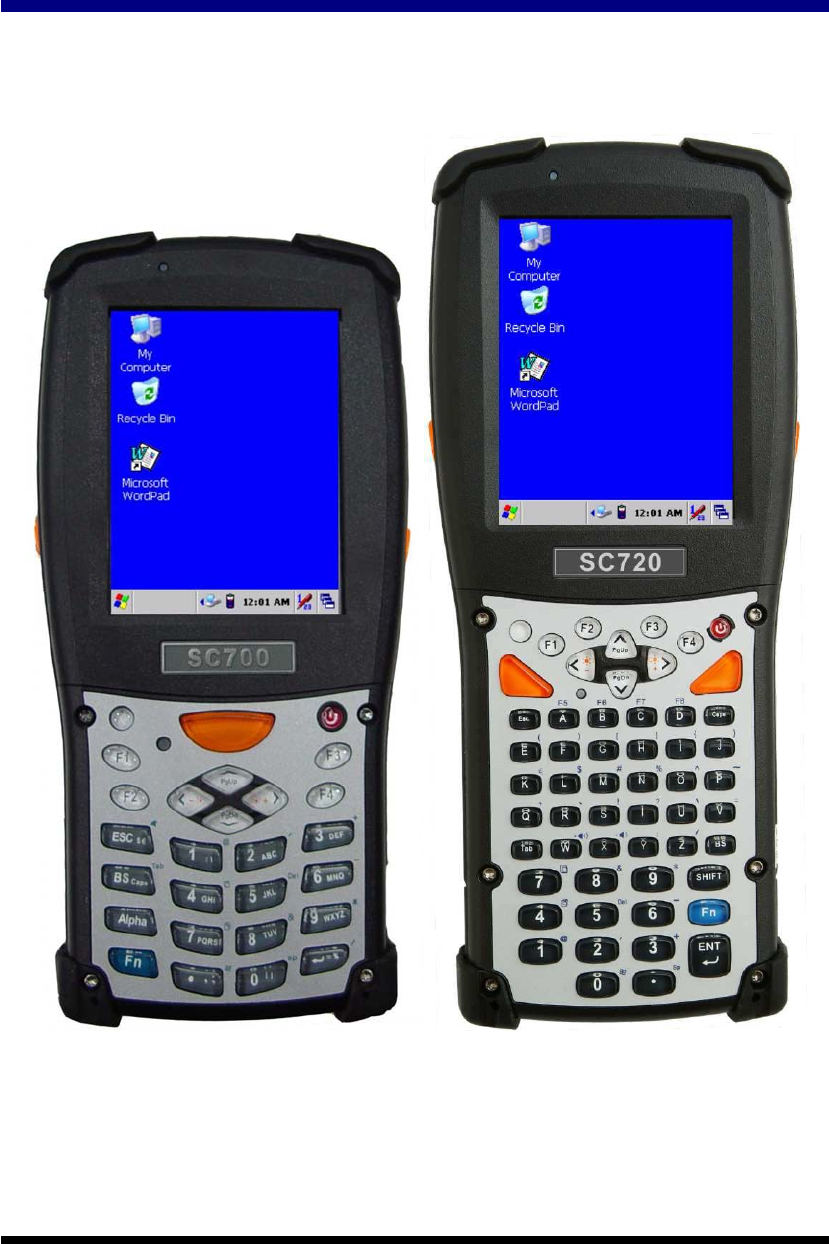

SC700 / SC720 User’s Manual WinCE. NET Rugged Portable Data Terminal Sep/20/2007 Ver: 0.
Table of Contents Chapter 1. Introduction ........................................................................ 1-1 1.1 About this Manual............................................................................1-1 1.2 User and Product Safety...................................................................1-2 1.3 Battery Safety...................................................................................1-3 1.4 FCC Statement .......................................................................
2.5.5 The Soft Keypad ...................................................................2-36 2.5.6 Setting Up Wireless LAN RF ...............................................2-36 2.5.7 Reading barcodes, 1D laser version......................................2-37 2.5.8 Reading barcodes, 2D CMOS version. .................................2-38 2.5.8 Help.......................................................................................2-40 2.6 Power management ................................................
.1 Installing & Setting Up Microsoft ActiveSync................................4-1 4.1.1 Installing Microsoft ActiveSync on the Host PC....................4-1 4.1.2 Connecting PDT to Host PC ...................................................4-1 4.2 Using ActiveSync.............................................................................4-1 4.2.1 Setting up a Partnership ..........................................................4-1 4.2.2 ActiveSync File Synchronization..................................
A.3.11 EAN-13 .............................................................................A-17 A.3.12 Interleaved 2 of 5 ..............................................................A-18 A.3.13 MaxiCode..........................................................................A-19 A.3.14 MicroPDF417....................................................................A-20 A.3.15 OCR-A, OCR-B, US Currency .........................................A-21 A.3.16 PDF417 .............................................
C.2 GPS Applicability...........................................................................
Chapter 1. Introduction Congratulations on purchasing the SC700/SC720 Portable Data Terminal (PDT), a Microsoft Windows®CE .Net rugged PDT. Its special combination of features makes it perfect for using in a wide range of applications. These features as: Intel® XScaleTM PXA270 520MHz 32 bits RISC Processor Windows® CE .NET 5.0 Operating System 128/256 MB SDRAM & 128/256 MB Flash ROM Open Architecture: User Accessible SD/CF/PCMCIA Slot 240 x 320, 3.
1.2 User and Product Safety Do not stare into the laser or LED beam directly or shine it into eyes. Never use strong pressure onto the screen or subject it to severe impact, as the LCD panel could become cracked and possibility cause personal injury. If the LCD panel is broken, never touch the liquid inside because the liquid irritates the skin. Although the PDT has passed the test of IP54 standard for water and dust resistance, avoid prolonged exposure to rain or other concentrated moisture.
1.3 Battery Safety Lithium-ion battery packs might get hot, explode, ignite and/or cause serious injury if exploded by abusive using. Please follow the safety warnings listed as below: Do not throw the battery pack in fire. Do not expose the battery to high temperatures. Do not connect the positive battery pack with negative battery pack to each other with any metal object (like wire). Do not carry or store battery pack together with metal objects.
1.4 FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
antenna or transmitter except built-in tested devices. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. Caution: SCC declares that SC700 ( FCC ID: TQ2-SC700PDT-BWG ) / SC720 ( FCC ID: TQ2-SC720PDT-BWG ) is limited in CH1~CH11 for 2.4GHz by specified firmware controlled in U.S.A.
1.7 Product Labeling The PDT has several labels as showed in Figure 1-1 to 1-4. A. SC700 Figure 1-1 Product Labeling (Front side view) Label nr.
Figure 1-2 Product Labeling (Back side view) Label nr. Description 3 System and regulatory label 4 LED/Laser radiation warning label 5 Warranty label bar code reader 6 Serial number 7 Configuration number 8 Windows CE .
B. SC720 Figure 1-3 Product Labeling (Front side view) Label nr.
Figure 1-4 Product Labeling (Back side view) Label nr. Description 3 System and regulatory label 4 LED/Laser radiation warning label 5 Warranty label bar code reader 6 Serial number 7 Configuration number 8 Windows CE .
1.8 System Specifications The SC700 / SC720 detailed specifications as follows. Unless otherwise noted, all the specifications are subject to change without prior notification. Table 1-5 System Specification SC700 / SC720 Processor - 520MHz Intel PXA270 32 bits RISC CPU Memory - 128/256MB Flash ROM - 128/256MB SDRAM Display - 240 x 320 3.5” TFT 256K Color LCD with LED backlight Audio - One mono speaker - 2.5mm DIA Stereo Earphone Jack with Microphone input - Wireless LAN: 802.
SC700 / SC720 - Standard Li-Ion Battery Pack, 3.7V, 3000mAh - Advanced Smart Battery with Gas-Gauge - Built-in Battery Charger - 2.4V/15mAh rechargeable backup battery - One Battery Cover Sensor Switch Power System - Power Adapter: 100~240V AC, 50/60Hz Input ; 5VDC/2.
SC700 / SC720 Peripherals and Accessories - Optional: RS232 Serial Cable for Terminal / USB Host Cable for Terminal / High-Capacity Li-Ion Battery Pack (3.7V, 4000 mAh) / RFID Card Cover / Single Dock / Pistol Grip/ 4 Slot Battery Charger / Car Adapter / Holster / LCD Protective Film / Finger Printer & RS232 Cable / RFID Module / GPS Module Software - Microsoft Windows CE.NET 5.0 Professional 1.
Chapter 2. Getting Started 2.1 Check the package Open the package and check all the parts are inside without shortage and damage: A. SC700 Figure 2-1 Inside the package 1. 2. 3. 4. 5. SC700 Terminal Standard Battery Pack (3.7V, 3000 mAh) USB Client Cable for Terminal Stylus AC Power Cord 6. 7. 8. Earphone/ Microphone Set Standard AC Adapter 5VDC/2.6A CF Support Guide (availability depends of PDT model) 9.
B. SC720 Figure 2-2 Inside the package 1. 2. 3. SC720 Terminal Standard Battery Pack (3.7V, 3000 mAh) USB Client Cable for Terminal 4. 5. 6. 7. Stylus AC Power Cord Earphone/ Microphone Set Standard AC Adapter 5VDC/2.6A 8. 9.
2.2 General View of the PDT 2.2.
Table 2-1 Description of SC700 General View 1 Scanner LED Indicator “Red” color “Green” color 2 Charge LED Indicator “Red” color “Green” color Reading barcode Successful reading Charging battery Battery charged full 3 LCM / Touch Panel Do specific action through touch panel by stylus 4 Left Scan key Right Scan key Scan key Start scanning the barcode by pressing any one of these three scan keys 5 Power key Puts the terminal into and wakes the terminal from suspend mode.
2.2.
Table 2-2 Description of SC720 General View 1 Scanner LED Indicator “Red” color “Green” color 2 Charge LED Indicator “Red” color “Green” color Reading barcode Successful reading Charging battery Battery charged full 3 LCM / Touch Panel Do specific action through touch panel by stylus 4 Left Scan key Right Scan key Scan key Start scanning the barcode by pressing any one of these three scan keys 5 Power key Puts the terminal into and wakes the terminal from suspend mode.
2.3 Charging the Battery Pack Before using the PDT, perform the basic procedure of charging the battery pack through the following steps. 2.3.1 Installing the battery pack 1. On the PDT attached with a hand-strap, detach and loose the hand-strap. Figure 2-7 Release the Hand strap from PDT 2. Turn the locking screws (right and left) downwards and lift the battery cover away from the PDT.
3. Insert the battery pack into the battery compartment with the label facing out, and ensuring the battery snaps into place. Figure 2-9 Insert the battery pack 4. Replace the battery cover by inserting the top first, and then press the bottom in firmly. Turn the locking screws (right and left) upwards to secure the cover to the PDT.
5. Charge time. For the first time to charge the battery pack needs approximately 6 hours. Subsequent charging time needs approximately 4 hours. ◆. When charging the battery pack, the charge LED indicator on the PDT turns on Red. After the battery pack is fully charged, the charge LED indicator turns to Green. 2.3.2 Charging the battery pack with Power Adapter 1. Connect the Power cord to the Power adapter. 2. Plug in the connector of the power adapter. 3. Connect the power cord to a power source.
2.3.3 Charging the battery pack with Single Dock a) Leave the battery pack inside of the PDT 1. Connect the Power cord to the Power adapter 2. Connect the power cord to a power source 3. Plug in the connector of the power adapter with Single Dock 4. Insert the PDT into the Single Dock Figure 2-12 Charging with Single Dock ◆ When charging the battery pack, the charge LED indicator on the PDT turns on Red. After the battery pack is fully charged, the charge LED indicator turns to Green.
◆ When charging the Battery pack in the Single Cradle’s spare Battery slot, the Single Cradle charging LED will turn on Red. After the Battery pack is fully charged, this LED will turn to Green. CAUTION: Please do not remove the Battery pack too long from PDT after you have already full-charged the Battery pack and backup battery pack and start to use the PDT. Otherwise the data stored inside SDRAM memory will be lost. Please also keep in mind power the PDT off if you want to change the main Battery pack.
2.4. Handling the PDT 2.4.1 Starting the PDT Press the Power key to turn on/off the PDT. If the PDT does not power on, perform a cold boot. See 2-7 Resetting the PDT. CAUTION: When a battery is fully inserted in PDT for the first time, upon the PDT’s first power up, the device boots and powers on automatically. When the PDT is powered on for the first time, it initializes its system. A splash screen (figure 2-13) appears for a short period of time followed by the Wince.NET 5.0 window.
2.4.3 Calibration of the touch Screen On the initial boot-up of the PDT, the stylus calibration screen (Labeled Align Screen) opens. Use the stylus to press and hold briefly on the center of each target as it moves around the screen. If necessary, adjust the backlight on the PDT to make the screen readable. (See below 2.4.4. Adjust the brightness).
2.4.5 To mute the Sound To mute the sound, press the off and on of the sound. key first, and then press the key to turn 2.4.6 Using the Stylus The stylus is located next to hand-strap on the left rear of the PDT. The stylus function is same as the mouse on a PC. Use the stylus to: 1) Navigate the display, select menu item and open optional applications. 2) Tap the characters on soft keyboard panel. 3) Hold the stylus on the screen and drag across the screen to select the list of multiple items.
Table 2-3 Keypad List Key Main Function Fn + Main Alpha + Main Function Function None.
Key Main Function Fn + Main Function 0 Space . (Point) Start Menu ／ Enter Alpha + Main Function 〔 〕 ， ； ＝ ％ Table 2-4 Special Assembler Key Assembler Key Functionality Definition Warm Reset Press “F1” and “F4” button simultaneously. Cold Reset Press “Power”, “F1” and “F4” button simultaneously. Table 2-5 Definition of main Function Key Main Function None. Definition Keep its function or by customer demand. Main Barcode Scan The key activates the scan Key function of SC700.
Key Main Function Definition is pressed continuously. Down Move the cursor down one row or line The cursor will move continuously if button is pressed continuously. Up Move the cursor up one row or line The cursor will move continuously if button is pressed continuously. ESC This key performs a cancel action “Backspace” key, it moves the cursor back one space each time the key is pressed. It Backspace deletes the previous character each time it is pressed if you are typing text.
Key Main Function Definition 6 Number key “6” 7 Number key “7” 8 Number key “8” 9 Number key “9” 0 Number key “0” . Point key Enter This key confirms data entry 2.4.7.1 Special Function by “Fn” + main Function The “Fn” key is used in combination with other keys to type special characters and perform system functions.
Key Sequence Fn + Main Function Definition each time. 1. Move the cursor up one page. The cursor will move continuously if button is pressed continuously. Page Up 2. You must press key, then press key to cursor up one page each time. 1. Toggle the audio mute/on 2. You must press key, then press Audio Mute key to enable audio mute or turn on audio function each time. 1. The “TAB” function is to move the cursor to the next tab stop or the next control (on a form) TAB 2.
Key Sequence Fn + Main Function Definition 1. It is to do “Paste” function. 2. To do this function by pressing Paste key first, and then pressing key each time. 1. The “Delete” function delete the next character forward each time. 2. To do “Delete” function by pressing Del key first, and then pressing key each time. Enter a minus sign by pressing key, － (Minus Sign) then pressing key. 1. Copy action. 2. You must press key, then press Copy key to do “Copy” action each time.
Key Sequence Fn + Main Function Definition key first, and then pressing key each time. 1. It displays the Start menu. 2. To do this function by pressing Start Menu key first, and then pressing key each time. Enter a slash by pressing key first, ／ and then pressing key. 2.4.7.2 Alpha plane keys by “Alpha” + main Function 1. The key enables you to toggle between the numeric and alpha modes. Numeric mode is when you type numbers with number keys.
4. While you are in the Alpha mode and you press mode, you will render a Caps Lock until you press key to initial the Caps key again. Once you are in Caps mode, you stay in Caps until it is pressed again. 5. It appears “A” icon at Task Bar during Caps mode.
To enter ｙ To enter Ｙ Press the Keys ｚ Ｚ 〔 〕 ， ； ＝ ％ Press the Keys Note: 1. The key is not needed to key in if the character isn’t the first alpha character being keyed in. 2. The keys are not needed to key in if it is not the first capital alpha character being keyed in. 2.4.
Table 2-8 Keypad List Key Main Function Fn + Main Function None Main Barcode Scan Key Power On/Off Internet Explorer Microsoft WordPad Inbox File Explorer Right Increase of Brightness Left Decrease of Brightness Down Page Down Up Page Up Esc Caps Tab Backspace A F5 B F6 C F7 D F8 E ( F ) G [ H ] I { J } 2-24
Key Main Function Fn + Main Function K € L $ M # N % O ^ P ~ Q R , 、 S ! T ? U \ V = W X Y ; Z / 1 @ 2 3 ’ ＋ 4 Copy 5 6 Del － (Minus Sign) 7 Paste 8 9 & ＊ 0 Start Menu .
Table 2-9 Special Assembler Key Assembler Key Functionality Definition Warm Reset Press “F1” and “F4” button simultaneously. Cold Reset Press “Power”, “F1” and “F4” button simultaneously. Table 2-10 Definition of main Function Key Main Function None Definition Keep its function by customer demand. Main Barcode Scan The Key function of SC720.
Key Main Function Definition Up Move the cursor up one row or line The cursor will move continuously if button is pressed continuously. Esc This key performs a cancel action Caps Conversion of the capital & lower case of the alpha key. Tab The “TAB” function is to move the cursor to the next tab stop or the next control (on a form) Backspace “Backspace” key, it moves the cursor back one space each time the key is pressed.
Key Sequence Fn + Main Function Definition Increase the LED backlight brightness of display screen(Lighter) Increase of Brightness You must press key, then press key to increase backlight brightness each time. 3. Decrease the LED backlight brightness of display screen (darker) Decrease of Brightness 4. You must press key, then press key to decrease backlight brightness each time. 3. Move the cursor down one page. The cursor will move continuously if button is pressed continuously. Page Down 4.
Fn + Main Function Key Sequence Definition function from setting. Enter a ( by pressing key, then ( pressing key. Enter a ) by pressing key, then ) pressing key. Enter a [ by pressing key, then [ pressing key. Enter a ] by pressing key, then ] pressing key. Enter a { by pressing key, then { pressing key. Enter a } by pressing key, then } pressing Enter a € key. by pressing key, then € pressing Enter a $ key. by pressing key, then $ pressing # Enter a # 2-29 key.
Fn + Main Function Key Sequence Definition pressing Enter a % key. by pressing key, then % press key. Enter a ^ by pressing key, then ^ press key. Enter a ~ by pressing key, then ~ pressing Enter a , key. by pressing key, then , pressing key. Enter a 、 by pressing key, then 、 pressing key. Enter a ! by pressing key, then ! pressing Enter a ? key. by pressing key, then ? pressing \ Enter a \ pressing = Enter a = 2-30 key. by pressing key, then key.
Fn + Main Function Key Sequence Definition press key. Increases device volume, press and then press key key. Decreases device volume, press and then press ; Enter a ; pressing / Enter a / pressing key key. by pressing key, then key. by pressing key, then key. Enter a @ by pressing key, then @ pressing key. Enter a {’} by pressing key, then ’ pressing key. Enter a plus sign by pressing key, then ＋ pressing key 3. It is to do “Paste” function. 4.
Fn + Main Function Key Sequence Definition key first, and then pressing key each time. Enter a minus sign by pressing key, then － (Minus Sign) pressing key. 3. Copy action. Paste 4. You must press key, then press key to do “Copy” action each time. Enter an AND sign by pressing key, ＆ then pressing key. Enter an asterisk sign by pressing key ＊ first, and then pressing key. 3. It displays the Start menu. 4.
2.4.9 Using the Ear/Microphone Connect Ear/Microphone to PDT earphone jack connector. The PDT is not built in microphone; if you like to record the voice, you have to use Ear/Microphone.
2.5 Navigating the Display 2.5.1 Setting Time and Date In the Date/Time options, you can change the year, month, date, time, time zone, or select automatic adjust for Daylight Saving Time. To set or change the date and time: 1. Select Start > Settings > Control Panel > Date/Time 2. To change the year, select the year or open a numeric dial. Select the up arrow to increase the value; select the down arrow to decrease the value. Or you can type a new value in the field. 3.
SC700 keypad”. Use the stylus on the touch screen. Select text in the same way you select the text on a PC. Use the stylus to highlight the desired text by dragging the stylus across the desired text, double-tapping to select one word and triple-rapping to select an entire line/paragraph. Refer to “2.5 Navigating the Display” starting. Use the soft input panel (digital keyboard) with the stylus. Use the bar code scanning to enter data. Press the trigger or “Barcode Scan” key to initiate a scan.
2.5.5 The Soft Keypad In applications that accept keypad input, the soft input panel (SIP) can be used to enter data using the stylus. The SIP is digital, QWERTY-style keyboard. To open the SIP, tap the keyboard icon to open the menu and select Hide Input Panel to close the keyboard. Use the stylus to select letters, numbers, or symbols from the Soft Input Panel for the current application. 2.5.6 Setting Up Wireless LAN RF 1) Press “Start”---“Setting”---“Control Panel” --- “WLAN Manager”.
WLAN signal is Low. WLAN signal is In General. WLAN signal is Good. Figure 2-22 WLAN Manager Figure 2-23 WLAN Manager 2.5.7 Reading barcodes, 1D laser version. To use the scanning function, complete the following steps: 1. If you have not already done so, remove the protective plastic film before using devices equipped with a 1D laser bar code reader. 2. Select Start > Setting > Control Panel > Barcode Setting; complete all configurations following all description of 3.2.1 BarCode Setting. 3.
6. Good scanning position. The reading range is from 40 to 300mm distance. 1) Decrease the scanning distance to the bar code when scanning small barcodes. 2) Increase the scanning distance from the bar code when scanning large barcodes 3) The scanning area is visible by a red laser beam. 7. Bad scanning position. 1) Make sure that the laser beam sweeps across whole bar code. 2) Scanning operations may fail if the laser beam is positioned as below. 8.
following all description of Appendix A. 2D Barcode Setting. 3. Run the WordPad software program. 4. Press one of the three bar code reader trigger buttons. 5. Aim the scanning beam at the center of bar code. To assists in aiming, there are 4 green aiming light spots. The bar code should be between the outside 2 green spots. The scanner is in focus in case the center 2 green spots joins into 1 spot. 5. Good scanning position. The reading range is from 45 to 260mm distance.
7. Upon reading a bar code, the red LED indicator turns on until the trigger is release or after five seconds. The green LED and the beep tone indicates a good read. 2.5.8 Help To tap “?” can get help information for each program.
2.6 Power management 2.6.1 Suspend Mode The PDT will go into a suspend mode when it is idle for a period of time. The idle duration can be customized using the Power control panel (refer to Figure “Schemes Tab”) Suspend mode works and looks just like you have turned the unit off. Press the key to suspend the PDT, Press the key again for the PDT to resume its Previous state. Use the Battery power control panel to set the duration to switch state to Suspend mode when system using battery power.
2.6.2 Resuming Use one of following methods to resume (wake up the PDT): Press key to suspend or resume (wake up). Put the PDT into a dock. When a battery pack completely discharges while the unit is in suspend mode, the PDT remains suspended until discharged battery condition is corrected. 2.7 Resetting the PDT 2.7.1 Software (Warm) Reset A warm reset is a transition from the on, idle, or suspend power state that close all applications, clears the working RAM, but preserves the file system.
Chapter 3. Setting 3.1 Introduction To view available options for PDT’s setting, tap Start > Settings. Then, there are three items inside Settings: “Control Panel”, “Network and Dial-up” and “Taskbar and Start”. 3.2 Control Panel To view the Control Panel and settings you can modify by tapping Start > Settings > Control Panel.
3.2.1 BarCode Setting CAUTION： ：Please do not enter into any Barcode Application Program before settings completing this Barcode. There are three Tabs for scanner configuration setting: “Basic” Tab, “Code Configure” Tab and “Code ID” Tab. In addition, there is “BarCode Setup” for the “Code Configure” Tab. 3.2.1.1 “Basic” Tab Figure 3-2 Basic Tab Table 3-1 Basic Explaining Field Name Beep After Scan OK Function Explaining Select the numbers of beep tone after scan OK.
Field Name Function Explaining Two Times Scan Timeout (sec) After scanning the barcode, give out beep two times. Select the scanning timeout duration (in seconds) from this pull-down list. <2 ~ 20 sec, Default: 5> None After showing barcode, do not action. CRLF After showing the barcode, jump to next row. Space After showing the barcode, jump one unit. Tab After showing the barcode, jump a section. Continuous Disable Disable this functionality.
3.2.1.2 “Code Configure” Tab: Select the barcode symbologies you plan to scan from the list. Tap to enable/disable the desired symbologies. Figure 3-3 Code Configure Tab Table 3-2 Code Configure Explaining Barcode Symbology Explaining Type A. Numeric-only Barcodes UPC-E Compressed version of UPC code for use on small products. UPC-A Universal product code seen on almost all retail products in the USA and Canada. EAN-13 / ISBN EAN-13: European Article Numbering international retail product code.
books, and other periodicals. Industrial 2 of 5 / IATA Older code not in common use. Interleaved 2 of 5 Compact numeric code, widely used in industry, air cargo, other applications. Plessey / MSI Plessey: Older code commonly used for retail shelf marking. MSI: Variation of the Plessey code commonly used in USA. Code 11 Used primarily for labeling telecommunications equipment. Codabar / NW 7 Older code often used in library systems, sometimes in blood bank.
3.2.1.3 “Code ID” Tab: Figure 3-4 Code ID Tab Table 3-3 Code ID Explaining Code ID is added into prefix of the barcode and let user identify which kind of barcode being scanned. Enable Code ID Set 1 ~ Set 5 Enable this functionality. Select one default value by Set 1 ~ Set 5. (See the “Table 3-4 Code ID Set1-Set5 Table”) User Define Establish number by oneself. Barcode List Set 1 ~ Set 5: defaults setting. User Define: select barcode to define.
Set 1 Set 2 Set 3 Set 4 Set 5 Plessey / MSI V V D P M Code 11 J J J J J Codabar / NW 7 F N X N F Matrix 2 of 5 E G G G S Code 39 / Code 32 A C Y M A Code 93 I L L L G Code 128 H K K K C Code 4 U U U U U Korea Code 3 of 5 R R R R R RSS R R R R R UCC128 / EAN128 W W W W W 3.2.1.4 BarCode Setup A. First select barcode type then select barcode to setting. B.
3.2.2 Symbologies List A Type -- Numeric-only Barcodes 3.2.2.1 UPC-E Figure 3-6 UPC-E Table 3-5 UPC-E Explaining Item Format Explaining Ignore 1st digit Do not transmit 1st digit by barcode. Transmit 1st digit Transmit 1st digit by barcode. Send Check Digit Whether send check digit by barcode.
3.2.2.2 UPC-A UPC-A movements together with EAN-13, so only Enable EAN-13 then UPC-A will be Enable, too. Figure 3-7 UPC-A Table 3-6 UPC-A Explaining Item Format Explaining Ignore 1st & 2nd digits Do not transmit 1st digit by barcode. Transmit 1st digit Transmit 1st digit by barcode. Transmit 2nd digit Transmit 2nd digit by barcode. Transmit 1st & 2nd digits Transmit 1st & 2nd digits by barcode. Send Check Digit Whether send check digit by barcode.
3.2.2.3 EAN-13 / ISBN Figure 3-8 EAN-13 / ISBN Table 3-7 EAN-13 / ISBN Explaining Item Format Explaining Ignore 1st & 2nd digits Do not transmit 1st digit by barcode. Transmit 1st digit Transmit 1st digit by barcode. Transmit 2nd digit Transmit 2nd digit by barcode. Transmit 1st & 2nd digits Transmit 1st & 2nd digits by barcode. Send Check Digit Whether send check digit by barcode. Enable ISBN Code Whether use this ISBN Code.
3.2.2.4 EAN-8/JAN-8 Figure 3-9 EAN-8/JAN-8 Table 3-8 EAN-8/JAN-8 Explaining Item Format Explaining Ignore 1st digit Do not transmit 1st digit by barcode. Transmit 1st digit Transmit 1st digit by barcode. Send Check Digit Whether send check digit by barcode. Convert to EAN-13 When this option is selected the scanner will convert EAN-8 to EAN-13 by transmitting five zeroes … Add five 0 Ahead of code Add five zeroes at prefix of the barcode. After 3 digits Add five zeroes after 3rd digits.
3.2.2.5 UPC-EAN Add on 2/5 A. UPC-E, UPC-A, EAN-13 / ISBN and EAN-8 / JAN-8 may all include an additional barcode to the right of the main barcode. B. This barcode will show primary & additional code together. C. So the UPC-EAN Add-ON 2/5 code is unable to use alone, must operate in UPC-E or UPC-A or EAN-13 / ISBN or EAN-8 / JAN-8. Figure 3-10 UPC-EAN Add on 2/5 Table 3-9 UPC-EAN Add-On 2/5 Explaining Item Explaining Only read the code with Addon 2/5 Only reads the codes that have addenda.
3.2.2.6 Industrial 2 of 5 / IATA Figure 3-11 Industrial 2 of 5 / IATA Table 3-10 Industrial 2 of 5 / IATA Explaining Item Explaining Send Check Digit Whether send check digit by barcode. Enable IATA Code Whether use this IATA Code. Checksum Length Verify Whether verify checksum by barcode.
3.2.2.7 Interleaved 2 of 5 Figure 3-12 Interleaved 2 of 5 Table 3-11 Interleaved 2 of 5 Explaining Item Explaining Send Check Digit Checksum Length Whether send check digit by barcode. Verify Whether verify checksum by barcode.
3.2.2.8 Plessey / MSI Figure 3-13 Plessey / MSI Table 3-12 Plessey / MSI Explaining Item Format Explaining Mode 10 Mode 10-10 Checksum mode for this barcode. Mode 11-10 Send Check Digit Whether send check digit by barcode. 1 Digit Check 1 digit & send by checksum. 2 Digits Check 2 digits & send by checksum.
3.2.2.9 Code11 Figure 3-14 Code 11 Table 3-13 Code 11 Explaining Item Send Check Digit Explaining Whether send check digit by barcode. 1 Digit Check 1 digit & send by checksum. 2 Digits Check 2 digits & send by checksum.
3.2.2.10 Codabar / NW7 Figure 3-15 Codabar / NW7 Table 3-14 Codabar / NW7 Explaining Item Explaining Start / Stop Digit Whether transmit Start & Stop Digit. ABCD abcd TN*E Start / Stop transmit type tn*e Checksum Verify Whether verify checksum by barcode.
3.2.2.11 Matrix 2 of 5 Figure 3-16 Matrix 2 of 5 Table 3-15 Matrix 2 of 5 Explaining Item Explaining Send Check Digit Checksum Length Whether send check digit by barcode. Verify Min-Max (Default: 4 / 48) Fixed Whether verify checksum by barcode.
B Type -- Alphanumeric Barcodes 3.2.2.12 Code39 / Code32 Figure 3-17 Code39 / Code32 Table 3-16 Code39 / Code32 Explaining Item Format Code39 Standard Enable Code 39 Standard characters Code39 Full ASCII Enable Code 39 Full ASCII character Code32 Enable Code 32 Start / Stop Digit Checksum Explaining Whether transmit Start & Stop Digit. Verify Whether verify checksum by barcode. Transmit Whether transmit checksum by barcode.
3.2.2.13 Code93 The barcode do not have setting. Figure 3-18 Code93 3.2.2.14 Code128 / UCC EAN128 Figure 3-19 Code 128 / UCC EAN128 Table 3-17 Code128 / UCC EAN128 Explaining Item Enable UCC128/EAN128 Explaining Enable UCC128/EAN128.
