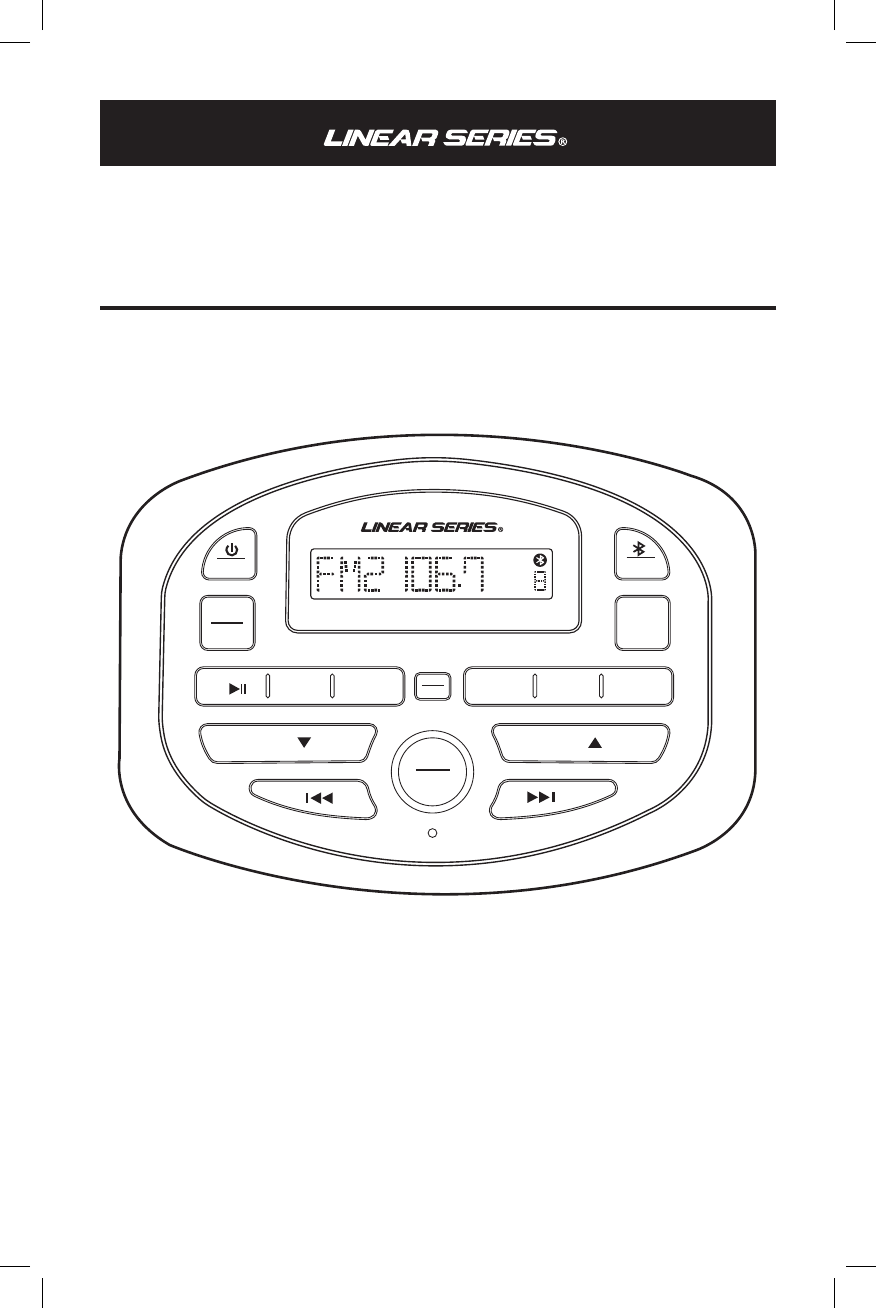

Operation / Installation Manual MUTE APS MODE ALARM FM/AM 2 1 3 CLOCK DIMMER VOL 4 5 6 VOL SET MENU Bluetooth AM/FM Entertainment Center SP-1
Introduction Please take the time to read all of the information in this manual. Familiarity with operation and installation procedures will help you obtain the best possible performance from your new Entertainment Center. WARNING! • FCC REGULATIONS STATE THAT ANY UNAUTHORIZED CHANGES OR MODIFICATIONS TO THIS EQUIPMENT MAY VOID THE USER’S AUTHORITY TO OPERATE IT. • THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.
Button Locations and Functions 1 2 MUTE 3 APS MODE ALARM FM/AM 6 5 2 1 8 4 3 CLOCK DIMMER VOL 10 12 4 5 VOL SET MENU 6 7 9 11 13 1. Power and Mute Button: Power Button: Press to turn the entertainment center on. Press and hold the button for 3 seconds to turn the unit off. Mute Button: Press to mute sound. Press again to restore. 2. Bluetooth and APS Button: Bluetooth Selection Button: Press to choose Bluetooth input mode. Bluetooth device must be paired prior to use.
Button Locations and Functions (Continued) 11. Seek Up Button : Radio Mode: Short press to automatically seek for next higher tunable frequency. Press and hold to move into manual tuning mode. Bluetooth Mode: Press to search for the beginning of the next track. 12. SET / MENU Button: Short press to enter and then short presses to toggle between sound adjustments: Bass, Treble, Balance, Fader then DSP: Pop/Rock/ Classic, Boost On/Off and then back to Volume. Use the VOL or VOL to make adjustments.
General Operations Power On: Press the / MUTE button to turn the unit on. Power Off: MUTE Press the / MUTE button for 3 seconds to turn the unit off. Mute: A short press of the the audio.
Sound Controls Volume: Increase the volume by pressing the VOL Decrease the volume by pressing the VOL button. button. MUTE APS MODE ALARM FM/AM 2 1 3 CLOCK DIMMER 4 VOL 5 6 VOL SET MENU Bass, Treble, Balance, Fader, DSP, Boost and Volume Control Select the desired sound mode by pressing the SET/MENU button. The modes will be displayed in the following order: Bass, Treble, Balance, Fader, DSP, Boost and Volume. Bass: Press the SET/MENU.
Sound Controls (continued) DSP (Pre-set EQ): Press the SET/MENU until the “DSP” (Digital Signal Processor - Equalizer) options appears in the display. The Equalizer presets to choose from are: “DSP OFF”, “POP”, “ROCK” or “CLASSIC”. MUTE APS MODE ALARM FM/AM 2 1 3 CLOCK DIMMER 4 VOL Immediately use the VOL desired DSP preset. or VOL 5 6 VOL SET MENU to adjust to Note: If DSP preset is enabled, Bass and Treble settings cannot be manually adjusted.
Setting the Clock 1. Press and hold the CLOCK/DIMMER button until the clock appears in the display. MUTE 2. Press and hold again until the time begins flashing. APS MODE ALARM FM/AM 2 1 3. Immediately use the VOL VOL to set the hour. to set the minutes and 3 CLOCK DIMMER 4 VOL 5 6 VOL SET MENU After 5 seconds of inactivity, the display will return back to the main screen and the clock will be set. Notes: Select AM or PM when setting the hour. Alarm Operation Setting the Alarm Timer 1.
Radio Operations Selecting the Radio Play Source: Press the MODE/ALARM button until “RADIO” appears in the display. MUTE APS MODE ALARM FM/AM 2 1 3 CLOCK DIMMER 4 VOL 5 6 VOL SET MENU Selecting FM or AM: Press the FM/AM button repeatedly to select from: FM1, FM2, FM3, or AM1, AM2. Note: If you are in BT or AUX mode, press the FM/AM button to switch to radio.
Radio Operations (continued) Scanning and Automatically Storing Radio Stations: Press and hold the APS button until the tuner begins to scan forward to the next strong station and then release. The new stations will replace stations that were previously stored in the current band. When in FM band mode the 18 strongest frequency stations will be stored: FM1 - 6 stations, FM2 - 6 stations, FM3 - 6 stations.
Bluetooth Operations Pairing Bluetooth Devices: (available functions are dependent upon the specific Bluetooth audio device and the audio application) 1. Press the button to turn on the SP1. 2. Activate Bluetooth from your mobile device and Select “Linear-Series-SP1” which will, if in range, automatically appear in your list of Bluetooth devices. 3. Press the MODE or the button on the SP1 until “BT AUDIO” is displayed. 4.
Installation Installing Entertainment Center 1. Use the template included to determine the best location for the entertainment center. Note: The mounting location needs to be a flat surface. 2. Cut out the mounting hole and drill pilot holes for the screws. Use Supplied Template to Cut Hole and Make Pilot Holes for Screws 3. Mount the entertainment center using the provided screws. Make sure to tighten the screws equally to create a waterproof seal.
Wiring Left Front Speaker White/Black Wire Gray/Black Wire White Wire Gray Wire Right Front Speaker External Automotive Type Antenna (Optional) 10 Amp Fuse Right Black Wires Audio In Left Right Gray Wires Audio Out Left Red Wire (+) to 12 Volt Battery Black Wire Ground Blue Wire Trigger for Amp (+12VDC output)) Left Rear Speaker 14 Green/Black Wire Violet/Black Wire Green Wire Violet Wire Right Rear Speaker
Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product.
