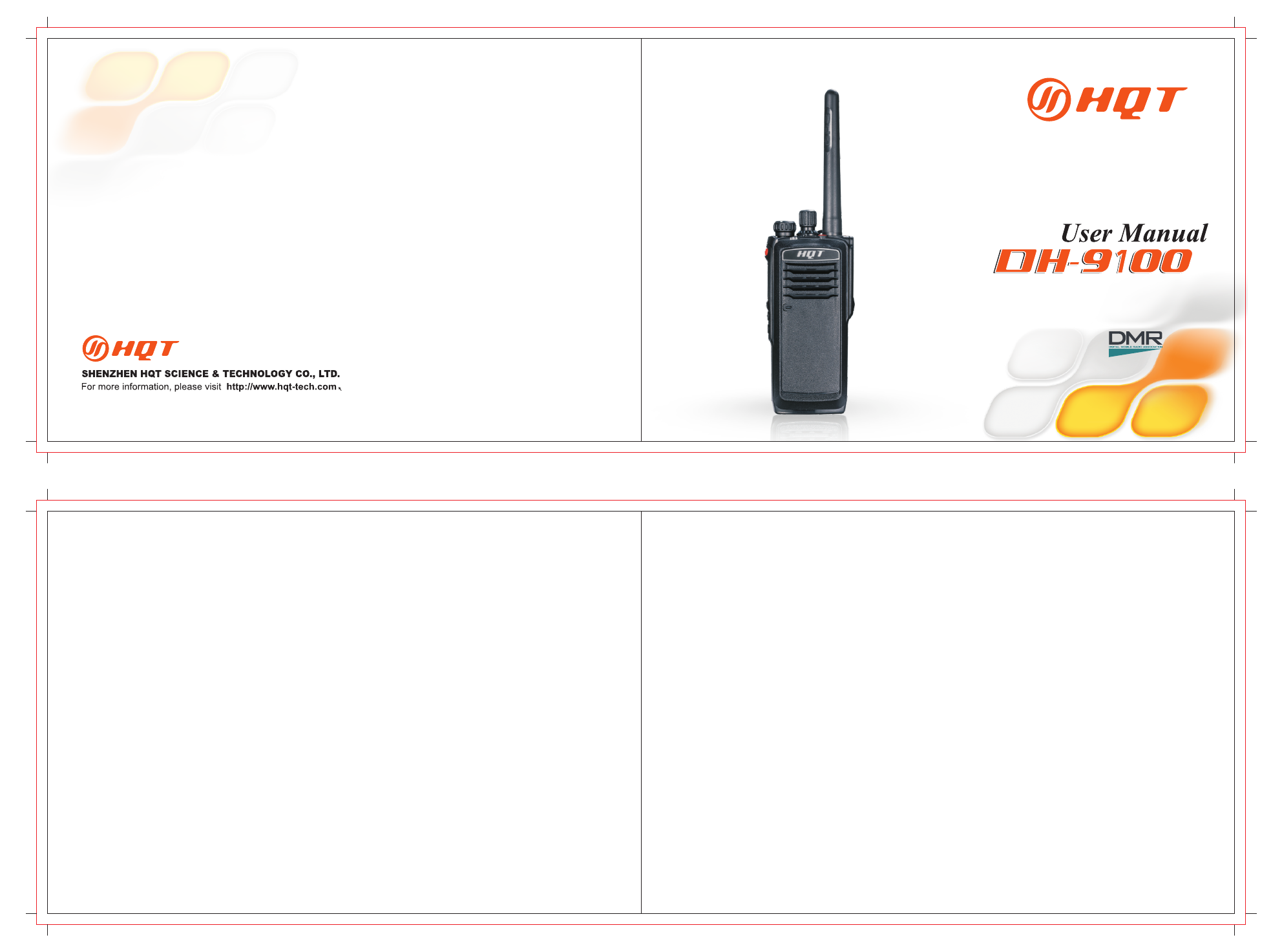

Digital portable radios All rights reserved to HQT. Pictures shown in this manual are for your reference only, if there is fluctuation, according to the real object, please. Hello We appreciate your purchasing DH-9100 digital portable radio! We believe that the quality and function of this radio will bring you stable performance and smooth communication.
FCC RF EXPOSURE COMPLIANCE REQUIREMENTS FOR OCCUPATIONAL USE ONLY The Federal Communications Commission (FCC), with its action in General Docket 93-62, November 7, 1997, has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated equipment. Proper operation of this radio will result in user exposure far b e l o w t h e Occupational Safety and Health Act (OSHA) and Federal Communications Commission limits.
Safety Matters Product Inspection 03 Installing Hand Strap 04 Attaching/Removing the Audio Accessory Radio Overview Get Acquainted 05 Battery Information 05 Cautions in Charging 06 Attaching and Removing 07 Calling on Digital Channel Attaching/Removing the battery 07 Man Down (Optional) Attaching/Removing the antenna 08 Installing/Removing the Belt Clip 09 LED Indicator Programmable Keys Basic Operations 09 10 11 13 14 16 17 18 Talk Around Squelch 18 18 18 19 19 19 20 20 Transmissi
Battery Information Applicable Battery Model: lease charge with HQT approved battery; Using other batteries may burst and cause personal damage. Note: 1. Do not short-circuit the battery terminals or dispose the battery in fire. Never attempt to disassemble the battery pack. 2. Charge the battery in 0-45℃ temperature. Otherwise the battery may not be fully charged. 3. Turn off the radio equipped with battery before charge. Use the radio while charging may interfere with charging. 4.
09 Installing Hand Strap Installing Belt Clip Match the grooves of belt clip with those on the rear of radio and press the belt clip downwards until it is locked. Thread the strap into the hole at the back of the radio and fasten it. Removing Belt Clip Use your nail or a tool to lift the metal spring piece in the belt clip from topside and pull the belt clip upward from the battery pack. Attaching the Audio Accessory Programming Cable 1.
For enhanced convenience, you may request your dealer to program the keys SK1,SK2,SK3,P1,P2,TK as shortcuts to the functions listed below: No. 1 2 3 4 5 6 7 8 9 10 11 12 13 flashes red. flashes green. Shortcut Keys None Description No feature will be assigned.
Calling on Analog Channel (No Signaling) LED Talk Around On the analog channel without signaling, the calling operations are the same as on the digital channel. The difference is that the called parties are all the users on the channel, rather than the preset contact for the channel. Please refer to the corresponding Feature Book for calling operations on the analog channel with signaling. All LEDs: to enable /disable all LED indications. TX LED: to set whether the Tx LED indicates during transmission.
Optioanl Accessories Question and Answer Analysis Phenomena The battery may be improperly installed. Remove the battery and attach it again. The battery may run out. Recharge or replace the battery. The equipment can not be powered on. The battery may suffer from poor contact caused by dirtied or damaged battery contacts. During receiving signals, the voice is weak, discontinuous or totally inactive. You can not communicate with other members. Solution Clean the battery contacts.
25 1. HQT two-way radio body has an 18-month guarantee; accessories (battery, adapter, charger and antenna) 6 months; earphone 3 months. 2. Only the fully-filled warranty card or original purchasing invoice with HQT 's seal or dealer's seal affixed is valid for identifying the guarantee.(The invoice should give clear indication of accessories, radio, serial-numver, purchasing date, purchasing price and other items.) 3.
Important Information RF Energy Exposure Information RF Energy Exposure Awareness And Control Information For Fcc Occupational Use Requirements Ibefore using the Digital portable radio, review the following important RF energy awareness and control information and operational instructions. Comply with this information and instructions in order to ensure compliance with RF exposure guidelines.e the capability to access information in that form.
Important Information Federal Communications Commission Regulations Before it was marketed in the United States, the Digital portable radio was tested to ensure compliance with FCC RF energy exposure limits for two-way portable radios. When digital portable radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements.
