User's Manual

60g
66 X 35 X 12mm
DC 12~24V
50M (MAX.)
2400~2483.5MHz
4.4 (20dB BW)
QPSK
+18dBm @ QPSK
EVM 8%
-72dB
O O O O
-10 C~+50 C/14 F~122 F
15%~85%RH
60g
66 X 35 X 12mm
DC 12V@250mA; DC24V@150mA
DC 12~24V
50M (MAX.)
2400~2483.5MHz
4.4 (20dB BW)
QPSK
+18dBm@QPSK
EVM 8%
-72dB
IP66
65mA±10
1Vp-p±0.2@75Ω
<0.5 Lux
O O
80 (NTSC), 82 (PAL)
DC12V±0.5V
1Vp-p±0.2
1/4" CMOS
656 X 488
NTSC/PAL
Model: 8902JN
8902JN = GL8902(Camera)+GT4067(Transmitter)+GD7067(Receiver)
W GL8902ired camera: X 1
Wireless receiver )(GD7067
Wireless transmitter )(GT4067
Wired camera(GL8902)
Wireless Transmitter
(GT4067)
Wired camera
(GL8902)
Wireless Receiver
)(GD7067
Display or Monitor
Black line
Red line
Power input
(Connected with a
cigarette lighter)
Indicator
Antenna
Connect the vehicle
power supply
Bracket
Camera Lens
Prompt:
Transmitter
Receiver
Quick Start Guide
Camera
Camera
TransmitterReceiver
Unobstructed Effective Range
Unobstructed Effective Range
Power Supply
Weight
Receiving Sensitivity
Weight
Dimensions (W X D X H)
Receiving Sensitivity
Power Supply
Video output
Dimensions (W X D X H)
Operation Humidity
Operation Temperature
Transmission Power
Transmission Power
Modulation/Demodulation Mode
Modulation/Demodulation Mode
Image Sensor
Effective Pixels
Video Format
Minimum illumination
View Angle
Consumption Current
Video output
Power Supply
Waterproof Capacity
Consumption Current
Transmission Frequency
Transmission Frequency
Data Bandwidth
Data Bandwidth
Packing List:
Specifications:

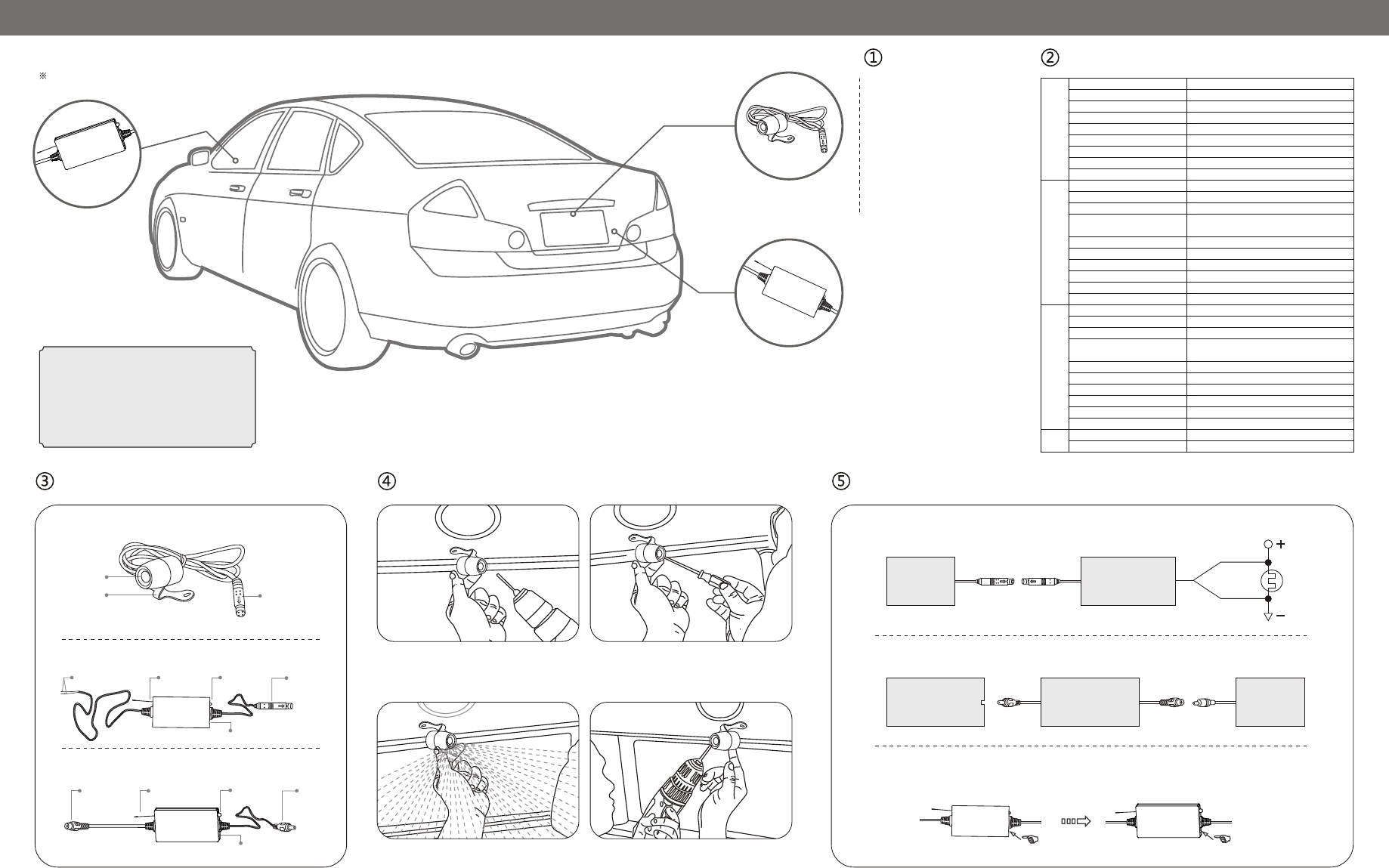

Product Structure: Installation Wired Camera:
Video Output
Video Input
Pairing
Video Output
Indicator
Antenna
Pairing
1. In the proper position of rear license plate
drill a screw hole for mounting screw.
2. Use a screwdriver to the first screw is screwed
into the screw hole of the drilled.
3. Move the camera orientation to adjust
the display effect.
4. After adjustment, second screw drill, mount and
tighten the screws, the camera is installed.
Wiring diagram and the pairing setting:
Wired camera+Wireless transmitter:
Rear
lamp
Wireless receiver:
Cigarette lighter
power supply
Video input
Wireless Receiver
Wireless Transmitter
1, this product is suitable for 12V power car;
2, please find auto electrician to install this product;
4, broken wiring must be insulated.
3, the wire harness to avoid high temperature and
high pressure location;
Wireless receiver: GD7067 X 1
Pairing: To pair the TX box and RX box successfully. please follow the instructions below accordingly.
1. Press and hold the pairing button on the TX box for 3sec. The indicator light will start flashing.
2. Within 30sec of flashing time. Press and hold the pairing button on the RX box for 3sec until the indicator light flashes.
3. Once both TX box and RX box are successfully paired. the indicator lights on TX box and RX box will stop flashing.
Pair button Pair button
Wireless transmitter: X 1GT4067
Digital Wireless Camera System
