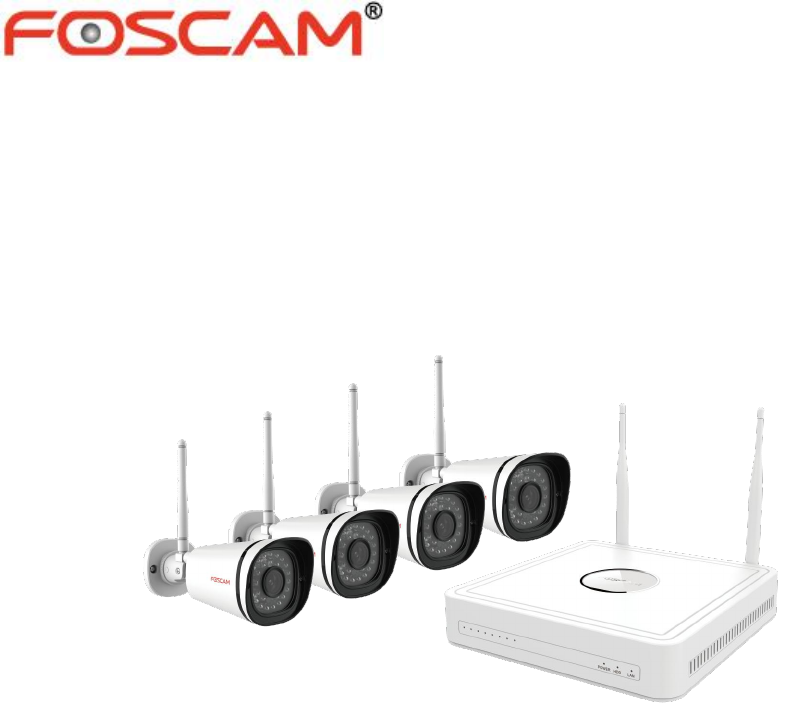

User Manual Model: FN3104W Version: V1.
NVR User Manual Table of Contents Table of Contents.............................................................................................................................................. I Security Warning.............................................................................................................................................III Preface...................................................................................................................................................
NVR User Manual 3.4.1 Adding Devices..................................................................................................................... 42 3.4.2 Schedule Record.................................................................................................................. 43 3.4.3 Alarm.......................................................................................................................................44 3.4.4 Device Information...........................................
NVR User Manual Security Warning Please change the password of your Foscam NVR APP account, NVR and cameras user name regularly, the password should be the combination of numbers, letters and special characters. Please keep the user name and password of your cameras, NVR and Foscam APP account safe. Please update your camera to the latest firmware every three months, which make you have better product experience and ensure the safety of your NVR and cameras. www.foscam.
NVR User Manual Preface Welcome to use our product, Network Video Recorder (NVR) Kit. This document mainly focuses on the installation and configuration of NVR Kit application system. With high performance video, user-friendly GUI, and practical industrial designs. This series NVR Kit is suitable for civil applications such as homes, stores, internet cafes, and small businesses in addition to mainstream security and surveillance applications.
NVR User Manual Important Safety Instructions This chapter describes how to use the product properly so as to prevent danger and property loss. Be sure to follow the security instructions when operating this product. Installation Environment Ensure device is installed in the well-ventilated, dust-free environment. It is recommended to use a voltage stabilizer for supply of power. If the power supply was unmatched, the device might work abnormally or stop working.
NVR User Manual 1 Overview 1.1 Product Introduction The series of product is a NVR Kit. This advanced product series receives a high quality video stream that is transmitted digitally by the IP Camera (IPC). The product can perform live video preview, recording, playback, remote access, and backup simultaneously. 1.2 Key Features Network Monitoring You can access the NVR system remotely through the browser on a PC or access the NVR system locally by using the display or monitor.
NVR User Manual When NVR system time and IPC time are different, the NVR recording will based on the NVR system time. Playback You can play recording video files stored in the Hard disk. Recording includes schedule recording, manual recording, and alarm recording. Single-screen playback and four-screen synchronous playback are supported. When display mode is 1080P, it only supports the single-screen playback.
NVR User Manual 1.3 Relevant Version Name Recommended Configuration You are recommended to equip a 16:9 monitor with the resolution higher than Monitor 1280 * 720. Network 10/100M Ethernet or above. Browser This product supports 32-bit IE8 or later versions and does not support 64-bit IE browsers. It also supports Apple Safari and Mozilla Firefox browsers. 1.4 Icons Description In the live view mode, there are icons at the right top of the full screen.
NVR User Manual 1.5 Common Operations Starting Up the NVR Turn on the power switch on the rear panel. The Power indicator LED should turn green indicating that the device begins to start up. Note If the power LED indicator on the front panel is off, please check if the power supply is plugged into an electrical outlet and the power switch is turned on; Shutting Down the NVR There are two proper ways to shut down the NVR in the GUI interface.
NVR User Manual 1.6 USB Mouse Operation Plug USB mouse into one of the USB interfaces on the rear panel of the NVR. The operation of the mouse on the local GUI is shown as below. Name Action Description Left-Click Single-Click Menu or window: select and enter. Double-Click Preview mode or Playback mode: Switch between single-screen and multi-screen. Click and Drag Time or Area box: Select the time or zone range. Time bar: Drag time bar. Right-Click Single-Click Live view: Show menu.
NVR User Manual 2 GUI You can visit the local NVR device via the display or monitor, and view or manage NVR system. NVR device is connected to the network,mouse,and mobile storage devices have been successfully installed. Make sure the video output device is connected successfully. 2.1 Login For the operation, please refer to the Quick Installation Guide. 2.2 Setup Wizard By default, the Setup Wizard starts once the NVR has loaded. The Setup Wizard can walk you through some important settings of the NVR.
NVR User Manual One-Screen / Four-Screen Switch between different channels video. Note: The NVR Kit supports four channels. Menu Click Menu to enter the Menu interface, it includes Adding Devices, Playback, Schedule, Device Information, Settings and System. For details, please refer to 2.4 Menu. Color Settings Click Color Settings to choose a channel to alter the color, then adjust the parameters of hue, brightness, contrast, saturation and sharpness.
NVR User Manual Right-click the mouse to back to the Live view interface. In the live view interface, there are icon at the right bottom of the screen for the channel. [Disable Manual Record] Uncheck the channel checkbox, Click OK button to take effect. Right-click the mouse to back to the Live view window. In the live view mode, The icon disappeared at the right bottom of the screen for the channel.
NVR User Manual 2.4.1 Adding Devices Right-click in live view mode and select Adding Devices from the Shortcut Menu, or select Menu > Adding Devices in the Menu interface. The Adding Devices interface is displayed. You can search and add the online IP cameras by following the operation. After adding IP cameras, the basic information of the camera lists in the IP Camera List, and you can configure the basic setting of the IP cameras.
NVR User Manual NVR will automatically detect all the online IP Cameras which they can connect to. You will need to know your IP Camera name and password to connect. Automatic Adding IP Camera If the camera connected camera which is equipmented in the package.You can automatically add the camera to your NVR. Check the Automatic adding IP camera checkbox. The NVR system will automatically synchronize its password with the Manually adding IP Camera.
NVR User Manual 3．And the camera and its information will be added in the IP Camera list. Finally, click the Save button to take effect. 4．Right-Click to return the previous interface. 2.4.2 Playback Right-click in live view mode and select Playback from the Shortcut Menu, or choose Menu > Playback in the Menu interface. The Playback interface is displayed. It supports single-screen or four screens. www.foscam.
NVR User Manual 1. Select a date with recording in calendar. 2. Select the Video Type, and check the checkbox from Channels.You can select up to four channels for playback at the same time. 3. Click Search button to search the matched recorded files. If there are search results, then they will be shown in the time bar area. 4. Click the icon to play the recording video. Manage the recording Button Description After searching file, click the button to play. Stop Fast backward.
NVR User Manual playing speed is displayed in the upper right corner of the playback page. For example, << X4 indicates the current fast backward speed is four times of the normal speed. Fast forward. The fast forward speed can be twice, 4 times, 8 times, 16 times or 32 times of the normal playing speed. Click this button. The multiple of normal playing speed is displayed in the upper right corner of the playback page. For example, >> X2 indicates the current playing speed is twice of the normal speed.
NVR User Manual 2.4.3 Schedule Choose Menu > Settings > Schedule in the Menu interface. The Schedule interface is displayed. You can enable or disable schedule record for the every channel. [Enable Schedule Recording] 1．Select channel from drop-down box list. 2．Check the Enable checkbox to enable Schedule Recording function. 3．Check the Select checkbox. Note: Check Clear checkbox and if you want to clear the area. 4．Click and drag the mouse in the relative positions. The selected area is red.
NVR User Manual 2.4.4 Device Information Choose Menu > Device Information in the Menu interface. The Device Information interface is displayed. You can view the Firmware Version, Manage HDD Info and System Log. Firmware Version Choose Menu > Device Information > Firmware Version in the Menu interface. The Firmware Version interface is displayed. You can view the Device Type, Device Name, Firmware Version and Application Version. www.foscam.
NVR User Manual HDD Info Choose Menu > Device Information > HDD Info in the Menu interface. The HDD Info interface is displayed. You can see, refresh, and format hard disk. Overwrite: When the HDD is full. You check the Overwrite checkbox, the NVR will cycle cover the earliest recording; If not, the NVR will stop recording when the HDD is full. Refresh: Click the Refresh button then you can update to the latest information on the hard disk.
NVR User Manual System Log Choose Menu > Device Information > System Log in the Menu interface. The System Log interface is displayed. The operation, alarm, exception and information of the NVR can be stored in log files, which can be viewed and exported at any time. [Searching Log] 1．Select the log type, channel and time. 2．Click the Search button to list all matched logs. www.foscam.
NVR User Manual 2.4.5 Settings Choose Menu > Settings in the Menu interface. The Settings interface is displayed. You can configure the General, Stream, network, display, Alarm Settings and OSD. General Choose Menu > Settings > General in the Menu interface. The General interface is displayed. You can configure the basic information of the NVR. www.foscam.
NVR User Manual NOTE Please do not modify the NVR system time when recording. Parameter Device Name Language Setup Wizard Time Zone Automatically synchronize with and Internet time server Description You can modify your device name to help you identify it. Configure the language of the NVR interface. Whether to enable setup wizard when the NVR system starts again. Please select the time zone according to the actual situation. Whether synchronize your NVR with an Internet time server.
NVR User Manual Stream Choose Menu > Settings > Stream in the Menu interface. The Stream interface is displayed. You can configure the encoding scheme parameters of the IP Camera, the NVR system will synchronize your IP camera with encoding scheme. www.foscam.
NVR User Manual Parameter Description Channel You can select the channel for the IP Cameras. Stream You can set the value of Resolution, Bit Rate, Frame Rate, Key Frame Interval when the video was set the main stream. The resolution of the IP Camera. Resolution The higher the resolution is,the sharper the video quality is, but also with the increasing stream, which will take up the higher bandwidth. Generally speaking, the larger the bit rate is, the clearer video will become.
NVR User Manual Parameter Description You can select the network type from the drop-down list box. Type If select the DHCP, NVR system will automatically obtain an IP address and other network settings from that server. If select the Static IP, you can configure an IP address and other network settings. HTTP Port The default value is 88. HTTPS Port The default value is 443. You can configure the IP address of the NVR system.
NVR User Manual You can use the UPnP function to enable the fast connection of the device to the WAN via a router without port mapping. MAC Address Note: If you want to enable the UPnP function of the NVR, you must enable the UPnP function of the router to which your NVR is connected. UPNP You can enable or disable the UPNP function. Click Save button to take effect. How to configure the IP Address, Subnet Mask, Gateway, Preferred DNS Server, alternative DNS Server, please refer to 4.
NVR User Manual Third Party DDNS:You can also use third part DDNS, such as www.no-ip.com, www. 3322.com. If you set the third party DDNS, refer to 4.2 Common Operations 1.Third Party Domain Name Settings. [EMail] Select the EMail page, you can configure the E-mail information of the NVR. The system can be configured to send an email to the designated users if an alarm or motion event is detected etc..
NVR User Manual should be decided by which Transport Layer Security you select. SMTP User name The user account of sender's Email for SMTP server authentication. SMTP Password The password of sender's Email for SMTP server authentication. Sender The Email address of sender. Recipient Address The Email address of user to be notified. you can set 4 receivers Click Save button to take effect. Click E-Mail Test to see if Mail has been successfully configured.
NVR User Manual Parameter Description FTP Address If your FTP server is located on the LAN, you can set FTP address as ftp://IP address/dir.(eg.ftp://192.168.1.103/dir). If your FTP server is located on the WAN, you can set FTP address as ftp://domain name/dir.(eg.ftp:test.no-ip.org/dir). FTP Port Default port is 21.You can also change this port manually through FTP server. FTP Mode Here supports two modes: PORT and PASV. FTP Username The user account of FTP server.
NVR User Manual Display Choose Menu > Settings > Display in the Menu interface. The Display interface is displayed.You can configure the Resolution, Transparency, and Mouse Sensitivity for the NVR. Parameter Description Resolution The output resolution of the NVR. Transparency Configure the transparency of the NVR output interface. Mouse Sensitivity Configure the sensitivity of the mouse. Alarm Settings [Motion Detection] Follow the steps to set the motion detection parameters.
NVR User Manual The Icon indicate the IPC is recording. In this chapter, you can follow the steps to schedule a record which triggered by the detected motion. Choose Menu > Settings > Alarm Settings > Motion Detection in the Menu interface. The Motion Detection interface is displayed. Step1 Select channel from drop-down box list. Step2 Check the checkbox to enable motion detection function. Step3 Check the checkbox to select the linkage method.
NVR User Manual Parameter Description If you select this checkbox, when the Motion detection is triggered, Record the NVR will record automatically and store the record files to the HDD. IPC Audio Warning Buzzer If you select this checkbox, when the Motion detection is triggered,the people around the camera will hear beep alarm sound of the IPC. When the Motion detection is triggered, you can choose whether to enable buzzing sound of the NVR device.
NVR User Manual Step6 Select the Sensitivity from the drop-down box list. And then you can enable the detection area. You can drag the time bar to select the detection interval and record time. Parameter Sensitivity Detection Interval Record (Time Second) Step7 Description The higher the sensitivity, the NVR will be more easily alarmed. The Triggered Interval time between two motion detection. The unit is second. When you check the Record, you need to configure motion detection recording time.
NVR User Manual OSD Choose Menu > Settings > OSD in the Menu interface. The OSD interface is displayed. You can configure the OSD (On Screen Display) information. Parameter Description Channel Select the channel from the drop-down list. Channel Name It displays the IPC device name of the corresponding channel. Display Channel Name Whether to display the IPC device name on the selected channel. Display Time Whether to display the IPC device time on the selected channel. 2.4.
NVR User Manual User Account Choose Menu > System > User Account in the Menu interface. The User account management interface is displayed. User levels by permission from low to high are visitor, operator, administrator. Different user levels have different operating permission.The default user name of device administrator is admin with no password. The administrator has the permission to add and delete all users and configure user parameters.
NVR User Manual After configure the user name, password and competence, you need to check Enable checkbox. Then click Save button to take effect. Upgrade Choose Menu > System in the Menu interface. You can check for updates by network. [Remote Upgrade] Click the Remote Upgrade button, the system will check the software version. If your software is not latest, you can upgrade it by remote upgrading. NOTE: Don't shut down the power during upgrade. After upgrading, you can see the upgrade result.
NVR User Manual Reboot Choose Menu > System in the Menu interface, then click Reboot in the System interface. Click OK button in the pop-up message box, the NVR system will reboot. Shutdown Choose Menu > System in the Menu interface, then click Shutdown in the System interface. Click OK button in the pop-up message box, the NVR system will shut down. It is recommended that cut off the power after shutting down. www.foscam.
NVR User Manual 3 Web You can access and manage the NVR on a PC through Web browser. 3.1 Instructions before Login Before accessing the NVR Kit by using the Web browser, you need to obtain the following information: The NVR and the PC must be connected to the same LAN and are in the same network segment. You can query or allocate the IP address of the NVR by using the following methods: Through operation on the local GUI, configure an IP address for the NVR.
NVR User Manual Step4 Double-click the NVR, and your default browser will open up to the NVR's login page. When logging in for the first time, you will need to install the add-on. It will pop up the message below the page, as shown in the following figure. Click Install button to install the add-on. Please follow the installation instructions. (Please close the browser during installation.) Step5 After installing the add-on, refresh the browser and enter the login interface. Input the follow parameter.
NVR User Manual Parameter Description User name / The user name and password of the NVR client. Password The default administrator user name is admin with a blank password, please set the new user name or password at first using and prevent unauthorized users login the NVR. Language Step6 Select the language type of the NVR client. Click Login button. When you log in for the first time, it will come to the operating of modify the user name and password automatically.
NVR User Manual 3.3 Live Video After log in, the live view interface will display. You can configure the play / stop the live view, manual recording, manual capturing, preset, cruise, led, color and so on. 1 2 3 4 www.foscam.
NVR User Manual Section Icon Name Description Live Video Click this button and back to the realtime preview window. Parameter There are Adding Devices, Schedule Record, Configuration Alarm, Device Information, Basic Settings, System Management in the Parameter 1 Configuration interface. Playback Playback the recorded video files of a specific channel in the live view mode. Logout Disconnect the link between the client page of the current browser and the NVR server.
NVR User Manual 4 Channels Click this button, It will display four channels in the live view interface. Take Select the channel, click this button, and you can Snapshot take a snapshot of the monitoring video page of a corresponding channel to the local computer. You can set the storage path, refer to the Web > Parameter configuration > Basic Settings > Storage Location. Record Click this button to manually record the content on the monitoring page.
NVR User Manual Vertical: The IP camera will rotate from up to down. Horizontal: The IP camera will rotate from left to right. : Start cruise. : Stop cruise. If you want to define or change the cruise trace, please go to Parameter Configuration > Service configuration > Preset Settings. [How to do cruise?] Step1 Select one track in the track drop-down list. Step2 Click Step3 Click , the IP camera will cruise following the predefined path. and finish cruising.
NVR User Manual Step3 If you want to see one preset position you have set, only select the preset position name from the preset drop-down list, and click button, the IP camera will go to the preset position. 3.4 Parameter Configuration Choose (Parameter Configuration), you can adding devices, schedule record, alarm, device information, basic settings and system management. 3.4.1 Adding Devices NVR provide a function of auto searching IP camera.
NVR User Manual If the connected cameras which are not the equipment in the package, you can uncheck the Automatically search for and add all devices checkbox to manually add the other cameras. After select any one of the channels, input information of the IPC. Then click Add button to finish adding. Step1 Select one channel from Channels. Step2 Choose the IP Camera in the list of 'The Current LAN IPC List' . Choose the Protocol from the drop list. Input the User Name and Password of the IPC.
NVR User Manual Step3 Enable the Enable schedule record. Step4 Set Recording schedule time of the channel. You can choose a week, one day of a week, the certain time period for the recording. For detailed procedure, please refer to 3.4.3 Alarm Motion Detection. Step5 Click Save button to take effect. -------End 3.4.3 Alarm Motion Detection Follow the steps to set the motion detection parameters.
NVR User Manual Step1 Select channel from drop-down box list. Step2 Check the Enable checkbox to enable motion detection function. Step3 Select the Sensitivity and Detection Interval. The higher the sensitivity, the NVR will be more easily alarmed. The Detection Interval time between two motion detection. Step4 Check the checkbox to select the linkage method. You may refer to follow table for details of linkage methods.
NVR User Manual 2．Drag and draw the area for motion detection by left mouse. Note:To clear the motion detection area, drag and draw the motion detection area by left mouse. 3．Click OK button to save and quit. When something moving in the detection area, the NVR will alarm. Step6 Set Detection Schedule Set up arming schedule of the channel for the motion detection. You can choose a week, one day of a week, the certain time period for the motion detection alarm.
NVR User Manual For example, click TUE, the all column of TUE turns to red, that means during Tuesday whole day, when something moving in the detection area, the camera will alarm. Click here Choose the Certain Time Period Press the left mouse and drag it on the time boxes, you can select the serial area. Step7 Click Save button to take effect. When the motion has been detected during the detection time in the detection area, the NVR will alarm and adopt the corresponding alarm linkage.
NVR User Manual Step2 Select Type form drop-down box list. Step3 Check the Buzzer checkbox if you want to enable buzzing sound of the NVR device. Step4 Click Save button to take effect. -------End 3.4.4 Device Information Firmware Version You can view the NVR system information, or modify the Device Name. Choose (Parameter Configuration) > Device Information > Firmware Version. The Firmware Version page is displayed. www.foscam.
NVR User Manual Parameter Description Device Type The product type of NVR. Device Name The device name is a unique name that you can give to your device to help you identify it. You can change your NVR name. System Firmware Version Display the system version of your NVR. Application Firmware Version Display the application firmware version of your NVR. Plug-in version Display the plug-in version of your NVR. Click Save button to take effect.
NVR User Manual Disk Saturation:When the disk is saturated, you can choose to stop recording or cycle coverage. Pre-record Time:The time you set to record before the event. For example, when an alarm triggered the recording at 11:00, if you set the pre-record time as 5 seconds, the camera records it at 10:59:55. Step3 Click Save button to take effect. -------End System Log Choose (Parameter Configuration) > Device Information > System Log. The System Log page is displayed.
NVR User Manual 3.4.5 Basic Settings System Time You can configure the date and time of the NVR. Step1 Choose (Parameter Configuration) > Basic Settings > System Time. The System Time page is displayed. Step2 Configure the system time of the NVR. Step3 Select the Time Zone from the drop-down list. Step4 If you check the Synchronize Time To Camera checkbox, the default settings of the NVR for the IP camera is applied to the added camera. Step5 Configure the system date and time.
NVR User Manual Date Format Select the date format from the drop-down list. Time Format Select the time format from the drop-down list. Step6 Click Save button to take effect. -------End Network You can configure the network information of the NVR. Step1 Choose (Parameter Configuration) > Basic Settings > Network.The Network page is displayed. www.foscam.
NVR User Manual Step2 Configure the network parameter. Parameter Description Network Type You can select the network type from the drop-down list box. If select the DHCP, the NVR system will automatically obtain an IP address and other network settings from that server. If select the Static IP, you can configure an IP address and other network settings. HTTP Port The default value is 88. HTTPS Port The default value is 443. IP Address You can configure the IP address of the NVR system.
NVR User Manual Channel Selection The default selection is Automatic channel optimization , NVR chooses the channel automatic. Or you can select the channel from the dropdown list. Don't tick Automatic channel optimization when you want to select the channel manually. Note: Make sure that the radio channel meets local laws and regulations. -------End Email The system can be configured to send an email to the designated users if an alarm or motion event is detected etc..
NVR User Manual Step2 Configure the Email parameter. Parameter Description Enable E-Mail Enable or Disable the Email function. SMTP Server The SMTP Server IP address or host name. SMTP Port The SMTP port is usually set as 25. Some SMTP servers have their own port, such as 587 or 465. Transport Layer Security usually is None.
NVR User Manual If the test success, you can see the success information, at the same time the receivers will receive a test mail. -------End FTP Settings The system can be configured to send an picture to the FTP server if an alarm or motion event is detected etc.. Step1 Choose (Parameter Configuration) > Basic Settings > FTP Settings. The FTP Settings page is displayed. Step2 Configure the FTP parameter.
NVR User Manual Step4 Click Test to see if FTP has been successfully configured. If the test success, you can see the success information. -------End DDNS The Foscam NVR has embedded a unique DDNS domain name when producing, and you can directly use the domain name, you can also use the third party domain name. Choose (Parameter Configuration) > Basic Settings > DDNS. The DDNS page is displayed. Note Here take test.myfoscam.org for example. Enable DDNS:Check the DDNS checkbox to enable this feature.
NVR User Manual Step2 You can configure the follow parameters. Parameter Description Channel You can select one channel from drop-down box list.. You can modify the IP Camera's name. Channel name After you modify the name and save the modification, the NVR system synchronizes the channel name to the corresponding IPC device name. The channel name will be shown on the top left of the video image. Display Channel There are two options: Yes or No.
NVR User Manual You can configure the encoding scheme parameters of the IP Camera, the NVR system will synchronize your IP camera with encoding scheme. Parameter Description Channel You can select the channel for the IP Cameras. Stream You can set the value of Resolution, Bit Rate, Frame Rate, Key Frame Interval when the video was set the main stream. The resolution of the IP Camera.
NVR User Manual Choose (Parameter Configuration) > Basic Settings > Storage Location. The Storage Location page is displayed. Snapshot Pictures To: Click the icon (Take Snapshot) in the Real time Preview page or Playback page, the snapshot picture will be saved to the Snap Picture Path in the local computer. Smart Record You can enable or disable Smart Record on this page. When enable Smart Record, NVR can reduce the frame rate automatically to store more recording. 3.4.
NVR User Manual Accounts page is displayed. [Add a User] 1．input the Username and Password. 2．Select the user level from the Competence. 3．Check the Enable checkbox. 4．Click Save button to save the settings and the added new user will be displayed on the list. [Changing Password of Admin] 1．In the Password text field, delete the old password, input the new password. 2．Click Save button to take effect. Import / Export Configurations You can import or export a configuration file for NVR system.
NVR User Manual Backup Configurations: Backup is used to save your current settings. It is recommended to backup your configuration before modifying or upgrading firmware. Click Backup button and the configuration files of the NVR will be exported for backup. The name of the configuration file name is config.bin. Import: Click Browse..., select the config.bin file from the USB-flash disk and click the Import button.
NVR User Manual Upgrading NVR Check the NVR Upgrade, then click the Browse... button to choose the upgrade file of the NVR. Click the Upgrade button to upgrade the NVR. Upgrading IP Camera Check the IP Camera Upgrade, then check the channel. Click the Browse... button to choose the upgrade file of the camera. Click the Upgrade button to upgrade the camera. Note: If you want to upgrade the camera in the Kit.
NVR User Manual Factory Reset Choose (Parameter Configuration) > System Management > Factory Reset. The Factory Reset page is displayed. Click Factory Reset button, then click OK button in the pop-up message box and all parameters will return to factory settings. The NVR device will reboot automatically. Reboot Choose (Parameter Configuration) > System Management > Reboot. The Reboot page is displayed. Click Reboot button, then click OK button in the pop-up message box. The NVR system will reboot.
NVR User Manual You can configure the Date and Time. The NVR system will be maintained at the setting time. 3.5 Playback Choose (Playback), you can play the recording file of the NVR. 1. Select a date with recording in calendar. 2. Select the Record Type, and check the checkbox from the Channels. www.foscam.
NVR User Manual 3. Click Search button to search the matched recorded files. If there are search results, then they will be shown in the time bar area. 4. Manage the recording. Icon Description Start Stop Fast backward. The fast backward speed can be 4 times, 8 times, 16 times or 32 times of the normal playing speed. Click this button. The multiple of normal playing speed is displayed in the upper right corner of the playback page.
NVR User Manual press ESC to exit full screen. 5. Playback time You can move the mouse to a specific time axis and click to watch the playback. Icon Description Zoom-in time axis. Zoom-out time axis. www.foscam.
NVR User Manual 4 Appendix 4.1 HDD Capacity Calculation This chapter describes how to determine the size of the HDD you need when you install the NVR for the first time. The NVR adopts the MPEG4/H.264 compression technology and its dynamic range is large. Therefore, the capacity of the HDD depends on the estimated size of files generated in each channel every hour according to code streams.
NVR User Manual Whole HDD Capacity(M)=4*168(hour)*1800 (M/hour) =1209600M, 1209600M= 1209600M =1181.25G 1024 According to the preceding calculation result, you are advised to buy a HDD of 1.5 TB or above. 4.2 Common Operations 1.Third Party Domain Name Settings User can also use third part DDNS, such as www.no-ip.com, www. 3322.com Here take www.no-ip.com for example: 1) Step 1, Go to the website www.no-ip.com to create a free hostname Firstly: Login on www.no-ip.com and click No-IP Free to register.
NVR User Manual Click here to register . Please register an account step by step according to instructions on www.no-ip.com. After registration, please login your email which used to register. You will receive an email from website, please click the link to activate your ACCOUNT as indicated in email. Secondly: Login the link with the registered username and password to create your domain name. www.foscam.
NVR User Manual Please create the domain name step by step according to instructions on www.no-ip.com Step 2, DO DDNS Service Settings within the NVR Please set DDNS Settings within the NVR by hostname, a user name and password you've got from www.no-ip.com Take hostname ycxgwp.no-ip.info, user name cam, password cam2012 for example. Firstly, goes to option of DDNS Settings on the administrator panel. Secondly, select No-Ip as a server..
NVR User Manual some brands of router). Take Linksys brand router as an example, Login the router, and goes to Applications & Gaming->Single Port Forwarding. Secondly, Create a new column by LAN IP address & HTTP Port No. of the NVR within the router showed as below. Assign a name as you like 3) Fill the Media Port no. of the camera on the column of External Port and Internal Port .
NVR User Manual The subnet mask of the NVR must be the same as the subnet mask in LAN port status. The default gateway of the NVR is the same as the IP address in LAN port status. The preferred DNS and alternative DNS can be the same as the DNS in WAN port status. www.foscam.
NVR User Manual 4.3 Specifications NVR Video Input Video Output Model IP Video Input 4-Channel HD IP camera input HD-OUT Output 1 * HD-OUT VGA Output 1 * VGA Display Resolution Recording Resolution Recording Record Mode Compression Format Synchronous Playback Network Playback 1280 * 720/60Hz, 1280 * 1024/60Hz, 1280 * 720/50Hz, 1280 * 1024/50Hz 720P per channel ( 4ch@720P ) Manual / Time Scheduled / Motion Detect H.
NVR User Manual HDD External Interface Capacity Up to 4TB Network Interface 1 * 10/100 Mbps RJ45 port USB Interface 1 * USB2.0 interface for mouse and external storage Button 1 * Power on/off button,1* Reset button Computer Operating System Software Microsoft Windows XP, 7, 8, 8.
NVR User Manual Camera Image Sensor Storage Humidity 0% ~ 90% non-condensing Model FI9800W Sensor Type 1/4" CMOS Video Quality 720p (1280 * 720) Backlight Compensation Lens Type f:4mm, F:2.0 IR Range 20m (65ft) Infrared Mode Automatic or manual View Angle 62º Ethernet One 10/100Mbps RJ45 port Wireless Standard IEEE802.11b/g/n Lens IEEE802.11b: 11Mbps (Max.); Network Data Rate IEEE802.11g: 54Mbps (Max.); IEEE802.11n: 150Mbps (Max.).
NVR User Manual Motion Detection Day/Night Waterproof IP66 Net Weight 360g(0.79lb) Power DC12V Power Consumption < 5W Dimension (L * W * H) 97mm * 67mm * 64mm (3.8in * 2.6in * 2.5in) Physical and Environmental Certification Operating Temperature Operating Humidity Storage Temperature Storage Humidity www.foscam.
NVR User Manual 4.4 FAQ 1. No image displayed on the monitor after starting up normally. Verify the device is connected with the monitor via HD-OUT or VGA cable. Verify the connection cable is good. Verify Input mode of the monitor is correct. Please check the input mode of the monitor matches with the output mode of the device (e.g. if the output mode of NVR is HD-OUT output, then the input mode of monitor must be the HD-OUT input). And if not, please modify the input mode of monitor. 2.
NVR User Manual 7. Why can't video files be downloaded during video playback or downloaded files cannot be played back properly? To save consumed resources, the server limits concurrency of video playback and file download. In this case, stop video playback and then download files or play back videos after video files are downloaded. 8. Why does the Web client prompt TIME OUT after you enable or disable UPNP in network settings? In this case, the server restarts some applications.
NVR User Manual 4.5 Glossary Acrony Term Description Dynamic Domain Dynamic DNS is a method, protocol, or network service that Name Server provides the capability for a networked device, such as a router m DDNS or computer system using the Internet Protocol Suite, to notify a domain name server to change, in real time (ad-hoc) the active DNS configuration of its configured hostnames, addresses or other information stored in DNS.
NVR User Manual 4.6 CE & FCC Electromagnetic Compatibility (EMC) This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions. This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
NVR User Manual returned to an authorized return center in the region where the product was first shipped by FOSCAM or to the point-of-purchase, which may have regional specific warranty implications. If you purchase your Foscam product from online store, please contact the point-of-purchase and ask for return / replacement / repair service. Limited Hardware Warranty The products are warranted to be free from manufacturing defects in materials and workmanship starting from the shipping date of Foscam.
NVR User Manual responsible for all shipping & handling charges incurred for getting the units back to customers. If returned products are found defective, we will replace the product and assume the shipping cost for sending back the replacement unit to customers. If for any reason, we are unable to provide a replacement of the original returned item(s). You will have a choice for a "Substitute" item at the same equal value.
NVR User Manual customer's personal expectation, customers should responsible for both shipping fee. Customers shall be responsible for both shipping fee if their product beyond the replacement limit but still in warranty limit. Repair Service Out Of Warranty FOSCAM provide extra repair service for product that out of warranty, it is chargeable. The total fee contains device cost and service fee. Device cost (including accessories) is the standard uniform price provide by FOSCAM.
NVR User Manual 4.8 Statement You are advised to be cautious in daily life, keep personal account information carefully, do not share personal account easily. Change passwords of your account and equipment periodically, and upgrade equipment firmware to strengthen security consciousness. Our company makes no warranty, implied or otherwise, that this product is suitable for any particular purpose or use. You need to abide by the relevant laws and regulations of the use restrictions when using products.
NVR User Manual The company reserves the right of final interpretation on our products. 4.9 Obtaining Technical Support While we hope your experience with the NVR is enjoyable and easy to use, you may experience some issues or have questions that this User's Guide has not answered. If you have problem with device, please first contact reseller for solving the problems. If our reseller cannot provide service, please contact our service department: tech@foscam.com www.foscam.
