User's Manual

Manual Keypad & Proximity Flash Mount Reader Installation

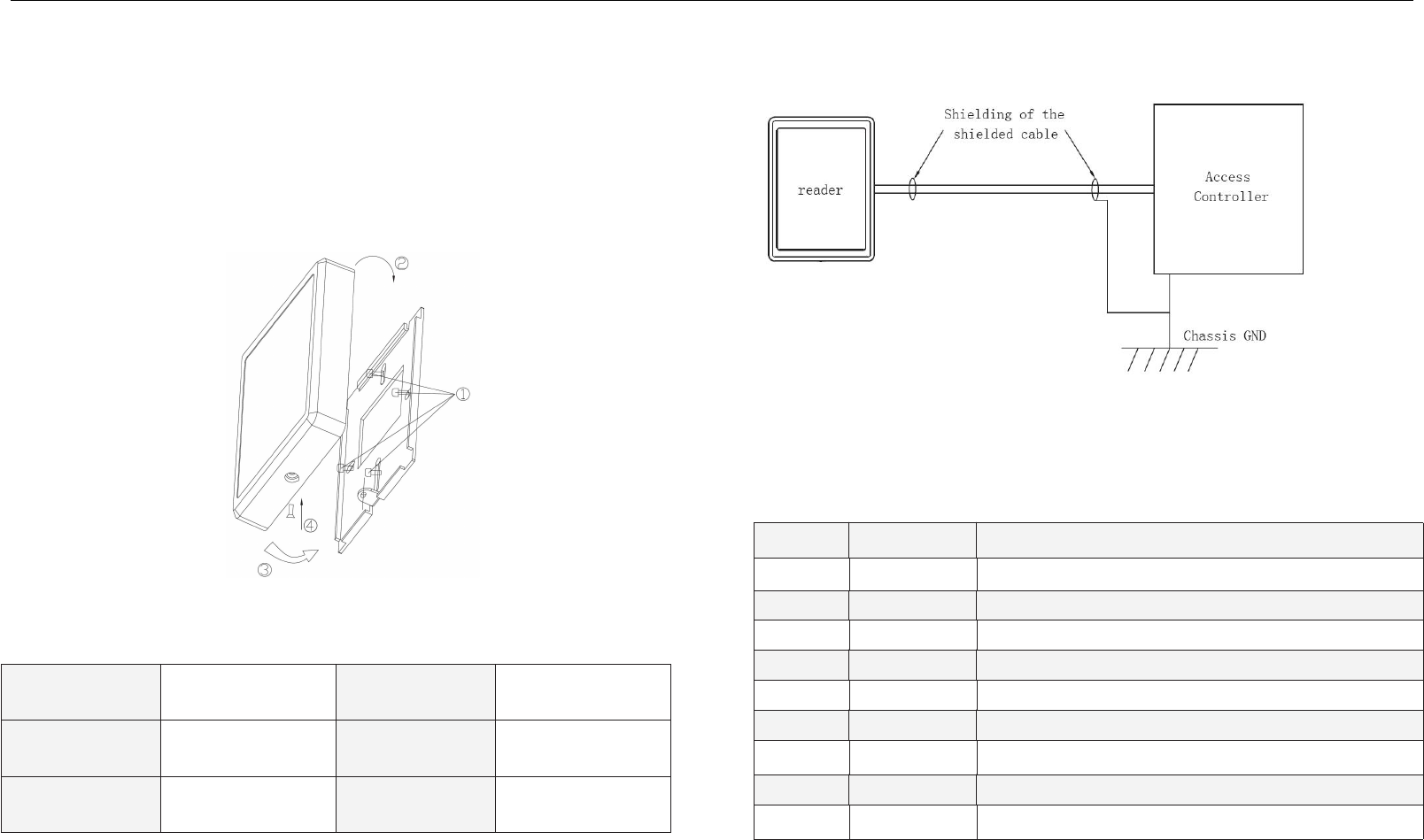

Mounting:
1. Install the metal plate on the wall with two or four screws, which depends on different kinds of
gang box being installed

.
2. The cover shall clip on the upper edge

the push in the bottom part as show in
diagram.
3. Tighten the secure non-dropout screw, which located underneath of the reader to fix the
reader and the back plate

, installation is completed.
Specification:
Recommendation:
1. Linear DC Power Supply;
2. 22AWG shielded cable; it’s required to do “one-point” ground. (As shown in the diagram)
Wiring:
Input Voltage (at
Reader end)
DC9V~15V
Typical Read
range
> 5cm
Operating Current
160mA (max)
Maximum Cable
Length
150m
Operating
Temperature
-30ºC~70 ºC
Number pad
format
4 bits burst by default
Color
Label
Description
Red
+12V dc
Power Supply to the reader
Black
GND
Signal GND
Green
Data0
Wiegand Output data, D0
White
Data1
Wiegand Output data, D1
Yellow
RED LED
RED LED control, active low.
Blue
Green LED
Green LED control, active low
Brown
Buzzer
Buzzer input, active low
Orange
Tamper
Tamper output (open collector, Active low, max 100mA)
Purple
Doorbell
Door bell output (open collector, +5Vdc output ≤ 5mA)
