Table of Contents:

Introduction �� 2

Overview ��3

Precautions ��4

Mounting the Microphone �� 5

Positioning the SC-550X ��6

Using the Pop-Filter ��6-7

The Attenuation Pad �� 7

The High-Pass Filter �� 7

Troubleshooting ��8-9

Speciﬁcations ��10-11

Warranty �� 12

USER’S GUIDE

Summary of content (12 pages)

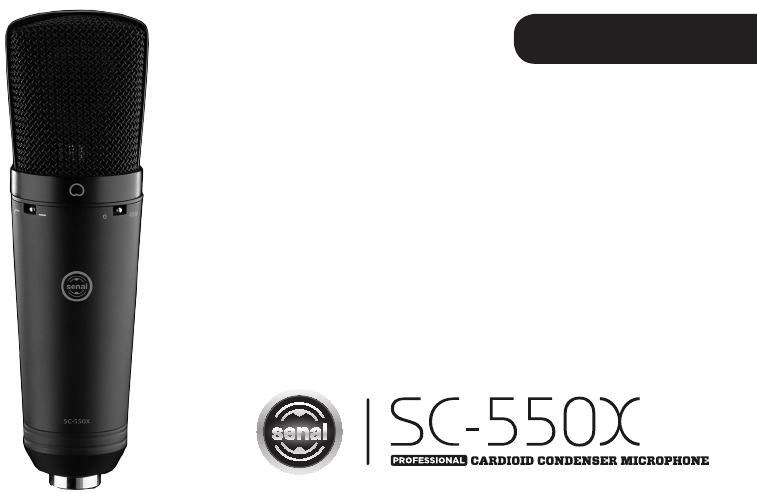

PAGE 1
Table of Contents: USER’S GUIDE Introduction�� 2 Overview �� 3 Precautions ��4 Mounting the Microphone �� 5 Positioning the SC-550X ��
PAGE 2
Thank you for choosing Senal. The Senal SC-550X is a professional-grade studio microphone with accurate, detailed sound reproduction designed for use in all recording situations. Employing a condenser element, the SC-550X achieves superior transient response and high signal-to-noise ratio. Equally adept in both professional and project studios, the SC-550X’s warm, full-bodied sound makes it a go-to choice for capturing vocals in the studio.
PAGE 3
Overview Condenser element Grille High-pass filter Carry case Shock mount Pop-filter -10 dB pad XLR connector Overview ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ 3
PAGE 4
Precautions ▪ Please read and follow these instructions and keep this manual in a safe place. ▪ Exposure to high sound levels can cause permanent hearing loss. Avoid listening at high volumes for extended periods. ▪ Keep this product away from water and flammable gases or liquids. ▪ Do not attempt to disassemble or repair this product yourself. ▪ Handle this product with care. ▪ Clean this product with only a soft, dry cloth.
PAGE 5
Mounting the Microphone To mount the SC-550X, follow these steps: 1. Screw the included shock mount onto a 5/8" threaded microphone stand. 2. Make sure the locking knob on the shock mount is fully tightened. While squeezing the metal levers of the shock mount together, place the microphone firmly into the shock mount and then let go of the levers. The front of the microphone (the side with the Senal logo) should be facing your sound source. 3.
PAGE 6
Positioning the SC-550X The SC-550X’s cardioid polar pattern will capture sound mostly from in front of the microphone. You will usually want the front of the microphone (the side with the Senal logo) to face your sound source, although it is important to experiment with microphone placement and positioning to find the best solution for your specific needs. You can adjust the vertical angle of the microphone by loosening the locking knob on the shock mount.
PAGE 7
2. Adjust the position of the pop filter to suit your vocalist. The optimal distance between the filter and the microphone capsule is approximately 1.5" (3.8 cm). The Attenuation Pad The attenuation pad lowers the SC-550X’s output by 10 dB and is useful for preventing distortion when recording loud sounds like cymbals and electric guitar cabinets. To engage the attenuation pad, slide the pad switch so it rests next to the -10 dB mark.
PAGE 8
Troubleshooting Problem Solution No sound is being recorded. Make sure your mixer or amplifier is turned on. The fader of the channel or master volume on your mixing console is turned all the way down. Your preamp gain is turned all the way down. Make sure the microphone is properly connected and that the connections are secure. Make sure phantom power is engaged. Check your cable to make sure it’s reliable. Try switching it with another cable. The sound is distorted.
PAGE 9
Problem Solution Too much low-frequency noise or rumble is being recorded. Turn on the high-pass filter. Turn off air conditioners, fans, heaters, or other devices that might be interfering with your recording. Vocal plosives like p and b sound distorted. Troubleshooting ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ Use the included pop-filter when recording vocals.
PAGE 10
Specifications 10 ▪ Element: Condenser Polar pattern: Cardioid Frequency response: 20 Hz to 20 kHz Sensitivity: -36 dB ±2 dB at 1 kHz Signal-to-noise ratio: 79 dB (1 kHz at 1 Pa) Maximum input sound level: 140 dB Impedance: 200 Ω Power requirements: +48 V Output connector: 3-pin XLR Pad: -10 dB High-pass filter: 80 Hz Dimensions: 7.15" × 2" (18.2 × 5.1 cm) Weight: 13.6 oz.
PAGE 11
Frequency Response Graph Polar Pattern Frequency Response Relative Response in dB -20 0° 330° 30° 60° 300° -30 90° 270° -40 120° 240° -50 210° 150° 180° -60 50 0 100 1K 500 5K 20K 10K Frequency in Hertz Specifications ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪
PAGE 12
Two-Year Limited Warranty This Senal product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of two (2) years from the original purchase date or thirty (30) days after replacement, whichever occurs later.
