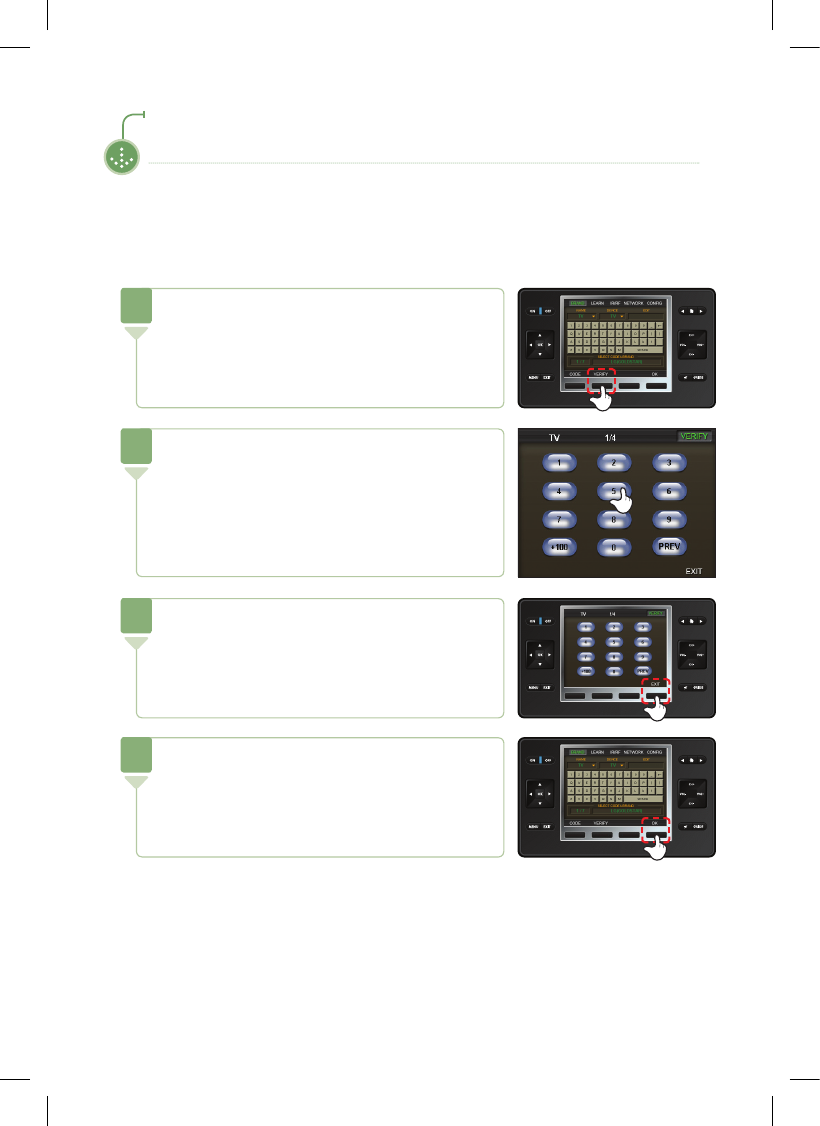

Chapter 2 | Learning to Use the Menus OPERATING SET-UP 8 When the TV power turns on, press the [VERIFY] icon. 9 Use the operation buttons on the screen to confirm TV operation. 10 If all TV functions are operating, press the [EXIT] icon. 11 Press the [OK] icon to save. I 28 Repeat steps 3~10 to set another device.
Chapter 2 | Learning to Use the Menus OPERATING SET-UP I CODE LEARNING 1 Press the [REMOTE] icon on the screen to open the menu. The [REMOTE] screen appears. 2 Press the [Settings] icon on the screen. 3 Press the [LEARN] icon on the screen. 4 Press the [NEXT] icon on the screen. The [Settings] screen appears. Place remote and the original remote head to head.
Chapter 2 | Learning to Use the Menus OPERATING SET-UP I 30 5 Select a device that you want to learn. 6 Press the button to be learned on the remote. 7 Press the button on the original remote control. 8 Press [EXIT] button to complete the procedure. If there is a learn failure message, repeat Step 6~7 again.
Chapter 2 | Learning to Use the Menus OPERATING SET-UP I SELECT SIGNAL BETWEEN IR/RF(Network Mode) RF mode needs to be used together with models which are compatible with the TSR750. (Model name : RHxx and ZRxx series) This procedure needs to be proceeded after completing PAIRING THE REMOTE CONTROL WITH THE RECEIVER Procedure. Otherwise, device can not be controlled through receiver. 1 Press the [REMOTE] icon on the screen to open the menu. The [REMOTE] screen appears.
Chapter 2 | Learning to Use the Menus OPERATING SET-UP I 32 5 The receiver connected through previous pairing procedure is displayed. Select a device. If you do not want, press [EXIT] button. 6 When complete, the icon of TV is changed to RF. 7 Press [EXIT] button to complete the procedure.
Chapter 2 | Learning to Use the Menus OPERATING SET-UP I SELECT SIGNAL BETWEEN IR/RF (Stand_Alone Mode) RF mode needs to be used together with models which are compatible with the TSR750. (Model name : RHxx and ZRxx series) 1 Press the [REMOTE] icon on the screen to open the menu. The [REMOTE] screen appears. 2 Press the [Setting] icon on the screen. 3 Select [IR/RF] on the top menu bar. The [Setting] screen appears. All devices are selected as IR.
Chapter 2 | Learning to Use the Menus OPERATING SET-UP I 34 5 Press [+] or [- ] to change RF Channel. Press [OK] button to save RF channel. 6 Once it is completed, TV icon is changed to RF. 7 Press [EXIT] button to complete the procedure.
Chapter 2 | Learning to Use the Menus OPERATING SET-UP I PAIRING THE REMOTE CONTROL WITH THE RECEIVER (Network Mode) Receiver needs to be set up in advance according to the opearting(Network) section on the receiver manual. 1 Press the [REMOTE] icon on the screen to open the menu. The [REMOTE] screen appears. 2 Press the [Setting] icon on the screen. 3 Select [NETWORK] on the top menu bar. The [Setting] screen appears. It will take around 15-30 sec. to join network. In case of success in joining.
Chapter 2 | Learning to Use the Menus OPERATING SET-UP 5 6 Once procedure is completed, a device is displayed. Compare the label on the bottom of the receiver with device name. If not the same, Press [Update] Button. If the same, Press [EXIT] button to finalize procedure. In case that device is not found, press [Update] button.
Chapter 2 | Learning to Use the Menus OPERATING SET-UP I CONFIGURATION (TOUCH, EXTERNAL BUTTON SOUND Settings) 1 Press the [REMOTE] icon on the screen to open the menu. The [REMOTE] screen appears. 2 Press the [Settings] icon on the screen. 3 Press the [CONFIG] icon in the top menu bar. 4 Select the Touch or External Button to be modified, and select a sound. The [Settings] screen appears. When settings are complete, press the [EXIT] icon to end.
Chapter 2 | Learning to Use the Menus PHOTO I PHOTO Function Buttons 4 1 5 2 3 1 ARROW Moves [UP/DOWN/LEFT/RIGHT] in the preview screen. OK Opens the selected image file for viewing. MENU Opens a preview of the image in the Picture Frame folder. EXIT Ends the still image screen and begins the slide mode. HOME Moves to the Home screen. CH , CH CHANNEL Plays the [Next/Previous] MP3 file. VOL , VOL VOLUME Turns the volume of the currently playing MP3 file [Up/Down].
Chapter 2 | Learning to Use the Menus PHOTO I PHOTO SET-UP (SLIDE MODE) Touching the photo image on the screen moves to the PHOTO SET-UP. 1 DELAY 2 SLIDE +, - [Increases/Decreases] the delay time. 10 Displays the delay time. MOVE IN OUT 3 CONTINUE 4 EXIT 1 2 3 4 Photo images appear from left to right. Photo images appear from the outside edges inward to the center. Photo images appear from the center outward to the outside edges. Saves the settings and continues viewing.
Chapter 2 | Learning to Use the Menus PHOTO I PHOTO DISPLAY 1 Press the [REMOTE] icon on the screen to open the menu. The [PHOTO] screen appears. 2 Photo images are automatically displayed. 3 Press the [MENU] button during display. 4 Move the cursor via the [UP/DOWN/LEFT/RIGHT] buttons to the image to be used in the still screen. Any MP3 files contained in the Picture Frame folder are also played. The image preview appears at the bottom of the LCD screen.
Chapter 2 | Learning to Use the Menus PHOTO 5 After selecting the desired image, press the [OK] button. 6 To end the still screen and convert to slide mode, press the [EXIT] button. 7 Press the product’s [ ] button to end the photo mode. The main screen appears.
Chapter 2 | Learning to Use the Menus PHOTO I Music File and Image File Saving The following are instructions for using the PHOTO function of the remote control to save image and music files. Supported File Formats Music Files: MP3, WAV Image Files: BMP, JPG, PNG 1 Turn the remote control power ON, and connect it to the PC via the USB cable. 2 When the connection is complete, the ActiveSync program opens. Click the [Cancel] icon in the ActiveSync screen.
Chapter 2 | Learning to Use the Menus UTILITY I UTILITY Main Screen 1 Calendar 2 Calculator 3 Program Version 4 Game 43 I
Chapter 2 | Learning to Use the Menus UTILITY I Calendar Displays the current year, month, day, and time. 1 2 1 3 I 44 1 Operation Icons Moves to the next/previous month. 2 TODAY Displays the current day. 3 EXIT Ends the calendar function.
Chapter 2 | Learning to Use the Menus UTILITY I Calculator Offers a calculator function. 1 2 3 1 BackSpace Deletes entered numbers one at a time. 2 C Resets the input field. 3 000 Multiplies the current number by 1000. 4 EXIT Ends the calculator function. 4 I Program Version Displays the current version of the installed program. 1 1 EXIT Ends the program version function.
Chapter 2 | Learning to Use the Menus UTILITY I Game I 46 1 3 2 4 1 START Begins the PUZZLE game. 2 CONFIG Controls the game settings. 3 SCORE Displays the rank order of puzzle completion times. 4 EXIT Ends the game function.
Chapter 2 | Learning to Use the Menus UTILITY I Game Settings 5 1 4 2 3 1 Level Selects the game difficulty. 2 Number Displays the number of the fragmented image. 3 Small Imge Displays the image of the puzzle to be completed. 4 Image select Selects the image to be used in the game. 5 OK Saves the settings and returns to the main game screen.
Chapter 2 | Learning to Use the Menus UTILITY I Game Instructions 1 Press the [UTILITY] icon on the screen to open the menu. The [UTILITY] screen appears. 2 Press the [GAME] icon on the screen. 3 Press the [START] icon on the main game screen. 4 After the puzzle image to be completed is scrambled, the game begins. The [GAME] screen appears. The game begins. Drag and arrange the pieces to comprise the image shown in the upper right of the screen to finish.
Chapter 2 | Learning to Use the Menus SETTING I SETTING Main Screen 1 Press the [SETTING] icon on the screen to open the menu. 2 The SYSTEM SET-UP screen appears. Select the SYSTEM, START PROGRAM, CHARGING MODE, and DIMMING MODE settings.
Chapter 2 | Learning to Use the Menus SETTING I SYSTEM 1 2 3 5 4 I 50 1 BRIGHTNESS Adjusts the LCD brightness. 2 SOUND Adjusts the sound volume. 3 DATE & TIME Adjusts the current time and day/month/year. 4 LCD TIME OUT Sets the time period before the remote control is automatically turned off. 5 To modify settings, select the corresponding part, and use the [+, -] buttons to adjust.
Chapter 2 | Learning to Use the Menus SETTING I START PROGRAM 1 SELECT A START PROGRAM Runs automatically upon product operation as set by the user.
Chapter 2 | Learning to Use the Menus SETTING I DISPLAY MODE SET-UP WHILE CHARGING 1 I 52 SELECT A DISPLAY OPTION PHOTO: Runs the PHOTO function of the remote control CLOCK: Displays the current time and year, month, day calendar LAST SCREEN: Keep LCD screen TURN OFF LCD: Turns off the LCD screen
Chapter 2 | Learning to Use the Menus SETTING I DIMING MODE This function dims the LCD screen after a specified amount of time to reduce glare. 1 1 4 2 3 1 CONFIGURE THE DIMING MODE Turns the dimming mode ON/OFF. 2 DIMING ON TIME Sets the time interval before automatic dimming of the remote control LCD screen. 3 PERIOD Sets the start time and end time for the dimming mode.
