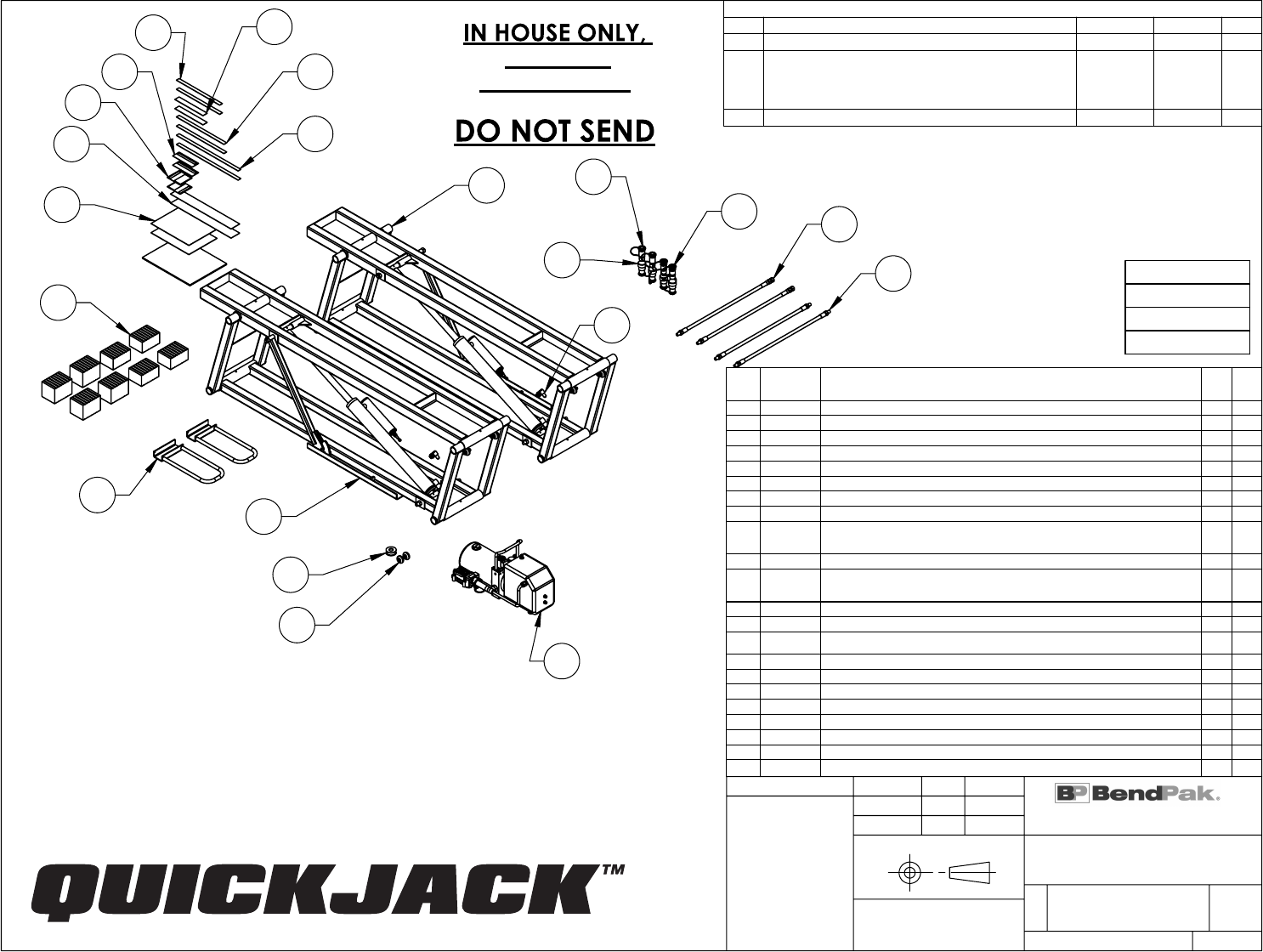

Replacement Part List
DIMENSIONS ARE IN MM
☺
2
15
19
16
18
17
1
4
5
6
7
14
11
9
13
12
10
8
20
3
22
NOT FOR
PRODUCTION
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5215477
BL-7000SLX FRAME ASSEMBLY, L.H.
1
G
2 5215479
BL-7000SLX FRAME ASSEMBLY, R.H.
1
G
3 5601108
BL SERIES HANDLE WELDMENT
2
C
4 5174016
BL SERIES RUBBER PAD KIT
1
B
5 5570202
BL SERIES HOSE ASSEMBLY Ø6.4 x 705mm
2
D
6 5570216
HOSE ASSEMBLY Ø6.4 x 3810mm DS MALE
2
A
7 5585450
QUICKJACK POWER UNIT 12V DC
1
A
8 5550103
FTG ELB -04 JIC -06 ORB
2
-
9 5550031
FTG NPL-04 NPT F x 1/4 QUICK-CONNECTOR COUPLER
FEMALE; NON SPILL DESIGN
4
-
10 5550413
FTG NPL -06 ORB x ¼ NS; QUICK-CON COUP MALE
2
-
11 5550032
FTG NPL-04 NPT FX1/4 QUICK-CONNECTOR COUPLER
MALE; NON SPILL DESIGN
2
-
12 5716192
BL SERIES POLYURETHANE WHEEL
2
D
13 5520310
TEFLON TAPE, 12mm
1
-
14 5905438
LABEL; QUICKJACK MAX LIFT CAPACITY/PAIR; 7000.LBS/ 3175.KG
FRENCH-ENGLISH
2
-
15 5905428
DECAL; WARNING/SAFETY LOCK DEVICE/QUICKJACK FRENCH
2
-
16 5905429
BL SERIES CAUTION, KEEP HANDS CLEAR FRENCH
2
-
17 5905434
BL SERIES DANGER AIR LABEL FRENCH
2
-
18 5905432
BL SERIES DO NOT DRIVE ON LABEL FRENCH
2
-
19 5905745
BL SERIES CYLINDER DECAL
2
-
20 5905033
BL-7000SLX CAUTION LABEL FRENCH-ENGLISH
2
-
21 5900008
BL SERIES INSTALLATION MANUAL FRENCH/CANADA
1
-
22 5905036
ROUTE HOSE UNDER CAUTION LABEL, ENGLISH/FRENCH
2
-
