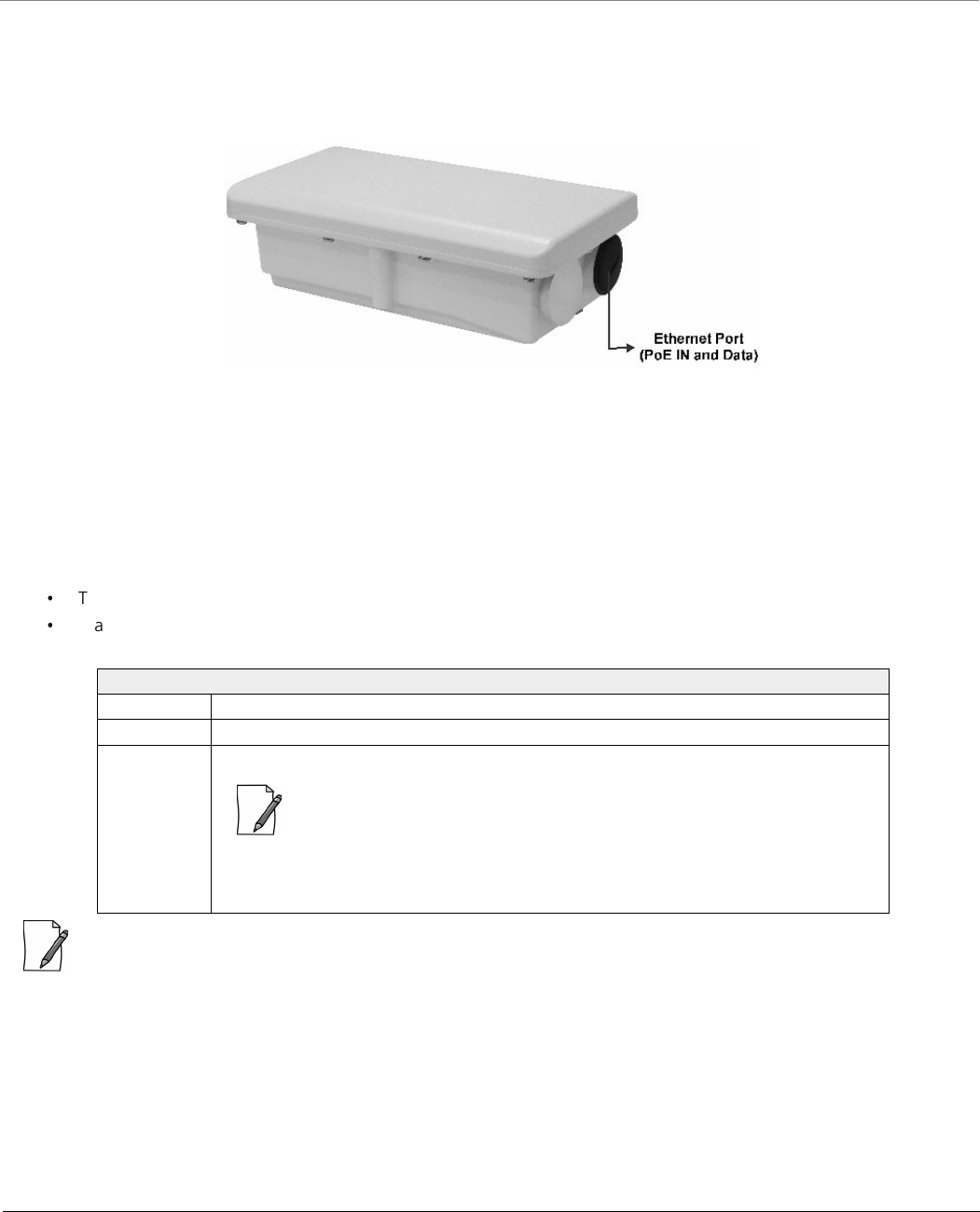

8000 Series - Hardware Overview and Installation 3.4 MP-8160-CPE-A100 This section provides the hardware overview and installation method for MP-8160-CPE. 3.4.1 Hardware Overview Figure 3-34 MP-8160-CPE A detailed description about the various components of the device are explained in the following sections. 3.4.1.1 Ethernet Port (PoE IN and Data) The device comes with auto-sensing 10/100 BASE-T Ethernet port with configurable Tx Modes and Speeds.
8000 Series - Hardware Overview and Installation 3.4.2 Product Package Each shipment includes the items listed in the following table. Please verify that you have received all the parts in the shipment prior to installation. What’s in the Kit Image MP-8160-CPE PoE Injector and Power Cord WD - EU power cord Connector Weather Proofing Kit Pole Mounting Kit Grounding Kit Quick Installation Guide 3.4.3 Installation Procedure This section describes the steps to install and mount the device.
8000 Series - Hardware Overview and Installation Calculate: Required RSL and fade margin to achieve link availability objectives. For more details on how to calculate RSL and fade margin, please refer to the ‘Antenna Installation Guide’ and ‘Proxim Link Calculator’ that are available on the support .
8000 Series - Hardware Overview and Installation Figure 3-35 Pole-Mounting Step 6: Weatherproof RJ45 Connectors The following steps explain how to weatherproof the RJ45 connector: 1. Use a straight-through cable (Cat5/5e or better) with one end bare. 2. Connect the crimped RJ45 connector end of the cable into the RJ45 Ethernet port inside the enclosure. The cable connector should latch into the Ethernet port. 3.
8000 Series - Hardware Overview and Installation : Always use a straight cable from PoE to the device. When you use a 4-pair cross over ethernet cable, the reload functionality gets activated and forcibly deletes the operating image. Figure 3-37 Cables Plugged In 2.
8000 Series - Hardware Overview and Installation : Use Outdoor-rated, UV protected, shielded Cat5/Cat5e cable for the following. 3. Connect an RJ45 terminated cable between the indoor equipment and to the port on the surge protector at the building ingress. 4. Connect a short RJ45 terminated cable between the outdoor equipment and the port on the co-located surge protector. 5. Connect an RJ45 terminated cable between the two surge protectors on their remaining ports.
8000 Series - Hardware Overview and Installation Figure 3-40 LED Indicators The following table describes the status of LED: LED State Ethernet Interface Power/Ethernet LED Wireless LED Off No Power Radio is not present or failed to detect Amber No Application Image detected (ScanTool mode) Power is ON and device detects Reload signal Blinking Green Power is ON and the Ethernet link is DOWN Radio is detected but wireless link has not been established yet Solid Green Power is ON and the Etherne
000 Series - Hardware Overview and Installation 3.5 MP-8150-SUR-100 / QB-8150-LNK-100 This section provides the hardware overview and installation method for the following product(s): MP-8150-SUR-100 QB-8150-LNK-100 3.5.1 Hardware Overview Figure 3-41 MP-8150-SUR-100 / QB-8150-EPR-100 A detailed description about the various components of the device are explained in the following sections. 3.5.1.
8000 Series - Hardware Overview and Installation 3.5.1.2 Serial Port The Serial Port is used for debugging and management, and Audible Antenna Alignment through Command Line Interface (CLI). The serial connection is established with an RJ11 to DB9 connector (also referred to as a “dongle”) by connecting the RJ11 end of the dongle connector to the device and the other end to your Personal Computer.
8000 Series - Hardware Overview and Installation 3.5.2 Product Package Each shipment includes the items listed in the following table. Please verify that you have received all the parts in the shipment, prior to installation.
8000 Series - Hardware Overview and Installation What’s in the Kit Image Mounting Kit and Hardware The mounting kit includes the following: Mounting clamp for wall/pole Extension arm Mounting plate to enclosure Mounting clamp for pole mounting The following table lists the items included with the mounting kit: Quantity Description 6 each Plain washer #5/16 2 each Hex Cap Screw NC 5/16-18 x 35 2 each Nut NC 5/16-18 4 each Helical Spring Lock Washer #1/4 4 each Helical Spring Lock Washer #5/16
8000 Series - Hardware Overview and Installation Perform the following steps to install and mount the device. Step 1: Plan for Installation There are several planning factors to be considered before installing the device. In addition to selecting the installation site, you should do the following: Calculate: Required RSL and fade margin to achieve link availability objectives.
8000 Series - Hardware Overview and Installation Step 4: Unpack the Product Package 1. Unpack the device and its accessories from the shipping box. 2. Please make a note of the Ethernet addresses, MAC addresses and the serial number. These addresses may be used when configuring the device. Note that the serial number helps you to seek support from the Proxim’s Customer support team. Step 5: Weatherproofing RJ45 Connectors The following steps explain how to weatherproof the RJ45 connectors: 1.
8000 Series - Hardware Overview and Installation Figure 3-44 Assemble the Mounting Hardware : This figure is for illustration only. Device should be mounted in square position with Ethernet/Serial port facing downward. Step 7: Mount the Device 1. To pole-mount the device, insert the provided screws through bracket (F). Fasten around the pole to bracket (C) and secure (Torque 11 N.m/100 in-lbs). Figure 3-45 Pole Mounting 2.
8000 Series - Hardware Overview and Installation Step 8: Plug in the Cables : Unscrew the sealing cap for installation of the cable. Always use a straight cable from PoE to the device. When you use a 4-pair cross over ethernet cable, the reload functionality gets activated and forcibly deletes the operating image. 1. Plug one end of the straight-through Cat5e/Cat6 cable into the Ethernet Port interface of the device by following the Weatherproofing steps explained under Step 5.
8000 Series - Hardware Overview and Installation Figure 3-48 Surge Protector : Use Outdoor-rated, UV protected, shielded Cat5e/Cat6 cable for the following. 3. Connect an RJ45 terminated cable between the indoor equipment and to the port on the surge protector at the building ingress. 4. Connect a short RJ45 terminated cable between the outdoor equipment and the port on the co-located surge protector. 5. Connect an RJ45 terminated cable between the two surge protectors on their remaining ports.
8000 Series - Hardware Overview and Installation Figure 3-49 Ground the Device Step 11: Power ON the Device Plug in the power cord into a power outlet after having connected the PoE Injector and the device using straight-through Cat5e/Cat6 cable. There is no ON/OFF switch on the device. To disconnect power, unplug the RJ45 connector from the PWR LAN-OUT port on the PoE injector. Step 12: View LEDs When the device is powered on, it performs startup diagnostics.
8000 Series - Hardware Overview and Installation 3.6 MP-8200-BSU / MP-8200-SUA / MP-8250-SUR / QB-8200-EPA&LNK /QB-8250-EPR&LNK / MP-8250-BS9 / MP-8250-BS1 This section provides the hardware overview and installation procedure for the following product(s): MP-8200-BSU MP-8250-BS9 MP-8250-BS1 MP-8200-SUA MP-8250-SUR QB-8200-EPA/LNK QB-8250-EPR/LNK 3.6.
8000 Series - Hardware Overview and Installation 3.6.1.1.1 a) Ethernet Port 1 The Gigabit Ethernet port 1 (PoE IN and Data) of the device allows the user to connect to the LAN by using Cat5e/Cat6 Ethernet cable, and also power ON the device by using the Power over Ethernet (PoE) Injector supplied with the product package. The device receives 48 VDC via a standard Cat5e/Cat6 cable connected between the PoE and the device.
8000 Series - Hardware Overview and Installation Figure 3-53 Serial Components The pin assignments for DB9 connector are as follows: D-Shell 1 2 3 4 5 6 7 8 9 RJ11 NC 2 4 NC 1+3+5 6 NC NC NC : The pin6 on RJ11 connector is used as input for 12V DC IN for diagnostic purpose. Supplying power on this pin, when the device is powered by POE injector, might damage the device. 3.6.1.3 Antenna Ports : Applicable only to MP-8200-BSU, MP-8200-SUA and QB-8200-EPA/LNK.
8000 Series - Hardware Overview and Installation 3.6.1.4 Grounding Points To protect the device against lighting or ESD events, you must ground the device properly. To ensure proper grounding, use either of the ground points that are situated at the bottom corner of the device and the grounding screw (#8-32 thread size) provided to attach a ground wire of at least 10 AWG stranded to the device. 3.6.2 Product Package Each shipment includes the items listed in the following table.
8000 Series - Hardware Overview and Installation What’s in the Kit Image N-male 50 Ohm Terminator Supplied with MP-8200-BSU, MP-8200-SUA and QB-8200-EPA/LNK devices only Quick Installation Guide Mounting Kit and Hardware The mounting kit includes the following: Mounting clamp for wall/pole Extension arm Mounting plate to enclosure Mounting clamp for pole mounting The following table lists the items included with the mounting kit: Quantity Description 6 each Plain washer #5/16 2 each Hex Cap Screw
8000 Series - Hardware Overview and Installation 3.6.3 Installation Procedure This section describes the steps to install and mount the device(s). : Please note that we have taken MP-8200-BSU as an example to explain the steps to install and mount the device. Please correlate the same with your device. : The device must be installed by a trained professional who is familiar with radio frequency planning and regulatory limits. Perform the following steps to install and mount the device.
8000 Series - Hardware Overview and Installation Step 3: Gather Required Tools You should have the following tools available before installing the device: Cross-tip screwdrivers Small blade standard screwdriver Large blade standard screwdriver Wire crimpers (if using connectors that are not pre-made) Adjustable 6” wrench Weatherproofing material for sealing external connectors (such as butyl tape) Straight-through UV-protected STP-rated Cat5e/Cat6 Ethernet cable for connecting to PC, or cable for connectin
8000 Series - Hardware Overview and Installation Mounting Plate Mounting Plate fixed to the Device Fixing Mounting Plate to the device 2. Fix the Extension Arm (B) to the fixed Mounting Plate with the provided screw, nut and washers. The Extension Arm gives the device more possible tilt, letting you adjust for azimuth or elevation over a larger angle. % Extension Arm Mounting Plate fixed to the device Extension Arm fixed to Mounting Plate 3.
8000 Series - Hardware Overview and Installation Figure 3-55 Assembled Device Step 7: Mount the Device 1. To pole-mount the device, insert the provided screws and washers through bracket (F). Fasten around the pole to bracket (C) and secure (Torque 11 N.m/100 in-lbs). Figure 3-56 Pole Mounting 2.
8000 Series - Hardware Overview and Installation Figure 3-58 Cable Plugged In 2. Plugging in the second Cat5e/Cat6 cable into the Ethernet Port 2 interface of the device is optional. While using the second Ethernet Port for PoE OUT and data, the following should be considered: 48 VDC (15 W average) is present on the second Ethernet port. Make sure the connected device can support this voltage. If power from the second Ethernet Port is desired, then Proxim recommends to use 60W PoE (not supplied).
8000 Series - Hardware Overview and Installation Step 10: Install Surge Protector Proxim recommends two approved lightning surge protectors to be installed, one near to the device and the other at the building ingress point. : For an additional Surge Protector, place an order separately with your distributor. Perform the following steps to ensure proper surge protection: 1.
8000 Series - Hardware Overview and Installation Step 11: Ground the Unit To ensure proper grounding, use either of the ground points which are situated at the bottom corners of the device and the grounding screw(#8-32 thread size) provided to attach a ground wire of at least 10 AWG stranded to the device. It is important that the following ground guidelines are followed during installations to protect the device against lighting or ESD events: 1.
8000 Series - Hardware Overview and Installation The following table states the status of LEDs and the corresponding operational state of the device: LED State Yellow Off Blinking Green-Fast Blinking Green (5 times) and turns off Green LED State Yellow Off Blinking Green-Fast Blinking Green (5 times) and turns off Green Ethernet 1 Power/Ethernet LED Device is self heating (Cold Start) No Power Power is on and the Ethernet link on Ethernet 1 is down Bootloader detected no image Power is on and the Ethernet
8000 Series - Hardware Overview and Installation Figure 3-63 Beep Interval When the antenna is aimed, the beep intuitively represents whether the SNR is rising or falling. The higher the SNR rises, the shorter the period of the beep is heard and the higher the frequency of the beep. When you change the position of the antenna, SNR averaging settles at the new value and the beeping returns to the average length so the antenna can again be aimed for rising SNR.
Technical Specifications This chapter provides information on the following topics: 3 4 2 # 4 4 5 2 6 7 $ 5 4 6 3 8 8 8 6 3 9 7 6 3
Technical Specifications MP-8200-BSU-US 901-00118 MP 8200 Base Station Unit, 300 Mbps, 3x3 MIMO, 3 N-Type Connectors - US PoE MP-8200-BSU-WD 901-00116 MP 8200 Base Station Unit, 300 Mbps, 3x3 MIMO, 3 N-Type Connectors - WD PoE MP-8200-BSU-JP 901-00148 MP 8200 Base Station Unit, 300 Mbps, 3x3 MIMO, 3 N-Type Connectors - JP PoE MP-8200-BSU-EU 901-00155 MP 8200 Base Station Unit, 300 Mbps, 3x3 MIMO, 3 N-Type Connectors - EU PoE MP-8250-BS9-US 901-00119 MP 8250 Base Station Unit, 300 Mbps, 2x2 MI
Technical Specifications MP-8250-SUR-EU 901-00156 MP 8250 Subscriber Unit, 300 Mbps, 2x2 MIMO, 23 dBi, Panel Antenna – EU PoE MP-820-SUA-50+-WD 901-00134 MP 820 Subscriber Unit, 50 Mbps (Upgradable to 100 Mbps), 2x2 MIMO, 2 N-Type Connectors - WD PoE MP-820-SUA-50+-US 901-00136 MP 820 Subscriber Unit, 50 Mbps (Upgradable to 100 Mbps), 2x2 MIMO, 2 N-Type Connectors - US PoE MP-820-SUA-50+-EU 901-00163 MP 820 Subscriber Unit, 50 Mbps (Upgradable to 100 Mbps), 2x2 MIMO, 2 N-Type Connectors - EU PoE
Technical Specifications QB-8150-LNK-EU 902-00660 QB 8150 Link (A pair of QB-8150-EPR-EU devices), 300 Mbps, 2x2 MIMO, 23 dBi Integrated Antenna - EU PoE QB-8150-LNK-12-WD 902-00056 QB 8150 Link (A pair of QB-8150-EPR-12-WD devices), 12 Mbps, 2x2 MIMO, 16 dBi Integrated Antenna - WD PoE QB-8150-LNK-50-US 902-00063 QB 8150 Link (A pair of QB-8150-EPR-50-US devices), 50 Mbps, 2x2 MIMO, 16 dBi Integrated Antenna - US PoE QB-8150-LNK-50-WD 902-00064 QB 8150 Link (A pair of QB-8150-EPR-50-WD devices)
Technical Specifications QB-825-EPR-50-US 902-00743 QB 825 End Point, 50 Mbps, 2x2 MIMO, 15 dBi Antenna - US PoE QB-825-EPR-50-WD 902-00745 QB 825 End Point, 50 Mbps, 2x2 MIMO, 15 dBi Antenna - WD PoE QB-825-LNK-50-US 902-00744 QB 825 Link (A pair of QB-825-EPR-50-US devices), 50 Mbps, 2x2 MIMO, 15 dBi Antenna - US PoE QB-825-LNK-50-WD 902-00746 QB 825 Link (A pair of QB-825-EPR-50-WD devices), 50 Mbps, 2x2 MIMO, 15 dBi Antenna - WD PoE QB-825-LNK-50+-WD 902-00637 QB 825 Link (A pair of QB-82
Technical Specifications 400-00002 PoE Gigabit 48V DC Injector with terminal Jack - 25 pack 949-00027 2.3-2.7 GHz, Dual Polarity, Vertical and Horizontal, 20 dBi Panel Antenna 949-00083 Spare gas capsule for Tsunami 8100 N-Type connector 1087-UMK Universal Mounting Bracket for Wall Mounting. Refer 210-00046 N Male Terminator 50 Ohm, 0-6 GHz 949-00017 6 ft Super-Low Loss Coaxial Antenna Cable, 0.
Technical Specifications OFDM Modulation Rates Given below are the OFDM modulation rates for the Tsunami® 800 and 8000 series products: Data Rates (Mbps) 5 MHz 10 MHz 20 MHz 40 MHz Modulation Full GI-800ns Full GI-800ns Full GI-800ns Short GI-400ns Full GI-800ns Longer Higher Longer Higher Longer Higher Longer Higher Longer Higher Range Throughput Range Throughput Range Throughput Range Throughput Range Throughput BPSK 1/2 1.6 3.3 3.3 6.5 6.5 13 15 30 13.5 27 QPSK 1/2 3.3 6.5 6.
Technical Specifications Interfaces Products Category Specification MP-8100-BSU; MP-8100-SUA MP-8150-SUR; MP-8160-BSU MP-8160-SUA; MP-8160-BS9 MP-8200-BSU; MP-8200-SUA MP-8250-SUR; MP-8250-BS9; MP-8250-BS1 QB-8100-EPA/LNK; QB-8150-EPR/LNK QB-8151-EPR/LNK QB-8200-EPA/LNK; QB-8250-EPR/LNK Wired Ethernet Two auto MDI-X RJ45 Gigabit Ethernet Ports – Port #1 with PoE IN and Data – Port #2 with PoE OUT (802.
Technical Specifications Transmit Power Settings 2.
Technical Specifications 6.4 GHz Products Stream Modulation Tx Power* for 5/10/20/40 MHz (+/-1dB) MP-8160-BSU MP-8160-BS9 MP-8160-SUA MP-8160-CPE-A100 Single (or) Dual Stream BPSK 1/2 25 QPSK 1/2 25 QPSK 3/4 25 16 QAM 1/2 25 16 QAM 3/4 23 64 QAM 2/3 22 64 QAM 3/4 19 64 QAM 5/6 16 Note: Output Power Attenuation: 0 – 25 dB, in 1 dB steps Total EIRP must be calculated based on the antenna gain * Tx Power indicates combined power at the radio ports.
Technical Specifications 5.150 - 5.
Technical Specifications 5.900 - 6.425 GHz Note: Output Power Attenuation: 0 – 22 dB, in 1 dB steps Output Power Values will have a tolerance of +/-2 dB Total EIRP must be calculated based on integrated 15 dBi antenna gain * Tx Power findicated above is the combined power. Receive Sensitivity Receive Sensitivity (dBm) Products MP-8100-BSU MP-8100-SUA MP-8150-SUR MP-8150-SUR-100 QB-8100-EPA/LNK QB-8150-EPR/LNK QB-8150-LNK-100 QB-8151-EPR/LNK Stream Single Stream Dual Stream 2.
Technical Specifications Products MP-8100-BSU MP-8100-SUA MP-8150-SUR MP-8150-SUR-100 Stream Single Stream Legacy Data Rate (Mbps) Receive Sensitivity (dBm) 5 GHz 20 MHz 10 MHz 5 MHz 6 -91 -94 -97 9 -91 -94 -97 12 -92 -94 -96 18 -90 -92 -95 24 -86 -88 -92 36 -83 -85 -88 48 -78 -81 -84 54 -77 -79 -82 Tsunami ® 800 and 8000 Series - Hardware Installation Guide 124
Technical Specifications Products MP-8200-BSU MP-8250-BS9 MP-8250-BS1 MP-8200-SUA MP-8250-SUR QB-8200-EPA/LNK QB-8250-EPR/LNK Stream Single Stream Dual Stream Receive Sensitivity (dBm) 4.900 - 5.
Technical Specifications Products MP-8200-BSU MP-8250-BS9 MP-8250-BS1 MP-8200-SUA MP-8250-SUR Stream Single Stream Legacy Data Rate (Mbps) Receive Sensitivity (dBm) 4.900 - 5.
Technical Specifications Products MP-8160-BSU MP-8160-BS9 MP-8160-SUA MP-8160-CPE-A100 Stream Single Stream Dual Stream Receive Sensitivity (dBm) 6.
Technical Specifications Products MP-8150-CPE QB-8150-LNK-12/50 Stream Single Stream Dual Stream Receive Sensitivity (dBm) 5 GHz Modulation 40 MHz 20 MHz 10 MHz 5 MHz BPSK 1/2 -89.0 -93.0 -95 -96 QPSK 1/2 -89.0 -92.0 -93 -94 QPSK 3/4 -87.0 -90.0 -90 -92 16 QAM 1/2 -84.0 -86.0 -87 -89 16 QAM 3/4 -81.0 -83.0 -84 -86 64 QAM 2/3 -77.0 -80.0 -79 -81 64 QAM 3/4 -75.0 -78.0 -78 -80 64 QAM 5/6 -73.0 -76.0 -76 -78 BPSK 1/2 -89.0 -93.0 -93 -94 QPSK 1/2 -89.
Technical Specifications Products MP-820-BSU-100 MP-820-SUA-50+ MP-825-SUR-50+ MP-825-BS3-100 MP-825-CPE-50 MP-825-CPE-100 QB-825-EPR/LNK-50 QB-825-EPR/LNK-50+ Stream Single Stream Dual Stream Receive Sensitivity (dBm) 5.150 - 5.
Technical Specifications Products MP-820-BSU-100 MP-820-SUA-50+ MP-825-SUR-50+ MP-825-BS3-100 MP-825-CPE-50 MP-825-CPE-100 Products MP-826-CPE-50 Stream Single Stream Stream Single Stream Dual Stream Legacy Data Rate (Mbps) Receive Sensitivity (dBm) 5.150 - 5.925 GHz 20 MHz 10 MHz 5 MHz 6 -92 -93 -94 9 -92 -93 -94 12 -92 -93 -94 18 -90 -91 -92 24 -86 -88 -90 36 -83 -85 -87 48 -79 -81 -83 54 -77 -79 -81 Receive Sensitivity (dBm) 5.900 - 6.
Technical Specifications Management Category Specification Local* RS232 serial CLI (up to 115200 bps) Telnet and SSH, Web GUI (http) and SSL (https), TFTP SNMP v1, v2c and v3 SNMP trap and Syslog Remote X Y Z [ \ ] ] ^ _ ` \ a ^ b [ Z c d e f g h i e j d k e l g i i m c d e f n o e j d k e o i Tsunami ® 800 and 8000 Series - Hardware Installation Guide m c d e f n o e j d k e g i i m c d e f n h e j d k e o i \ p q r s e
Technical Specifications Power Supply Products Category MP-8100-BSU MP-8100-SUA MP-8150-SUR MP-8150-SUR-100 MP-8200-BSU MP-8250-BS9 MP-8250-BS1 MP-8200-SUA MP-8250-SUR QB-8100-EPA/LNK QB-8150-EPR/LNK QB-8150-LNK-100 QB-8151-EPR/LNK QB-8200-EPA/LNK QB-8250-EPR/LNK Specification Via RJ-45 Ethernet interface supplying 48 VDC and 0.
Technical Specifications Products Category MP-8160-BSU MP-8160-BS9 MP-8160-SUA Input Voltage Specification y y y Via RJ-45 Ethernet interface supplying 48 VDC and 0.67 A on Ethernet Port#1 12 V-DC through serial port (for diagnostic purpose) Consumption 10 Watts typical (13.8 Watts maximum with one heater ON) : Only one of the above input voltage options should be used at a time, to power on the device. Combination of any two options, may damage the device.
Technical Specifications Products MP-826-CPE-50 Category Input Voltage Specification Via RJ-45 Ethernet interface supplying 48 VDC and 0.40A on Ethernet Port Consumption of 10 Watts typical (18 Watts max with one heater ON) y y PoE Injector Input: 100 – 250 V-AC (47 – 63 Hz) Output: 48 V-DC at 0.40 A (19 Watts) Pin-out: +48 V on pins 4/5, -48 V on pins 7/8 Size: 4.96 x 8.62 x 2.58 inches (126 x 219 x 65.5 mm) Weight: 5.
Technical Specifications Products MP-820-BSU-100 MP-820-SUA-50+ MP-825-SUR-50+ MP-825-BS3-100 QB-825-EPR/LNK-50+ Category Input Voltage Specification y y Via RJ-45 Ethernet interface supplying 48 VDC and 0.67A on Ethernet Port#1 12 V-DC through RJ-11 serial port (for diagnostic purpose) : Only one of the above input voltage options should be used at a time, to power on the device. Combination of any two options, may damage the device.
Technical Specifications MP-8150-CPE QB-8150-EPR-12 QB-8150-EPR-50 5.3 to 6.1GHz MIMO radio 333 MHz 333 MHz Power-over-Ethernet 48 VDC, 0.40 A 7 Watts typical (13.8 Watts max) MP-8160-CPE-A100 5.900 to 6.425 GHz MIMO radio 333 MHz Flash: 16 MB RAM: 128 MB Power-over-Ethernet 48 VDC, 0.40 A 5 Watts typical (10 Watts max) MP-825-CPE-50 MP-825-CPE-100 QB-825-EPR-50 5.15 to 5.925 GHz MIMO radio 560 MHz Flash: 16 MB RAM: 128 MB Power-over-Ethernet 48 VDC, 0.
Technical Specifications Integrated Antenna Specifications Products: MP-8150-SUR; QB-8150-EPR/LNK; MP-8250-SUR; MP-8250-BS1; QB-8250-LNK Feature Specification Frequency Band 4.900 – 5.875 GHz Gain 22 dBi (Cable loss included) 3dB Beamwidth 7º - 9º (Hplane) 3dB Beamwidth 7º - 9º (Eplane) Polarization Dual (Vertical + Horizontal) Cross Polarization -25 dB Port to Port Isolation -30 dB Power Handling 5 W (cw) VSWR 1.
Technical Specifications Antenna Tilt Angles and corresponding EIRP values: : These values are applicable only to the devices operating in U-NII-1US frequency band (5.15 - 5.
Technical Specifications Products: MP-8150-CPE; QB-8150-LNK-12/50 Feature Specification Vertical Polarization Horizontal Polarization Frequency Band 5.300 – 6.100 GHz Gain 15 - 16 dBi 15 - 16 dBi Horizontal Half Power Beam Width 17.6o 20.3o 16.5o – 18.3o Vertical Half Power Beam Width 16.1o - 20.5o 17.0o - 24.0o Sidelobes Level -10 dB (Max) -8 dB (Max) Front-to-back-ratio 23 dB (Max) -21 dB (Max) Polarization Linear, Vertical Linear, Horizontal Port to Port Isolation 27 dB (Min.
Technical Specifications Product: MP-8160-CPE-A100, MP-826-CPE-50 Feature Specification Frequency Range 5900 – 6400 MHz Polarization Vertical/Horizontal Gain 13.5-14.5 dBi / 14.
Technical Specifications Products: MP-8150-SUR-100; QB-8151-EPR / LNK Feature Specification Vertical Polarization Frequency Band 4900 - 5875 MHz Gain 20.0±1 dBi Horizontal Half Power Beam Width 8o (typ.) Vertical Half Power Beam Width 8o (typ.) Sidelobes Level -8 dB (Max) Front-to-back-ratio -30 dB (Max) Polarization Linear, Vertical Isolation 25 dB (min.) Power Handling 2W (cw) VSWR 2.0: 1 (Max) Input Impedance 50 ohm Lightning Protection DC Ground Horizontal Polarization 21.
Technical Specifications Antenna Tilt Angles and corresponding EIRP values: : These values are applicable only to the devices operating in U-NII-1US frequency band (5.15 - 5.
Technical Specifications Products: MP-8160-BS9 Feature Specification Radio Patterns MP-825-CPE-50, MP-825-CPE-100, MP-825-SUR-50+, MP-825-BS3-100, QB-825-LNK-50, and QB-825-LNK-50+ Feature Specification Vertical Polarization Horizontal Polarization Frequency Band 5.15 - 5.925 MHz Gain 15 - 16 dBi (14 dBi beyond 5.
Technical Specifications MP-825-CPE-50, MP-825-CPE-100, MP-825-SUR-50+, MP-825-BS3-100, QB-825-LNK-50, and QB-825-LNK-50+ Feature Specification Radio Patterns (V-Polar Port) Radio Patterns (H-Polar Port) Antenna Tilt Angles and corresponding EIRP values: : These values are applicable only to the devices operating in U-NII-1US frequency band (5.15 - 5.
Technical Specifications Products: MP-8250-BS9 Feature Specification Frequency Band 4.9 – 6.1 MHz Gain, typ. 16 dBi VSWR, Max. 1.7:1 Polarization Dual Pol., Vertical and Horizontal 3 dB Beam-Width, H-Plane, typ. 90o 3 dB Beam-Width, E-Plane, typ. 8o Sidelobes Level, Min. V-Pol: ETSI EN 302 085 V1.2.3 – CS2 H-Pol: ETSI EN 302 085 V1.2.3 – CS3 Cross Polarization, min. -15 dB Front to Back Ratio, min. -30 dB Port to Port Isolation, min.
Technical Specifications Products: MP-8250-BS9 Feature Specification Radio Patterns (H-Polar Port) Antenna Tilt Angles and corresponding EIRP values: : These values are applicable only to the devices operating in U-NII-1US frequency band (5.15 - 5.
Technical Specifications Physical Specifications Products Category Specification MP-8100-BSU, MP-8100-SUA QB-8100-EPA Dimensions (L x W x H) 10.79 x 11.14 x 3.38 inches (274 x 283 x 86 mm) Weight 7.7 lbs (3.5 kg) MP-8150-SUR QB-8150-EPR Dimensions (L x W x H) 14.57 x 14.57 x 4.47 inches (370 x 370 x 113.5 mm) Weight 9.0 lbs (4.1 kg) MP-8150-SUR-100 QB-8150-EPR-100 QB-8151-EPR Dimensions (L x W x H) 14.57 x 14.57 x 4.21 inches (370 x 370 x 107 mm) Weight 8.45 lbs (3.
Technical Specifications Environmental Specifications Products Operating Temperature Storage Temperature MP-8100-BSU; MP-8100-SUA MP-8150-SUR; MP-8150-SUR-100 MP-8200-BSU; MP-8200-SUA MP-8250-SUR; MP-8160-BSU MP-8160-BS9; MP-8160-SUA MP-8250-BS9; MP-8250-BS1 QB-8100-EPA/LNK; QB-8150-EPR/LNK QB-8150-LNK-100; QB-8151-EPR/LNK QB-8200-EPA/LNK; QB-8250-EPR/LNK -40º to 60ºC (-40º to 140º Fahrenheit) -55º to 80ºC (-67º to 176º Fahrenheit) 100% (non-condensing) MP-8150-CPE QB-8150-LNK-12/50 -35º to 55ºC (-
Technical Specifications MTBF Products MTBF MP-8100-BSU MP-8100-SUA MP-8150-SUR MP-8150-SUR-100 MP-8160-BSU MP-8160-BS9 MP-8160-SUA QB-8100-EPA/LNK QB-8150-EPR/LNK QB-8150-LNK-100 QB-8151-EPR/LNK >80,000 hours MP-8150-CPE MP-8160-CPE-A100 QB-8150-LNK-12/50 75,000 hours MP-826-CPE-50 >2,00,000 hours MP-8200-BSU MP-8250-BS9 MP-8250-BS1 MP-8200-SUA MP-8250-SUR QB-8200-EPA/LNK QB-8250-EPR/LNK >250,000 hours MP-820-BSU-100 MP-820-SUA-50+ MP-825-SUR-50+ MP-825-BS3-100 MP-825-CPE-50 MP-825-CPE-100 QB-82
Appendix - Additional Weatherproofing Steps This chapter explains the method to add an additional layer of protection to the connectors (Ethernet) against the environment. : We have taken MP-8100-BSU as an example to explain the weatherproofing steps. The same method should be followed to weatherproof the Ethernet connectors of the Tsunami® 800 and 8000 series products. A.1 Material for Weatherproofing The material required for weatherproofing connectors are, 1. Any standard Butyl Mastic Tape 2.
Appendix - Additional Weatherproofing Steps 2. Wrap a second layer of the vinyl tape over the first layer but in other direction. (a) (b) Figure A-2 Step2 3. Now, wrap a layer of vinyl tape with the adhesive side out as it provides sticky surface for the next layer. (a) (b) Figure A-3 Step3 4. Next, wrap a layer of the butyl mastic tape on the adhesive side. (a) (b) Figure A-4 Step3 5. Finally, wrap vinyl tap over the butyl layer.
Appendix - Lightning Protection Lightning protection is used to maximize the reliability of the communications equipment by safely re-directing current from a lightning strike or a power surge traveling along the Cat 5/Cat5e/Cat 6 Ethernet cabling to the ground using the shortest path possible. Designing a proper grounding system prior to installing any communications equipment is critical to minimize the possibility of equipment damage, void warranties, and cause serious injury.
Appendix - Abbreviations Abbreviations AWG American Wire Gauge BSU Base Station Unit CLI Command Line Interface CPE Customer Premises Equipment DC Direct Current ESD Electrostatic Discharge FCS Frame Check Sequence LED Light Emitting Diode MIMO Multiple-input and Multiple-output MTBF Mean Time Between Failures OFDM Orthogonal frequency-division multiplexing PC Personal Computer PoE Power Over Ethernet PTMP Point-to-multipoint PTP Point-to-point QB Quick Bridge QIG Quick Ins
Appendix - Statement of Warranty Warranty Coverage Proxim Wireless Corporation warrants that its products are manufactured solely from new parts, conform substantially to specifications, and will be free of defects in material and workmanship for a Warranty Period of 1 year from the date of purchase.
Appendix - Statement of Warranty General Procedures When contacting the Customer Service for support, Buyer should be prepared to provide the product description and serial number and a description of the problem. The serial number should be on the product. In the event the Customer Service Center determines that the problem can be corrected with a software update, Buyer might be instructed to download the update from Proxim Wireless’s web site or, if that’s not possible, the update will be sent to Buyer.
Appendix - Technical Services and Support Obtaining Technical Service and Support If you are having trouble using the Proxim product, please read this manual and the additional documentation provided with your product.
Appendix - Technical Services and Support Telephone Support Contact technical support via telephone as follows: USA and Canada Customers y y Phone: +1-408-383-7700; +1-866-674-6626 Business Hours: 24x7 live response. Tier 3 support: 8 a.m. to 5 p.m. M-F PDT (UTC/GMT -7 hrs) International Customers y y Phone: +1-408-383-7700; 0800-916475 (France); 8-800-100-9485 (Russia) Business Hours: 24x7 live response. Tier 3 support: 8 a.m. to 5 p.m.
Appendix - Technical Services and Support Additional Information on ServPak Options Advanced Replacement of Hardware In the event of a hardware failure, our guaranteed turnaround time for return to factory repair is 30 days or less. Customers who purchase this service are guaranteed replacement of refurbished or new hardware to be shipped out within one or two business days, as applicable. Options are available for shipment services depending on the customer’s support needs.
Appendix - Technical Services and Support Assistance with QoS, RADIUS, and VLAN settings on Proxim equipment y To purchase ServPak support services, please contact your authorized Proxim distributor. To receive more information or for questions on any of the available ServPak support options, please visit our website at , call Proxim Support (For telephone numbers, see ) or send an .
