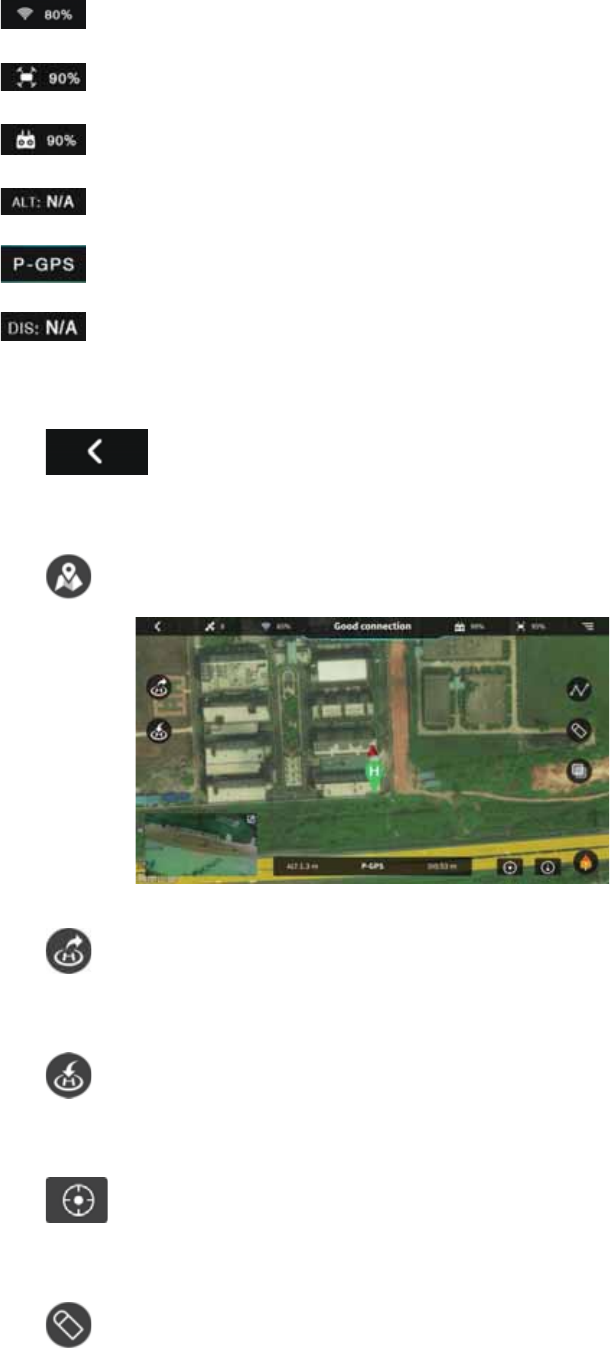

˖Show strength of WIFI signal of the remote controller; ˖Show the remained electricity quantity of the aircraft; ˖Show the remained electricity quantity of the remote controller; ˖Show the current flight height; ˖Show the current flight mode; ˖Show the current flight distance. y Return to Homepage Click the icon and it will return to Homepage of APP. y Map Page Click the icon and it will open the map. [1] Take Off Click the icon and it will take off automatically.
[5] Flight Planning After clicking the icon, its background will turn to red, which means the function of planning the flight path has been activated. At this time, you can click anywhere on the map to form the flight dot. When the dots are confirmed, click the ‘GO’ at the bottom of the screen, the aircraft will fly to these dots according to their order. [6] Compass Display Click the icon to lock the direction of the map, the red arrow pointed to the north.
customized for five functions: taking pictures, recording videos, back-to-center of the gimbal, steering gear control and take off. (Need the connection with the Remote Controller) To the right page, you can enter the ‘Flight Settings’. In this page, settings could be made for the Return Height, Altitude Limit, and Distance Limit. We strongly suggest you to set the altitude limit below 120m, although the maximum value allowed is 500m. If not, you will have to bear the risk.
y Take Off Button The Take Off button can only be used in Mode P. In Mode P and after arming the unlocking, click the icon (or the button in the remote controller), and the aircraft will fly to 3 meters high from the ground and wait for your next command. y Photograph/Video ˄Photograph˅ ˄Video˅ The icons of Taking pictures/ Recording videos on ProFlight App have the same functions with those on remote controller. Click the button to take pictures or record videos, and click it again to stop.
Assembling Aircraft Preparation 1. Unfold Unfold the arms and the food stools to the limited places shown in the picture. Make sure that all arms are symmetric with each other. 2. Fold Ȥ In unfolding, please be careful rotating the arm and the stool. Stop unfolding after they are in the limited places. Ȥ In folding, please make sure the rotation is in the right direction. If it is in the wrong direction, the limit structure would be damaged. 3.
Letters A and B are marked respectively on the hub of the propeller, in the internal surface of the propeller cap, and the motor rotor. Make sure signs of the three are the same in the installation and dismounting. In installation, choose the same type of propeller with that on the motor rotor. Put the side with the letter up and insert it to the spacer pin of the propeller in the electric motor.
4. Battery Installation and Dismounting A high capacity Li-polymer battery, whose capacity is 6700mAh and voltage is 14.8 V, is used in this aircraft. The snap joint design is used here and you can snap the battery into the battery cabin in the direction shown in the following picture. After installation, tighten the cover of the battery cabin according to the method shown in the following picture. After flight, please take down the battery according to the method shown in the following picture.
Ȥ The type of the gimbal in the above picture is only for indication. Different types of gimbals are used for different aircrafts with different configurations. Ȥ The gimbal is precise equipment and its performance would be reduced by crash or strong force. Therefore, please pay special attention to the gimbal. Ȥ Do not move the aircraft while the gimbal is on self-checking. Ȥ Before installing and dismounting, please turn off the power of the aircraft.
y After turning on the power switches of the aircraft and the remote controller, you could see the remaining capacity by observing the LED indicator lights for the aircraft in the remote controller. 9. Charging The flight battery cannot be charged while in the aircraft. Please remove it from the aircraft and charge it with the included charger. It takes about 2.5 hours to finish the charging. While charging, the LED indicator light in the charger is red.
power switch. If it is green, it means the battery capacity is enough for the flight; if it is red, it means the battery needs to be charged. 3. Charging The remote controller could be charged no matter it is on or off, but it is suggested to charge it when it is off. In charging, you could judge whether it has been fully charged by the color of the LED indicator light of its electric quantity. If the red light flickers, it means it is being charged.
Ȥ When using the remote controller, please keep it away from the human body (especially the head) for at least 8 inches in case that the antenna and the transmitter module might influence the body. 5. Mobile Device Holder Installation and Dismounting Unfold the joint lever of the support of the mobile device to the limited position and insert it downward to the installation hole and adjust fit the device being used. Start up the WLAN of the mobile device.
Flight Safety Alarms 1. Environment y Do not fly in sever whether such as rain, thunder, high wind, snow, heavy fog, and the sand and dust weather. y Do not fly between tall buildings. Doing so may lead to disabling of the GPS and affecting flight characteristics. Please fly in wide open spaces with no buildings or other tall obstacles. y Always keep the aircraft in direct line of sight and avoid flying over people and water.
Accelerator Calibration When the aircraft leaves the factory, the accelerometer has already been calibrated. It is suggested to calibrate it again before the first flight to ensure the safe flight Follow these steps: y Visit www.gdu-tech.com to download and install the ‘FCS Configuration Adjustion Software’ on your PC. y Connect the aircraft to your PC, the software will automatically identify the aircraft.
color of the LED indicator light in the aircraft; the compass calibration is successful when the YELLOW lights at the head of the aircraft and the GREEN lights at the tail keep on. The compass calibration is not so good when all the yellow light keep on. You’d better calibrate the compass once more. Otherwise, please return to the step 2. Ȥ Do not move the aircraft during the self-check startup.
Landing During the flight, push the throttle rod downward slowly and the aircraft will land slowly. At this time, push the rod to its lowest place and hold for two seconds. The motor will stop and then loosen the rod to lock the aircraft.
FAQ 1. What is the control distance of the remote controller? How are the aircraft, the mobile phone and the remote controller are connected? The control distance of the remote controller is 2500 meters (the actual control distance depends on the environment). The mobile device and the remote controller are connected via USB cable and the aircraft and the remote controller communicate with each other by 5.8 G radio frequency. 2.
400 feet. 10. The aircraft voice is loud during flight. Is that normal? The noise of the aircraft’s propellers has a direct relationship to the speed of the propellers. 11. What’s the GPS precision of the map in the mobile phone? The precision of the GPS on the map is determined by the quality of the GPS module in your mobile device. 12. How fast can the aircraft fly? The fastest ascent speed is 6 m/s and the fastest forward speed is 15 m/s. 13.
of the mobile phone? The red full lines show the flight track while the blue dotted line show the flight lines made by the planning function of flight track. 22. How to charge the power battery? Connect the battery and the charger and connect the charge with the 220 V power source to start the charging. When the LED indicator light in the charger is red, it means the battery is being charged; when the light is green, it means the battery has been fully charged. 23.
Specifications GDU Byrd Premium2.0 z Aircraft Weight Rated Load Max. Load Wind Resistance Max. Ascent Speed Max. Speed Hover Precision˄P Mode˅ Max. Flight Altitude Endurance Operating Temperature z Gimbal Controllable Angle Range z Vision Positioning System Velocity Range Altitude Range Positioning Accuracy Operating Environment 1930 g 200 g 500 g 3 Grade 6 m/s 15m/s ±0.2 m˄Vertical˅ ±0.2 m˄Horizontal˅ 4000 m 29 min -10ć to 50ć Pitching˖-90° to 0° Yawing˖-45° to 45° < 8 m/s 20 cm – 600 cm ±3.
z Camera Image Resolution Distortion Output Mode RAM Supported SD Card Types Operation Temperature 4K˄16˖9˅, 2.7K˄16˖9˅ˈ 1440P˄4˖3˅, 1080P˄16˖9˅ 12million .MP4˄H.264 codec˅and .AVI .JPEG & .RAW 30 pieces/s˄12 million˅ F/2.8 4K˖24/25/30 fps 2.7K˖25/50/60 fps 1440P˖25/50 fps 1080P˖25/30/50/60/120 fps 104°˄Opposite˅ 82°˄Horizontal˅ <27% USB 2GB flash + 8GB DDR Support Maximum 64GB -10ć to 50ć z Remote Controller Frequency Max.
