BluKey Select™

Reference Manual

Model: BluKey Select™

Summary of content (21 pages)

PAGE 1

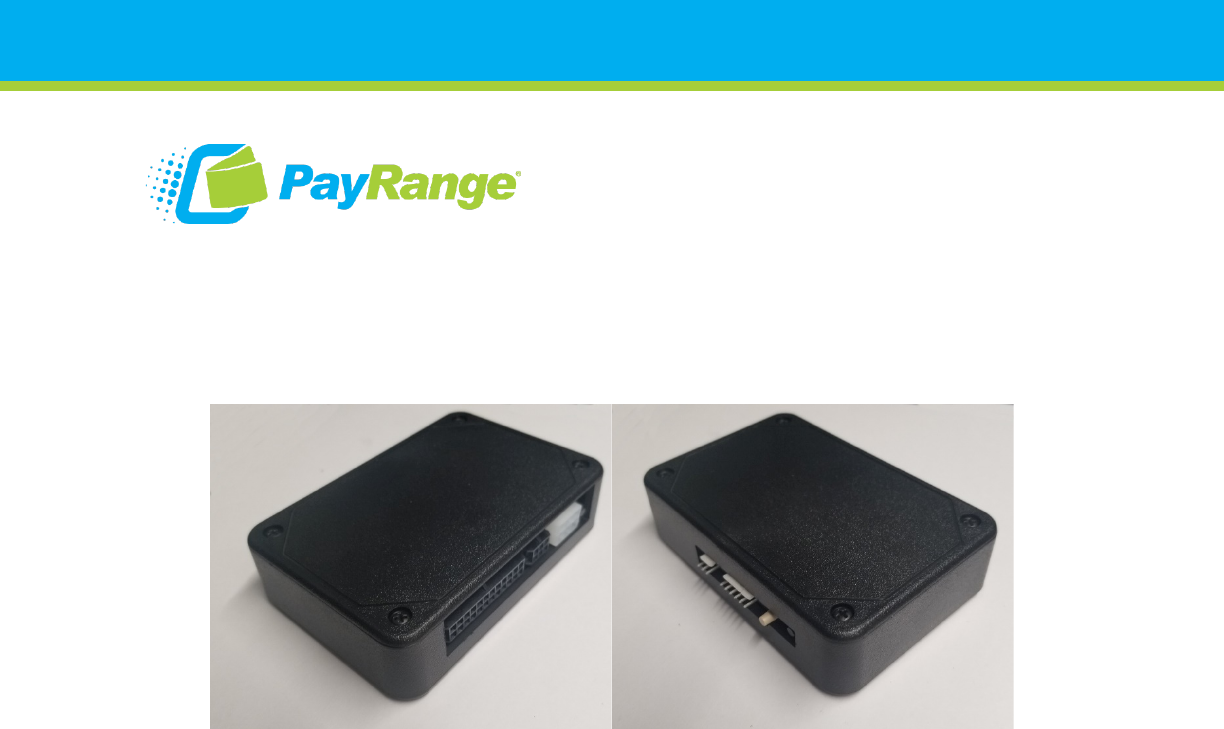

BluKey Select™ Reference Manual Model: BluKey Select™
PAGE 2
PayRange | BluKey Select™ Reference Manual Table of Contents Table of Contents .......................................................................................................................................... 2 Introduction .................................................................................................................................................. 3 Before Installation.............................................................................................................
PAGE 3
PayRange | BluKey Select™ Reference Manual Operating Conditions .............................................................................................................................. 12 ESD handling ratings ............................................................................................................................... 12 RF Specifications .....................................................................................................................................
PAGE 4
PayRange | BluKey Select™ Reference Manual • • Optional Card Harness (connects BluKey Select to Card reader installed in the Machine) Optional DEX Cable Harness Vending Machine Machine Coin/Bill Acceptor and Card Readers Cable Harness / Installation Kit BluKey Select™ MDB Machine (TBD PICTURE) MDB Card (TBD PICTURE) 6/29/2021 P a g e 4 | 21
PAGE 5
PayRange | BluKey Select™ Reference Manual (TBD PICTURE) 6/29/2021 DEX (TBD PICTURE) P a g e 5 | 21
PAGE 6
PayRange | BluKey Select™ Reference Manual Before Installation 1. Create your PayRange Operator Account a. b. c. d. Go to http://manage.payrange.com. Sign up for a customer account. If you already have a customer account, Sign in. Once logged in, click Create an Operator Account (may need to click Account first). Select Operator Sign up (at the bottom of the page), follow prompts to create your account. e. Setup ACH for payment with your bank routing and account number.
PAGE 7
PayRange | BluKey Select™ Reference Manual vii. Installer login & password into Operator Account Installation Steps These are generic installation instructions. Each individual machine and harness may have additional steps or details relevant to installation. 1. Disconnect power from the machine Important! Avoid electric shock and damage to the machine and BluKey Select. Always disconnect power from the machine BEFORE opening the machine cabinet. 2.
PAGE 8
PayRange | BluKey Select™ Reference Manual 4. Connect configuration plug to CONF connector See Installation Manual for the Keypad Harness. (TBD PICTURES) 5. Plug Keypad Harness into BluKey Select KEYPAD connector 6. Plug MDB Machine harness into BluKey Select MACHINE connector (TBD PICTURES) 7. Is Card Reader Present? No – Skip to step # 11 8. Does machine support CPD2? Yes – Skip to step # 10 No – Continue to step # 9 9.
PAGE 9
PayRange | BluKey Select™ Reference Manual If card reader is connected to power separately, keep that connection. b. Plug in card reader cable into card connector on MDB harness 11. Connect BluKey Select to Machine MDB connector 12. Power up the machine (leave the machine door/panel open) 13. BluKey Select should power up and turn on solid blue LED Note: Some machines disable payment when service panel is open – BluKey Select will be blinking red LED.
PAGE 10
PayRange | BluKey Select™ Reference Manual b. c. d. e. Click DEVICES > Register in the left panel Enter device Serial number and Pin (from BluKey Select back label) Enter Display name (it will be shown in the app to customers) Enter other relevant information (laundry/machine type, location name, address, etc.) f. Optionally: upload picture of the machine number sticker to the “Picture” field (if picture is not uploaded, a standard machine number picture will be shown in the app) g.
PAGE 11
PayRange | BluKey Select™ Reference Manual BluKey Select Reference Interfaces 1. DEX Connector 2. MACHINE (MDB in) Connector 3. Button 4. Power/Status LED 5. CARD LED 6. CARD (MDB out) connector 7. CONF connector 8. KEYPAD connector Connectors The “MACHINE” connector for connecting to MDB machine with MDB Cable Harness, KEYPAD connector for Keypad Cable Harness and CONF connector for configuration plug.
PAGE 12
PayRange | BluKey Select™ Reference Manual IDD3O_MAX CONF 3.3V power supply output, DC 300 mA VDI Digital input voltage -0.3 VDD + 0.3 V 2 IDO Digital output current ±50 mA VKEY_MAX KEYPAD connector operating voltage 60 VDC IKEY_MAX KEYPAD connector operating current 100 mA 1. Determined according to JEDEC Standard JESD22-A103, High Temperature Storage Life. 2. VDD is 3.3V internal reference on CONF connector.
PAGE 13
PayRange | BluKey Select™ Reference Manual 2. Determined according to JEDEC Standard JESD22-C101, Field-Induced Charged-Device Model Test Method for Electrostatic-Discharge-Withstand Thresholds of Microelectronic Components. 3. Determined according to JEDEC Standard JESD78, IC Latch-Up Test. RF Specifications Symbol FRF PRFO SRFI Description RF Frequency range (Bluetooth 4.1) RF Output power RF Sensitivity (at 0.1% BER) Min. 2402 TBD Max. 2483.5 4.91 Unit Notes MHz dBm dBm Connector Pinouts a.
PAGE 14
PayRange | BluKey Select™ Reference Manual “CARD” Connector Pin 1 2 3 4 5 6 BluKey Select Cable / Mating part Molex 0039301060 (Mini-Fit Jr) Molex 0039012060 Name Notes MDB_OUT MDB power supply (pass through from MACHINE) MDB_GND MDB power supply common (NC) VMC_RXD MDB VMC receive data (BKSelect input) VMC_TXD MDB VMC transmit data (BKSelect output) VMC_GND MDB data common c. “CONF” Connector (6-pin) “CONF” connector is provided to select Keypad harness configuration.
PAGE 15
PayRange | BluKey Select™ Reference Manual “KEYPAD” Connector Pin 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 BluKey Select Molex 0430452400 (Micro-Fit) Name KEY_COM Common for all KEYn KEY1 KEY2 KEY3 KEY4 KEY5 KEY6 KEY7 KEY8 KEY9 KEY10 KEY11 KEY_COM Common for all KEYn KEY1 KEY2 KEY3 KEY4 KEY5 KEY6 KEY7 KEY8 KEY9 KEY10 KEY11 Cable / Mating part Notes Molex 0430252400 e. “DEX” (UCX) Connector (3-pin) “DEX” connector is for permanent connection to vending machine DEX port.
PAGE 16
PayRange | BluKey Select™ Reference Manual “DEX” Connector Pin 1 2 3 BluKey Select Molex 22-05-3031 (KK254) Name Notes GND DEX data common DEX_TIP_RXD DEX receive data (BKSelect input) DEX_RING_TXD DEX transmit data (BKSelect output) Cable / Mating part Molex 0022013037 f. “Battery Connector Pinout BKSelect battery connector is JST SM02B-SURS-TF (2-pin) to connect backup battery for the internal real-time-clock.
PAGE 17
PayRange | BluKey Select™ Reference Manual 6/29/2021 P a g e 17 | 21
PAGE 18
PayRange | BluKey Select™ Reference Manual Regulatory Approval Modification statement PayRange has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. United States This device complies with Part 15 of the FCC Rules.
PAGE 19
PayRange | BluKey Select™ Reference Manual Symptom BKSelect LED does not light up LED Pattern (No power) Cause Power is not provided on machine’s harness Harness not compatible BKSelect LED is solid red BKSelect LED slowly flashes red BKSelect LED slowly flashes red/blue BKSelect LED blinks off BKSelect LED flashes series of red/blue BKSelect LED slowly flashes blue BKSelect LED slowly flashes purple BKSelect LED quickly flashes blue BKSelect LED quickly flashes red BKSelect LED quickly flashes blue, fla
PAGE 20
PayRange | BluKey Select™ Reference Manual Symptom App does not show “Machine in Use” during cycle Machine does not accept coins 6/29/2021 LED Pattern Cause Fix 3. Check if coin count input is configured properly for the harness in Manage (see section “Error! Reference source not found.”). 1. Check harness connection to BKSelect and to machine 2. Check if Inhibit/Available signals are configured properly for the harness in Manage (see section “Error! Reference source not found.”). 1.
PAGE 21
PayRange | BluKey Select™ Reference Manual Appendix B: BluKey Select Firmware Upgrade PayRange may release firmware updates with new functionality and improvements. BKSelect firmware is upgraded automatically, in the background. Contact PayRange support for additional information on firmware upgrades. Contacting PayRange Support For assistance with installing and operating your BluKey Select devices, please contact our support group: 1. For Technical Support: 2.
