User's Manual

English
Technical Specifications
All specifications are subject to change without notice.
Features
Tricolour LED Display
The DGP-R910 reader includes a tricolour LED display (red, green
and amber) that is used to indicate the reader’s status. The LED’s
intensity is adjusted through the DGP-ACM11.
Audible Tone
The DGP-R910 reader includes a built in beeper with a frequency
that is adjusted through the DGP-ACM11.
Weather Resistant
Mount indoors or outdoors.
Error Display
All DGP-R910 readers display communication errors between the
reader and the DGP-ACM11 by flashing the amber LED every sec-
ond.
Firmware Upgrade
Connect the DNE-CONV2 as shown in Figure 2. Refer to the DNE-
CONV2 installation manual for additional information.
Installation Notes
Mounting on Metal
Metal may decrease the read range. The DGP-R910 card reader
can be mounted on metal but do not surround it by metal. If the
reader must be installed in a metal enclosure, ensure that the face
of the card reader is not covered and that there's at least 4cm (1.6")
between the card reader and the metal on all sides.
Wiring

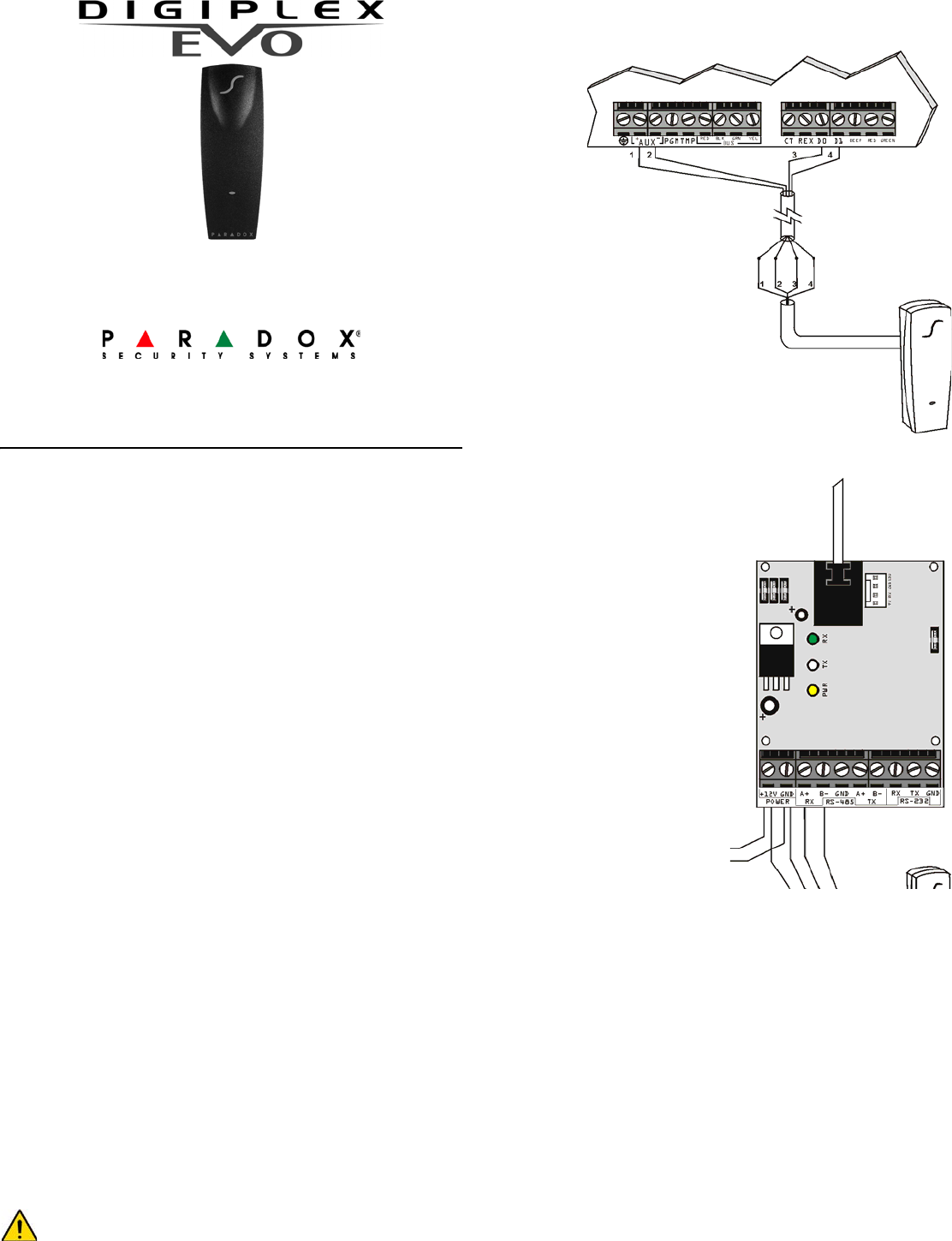

See Figure 1 for wiring instructions.
Do not connect more than one DGP-R910 on a single DGP-
ACM11.
RESIDENTIAL EQUIPMENT
CLASS B DIGITAL DEVICE
INFORMATION TO USER
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi-
tions: (1) This device may not cause harmful interference, and (2) This device must accept any inter-
ference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for Class B Digital Device, pursu-
ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or tele-
vision reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected
• Consult the dealer or an experienced radio/TV technician for help
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Power Input: 11Vdc to 14.5Vdc
Current Consumption 100mA, With Card 115 mA
Frequency: Exciter field 125 KHz Pulse Modulated
Operating Temperature: -35°C (-31°F) to +65°C (149°F)
Output Formats: RS-485
Cable Distance: 300m (1000 ft.)
Cables: 4-wire Cables (Twisted Pair recommended)
4-Wire Indoor/Outdoor Proximity Reader
DGP-R910 V1.0
780 Industriel Blvd., Saint-Eustache (Quebec) J7R 5V3 CANADA
Tel.: [phone] Fax: [phone]
paradox.com
PRINTED IN CANADA - 04/2006 DGPR910-TI00
DGP-ACM11
Fi
gure
1
:
4
-w
i
re
C
onnec
ti
on
/
C
onex
ió
n
d
e
4
C
a
bl
es
/
Raccordement à 4 fils
1. Red / Rojo / Rouge
2. Black / Negro / Noir
3. Green / Verde / Vert
4. White / Blanco / Blanc
All jumpers are on.
Todos los puentes están ON.
Tous les cavaliers sont installés.
To power supply or COMBUS
A una fuente de alimentación o al
COMBUS
Vers le bloc d’alimentation ou le
COMBUS
To computer
A una PC
Vers l’ordinateur
Figure 2: Firmware Upgrade / Actualización del Firmware / Mise à
niveau du micrologiciel
1. Red / Rojo / Rouge
2. Black / Negro / Noir
3. Green / Verde / Vert
4. White / Blanco / Blanc
