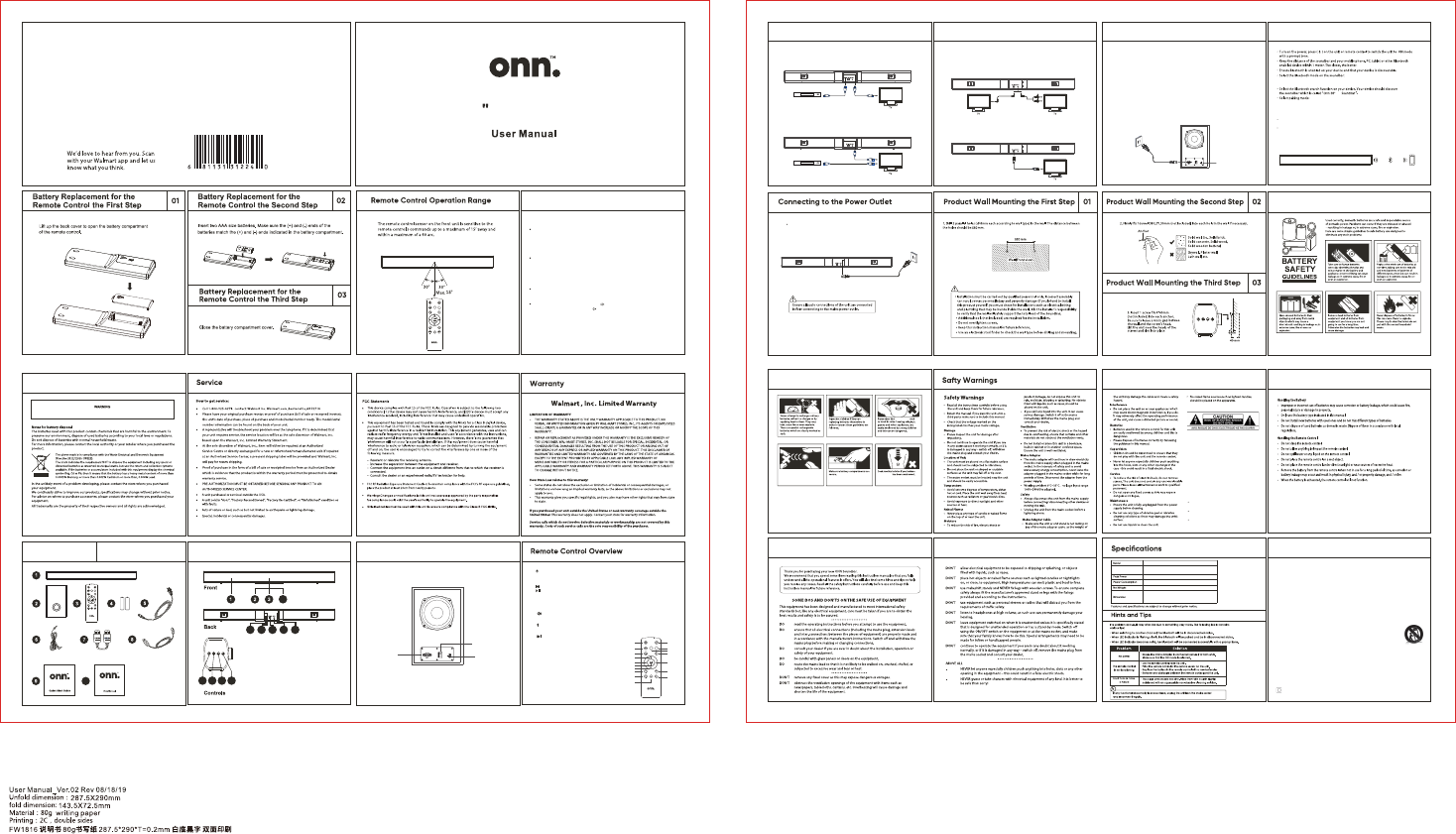

User's Manual

ManualsBrandsonn ManualsAudio Equipment36 in. 2.1 soundbar with external subwoofer

Main bar: 914mm(W) x 65mm(D) x 80mm(H)

Subwoofer 200mm(W) x 300mm(D) x 300mm(H)

36 2.1 Soundbar

100023515

What’s in the Box?

Check to make sure you

have everything below.

Get to Know Your 36'' 2.1 SOUNDBAR Get to Know Your 36'' 2.1 SOUNDBAR

IMPORTANT SAFETY INSTRUCTIONS

1. Button Switches the unit betwen ON and STANDBY modes.

2. Press AUX button, device will play audio from aux input.

3. Press OPTICAL button, device will play audio from optical input.

4. VOL+ button increases the volume.

5. button skip to previous track in Bluetooth mode.

6. button to play/pause music in Bluetooth mode.

RESET button to reset device to the factory default settings.

7. VOL- button decreases the volume.

8. BASS- button decrease bass

9. TREB- button decrease treb

10. Press EQ button to select music, movie and talk EQ mode.

11. button mutes the unit or resumes the sound.

12. Press HDMI IN button, device will play audio from HDMI IN input.

13. Press HDMI ARC button, device will play audio from HDMI ARC input.

14. Bluetooth Connection switches to Bluetooth mode, press and hold to

enable bluetooth pairing if there is an existing connection then disconnect the

devices, unit will enter pairing mode.

15. button skip to next track in Bluetooth mode.

16. BASS+ button increase bass

17. TREB+ button increase treb

This lightning flash with arrowhead symbol within

an equilateral triangle is intended to alert the user

to the presence of non-insulated “dangerous

voltage” within the product’s enclosure that may

be of sufficient magnitude to constitute a risk of

electric shock.

1.Read t hese instru ctions – Al l the safety and operat ing instruc tions shoul d be read b efore this product is operated.

2.Keep t hese instru ctions – Th e safety and operating instruction s should be retained f or future r eference.

3.Heed a ll warnings – All warni ngs on the appliance a nd in the o perating in structions should be a dhered to.

4.Follow all instru ctions – Al l operating and use ins tructions s hould be fo llowed.

5.Do not use this a pparatus nea r water – T he applianc e should no t be used n ear water o r moisture – for examp le, in a we t

basement or near a swimming po ol, and the like.

6.Clean only with d ry cloth.

7.Do not block any ventilation openings. I nstall in a ccordance w ith the man ufacture’s instruction s.

8.Do not install ne ar any heat sources suc h as radiat ors, heat r egisters, s toves, or o ther appara tus (includ ing amplifi ers) that

produce heat.

9.Do not defeat the safety purp ose of the polarized o r grounding plug. A po larized plu g has two b lades with one wider t han the

other. A grounding plug has two blades and a third gr ounding pro ng. The wid e blade or the third p rong is pro vided for y our safety.

If the p rovided plu g does not f it into you r outlet, c onsult an e lectrician for replace ment of the obsolete o utlet.

10.Prote ct the powe r cord from being walke d on or pin ched partic ularly at t he plugs, c onvenience receptacles , and at th e point

where th ey exit fro m the appar atus.

11.Only use attachm ents/access ories specif ied by the manufacture r.

12.Use o nly with th e cart, sta nd, tripod, bracket, or table spec ified by th e manufactu rer, or sol d with the apparatus. When a cart

or rack is used, us e caution w hen moving t he cart/app aratus comb ination to avoid injur y from tip- over.

The ba tteries shal l not be ex posed to ex cessive hea t such as s unshine, fi re or the l ike.

13.Unplu g the appar atus during lightning s torms or wh en unused f or long per iods of tim e.

14.Refer all servic ing to qual ified person nel. Servic ing is requ ired when t he apparatu s has been damaged

in any w ay, such as power supp ly cord or p lug is dama ged, liquid has been s pilled or o bjects have fallen

into the apparatus has been exp osed to rai n or moistu re, does no t operate n ormally, or has been d ropped.

15.CAUTI ON: These s ervicing in structions a re for use by qualifie d service p ersonnel on ly.

To reduc e the risk of electric shock, do n ot perform any servici ng other th an that con tained in t he operatin g

instruc tions unles s you are q ualified to do so.

16.Do no t install t his equipmen t in a conf ined or bui lding-in sp ace such as a book cas e or simila r unit, and remain a w ell

ventilat ion conditi ons at open site. The v entilation should not be impeded by covering the ventil ation openi ngs with it ems such

as newsp aper, table -cloths, cu rtains etc.

17.WARNI NG: Only us e attachmen ts/accessori es specifie d or provid ed by the m anufacturer (such as t he exclusiv e supply

adapter, battery et c).

18.WARNI NG：Please r efer the inf ormation on exterior b ottom enclo sure for el ectrical an d safety in formation b efore insta lling or

operatin g the appar atus.

19.WARNI NG：To reduc e the risk o f fire or e lectric sho ck, do not expose this apparatus to rain or moisture. T he apparatu s shall

not be e xposed to d ripping or s plashing an d that obje cts filled with liquid s, such as vases, shal l not be pl aced on app aratus.

20.WARNI NG: The mai ns plug or appliance co upler is us ed as disco nnect devic e, the disc onnect devi ce shall re main readil y

operable .

21. Th is equipmen t is a Clas s II or dou ble insulate d electrica l appliance . It has be en designed in such a way that it does not

require a safety co nnection to electrical earth.

Warning: To reduce the risk of electric shock, do

not remove cover (or back) as there are no user-

serviceable parts inside. Refer servicing to

qualified personnel.

The exclamation point within an equilateral triangle

is intended to alert the user to the presence of

important operating and maintenance instructions

in the literature accompanying the appliance.

No naked flame sources, such as lighted candles,

should be placed on the apparatus.

Attention should be drawn to environmental

aspects of battery disposal.

The product is designed to use in moderate

climates.

Rear View of Subwoofer

AC 100~240V

Power Socket

ON/OFF Switch

HDMI

ARC

HDMI

ARC

LED Screen activity

Adjusting the Volume

LED Screen activity

AUX IN: the screen display"AUX”

Press VOL +/- on the unit or the remote control to adjust the

volume(Volume range Min.1 to 25 Max.),the screen shows

like VOL 1, VOL 2, VOL MAX

If you wish to turn the sound off, press on the remote control,

the screen shows MUTING.Press again to resume normal listening.

Bluetooth mode: the screen display "BT"

Bluetooth is pairing: the screen display "PAIRING"

Bluetooth is paired: the screen display "PAIRED”

Bluetooth disconnected: the screen display "UNPAIRED"

Optical: the screen display"OPTICAL"

HDMI IN: the screen display"HDMI IN"

HDMI ARC: the screen display"HDMI ARC"

Use a 3.5mm to RCA stereo audio cable (not included) to connect the TV’s audio output Port

to the soundbar’s AUX IN port.

Use a 3.5mm to 3.5mm stereo audio cable (included) to connect the TV’s headphone Port to the

soundbar’s AUX IN port.

Using the HDMI IN or HDMI ARC connection

3.5mm to 3.5mm length is 1.83m

Optical cable length is 1.83m

Use an optical cable (included) to connect the TV’s OPTICAL OUT Port to

the soundbar’s OPTICAL Port.

Using the AUX or Optical Connection Bluetooth Connection and 2.1 Connection Using the Bluetooth Connection

Subwoofer

Bottom view of the unit

To the Power outlet

2.1

100023515

AC IN Input AC 100~240V 60Hz

280W

6Kg

70W

small object

1KKVRUUYKYSGRRY[HPKIZG]G_LXUS

_U[TMINORJXKT

)UTTKIZZNK')/4VUXZZUZNKVU]KXU[ZRKZH_VU]KXIGHRK

Establish bluetooth connection

When unit powers on, press source button on soundbar or press the bluetooth key on the remote

change to bluetooth(Bluetooth ID: onn. 36" 2.1 Soundbar ) mode to enter bluetooth pairing mode,

the screen displays BT flashing, the BT remain solid bright when bluetooth connected.

Pairing the subwoofer

Subwoofer is paired with the soundbar when it leaves the factory. When the soundbar is turned on,

the devices will connect automatically. If this does not happen, please pair the subwoofer to the

soundbar manually.

Pair manually: Press and hold mute on the remote for 7 sec.,soundbar's LED display will show

SUB LINK; then press and hold pairing button on subwoofer for 3 sec.,the subwoofer's LED will fast

blink blue until paired with each other. After connected, led indicator on the subwoofer will remain

solid and the LED dispaly on the front of the soundbar will show LINKED s.

HDMI

ARC

36“ 2.1 SOUNDBAR 36“ 2.1 SOUNDBAR

Main unit

-Using the remote control,press the Bluetooth button. the BT is flashing on the screen.

-Alternatively,press the source button on the soundbar until the BT is flashing on the screen.

Using the remote control,press and hold the Bluetooth button for 3 seconds until the

BT flashing in on the screen.

Select the bluetooth search function on your device,Your device should discover the

soundbar which is called 'onn. 36" 2.1 Soundbar'

Select 'onn. 36" 2.1 Soundbar',your device is paired with the soundbar when the

BT is solid on the LED display

- Alternatively, press and hold the source button on the soundbar for 3 seconds until the

BT flashing is on the screen.

1. Main unit

2. Subwoofer

3. AAA Battery x 2

4. Remote Control

5. Power Cord x 2

6. AUX Cable x 1

7. HDMI Cable x 1

8. Optical Cable x 1

9. QSG x 1

10. User manual x 1

AAA

10 11 12 13

6 7 8 9

1. Speaker

2. LED Indicator

3. Remote Control Sensor

4. LED Display

5. HDMI IN Port

6. HDMI ARC Port

7. OPTICAL Port

8. AUX IN Port

9. AC IN Port

10. Button Switches the

unit between ONand

STANDBY modes

11. SOURCE Button

Selects the input source

12. VOL- Button

Decreases the volume

13. VOL+ Button

lncreases the volume

Pairing

Use DVD to connect via HDMI cable to sound bar HDMI IN. Sound bar connects to

TV via HDMI cable in HDMI ARC. Same on the TV HDMI ARC. Sound bar needs

to be on HDMI IN source. The screen shows HDMI IN

DVD connects via HDMI cable to TV HDMI IN. Sound bar connects to TV via HDMI

cable in HDMI ARC. Same on the TV HDMI ARC. Sound bar needs to be on

HDMI ARC source. You should have audio and video. The screen shows HDMI ARC

HDMI cable (included) length is 1.83m

HDMI IN

HDMI

HDMI IN

HDMI ARC

HDMI IN

HDMI ARC

DVD

Pairing

Power Cord length is 1.4m
