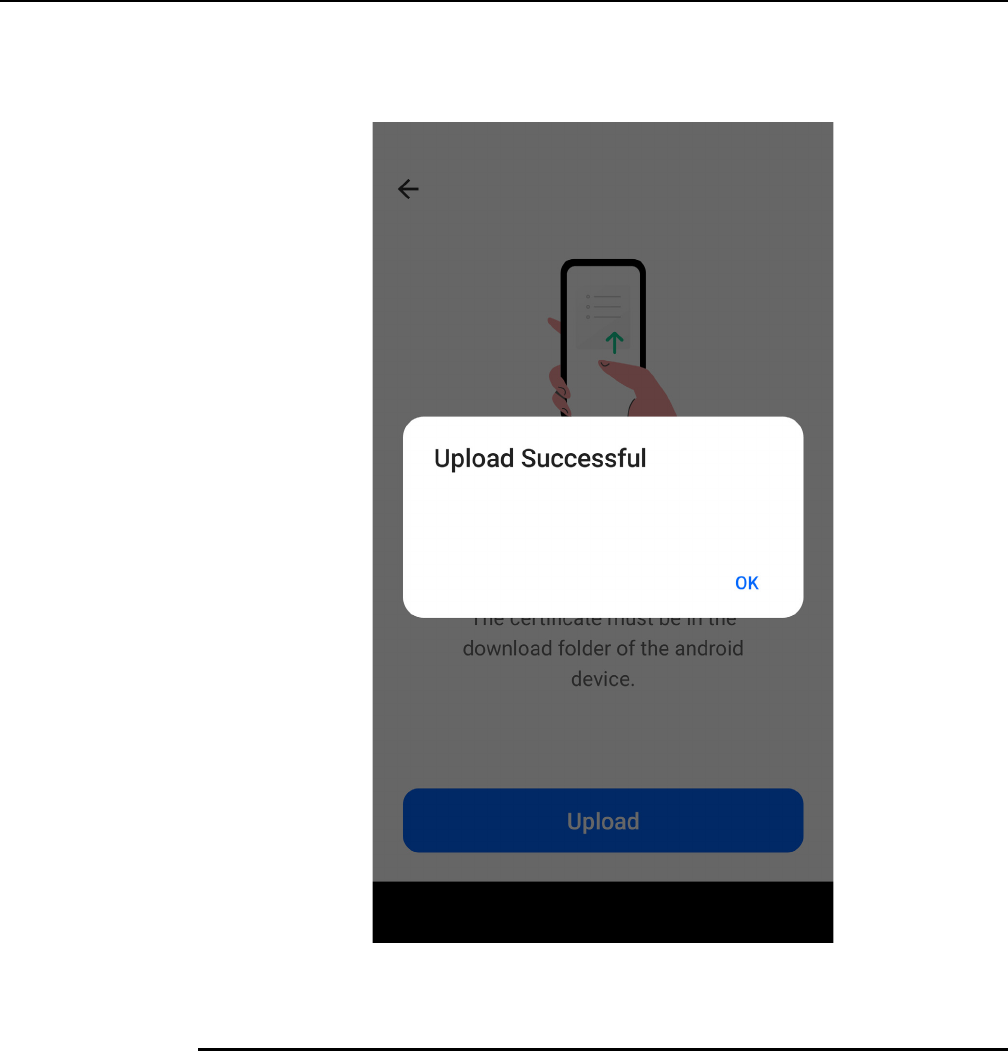

Nokia FastMile 4G Receiver Product Overview Figure 59 Management using the Nokia Wireless app Screen showing that upload of CA certificates was successful for a Nokia FastMile 4G Receiver managed by an ACS through TR-069 Tap on “Ok” to clear the message. 10 You can reboot a Nokia FastMile 4G Receiver managed by an ACS through TR-069 by tapping on the “Reboot Device” option. Figure 60 shows the “Reboot Device” option.
Management using the Nokia Wireless app Figure 60 Nokia FastMile 4G Receiver Product Overview Screen showing the “Reboot Device” option for a Nokia FastMile 4G Receiver managed by an ACS through TR-069 When you reboot the Nokia FastMile 4G Receiver, the screen shows the reboot message indicating that the Bluetooth connection will be interrupted and that you will be disconnected. Press the Reboot option if you want to proceed with the reboot, or press the Cancel option.
Nokia FastMile 4G Receiver Product Overview Figure 61 Management using the Nokia Wireless app Screen showing the “Perform Factory Reset” option for a Nokia FastMile 4G Receiver managed by ACS through TR-069 The screen shows the factory reset message indicating that the factory reset will reset the device back to factory settings and that all changes will be lost and that you will be disconnected. Figure 62 shows the screen that has the factory reset message.
Management using the Nokia Wireless app Figure 62 Nokia FastMile 4G Receiver Product Overview Screen showing the factory reset message for a Nokia FastMile 4G Receiver managed by ACS through TR-069 Press the Reset option if you want to proceed with the reset to factory settings, or press the Cancel option. If you pressed the Reset option, press OK.
Nokia FastMile 4G Receiver Product Overview Management using the Web UI 14 Management using the Web UI 14.1 Using the Web UI to manage the Nokia FastMile 4G Receiver 14.2 Using the Web UI status screen 14.3 Using the Web UI network screen 14.4 Using the Web UI CBRS screen 14.5 Using the Web UI system screen 14.
Management using the Web UI 14.2 Nokia FastMile 4G Receiver Product Overview Using the Web UI status screen The Web UI status screen allows you to view FastMile 4G Receiver status parameters. No login is required.
Nokia FastMile 4G Receiver Product Overview Management using the Web UI You can display available cell information by triggering measurements using the “Trigger measurement” button on the Web UI status screen. Available cell information includes: physical cell ID, DL EARFCN, SINR, RSRP, RSRQ, RSSI.
Management using the Web UI Figure 64 Nokia FastMile 4G Receiver Product Overview Example of the lower part of the Status screen without available cells when the FastMile 4G Receiver is not connected to a cell Figure 65 shows the lower part after scrolling down of an example of the Status screen with available cells when the FastMile 4G Receiver is not connected to a cell.
Nokia FastMile 4G Receiver Product Overview Figure 66 Management using the Web UI Example of the top part of the Status screen when the FastMile 4G Receiver is connected to a cell Figure 67 shows a lower part after scrolling down of an example of the Status screen when the FastMile 4G Receiver is connected to a cell. The figure shows the trigger measurement button that can be used to display information about available cells.
Management using the Web UI Figure 68 Nokia FastMile 4G Receiver Product Overview Example of the Trigger Measurement pop up window You can proceed or cancel the trigger measurement action. Note — After approximately five seconds from triggering of measurements, the FastMile 4G Receiver will detach from the carrier’s network. Push the measurements status refresh button while the FastMile 4G Receiver is detached to see the grayed-out Web UI status screen.
Nokia FastMile 4G Receiver Product Overview Management using the Web UI Figure 70 Example of Trigger Measurement completed and FastMile 4G Receiver is detached Figure 71 Example of Trigger Measurement completed and FastMile 4G Receiver is reattached Figure 72 shows the lowest part after scrolling down of an example of the Status screen when the FastMile 4G Receiver is connected to a cell.
Management using the Web UI 14.3 Nokia FastMile 4G Receiver Product Overview Using the Web UI network screen The Web UI network screen allows you to perform FastMile4G Receiver configuration actions. Login is required. For details on the Web UI login, please refer to the Customer Release Notes.
Nokia FastMile 4G Receiver Product Overview Management using the Web UI • diagserverCA.pem (used for authenticating the optional diagnostics server) • acsCA.pem (used for authenticating the ACS) Note — Auto refresh of web UI screens is not supported, so it is recommended that you refresh the Web UI network screen to avoid retrieving outdated information if any database changes have been done since the last retrieval of information. Figure 73 shows an example of the Login screen.
Management using the Web UI Figure 74 Nokia FastMile 4G Receiver Product Overview Example of the Network screen Figure 75 shows an example of scroll down for the Network screen. Figure 75 Example of scroll down for the Network screen Figure 76 shows an example of the Add Access Point window.
Nokia FastMile 4G Receiver Product Overview Figure 76 Management using the Web UI Example of the Add Access Point window Figure 77 shows an example of the Delete Access Point window Issue: 01 3TG-01505-AAAB-TCZZA 145
Management using the Web UI Figure 77 Nokia FastMile 4G Receiver Product Overview Example of the Delete Access Point window Figure 78 shows an example of the Edit Location window.
Nokia FastMile 4G Receiver Product Overview Figure 78 Management using the Web UI Example of the Edit Location window Figure 79 shows an example of the Edit Controller window. Figure 79 Example of the Edit Controller window Figure 80 shows an example of the Edit Connection Request window.
Management using the Web UI Figure 80 Nokia FastMile 4G Receiver Product Overview Example of the Edit Connection Request window Figure 81 shows an example of the Edit DHCP window.
Nokia FastMile 4G Receiver Product Overview Figure 81 Management using the Web UI Example of the Edit DHCP window Figure 82 shows an example of the Certificates information window that opens when you click on Upload Certificate.
Management using the Web UI Figure 82 Nokia FastMile 4G Receiver Product Overview Example of the Certificates information window Figure 83 shows an example of the Add Cell window. Figure 83 Example of the Add Cell window Figure 84 shows an example of the Delete Cell window.
Nokia FastMile 4G Receiver Product Overview Figure 84 14.4 Management using the Web UI Example of the Delete Cell window Using the Web UI CBRS screen The Web UI CBRS (Citizens Broadband Radio Service) screen is intended for the US market and offers the possibility to display CBSD (Citizens Broadband Radio Service Device) parameters of the FastMile 4G Receiver, as well as to input registration information for CPI's (Certified Professional Installer) usage. Login is required.
Management using the Web UI 14.5 Nokia FastMile 4G Receiver Product Overview Figure 85 Example of the Web UI CBRS screen with no CBSD Grants Figure 86 Example of the Web UI CBRS screen with three CBSD Grants Using the Web UI system screen The Web UI system screen allows you to perform advanced system actions on the FastMile 4G Receiver. Login is required. For details on the Web UI login, please refer to the Customer Release Notes.
Nokia FastMile 4G Receiver Product Overview Management using the Web UI The following advanced system capabilities are supported: • Restart device: the FastMile 4G Receiver configuration remains intact • Restore factory settings: factory configuration of the FastMile 4G Receiver is used; subsequent configuration is lost • Upgrade firmware: • before doing any firmware upgrade action, make sure that the upgrade path from the existing firmware to new firmware is supported by the FastMile 4G Receiver • new
Management using the Web UI Figure 88 Nokia FastMile 4G Receiver Product Overview Example of the Restart Device confirmation window Figure 89 shows an example of the Restore Device confirmation window used to restore the device to factory settings.
Nokia FastMile 4G Receiver Product Overview Figure 89 Management using the Web UI Example of the Restore Device confirmation window Figure 90 shows an example of the screen that displays while firmware is being uploaded.
Management using the Web UI Figure 90 Nokia FastMile 4G Receiver Product Overview Example of the screen that displays while firmware is being uploaded Figure 91 shows an example of the screen that displays while firmware is being upgraded.
Nokia FastMile 4G Receiver Product Overview Figure 91 Management using the Web UI Example of the screen that displays while firmware is being upgraded Figure 92 shows an example of the screen that displays while the system is being rebooted.
Management using the Web UI Figure 92 158 Nokia FastMile 4G Receiver Product Overview Example of the screen that displays while the system is being rebooted 3TG-01505-AAAB-TCZZA Issue: 01
Nokia FastMile 4G Receiver Product Overview Standards certification 15 Standards certification 15.1 Standards certification for the Nokia FastMile 4G Receiver 15.1 Standards certification for the Nokia FastMile 4G Receiver Table 27 provides standards certification information for all models of the Nokia FastMile 4G Receiver. Table 27 Standards certifications for the Nokia FastMile 4G Receiver Category Standard FCC FCC Part 47 Certifications 4G01-A with B48 and Bluetooth 3.
Standards certification 160 Nokia FastMile 4G Receiver Product Overview 3TG-01505-AAAB-TCZZA Issue: 01
Nokia FastMile 4G Receiver Product Overview Appendix A: Specifications 16 Appendix A: Specifications 16.1 Specifications 16.1 Specifications Table 28 provides some specifications for the Nokia FastMile 4G Receiver. Table 28 Specifications for the Nokia FastMile 4G Receiver Item Description Dimensions Compact multi-band models: 22.7 cm by 22.7 cm by 6.4 cm (8.94 in by 8.94 in by 2.52 in) Compact mono-band models: 23.5 cm by 23.5 cm by 5.2 cm (9.3 in by 9.3 in by 2 in) ABA models: 31.8 cm by 31.
Appendix A: Specifications 162 Nokia FastMile 4G Receiver Product Overview 3TG-01505-AAAB-TCZZA Issue: 01
Nokia FastMile 4G Receiver Product Overview Appendix B: RF exposure 17 Appendix B: RF exposure 17.1 RF exposure 17.1 RF exposure The international standards used for the assessment of this device provide simple conformity assessment methods for low power electronic and electrical equipment to an exposure limit relevant to electromagnetic fields (EMF).
Appendix B: RF exposure 164 Nokia FastMile 4G Receiver Product Overview 3TG-01505-AAAB-TCZZA Issue: 01
Nokia FastMile 4G Receiver Product Overview Appendix C: FCC statements and label instructions 18 Appendix C: FCC statements and label instructions 18.1 FCC compliance statement 18.2 FCC radiation exposure statement 18.3 FCC label instructions 18.1 FCC compliance statement Table 30 provides the FCC ID for applicable models of the Nokia FastMile 4G Receiver.
Appendix C: FCC statements and label instructions 18.3 Nokia FastMile 4G Receiver Product Overview FCC label instructions The outside of final products that contains this module device must display a label referring to the enclosed module. This exterior label can use wording such as: “Contains Transmitter Module FCC ID: 2ADZR4G04A and 2ADZR4G05A”. Any similar wording that expresses the same meaning may be used.
Nokia FastMile 4G Receiver Product Overview Glossary 19 Glossary This glossary provides the expansions and optional descriptions of most acronyms and initialisms that appear in this document.
Glossary Nokia FastMile 4G Receiver Product Overview FM FastMile HSS Home Subscriber Server IEEE Institute of Electrical and Electronics Engineers IP International Protection or Internet Protocol IPTV Internet Protocol over Television LAN Local Area Network LED Light Emitting Diode LTE Long-Term Evolution MAC Media Access Control MCV Maximum Concentration Value or Minimum Concentration Value MIMO Multiple-Input Multiple-Output MME Mobility Management Entity NAC Network Access Cont
Nokia FastMile 4G Receiver Product Overview SIM Subscriber Identify Module SINR Signal-to-Interference-plus-Noise Ratio TCP Transmission Control Protocol TDD Time Division Duplex UDP User Datagram Protocol UL Underwriters’ Laboratories or Uplink URL Uniform Resource Locater VDC Volts Direct Current VoIP Voice over Internet Protocol VPN Virtual Private Network WiFi Wireless Fidelity Issue: 01 3TG-01505-AAAB-TCZZA Glossary 169
Glossary 170 Nokia FastMile 4G Receiver Product Overview 3TG-01505-AAAB-TCZZA Issue: 01
