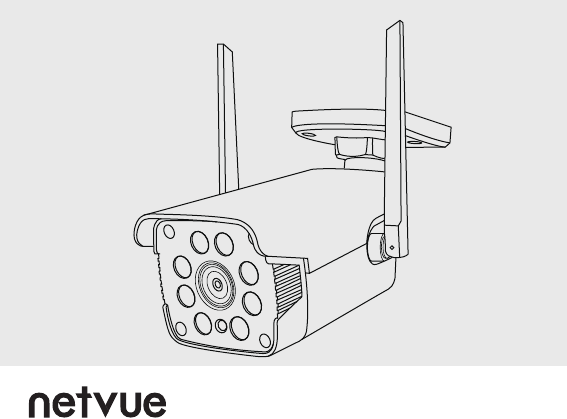

Vigil 2 Quick Guide NI-1911
Warning This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Catalogue 1. What’s In The Box P. 1 2. Camera Structure P. 2 3. Insert Micro SD Card P. 3 4. Read Before Installing P. 4 5. Set Up With Netvue App 6. Sentry Camera Installation P. 5 P. 6-11 7. Status Light P. 12 8. Netvue Protect Plan P. 13 9. Contact Us P.
What’s In The Box X3 X3 Drilling Template Power Adapter Anchors Mounting Screws Vigil 2 Quick Guide Weatherproof Tube Quick Guide Vigil 2 1
Camera Structure Infrared LEDs Lens Light Sensor Microphone Micro SD Card Slot Speaker Wi-Fi Configuration Button Ethernet Cable Port Status Light 2 Power Port Antenna
Insert Micro SD Card Vigil 2 comes with a built-in card slot which supports up to 128GB Micro SD card. Once you insert the storage card, the camera will automatically start to record and store videos on the storage card. You can view those videos in the ‘Replay’ page by clicking the ‘Replay’ button in the ‘Homepage’. Step 1: Loosen the screws. Take off the cover gently since wires are attaching to it. Step 2: Insert Micro SD card. Make sure you insert it in the correct direction.
Read Before Installing 1. Keep the Vigil 2 and all accessories out of reach of children and pets. 2. The Vigil 2 comes with a power adapter. If you prefer other power adapter, please make sure that it allows a DC12V power supply voltage, and an electric current not less than 1A . 3. The product can only be used at normal temperature and humidity: Working temperature: -10°C - 50°C (14°F-122°F) Working relative humidity: 0-95%. 4. Please do not expose the camera lens to direct sunlight. 5.
Set Up with Netvue App Download the Netvue App from App Store or Google Play. Follow the in-app instruction to complete the entire set up process.
Vigil 2 Installation Check following things before you starting to drill holes on your wall: 1. Vigil 2 has been successfully added to your Netvue App and is able to stream video. 2. Have planned the cable route. Measured the length of the power cable and Ethernet cable (if you plan to use Ethernet connection) you will need. Step 1: Find a good installation spot. We recommend installing the Vigil 2 just 7-10 feet (2-3 meter) above the ground for a better two-way audio experience.
11' 10' 9' 7-10 feet (2-3 meters) 8' 7' 6' 5' 4' 3' 2' 1' 7
Step 2: Before you start to drill, make sure you know the locations of wall-in pipes and electrical wires. (If you are not comfortable with drilling holes, please consult with a licensed electrician.) ①Use the provided drilling template to mark the position of holes on your wall. Use drill bit (15/64", 6mm) to drill four holes ②Install anchors to hold screws.
③Tighten the included screws to secure the camera.
Step 3 (Wired Connection): Read this step if you are using wired connection, otherwise skip this step. A weatherproof tube is needed for Ethernet cable to avoid leaking water into Ethernet cable port. Insert the cable into the weatherproof tube, and then connect it to the Ethernet cable port of Vigil Pro Camera. Make sure the cable works before installing.
Step 5: Unscrew the thread ring close to the base, then you can point it to any direction by rotating it clockwise/counterclockwise 360°, and up and down 100°.
Status Light Netvue Vigil 2 uses status light to communicate.
Netvue Protect Plan Netvue Protect Plan provides optional advanced features for those with higher security needs, and each plan supports multiple devices. Continuous Video Recording: It allows for non-stop recording of all the action, and captures everything in the background, you can rewind to catch anything you missed. Event Video Recording: It automatically records a video clip, not just several still pictures, and push it to your phone instantly, keeping you always stay in the know anywhere, anytime.
Contact Us Feel free to contact us for additional help: support@netvue.
Netvue Web Client www.netvue.
