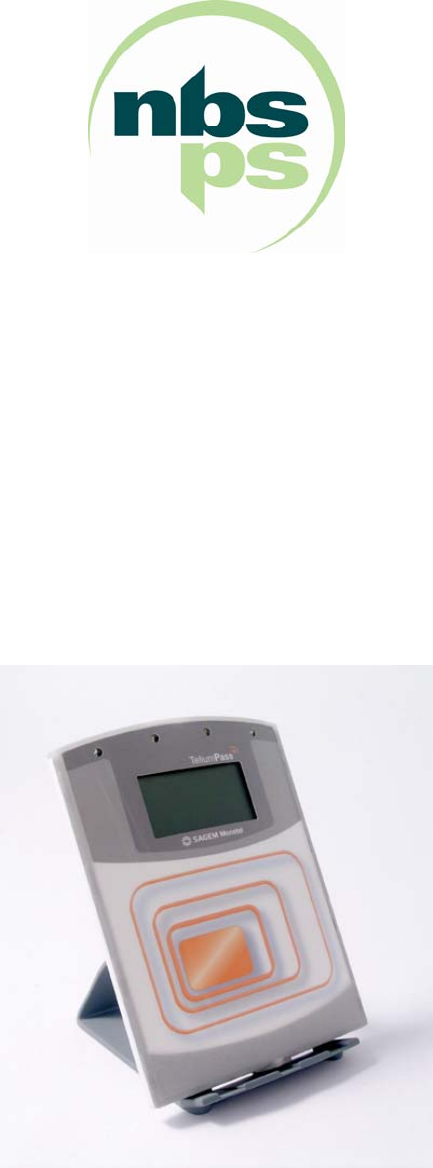

USER MANUAL NBS1200
FOREWORD Thank you for choosing NBS1200. INSTALLATION. We recommend you read this guide carefully. It contains all the information you need to install your NBS1200. USE. Once the NBS1200 is installed and equipped with your application(s), you should use "user guide" specific to your application(s). WARRANTY. SAFETY.
MANUFACTURER’S DECLARATION OF CONFORMITY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
1 SAFETY INSTRUCTIONS In accordance with legal safety requirements, any person working on the NBS1200 is required to have read and to comply with the following safety instructions: A- Connection to the electrical power system This section does not concern NBS1200 devices connected via a USB port (in this case the NBS1200 is powered via the USB connection and not via the mains supply).
3 CONNECTIONS Please refer to one of the following sections giving the connection corresponding to your configuration. 3.1 CONNECTION TO A USB PORT The equipment's D port must be a USB 1.1. port at the least. The equipment's D port must deliver a minimum of 500 mA in steady-state regime. Connect the end of the USB cable (port C) to the equipment (port D). Once installed, leave the NBS1200 connected at all times.
3.2 CONNECTION TO AN RS232 PORT RJ11 TYPE Safety instructions reminder: Select a power supply socket that complies with the general safety instructions given in section 1 of this document. Connect the power adapter (jack K) to the connector H. Connect the other end of the RS232 cable (port RJ11 L). Connect the power adapter to the incoming power supply socket. Once installed, leave the NBS1200 on permanently.
3.4 CONNECTION TO AN RS232 PORT DB9 TYPE Safety instructions reminder: Select a power supply socket that complies with the general safety instructions given in section 1 of this document. Connect the power adapter (jack K) to the connector H. Connect the other end of the RS232 cable (port H to port J). Screw connector H firmly to the equipment. Connect the power adapter to the incoming power supply socket. Once installed, leave the NBS1200 on permanently.
4 SAM INSTALLATION/REMOVAL 4.1 SAM ACCESS (Security Access Module) A SAM module is installed on a “SAM support" The SAM supports are located in a housing accessed via an access cover on the back of the device (figure opposite). 4.2 OPENING THE SAM SUPPORT ACCESS COVER Take care when opening the cover: Turn the NBS1200 off. To open the SAM support access cover 1. Set the quarter-turn notches to the vertical position 2.
3. Slide the access cover down the frame to clear it fully 4. Unclip the base of the support in the direction of the arrow (see figure opposite) 4.3 INSTALLING A SAM IN ITS SUPPORT To install a SAM: 1. If necessary, note the No. of the SAM support to be fitted (see numbers 1, 2, 3, 4 engraved on the cover). 2. Introduce the SAM into the right location taking care to place its corner cut as shown in the diagram opposite; the position of the corner cut is given on the cover.
4.4 CLOSING THE SAM SUPPORT ACCESS COVER To push up and close the SAM support access cover 1. Slide the SAM access cover along the frame as shown in the figure opposite 2. Place the unit on the support studs as shown by the arrows in the figure opposite. 3.
4. Fix the top of the SAM access cover into the guard as shown in the figure opposite 5. Close the access cover, and then move the quarter-turn notches back to the horizontal position, while pressing the access cover down firmly.
5 NBS1200 SUPPORT 5.1 DISASSEMBLING THE SUPPORT Follow the instructions given for SAM removal (section 4.2) 5.2 ASSEMBLING THE SUPPORT Follow the instructions for closing the SAM support access cover (section 4.4) 6 DAILY USE Bring the card firmly up to the active zone. Keep the card close to the target during the transaction Once installed, the NBS1200 is designed to be left switched on permanently. You can rest the card on the edge of the support.
7 MAINTENANCE 7.1 CLEANING THE OUTSIDE OF THE DEVICE Turn the device off following the safety instructions. Use a soft cloth very lightly moistened with soapy water to clean the outside of the device (do not use abrasive or corrosive products, or products containing solvents). 8 TRANSPORTATION AND STORAGE • Use the original packaging for device transportation and storage.
9 NBS1200 : CHARACTERISTICS Physical characteristics NBS1200 Weight: About 240 g Dimensions: About 109x98x136 mm (L x W x H) Cable length RS232: USB: About 1.80 m About 1.80 m Power adapter (depending on the model) Weight : About 100 g Cable length: About 3 m Standards See Annex for the "CE" marking of conformity.
ANNEX ANNEX 1 : CONFORMITY WITH "CE" STANDARDS The CE marking attests that the product: NBS1200 meets the provisions of: − − European Directive - ElectroMagnetic Compatibility (EMC) Directive 89/336/EEC dated 03/05/89 modified by amendments 92/31/EEC dated 28/04/92 and 93/68/EEC dated 22/07/93 European Directive - Low Voltage Directive 73/23/EEC modified by amendment (93/68/EEC) dated 22/07/93 and complies with the following harmonized standards: EN 60950-1: Safety of Information Technology Equipment, in
