C A N O P Y

Motorola Wireless Internet Platform

Page 24

Specifications

Operating Frequency Range

U-NII Mid band 5.745 to 5.805 GHz

Access Method TDD/TDMA

Data Rate 10 Mbps

Modulation Type High Index BFSK/4FSK

(Optimized for interference rejection)

Carrier to Interference (C/I) 3dB Ber 1*10

-4

Receiver Sensitivity -84dBm 1*10

-4

Error Floor Better than 10

-9

BER, unfaded

Operating Range (All Weather) Up to 2 miles with integrated antenna,

Transmitter Power Meets FCC UNII ERP Limit

DC Power 24 VDC @ 0.3 Amp (active state)

Interface 10 Base-T, RJ45

Rate auto negotiated (802.3 compliant)

Protocols Used by CANOPY IPV4, UDP, TCP, ICMP, Telnet,

HTTP, FTP, SNMP

Protocols Supported by CANOPY Switched Layer 2 Transport

with support for all common Ethernet

protocols including IPV6, NetBIOS,

DHCP, IPX, etc.

Software Upgrade Path Remotely downloaded into FLASH

via RF link

Network Management HTML, TELNET, SNMP

Environmental

Wind 190 km/hr

Humidity Relative Humidity 95% at 35

Temperature -30° to +55° C

Physical

Dimensions 11.75”H x 3.4”W

x 1.1”D (not counting mounting bracket)

x 3.4”D (including mounting bracket)

Weight Approx 1 lb, 0.5 kg

C A N O P Y

Motorola Wireless Internet Platform

Page 1

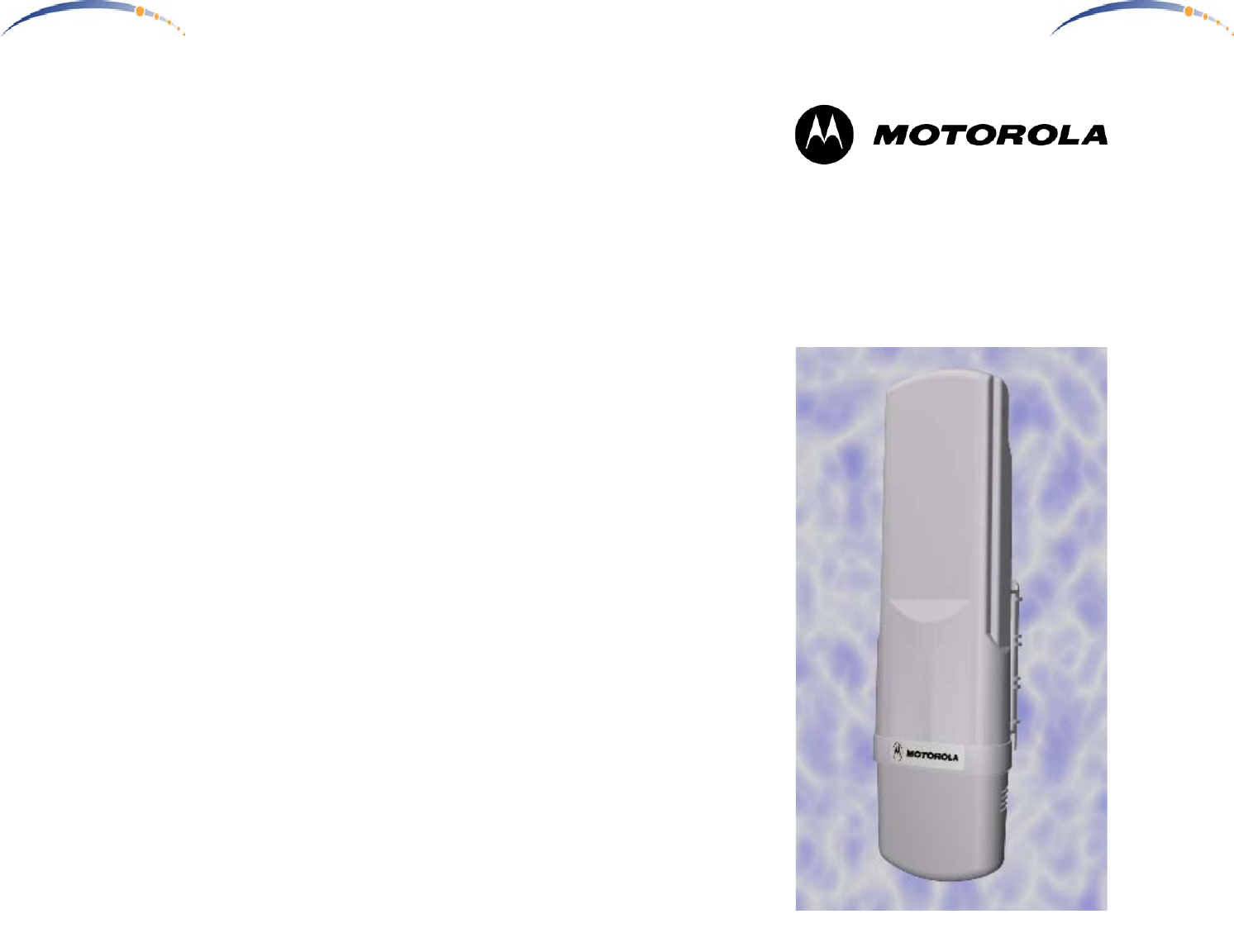

Getting Started with Motorola

CANOPY

REV 11/26/01
