OPERATING INSTRUCTIONS FOR OEM USE ONLY

16 / 28

SETTING CELSIUS OR FAHRENHEIT

1 2

OFF

To change between °C and °F, press

and buttons simultaneously.

NOTE: Choosing °F results in a 12 hour

clock. Choosing °C results in a

24 hour clock.

SETTING THE TIME

1 2

OFF

1. Press and buttons simultane-

ously. Hour ﬂ ashes.

2. To select hour press

or button.

3. Press

and buttons simultane-

ously. Minutes ﬂ ash.

4. To select minutes press

or but-

ton.

5. To conﬁ rm press

and buttons

simultaneously or wait.

MODES OF OPERATION

1 2

OFF

Enter Mode

Press the appropriate mode button.

Exit Mode

1. Press the same mode button again to

change to Manual mode.

2. Press

or button to change to

Manual mode.

3. Press a different mode button to

change to that mode.

1 2

OFF

Thermostatic Mode

The room temperature is measured and

compared to the set temperature. The

ﬂ ame height is then automatically ad-

justed to achieve the set temperature.

1 2

OFF

Program Mode

Programs 1 and 2, each can be pro-

grammed to go ON and OFF at speciﬁ c

times at a set temperature.

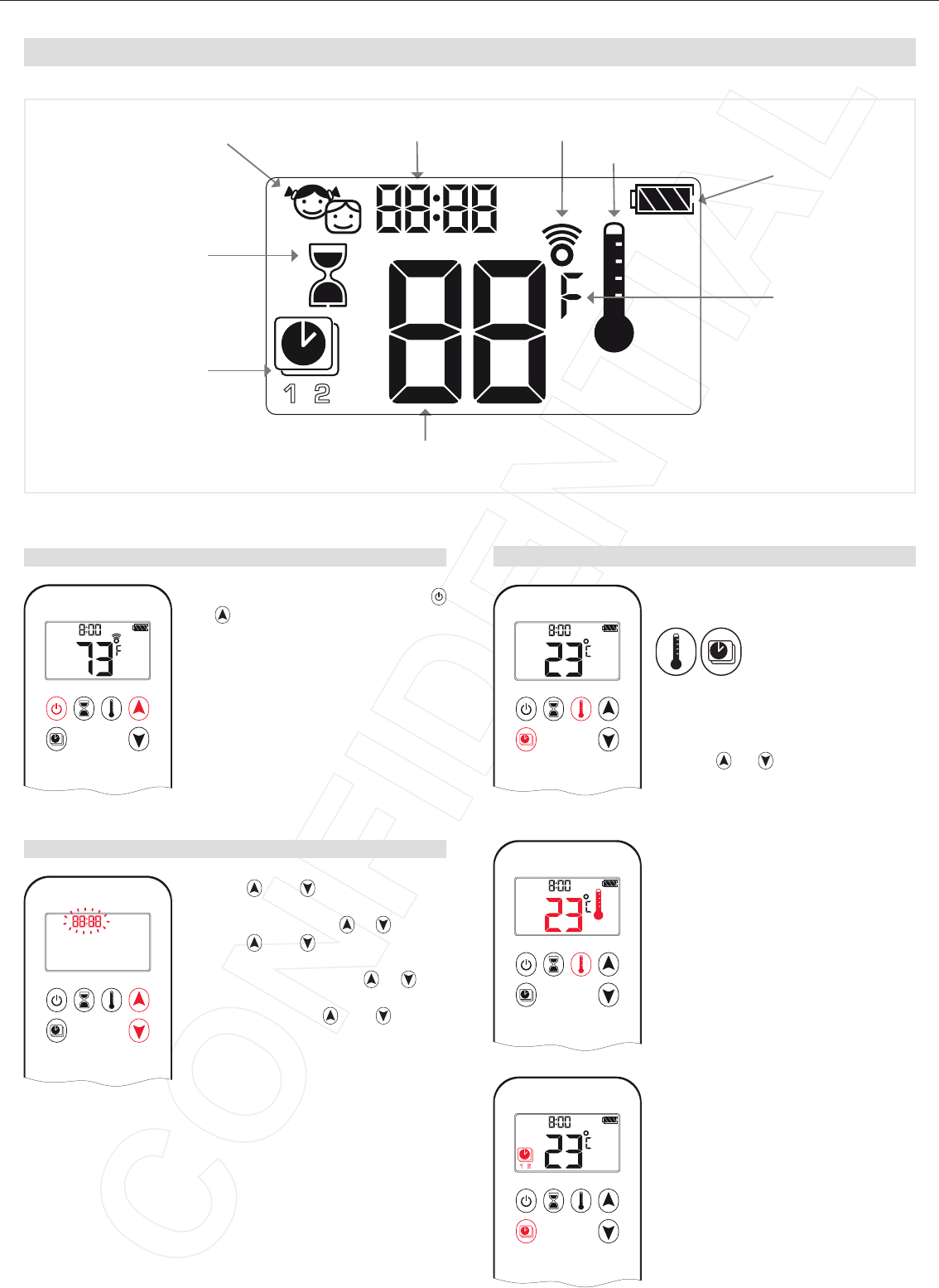

6-SYMBOL

Figure 21: 6-symbol Display

Program Mode

Temperature

Time

Countdown Timer

Battery Status

Signal Indicator Child Proof

Thermostatic Mode

1 2

OFF

°F or °C

Summary of content (13 pages)

PAGE 1
OPERATING INSTRUCTIONS FOR OEM USE ONLY 6-SYMBOL Child Proof Time Signal Indicator Thermostatic Mode AM PM Battery Status Countdown Timer °F or °C Program Mode ON OFF 1 2 Temperature Figure 21: 6-symbol Display AM PM To change between °C and °F, press and buttons simultaneously. NOTE: Choosing °F results in a 12 hour clock. Choosing °C results in a 24 hour clock. ON OFF 1 2 MODES OF OPERATION AM PM ON OFF 1 2 Exit Mode 1. Press the same mode button again to change to Manual mode. 2.
PAGE 2
OPERATING INSTRUCTIONS FOR OEM USE ONLY MANUAL MODE (HANDSET) DESIGNATED LOW FIRE AND HIGH FIRE NOTICE BEFORE OPERATING 1. Make sure MANUAL knob on the GV60 Valve is in the ON, full counterclockwise position. 2. Place the ON/OFF switch (if equipped) in the “I” (ON position). AM ▪ To go to low ﬁre, double-click ton. “LO” is displayed. but- NOTE: Flame goes to high ﬁre ﬁrst before going to low ﬁre. TO TURN ON FIRE When pilot ignition is conﬁrmed, motor turns automatically to maximum ﬂame height.
PAGE 3
OPERATING INSTRUCTIONS FOR OEM USE ONLY COUNTDOWN TIMER ON OFF 1 2 ON/SETTING: 1. Press and hold button until hourglass icon displayed and hour ﬂashes. 2. To select hour press or button. 3. To conﬁrm press button. Minutes ﬂash. 4. To select minutes press or button. 5. To conﬁrm press button or wait. ON OFF 1 2 OFF: Press button, hourglass and countdown time disappear. NOTE: At end of countdown time period, the ﬁre turns OFF. The CountdownTimer only works in Manual, Thermostatic, and Random modes.
PAGE 4
OPERATING INSTRUCTIONS FOR OEM USE ONLY 8-SYMBOL Time Child Proof Signal Indicator Thermostatic Mode Battery Status AM PM Countdown Timer °F or °C Program Mode ON OFF Random Mode 1 2 Temperature Auxiliary Feature SETTING CELSIUS OR FAHRENHEIT AM PM To change between °C and °F, press and buttons simultaneously. NOTE: Choosing °F results in a 12 hour clock. Choosing °C results in a 24 hour clock. ON OFF 1 2 MODES OF OPERATION AM PM Enter Mode Press the appropriate mode button.
PAGE 5
OPERATING INSTRUCTIONS FOR OEM USE ONLY Random Mode Flame height changes automatically. AM FLAME HEIGHT ADJUSTMENT NOTE: Mains adapter recommended. AM PM ON OFF 1 2 Handset ▪ To increase ﬂame height press and hold button. ▪ To decrease ﬂame height or to set appliance to pilot ﬂame, press and hold button. MANUAL MODE (HANDSET) DESIGNATED LOW FIRE AND HIGH FIRE NOTICE BEFORE OPERATING 1. Make sure MANUAL knob on the GV60 Valve is in the ON, full counterclockwise position. 2.
PAGE 6
OPERATING INSTRUCTIONS FOR OEM USE ONLY THERMOSTATIC MODE AM PM ON OFF 1 2 4. Press ON: Press button. Thermostat icon displayed, preset temperature displayed brieﬂy, and then room temperature displayed. AM PM ON OFF 1 2 OFF: 1. Press button. 2. Press or button to enter Manual mode. 3. Press button to enter Countdown Timer mode. button to enter Random mode. AM PM ON OFF 1 2 SETTING: 1. Press button and hold until Thermostat icon displayed, temperature ﬂashes. 2.
PAGE 7
OPERATING INSTRUCTIONS AM PM ON OFF 1 2 FOR OEM USE ONLY 1. To continue to program , press button. , , displayed, hour ﬂashes. 2. To select hour press or button. 3. To conﬁrm press button. , , displayed, minutes ﬂash. 4. To select minutes, press or button. 5. To conﬁrm press button. , , displayed, hour ﬂashes. 6. To select hour, press or button. 7. To conﬁrm press button. , , displayed, minutes ﬂash. 8. To select minutes, press or button. 9. To conﬁrm press button or wait.
PAGE 8
OPERATING INSTRUCTIONS FOR OEM USE ONLY 10-SYMBOL Time Child Proof Signal Indicator Thermostatic Mode Battery Status AM PM Fan Countdown Timer °F or °C Program Mode Light ON OFF Random Mode 1 2 Temperature Auxiliary Feature Figure 23: 10-symbol Display AM PM To change between °C and °F, press and buttons simultaneously. NOTE: Choosing °F results in a 12 hour clock. Choosing °C results in a 24 hour clock. ON OFF 1 2 MODES OF OPERATION AM PM Enter Mode Press the appropriate mode button.
PAGE 9
OPERATING INSTRUCTIONS FOR OEM USE ONLY Random Mode Flame height changes automatically. AM FLAME HEIGHT ADJUSTMENT NOTE: Mains adapter recommended. AM PM ON OFF 1 2 Handset ▪ To increase ﬂame height press and hold button. ▪ To decrease ﬂame height or to set appliance to pilot ﬂame, press and hold button. MANUAL MODE (HANDSET) DESIGNATED LOW FIRE AND HIGH FIRE NOTICE BEFORE OPERATING 1. Make sure MANUAL knob on the GV60 Valve is in the ON, full counterclockwise position. 2.
PAGE 10
OPERATING INSTRUCTIONS FOR OEM USE ONLY THERMOSTATIC MODE ON OFF 1 2 ON: Press button. Thermostat icon displayed, preset temperature displayed brieﬂy, and then room temperature displayed. ON OFF 1 2 OFF: 1. Press button. 2. Press or button to enter Manual mode. 3. Press button to enter Countdown Timer mode. 4. Press button to enter Random mode. AM PM ON OFF 1 2 AM PM ON OFF 1 2 SETTING: 1. Press button and hold until Thermostat icon displayed, temperature ﬂashes. 2.
PAGE 11
OPERATING INSTRUCTIONS ON OFF 1 2 1. To continue to program , press button. , , displayed, hour ﬂashes. 2. To select hour press or button. 3. To conﬁrm press button. , , displayed, minutes ﬂash. 4. To select minutes, press or button. 5. To conﬁrm press button. , , displayed, hour ﬂashes. 6. To select hour, press or button. 7. To conﬁrm press button. , , displayed, minutes ﬂash. 8. To select minutes, press or button. 9. To conﬁrm press button or wait.
PAGE 12
OPERATING INSTRUCTIONS FOR OEM USE ONLY TOUCH PAD / WALL SWITCH SWITCH PANEL Increase ﬂame height A) Increase ﬂame height ON-OFF B) ON/OFF Decrease ﬂame height C) Decrease ﬂame height Figure 24: Touch Pad / Wall Switch Figure 25: Switch Panel To Turn ON Appliance ▪ Press button (see ﬁgure 24) until a short beep conﬁrms the start sequence has begun; release button. ▪ Continuing beeps conﬁrm the ignition is in process. ▪ Once pilot ignition is conﬁrmed, there is main gas ﬂow.
PAGE 13
OPERATING INSTRUCTIONS FOR OEM USE ONLY Piezo ignitor (optional) Connection piezo ignitor tab 2.8 x 0.8 mm ON/OFF switch (optional) in ON Position MANUAL knob in MAN position Manual pilot valve operator 8 Wire Receiver jack Figure 25: Combination control, cover MANUAL OPERATION (Only possible, when MANUAL knob is used) Access to the pilot burner is only required for ignition with a match. When turning main valve knob, do not force. Knob has a slip clutch that clicks until the end stops are reached.
