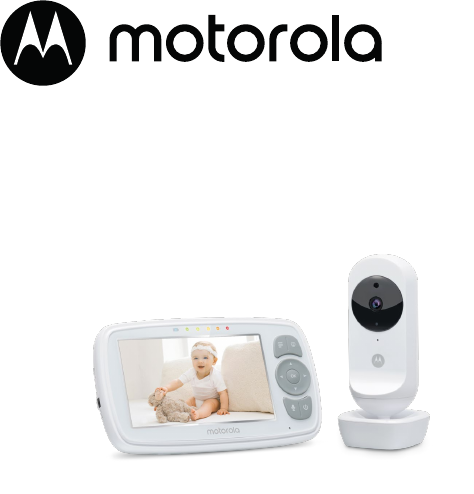

Motorola VM34 4.
Welcome... to your new Motorola Video Baby Monitor! Thank you for purchasing the Video Baby Monitor. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their playroom. Please keep your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
Overview of the Parent Unit 1 2 3 4 11 5 6 7 8 12 13 14 15 10 9 1. 2. 3. 4. 5. 6. 7. 8. Display (LCD screen) Parent Unit ON/OFF and Charging LED Red when the parent unit is ON. Purple when electrical outlet connected. Blue when off and connected to electrical outlet. Audio Level LEDs (Green, Green, Amber, Red, Red) MENU button Press to open / close the Menu options. VIDEO ON/OFF button Press to turn the LCD screen ON/OFF (Note: audio is maintained.
Parent Unit menu icons Signal Level (5 Levels) Night Vision Mode (Video also changes to Black/White). Talk Mode On. Indicates the screen off timer is set. Volume Level Control (8 Levels). No Baby Unit detected. Battery Level Indication (4 Levels). Zoom Level Control (1X, 2X). LCD Brightness Level Control (8 Levels). Lullaby Control (5 Song Selections). Alarm Setting (6h, 4h, 2h, OFF) On status bar, indicates alarm set, and when flashing, that alarm time has been reached or missed.
Overview of Your Baby Unit 2 1 3 6 4 7 8 5 9 1. 2. 3. 4. Infrared LEDs (x 8, for night vision) Photo Sensor (Night Vision Mode) Camera Lens Power/Link indicator 5. 6. 7. 8. 9. High Sense Microphone Speaker PAIR button Power Socket Temperature Sensor Important guidelines for installing your Digital Video Baby Monitor • To use your Baby Unit and Parent Unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions.
Table of contents 1. Safety Instructions...........................................................................8 2. Getting Started............................................................................... 10 2.1 Connecting the Power Supply for the Baby Unit.......................10 2.2 Connecting the Power Supply of the Parent Unit. .................... 10 2.3 Desktop Stand of the Parent Unit ..................................................... 11 2.4 Registration (Pairing).....................
8. General Information ..................................................................... 22 9. Technical Specifications .............................................................
1. Safety Instructions WARNING: Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3ft (1m) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided.
Wi-Fi® CAMERA UNIT SET UP & USE: • • • Choose a location for the Baby Unit that will provide the best view of your baby in his/her crib. Place the Baby Unit on a flat surface, such as a dresser, bureau or shelf, or mount the Baby Unit on a wall securely using the keyhole slots in the underside of the stand. NEVER place the Baby Unit or cords within the crib.
2. Getting Started 2.1 Connecting the Power Supply for the Baby Unit • Insert the DC plug of the power adapter into the DC socket on the back of the Baby Unit. • Connect the other end of the power adapter to a suitable electrical outlet. • The baby unit turns on and the power indicator lights in Blue colour. Note Only use the supplied power adapter (DC5V/600mA). 2.2. Connecting the Power Supply of the Parent Unit.
• Connect the small plug of the power adapter to the parent unit and the other end to the electrical outlet. Only use the enclosed adapter (5VDC/600mA). • Press and hold the 0 button to turn the Parent unit on, the Parent unit and Baby unit are automatically linked and ready to use.
2.4 Registration (Pairing) The Baby Monitor is pre-registered to your Parent Unit. You do not need to register it again unless the Baby Unit loses its link with the Parent Unit. To re-register your Baby Unit, or register a new Baby Unit, follow the procedures below: 1. Press the M button and the menu bar will pop up. 2. Press the < LEFT button or > RIGHT button until is highlighted, and the del/ add/ view/ scan menu will pop up. 3.
3. Using the Baby Monitor 3.1 Setting Up Place the Baby Unit in a convenient location (e.g. on a table) and point the camera lens towards the area you want to monitor. Adjust the angle of the Baby Unit's camera until you are satisfied with the image shown on the Parent Unit. NOTE Do not place the Baby Unit within the baby's reach! If there is interference with the picture or sound, try moving the units to different locations, and ensure they are not close to other electrical equipment. 3.
4. Parent Unit Menu Options 4.1 Volume Press the Left or Right button to adjust the volume level. The icon will pop up and you can select the desired volume from level 0~8. (The default volume level setting is level 5, and level 0 is OFF.) 4.2 1. 2. 4.3 1. 2. 3. 4.4 1. 2. 3. 4. 5. 14 Zoom Press the M button and the menu bar will pop up with highlighted. Press the + UP button or - DOWN button to select 1X or 2X zoom. (The default setting is 1X.
4.5 1. 2. Alarm Press the M button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until is highlighted. 3. Press the + UP button or - DOWN button to select the alarm time (6h, 4h, 2h). (The default setting is Alarm OFF.) 4. If an alarm time is selected, the Parent Unit will beep for about 45 seconds after every 6, 4 or 2 hour period. 4.6 Camera Control 4.6.1 Add (pair) a camera 1. 2. Press the M button and the menu bar will pop up.
4.6.2 View a camera 1. 2. Press the M button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until is highlighted, and the del/ add/ view/ scan menu will pop up. add, and 3. Press the + UP button or - DOWN button to select press the O button to confirm. / / / will pop up. Press the + UP button or 4. Camera - DOWN button to select the desired Camera, and press the O button to view the picture from that camera. Note: Only camera locations with a * can be selected.
4.6.4 Scan camera This function is only available when you have more than 1 Baby Unit (Camera). 1. 2. Press the M button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until is del/ add/ view/ scan menu will highlighted, and the pop up. scan, 3. Press the + UP button or - DOWN button to select and press the O button to confirm. 4. The screen will then display images from different registered cameras in a loop of Camera / / / , changing about every 12 seconds.
4.9 View multiple cameras on screen This function is only available when you have more than 1 Baby Unit (Camera). When the Split Screen function is On, you can view multiple cameras on the screen. 1. 2. Press the M button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until is highlighted. 3. Press+ UP button or - DOWN button to select Split Screen On / Off . 4.
5. Disposal of the Device (environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this. Some of the product materials can be re-used if you take them to a recycling point.
7. Help Display • Try recharging the battery pack. • Reset the Units. Unplug both the Units' electrical power, then plug them back in. • Is the Unit switched on? • Press and hold the ON/OFF button 0 on the Parent Unit for 3 seconds to switch it ON. • Is the correct camera selected? Change the camera number, if necessary. • Is the video display turned on? Press the VIDEO ON/OFF button V to turn it ON.
• Make sure that the Baby and Parent Units are not near other electrical equipment, such as a television, computer or cordless/ mobile telephone. Move the Baby Unit or Parent Unit 5 feet away from other electrical equipment. • Use of other 2.4 GHz products, such as wireless networks (WiFi® routers), Bluetooth™ systems, or microwave ovens, may cause interference with this product.
8.General Information If your product is not working properly, read this Quick Start Guide or the User’s Guide of one of the models listed on page 1. Please visit us at: motorolanursery.com/support Consumer Products and Accessories Limited Warranty (“Warranty”) Thank you for purchasing this Motorola branded product manufactured under license by Meizhou Guo Wei Electronics Co. LTD ("MZGW").
What will MZGW do? MZGW or its authorized distributor at its option and within a commercially reasonable time, will at no charge repair or replace any Products or Accessories that do not conform to this Warranty. We may use functionally equivalent reconditioned/ refurbished/ pre-owned or new Products, Accessories or parts.
Products Covered Length of Coverage Consumer Products Two (2) years from the date of the products original purchase by the first consumer purchaser of the product. Consumer Accessories Ninety (90) days from the date of the accessories original purchase by the first consumer purchaser of the product. Consumer Products and Accessories that are Repaired or Replaced The balance of the original warranty or for Ninety (90) days from the date returned to the consumer, whichever is longer.
Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola branded housings, or parts, are excluded from coverage. Communication Services.
FCC and IC regulations FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
ISEDC Warning This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
9. Technical Specifications BABY UNIT Frequency 2400 MHz to 2483.5 MHz Image sensor color CMOS 0.3M Pixels IR LED 8 pcs Operating Temperature 41oF - 104oF Power Adapter: BECKY - BQ05A-0501000-U Input: 100-240V AC, 50/60Hz, 300mA; Output: 5.0V DC, 1000mA or YWK - YWK-AD050100-U Input: 100-240V AC, 50/60Hz, 300mA; Output: 5.0V DC, 1000mA WARNING Use only with provided power supply.
PARENT UNIT Frequency 2400 MHz to 2483.5 MHz Display 4.3” diagonal TFT LCD Display Colors 16.7M color LCD Brightness Control 5 steps Volume Control 8 steps Power Adapter: BECKY - BQ05A-0501000-U Input: 100-240V AC, 50/60Hz, 300mA; Output: 5.0V DC, 1000mA or YWK - YWK-AD050100-U Input: 100-240V AC, 50/60Hz, 300mA; Output: 5.0V DC, 1000mA WARNING Use only with provided power supply. Battery (built-in) ZhongShan TianMao Battery Co., Ltd. 5C, 3.
Manufactured, distributed or sold by Meizhou Guo Wei Electronics Co. LTD., official licensee for this product. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners. © 2021 Motorola Mobility LLC. All rights reserved.
