Master Lock Towing Camera Installation and Operation Instructions:

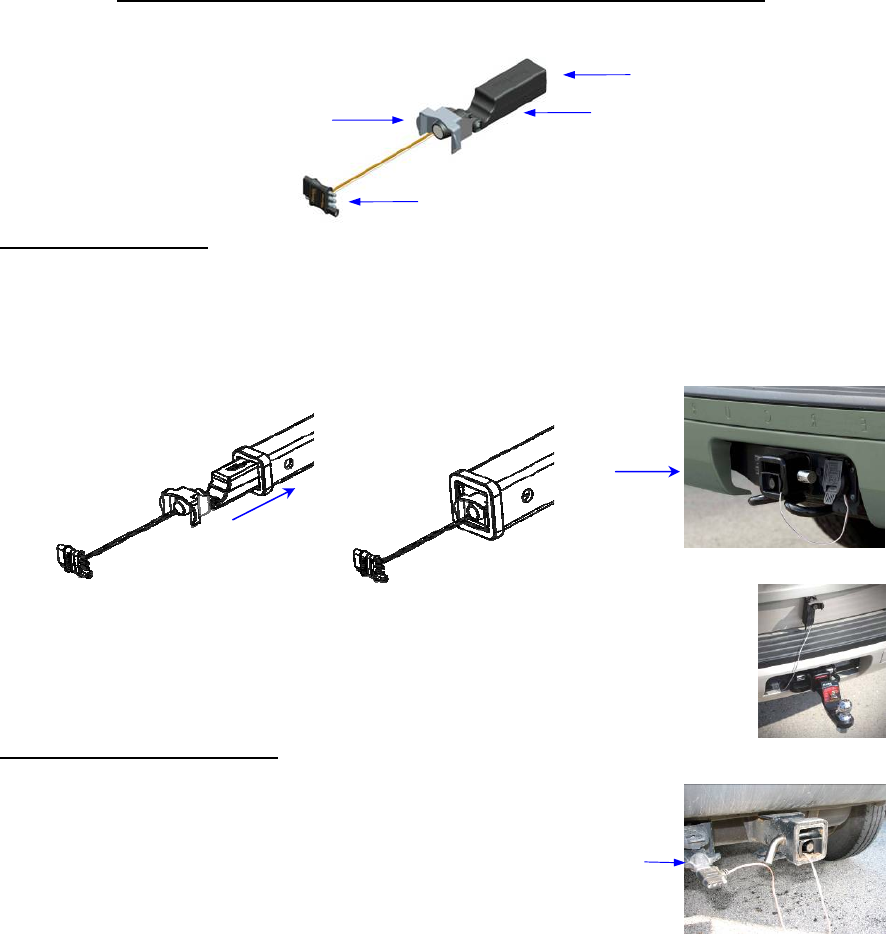

Camera Features

Camera Installation:

The camera has two mounting options/applications:

1) Back-up Camera- Slide the camera assembly inside a 1-¼” or 2” hitch receiver tube. The

magnet in the camera base will hold it securely in place. The plastic guide on the camera

bracket will help line the assembly up with the hitch pin opening and allow a standard or

locking hitch pin to be used for additional security.

2) Hitch Alignment/Load Monitoring System- Mount the camera to any

metal surface on the back of the vehicle using the magnetic base. The soft

pads on the base will prevent sliding or scratching and the camera bracket

can pivot up to 90° to allow the field of view to be adjusted.

Camera Power Connection:

The camera is powered by plugging the camera power

connector into the vehicle’s towing wiring harness. The

camera power connector is a 4 position connector that

directly attaches to many vehicles. The camera power

connector also has a pass-though design feature. This

allows you to plug your trailer wiring into the open end

of the backup camera power connector and monitor your

trailer load while towing. Some vehicles may need a 7

position to 4 position adapter, which is not included.

Note: A readily available 4 position tow wire extension (not included) will allow the camera

to be mounted further away from the vehicle plug for gooseneck or fifth wheel trailer hitch

alignment applications.

Notice: Depending on the make/model of the vehicle, the running lights or headlights may

need to be turned on to power the vehicle’s tow plug.

1-1/4” Tube

2” Tube

Pin Guide

Antenna

Transmitter Housing

Camera Power Connector

7 position to

4 position

adapter shown
