User Manual

1.
2. Thunderbolt 3
3. USB-A 3.0
4. SD&TF Card Reader
5. USB-A 3.0
6. USB-C Male
USB-C Multifunction HUB
Important NotesFeaturesProduct lntroduction

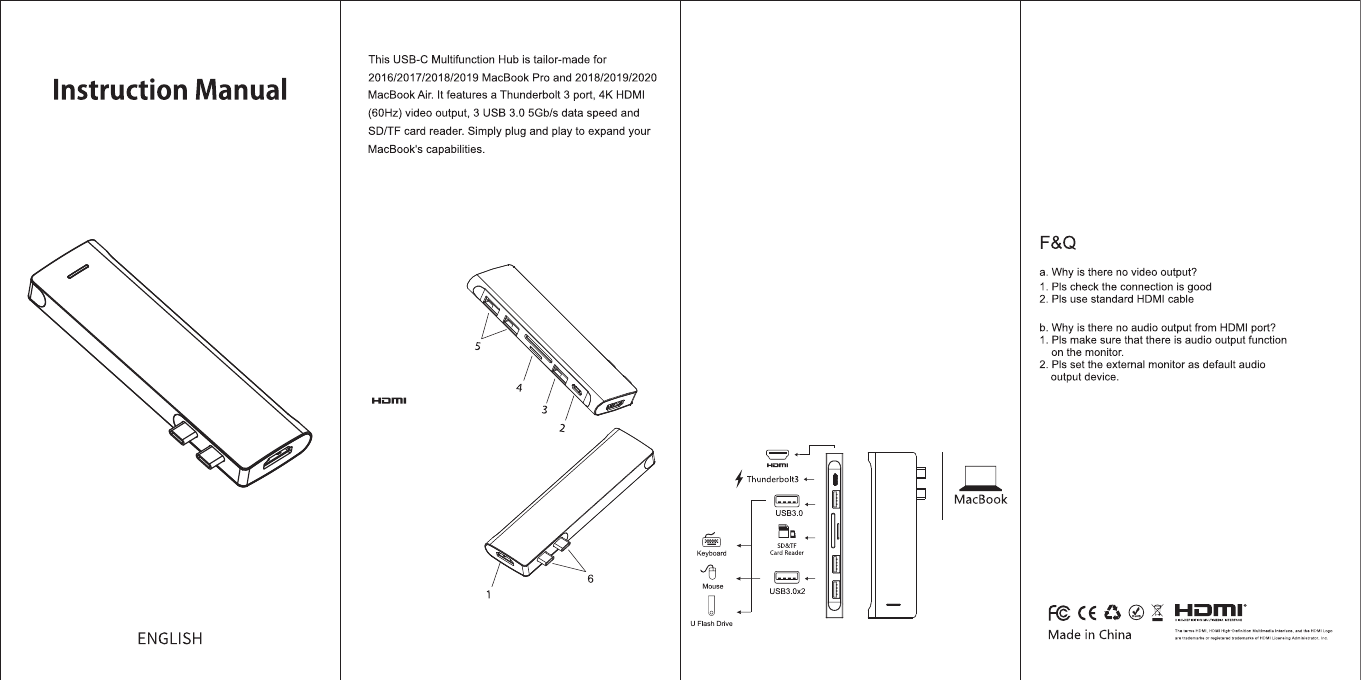

Structure Diagram
Connection
1. HDMI video output
Max resolution up to 4K(3840x2160)@60Hz down
compatible with 4K(3840x2160)@30Hz 1080P 1080I 720P
2. Thunderbolt 3
3. SD/TF Card Reader
Read: 50-104MB/s; Write: 30-80MB/s,
Data transfer rates are subject to the speed of the
4. USB 3.0 -
5Gb/s data speed & maximum power output
5V/0.9A, backwards compatible with USB2.0/USB1.1
Extend the Thunderbolt 3 from MacBook and keep the
original specification.
- Up to 40Gb/s data speed.
- Up to 5K or 2x4K @60Hz Video
- Up to 100W Power Delivery (PD3.0) charging
- Support more protocols
(TB1, TB2, USB3.1, DisplayPort, PCI-E)
memory card itself and your computer's USB ports.
1.This hub is designed specifically to fit the MacBook which
has dual USB-C ports. It is not compatible with any other
devices.
2.For best connection, please use without a laptop case.
USB-A ports will not support Apple SuperDrive or charge
iPads and other Tablets.
3.Please use your device's original or a third-party certified
charger and cable to charge your laptop.
