Quick Start Guide

// Overview
// Dynamic handheld microphone with Active Mode
// Supercardioid polar pattern for maximum isolation of the main sound source
// Frequency response shaped specifi cally for vocal applications
// 3 gain settings: 0 dB, +6 dB, and +12 dB
// 3 low-cut settings: linear, 150 Hz (12 dB/oct), 250 Hz (12 dB/oct)
// Switchable LED status indicator for low-cut and pre-attenuation settings
// Integrated acoustic pop and windshield - washable
// Solid full-metal, die-cast body
// Gold plated & corrosion-resistant 3-pin XLR output connector
Top applications // Vocals, instrument amps, spoken word
and live interviews

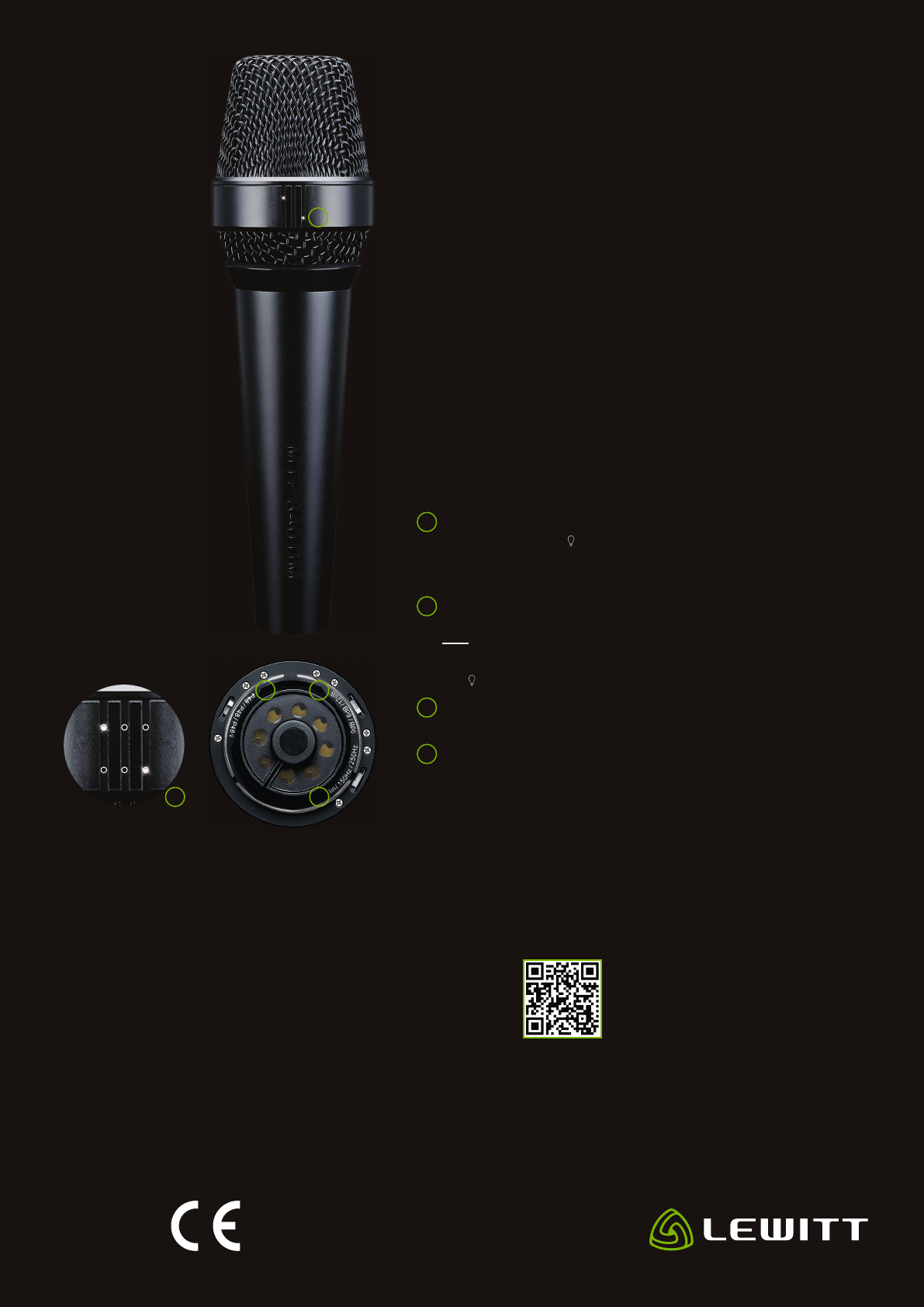

// User interface
1 LED status indicator // Indicates active low-cut fi lter (A)
and gain (B) for P48 operation mode.
A1: linear A2: 150 Hz (12 dB/oct) A3: 250 Hz (12 dB/oct)
B1: 0 dB B2: +6 dB gain B3: +12 dB
2 Operation mode slide switch // Adjust the slide switch to choose
between:
P48
: passive mode, do not supply phantom power, LED is off
P48: active mode, 48V phantom power required, LED is off
P48 : active mode, 48V phantom power required, LED is on
3 Gain slide switch // Choose between 0 dB, 6 dB and 12 dB gain
levels by adjusting the slide switch.
4 Low-cut fi lter slide switch // Choose between linear,
150 Hz (12 dB/oct) and 250 Hz (12 dB/oct) by adjusting the slide
switch. Low-cut fi lters eliminate low-frequency sounds to
compensate the proximity effect and reduce structure-borne noise.
1
2
3
4
// MTP 840 DM
QUICKSTART GUIDE
// Getting started
1 Connect your microphone to your mixing console, audio interface or microphone preamplifi er with a 3-pin XLR cable.
2 Supply the MTP 840 DM with 48V phantom power (only for Active Mode, do not supply 48V in passive mode).
3 Set the input gain on your mixing console, preamp, etc. accordingly.
4 To ensure best sound quality, do not cover any part of the grille.
5 Rock!
// Please Note
// To ensure high sensitivity and best sound reproduction of the microphone, avoid exposing it to moisture, dust or extreme temperatures.
// Do not apply extensive force on the switches or cable of the microphone.
// When disconnecting the microphone cable, grasp the connector and do not pull the cable.
// Do not attempt to modify or fi x the microphone, as it would void your product warranty.
// The casing of the microphone can be cleaned easily using a wet cloth, never use alcohol or another solvent for cleaning.
// The integrated acoustic pop and windshield can be washed with soap water, if necessary.
