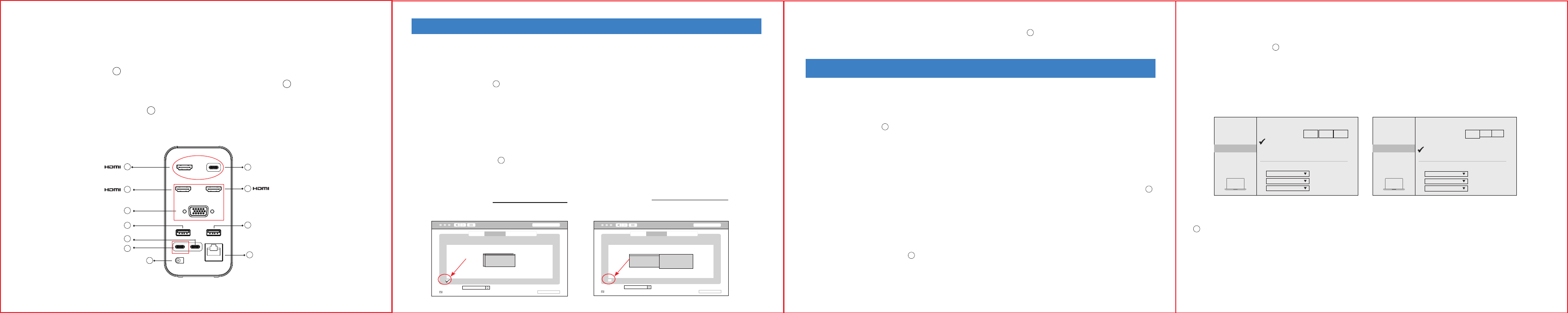

Instructions for Use

SETTING OF DISPLAY FUNCTION
When connected to ⑦USB-C input port, ⑥HDMI can work.
When connected to USB-C input port, ⑧HDMI, ⑨HDMI and ⑩VGA can work.
If you need more than one extend monitor work, please connect to USB-C input port. Or
you need two USB-C ports which both support video output on your laptop for connecting to
both ⑦USB-C input port and USB-C input port.
13
13
13
For Mac OS
1. Use one USB-C port
(1) When connected to ⑦USB-C input port, ⑥HDMI can work. The host computer will stay on. Get 2
screens of 2 contents in multiple display mode.
(2) When connected to USB-C input port, ⑧HDMI, ⑨HDMI and ⑩VGA can work. The host computer will
stay on, but three external monitors will mirror each other. Get 2-4 screens of 2 different contents in
multiple display mode.
2.Use two USB-C ports
Combining (1) and (2) of point 1, you can get 5 screens of 3 contents in multiple display mode.
Steps:
1.Power the docking via DC port, and the indicator light on the front will light up.
2.Connect docking and laptop via ⑦USB-C input port, and then connect a monitor via ⑥HDMI.
The monitor will be ready to work automatically.
13
15
13
13
13
13
15
13
For Wins
1. Use one USB-C port (one host):
(1) When connected to ⑦USB-C input port, ⑥HDMI can work. The host computer will stay on. Get 2
screens of 2 contents in multiple display mode.
(2) When connected to USB-C input port, ⑧HDMI, ⑨HDMI and ⑩VGA can work. Each external screens
display different contents, but the host computer will be blank screen. Get 1-3 screens of 1-3 pictures in
multiple display mode.
2. Use two USB-C ports (two hosts)
(1)Multiple Display Mode: The computer connected to ⑦USB-C input port will stay on and display content
A, and ⑥HDMI can work and display content B on corresponding monitor. The computer connected to
USB-C input port will be a blank screen, and the external monitors will display contents C, D, E. Get 5
screens of 5 different displaying.
(2)Mirror Mode: According point 1, the hosts connected to the two USB-C ports work separately.
Note：
For Window computers, when USB-C input port is plugged in and three monitors are connected, we advise
to keep the computer screen black to avoid damaging graphics cards or affecting performance.
4.If you use two hosts and need more screens, please connect the docking and the other computer via
USB-C input port, and then connect monitors via ⑧HDMI, ⑨HDMI or ⑩VGA. The monitors will be ready
to use.
4.If you need more screens, please connect docking and laptop via USB-C input port, and then connect
monitors via ⑧HDMI, ⑨HDMI or ⑩VGA. The monitors will be ready to use.
1.Mirror Display
Display
Night Shift
To rearrange the displays, drag them to the desired position.
To relocate the menu bar, drag it to a different display.
Mirror D isp lay s
Airplay
Displays
：
Off
Show mirroring options in the menu bar when available
Gather windows
Arrangement
Color
2.Extend Display
Apple logo>System Preferences
>Displays
Apple logo>System Preferences
>Displays
Display
Night Shift
To rearrange the displays, drag them to the desired position.
To relocate the menu bar, drag it to a different display.
Mirror D isp lay s
Airplay Displays ：
Off
Show mirroring options in the menu bar when available
Gather windows
Arrangement
Color
3.
3.
Right click desktop >Graphics Settings >Display
General Settings
DisplayPort Topology
Single Display
Select One or More Active Displays
1
3
2
1.Clone mode
Color Settings
Multiple Settings
Custom Resolutions
Select Display Mode
Clone Display
Extended Desktop
Collage
Detect
Built-in Display
HDMI
Display
HDMI Display
Right click desktop >Graphics Settings >Display
General Settings
DisplayPort Topology
Single Display
Select One or More Active Displays
2.Extended Desktop
Color Settings
Multiple Settings
Custom Resolutions
Select Display Mode
Clone Display
Extended Desktop
Collage
Detect
Built-in Display
1
3
2
HDMI Display
HDMI Display
Ethernet
USB-C（in）
DC 12V3A
USB-C（in）
15
13
PD3.0
14
8
6
USB-A
11
VGA
10
16
7
9
USB-A
12
Steps:
1.Power the docking via DC port, and the indicator light on the front will light up.
2.Connect docking and one host computer via ⑦USB-C input port, and then connect a monitor via ⑥HDMI.
The monitor will be ready to work automatically.
NOTE:
This docking station does not support one USB-C input port connected to a Apple laptop, and the other
connected to a window computer, otherwise the functions will be affected.
