Data Sheet

DATA SHEET
CE66xxEN
SF/UTP Patch Cable CAT.5e
Valid from:
17.11.2011
Elaborated by:
PNM – J. Lehmann
Document: DBCE66xxEN page 1 of 2
Nr.: 0019/0894

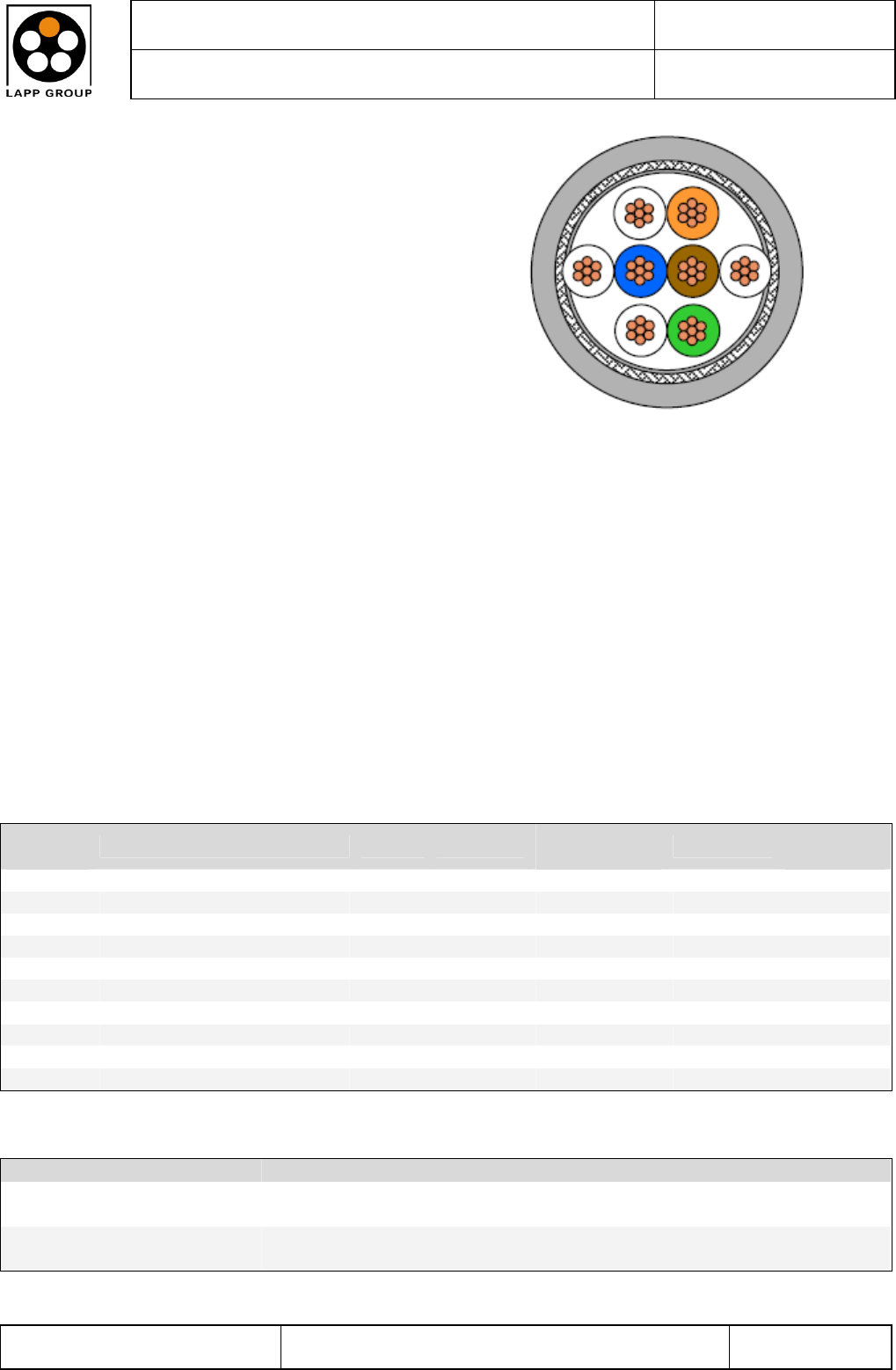

SF/UTP Patch Cable CAT.5e
Li-2Y(St)CH 4x2x0.48L (AWG 26)
100 Ω -data cable ISO/IEC 11801 Cat.5e
Application Area: Tertiary (horizontal)
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T;
IEEE 802.5 16 MB; ISDN; FDDI; ATM
Applicable standards: EIA/TIA 568A; TSB 36
ISO/IEC 11801 2nd ed.; JTC1 SC25 WG3 N552
EN 50173; prEN 50288-2-2
Flame retardant: UL 1581 VW 1 Flame Test
FRNC-B: IEC 332-1; VDE 0472 detail 804, Check B
Connector: RJ45 Hirose TM11
Part
Number
Type Colour Length
Outside
diameter
Attraction
Packing
Unit
CE6647 SF/UTP Patch Cable CAT.5e grey 0.5 m 5.7 mm 100 N 5
CE6648 SF/UTP Patch Cable CAT.5e grey 1.0 m 5.7 mm 100 N 5
CE6649 SF/UTP Patch Cable CAT.5e grey 1.5 m 5.7 mm 100 N 5
CE6650 SF/UTP Patch Cable CAT.5e grey 2.0 m 5.7 mm 100 N 5
CE6651 SF/UTP Patch Cable CAT.5e grey 3.0 m 5.7 mm 100 N 5
CE6652 SF/UTP Patch Cable CAT.5e grey 5.0 m 5.7 mm 100 N 5
CE6653 SF/UTP Patch Cable CAT.5e grey 7.5 m 5.7 mm 100 N 5
CE6654 SF/UTP Patch Cable CAT.5e grey 10.0 m 5.7 mm 100 N 5
CE6655 SF/UTP Patch Cable CAT.5e grey 15.0 m 5.7 mm 100 N 1
CE6656 SF/UTP Patch Cable CAT.5e grey 20.0 m 5.7 mm 100 N 1
Mechanical Properties
Bending radius
≥ 25 mm without tensile load
≥ 50 mm with tensile load
Operating temperature Fixed installation -20 °C to + 60 °C
mobile operation 0 °C to + 50 °C
By request, a
lso in other colours available (
blue, red,
green and yellow)
!
Add colour code to the part number:
BL= blue; RT= red; GN= green; GE= yellow
