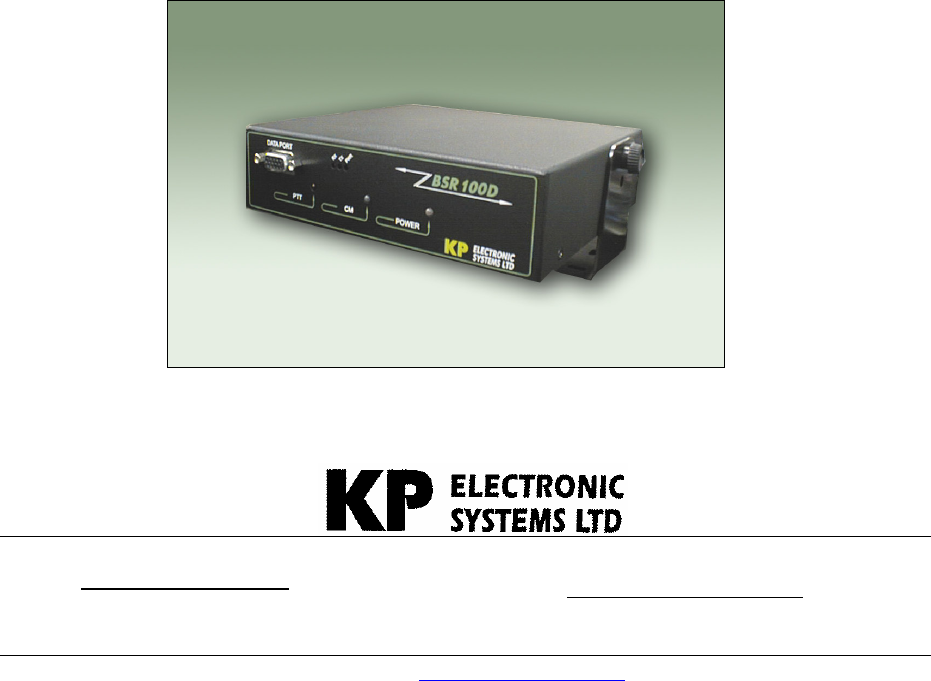

BSR100D™ Wireless VHF / UHF Radio Modem User Manual ISRAEL Office: Email: info@kpsystems.com P.O. Box 42, Tefen Industrial Park, Tefen 24959 Tel: 972-4-987-3066 / Fax: 972-4-987-3692 USA Office: KP ELECTRONICS INC. Email: info@kpelectronics.com 109 Tudor Drive, North Wales, PA 19454 Tel: (215) 542-7460 / Fax: (215) 542-7461 Web Site: www.kpsystems.com P.N: Book 087 Rev: New Approved: Moshe Z.
Table of Contents 1 GENERAL DESCRIPTION ............................................................................................ 3 1.1 BSR100D FUNCTIONS 1.2 3 FRONT PANEL DISPLAY 1.3 3 REAR PANEL DISPLAY 4 2 RADIO MODULE DESCRIPTION ............................................................................. 5 3 MODEM MODULE DESCRIPTION .......................................................................... 6 3.1 DATA PORT INTERFACE 6 PREPARING FOR OPERATION ............................
5.2 6 5.1.6 Confirming Parameter Changes 5.1.7 3 Activating Self Test 5.1.8 5 On-Screen HELP 1 1 5 BSR100D MODEM PROGRAMMING GUIDE USING DATARADIO™ FIELD PROGRAMMING (DFP) SOFTWARE 5.2.1 Preparing Programming 5.2.2 6 COM Port Settings 5.2.3 6 COM Port Parameters 5.2.4 5.2.5 6 Primary and Secondary Port Settings Communications Modes Port Statistics 1 15 1 1 1 18 19 TECHNICAL SPECIFICATIONS .............................................................................
1 General Description The BSR100D is a data radio modem unit designed for high performance, longrange SCADA (Supervisory Control and Data Acquisition) and telemetry applications. The BSR100D offers the advantage of distanced communications using long-range VHF and UHF frequencies with data modem. 1.
Table 1: Front Panel LED Indication Functionality Indicates Push to talk (PTT) LED Red/Off Radio Channel Monitor (CM) Power Receive (RX) Transmit (TX) Power (PWR) Green/Red Description Radio transmit/receive mode Monitors channel activity Green/Red Yellow Red Green DC power Unit is receiving signal Unit is transmitting signal DC power is applied Modem 1.
2 Radio Module Description The BSR100D has a built in radio module that acts as a VHF/UHF transceiver and operates as a two-way base station in half duplex mode at remote central stations and repeaters. The BSR100D™ has four sets of radio connectors in the rear of the unit: J1, J2, J3, J6 (see Figure 3: Radio Connectors J1, J2, J3 & J6 and Table 2: Radio Connector Description for full explanation).
3 Modem Module Description The BSR100D has a built-in wireless modem that provides a high-speed data link suitable for a wide variety of applications with system security for diagnostics reporting. 3.1 Data Port Interface The BSR100D modem component is equipped with a J4 15-pin data port interface. The J4 is used for connection between the radio modem and PC for set-up and data communications (see Figure 4: Data Port Interface).
Pin 1 2 Name Ground Rx Data Pin 6 7 3 Tx Data 8 4 Test Audio 9 5 B+ Power 10 Name Ground Clear to Send (CTS) Request to Send (RTS) Data Carrier Detect (DCD) B+ Power Pin 11 12 Name CS 0 CS 1 13 CS 2 14 Received Signal Strength Indicator (RSSI) DTR Programming 15 Figure 6: Data Port Cable Description Table 5: Interface Signal Description Name B+ Power (input) RX Data TX Data CTS RTS DCD BSR100D™ Wireless Radio Modem Description 10 to 16 VDC (13.3V nominal maximum) 2.
DTR Test Audio RSSI BSR100D™ Wireless Radio Modem Data Terminal Ready.
4 Preparing for Operation Before installing the BSR100D™, it is suggested that the following preparations are performed: Connecting assembly cables Connecting PC to Modem Module DTE Connecting power supply Performing a self test 4.1 RF exposure statement Power listed is Conducted.
Figure 7: PC/ Modem Module DTE Connection 4.4 Connecting Power Supply To connect the DC plug to the J3 DC Power Connector: 1. Connect one end of the cable to J3, the four-pin rear panel connector. 2. Connect the other end of the cable to a 12.5 VDC, 5A power source (power supply/battery) 4.5 Performing a Self Test To perform a self test: 1. Switch on the 12.5 VDC power supply 2.
LED Indicator Power LED Green Red CM LED Green Red Flashes red/-green Status Normal Dead Battery Free Channel Monitor RF/IF Amplifiers In addition to the signals in Table : Self-Test LEDs, there is an error-status word in the Gup10™ Utility Program (see following Section 5 Setting Communication Parameters) BSR100D™ Wireless Radio Modem Page 12 User Manual
5 Setting Communication Parameters 5.1 BSR100D™ Radio Programming Guide Using GUP10™ Using KP’ s Gup10 Utility Program, the BSR100D™ parameter values listed below can be programmed or modified. Transmit frequency (MHz) Receiver frequency (MHz) Tx time out (0-240 sec) Connecting RADIO SET-UP cable using KP’ s RS232 adaptor (RSINT001™) are configured between the BSR100D and a PC (see Figure 9: BSR100D/PC Connection Configuration). Figure 9: BSR100D/PC Connection Configuration 5.1.
Figure : Gup10 Main Screen 5.1.3 Loading Parameter Values Parameter values must be loaded after connecting the Gup10 utility software. To Load Parameter Values 1. From the Gup10 main screen, click Prompt? (Alt P) 2. Click Read (Alt R). The name of the device type, version, and suitable parameters are displayed 5.1.4 Changing Parameter Values Parameter values can be changed as required. Type the new parameter value in the designated parameter text box. 5.1.5 Updating Parameter Value Changes 1.
Gup10 main screen. The Gup10 main screen displays the updated parameter values.
5.1.7 Activating Self Test After parameter values are loaded, perform a self-test: 1. Disconnect BSR100D from the PC 2. Press the self-test button 3. Observe the self-test led 5.1.8 On-Screen HELP To view a brief explanation of any BSR100D parameter, click the required parameter text box. The cursor will appear in the designated text box, and the valid parameter range, with a brief explanation, displays at the bottom of the screen. 5.
5.2.1 Preparing Programming To commence programming of the BSR100D modem module parameters, connect the MODEM SET-UP cable (refer to Section 3.1 Data Port Interface) to the J4 connector on the front panel of the BSR100D. The corresponding 9-pin connection on the SET-UP cable is connected to the PC serial COM port. 5.2.2 COM Port Settings BSR100D programming is done through the PC’ s primary COM port. Primary and secondary COM ports are configured with the DFP software.
Data Bits Selects the number of data bits (4-8) transmitted or received for the primary and secondary COM ports BSR100D™ Wireless Radio Modem Page 18 User Manual
Parity Selects transmission or reception of any parity bits for the primary and secondary COM ports Stop Bits Selects number of stop bits (1 or 2) transmitted or received for the primary and secondary COM ports DTR Enable Used to assert DTR line of the RS232 port when the port is open for the primary and secondary COM ports Swap COM Ports Selecting the Swap COM Ports button moves the secondary COM port setting to the primary COM port (and moves the primary COM port to the secondary settings).
5.2.5 Port Statistics Figure : Port Statistics Screen Port statistics show current parameters of the PC’ s primary and secondary COM ports. RTS Shows the current state of the RTS line. RTS is an output from the PC. DTR Shows the current state of the DTR line. DTR is an output from the PC. CTS Shows the current state of the CTS line. CTS is an input to the PC. Data Set Ready (DSR) DSR shows the current state of the DSR line. DSR is an input to the PC. DCD DCD shows the current state of the DCD line.
Dribble Bytes Dribble Bytes shows the number of extra (not expected) bytes (characters) received since the port was last open or cleared.
6 Technical Specifications General Band Frequency Range Channel Bandwidth Programming FCC Type Acceptance ETSI Operating Voltage Current Consumption Diagnostics Frequency Stability BSR100D VHF 136-174 MHz BSRU100D UHF 410-510 MHz 12.5 KHz Fully PC programming H78KPBSR100 H78KPBSRU100 300.113 10-15 VDC 150mA STBY; 3A TX 160mA STBY; 3A TX Overload trouble, driver fault, timeout, PLL lock, dead battery, power trouble, RSSI ± 2.
Physical Dimension Size Weight BSR100D™ Wireless Radio Modem 169x150x44 mm ( 6.6”x5.9”x1.7) 0.65 Kg (1.
