How to Guide

Product Information
Applicable products:
BubbleMassage bath – less
chromatherapy
K-1110-G
BubbleMassage bath – with
chromatherapy
K-1110-GCR
Fixture*:
Bathing well:
Basin area, bottom 45″ (114.3 cm) x 25-1/2″ (64.8 cm)
Basin area, top 63″ (160 cm) x 31-1/2″ (80 cm)
Weight 134 lbs (60.8 kg)
To overflow:
Water depth 21″ (53.3 cm)
Capacity 115 gal (435.3 L)
* Approximate measurements for comparison only.
Included components:
Cut-out template (drop-in only) 1016369-7
Blower motor / control: kW V Hz A
300 220-240 50/60 3
Required accessories:
Undermount template kit (for
undermount installations only)
K-589
Clearflo horizontal overflow bath
drain
K-7273
Required Electrical Service
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD):
Blower motor/control 220-240 V, 15 A, 50/60 Hz
Installation Notes
Install this product according to the installation guide.
Floor support under bath must provide for a minimum of 49
lbs/square foot (237.5 kg/square meter) loading.
Hot water supply should be 70% of capacity or greater.
Installations will vary.
This bath is designed for drop-in installation only. It is not
suited for use in a three wall alcove with an overhead shower.
A blower motor/control access panel is required.
Fixture conforms to ANSI Standard Z124.1.2. All dimensions
are nominal.
3-3/8" (8.6 cm)
72" (182.9 cm)
4" (10.2 cm)
6" (15.2 cm)
7/16" (1.1 cm)
1-1/2" OD
No change in measurements with
drain shown. (K-7273)
1-3/16" (3 cm)
1-3/8"
(3.5 cm)
Blower/Control Access
34" (86.4 cm) W x
15" (38.1 cm) H
25-11/16"
(65.2 cm)
24-1/2"
(62.2 cm)
46"
(116.8 cm)
12-3/16"
(31 cm)
3-15/16"
(10 cm)
23"
(58.4 cm)
6-1/2"
(16.5 cm)
5-1/2"
(14 cm)
K-1110-GCR
6"
(15.2 cm)

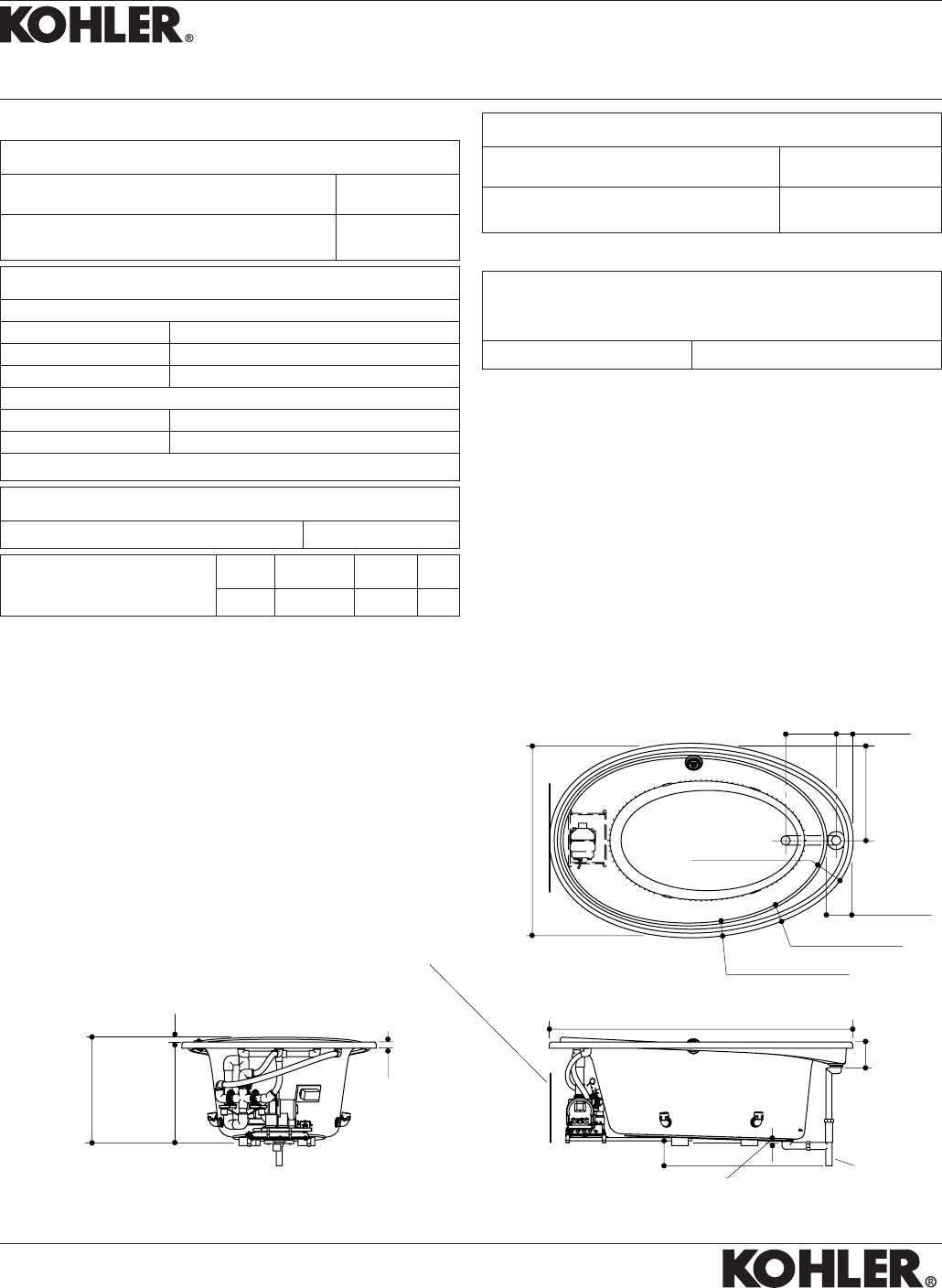

Roughing-In
K-1110-G, K-1110-GCR
PURIST
®
BUBBLEMASSAGETM BATH
PURIST
®
BUBBLEMASSAGETM BATH
1038562-1-
D
