- 1-

KWS7S3 2.4GHz RF Module User Manual

1. Introduction

KWS7S3 is a 2.4GHz ISM band HDR (high data rate) FH (frequency hopping) transceiver.

It provides three types of digital modulation 16QAM/QPSK/BPSK, and on-air data rate support

12Mbps. The proprietary low MAC feature coupled with high-speed multimedia processor

enables a very high quality wireless multimedia application and a great interference immunity

capability.

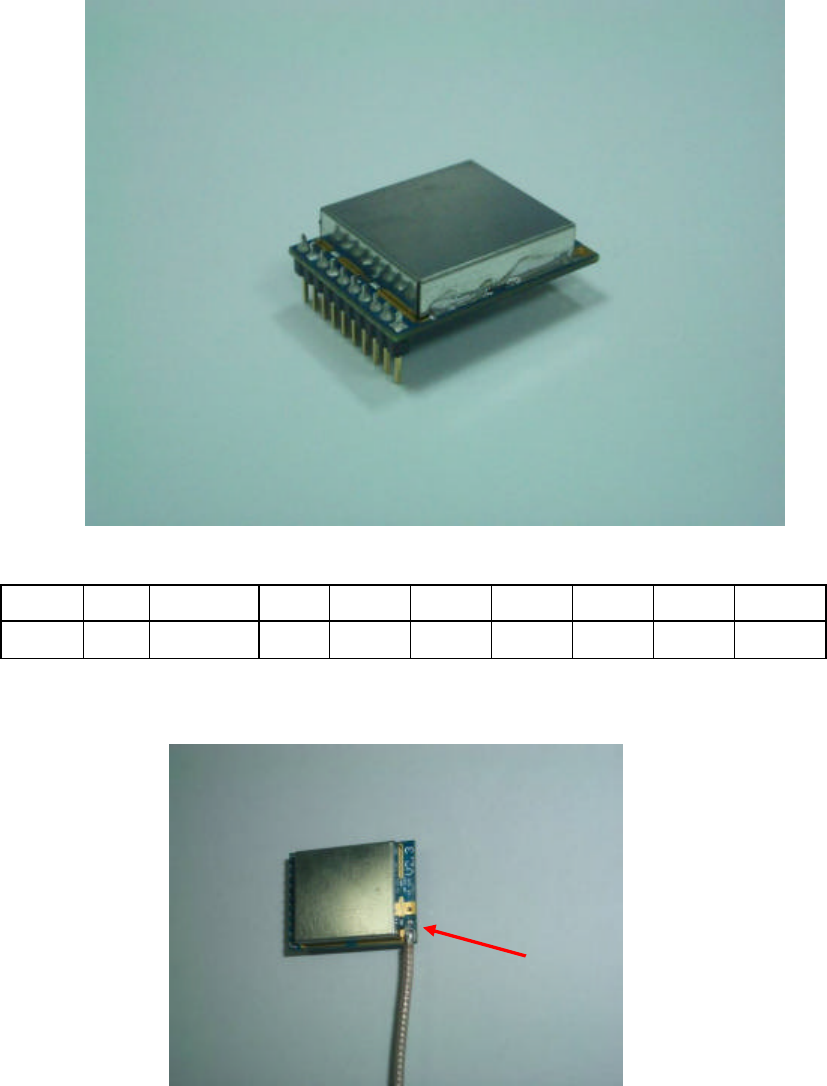

2. Pin Assignment

Pin 1

2 3 4 5 6 7 8 9 10

5V GND

CLK OUT

IRQ CS SDO SDI SCK TN CLK IN

3. Installation

1: Soldering antenna on the KWS7S3 PCB.

Summary of content (4 pages)

PAGE 1
KWS7S3 2.4GHz RF Module User Manual 1. Introduction KWS7S3 is a 2.4GHz ISM band HDR (high data rate) FH (frequency hopping) transceiver. It provides three types of digital modulation 16QAM/QPSK/BPSK, and on-air data rate support 12Mbps. The proprietary low MAC feature coupled with high-speed multimedia processor enables a very high quality wireless multimedia application and a great interference immunity capability. 2. Pin Assignment 10 5 1 Pin 1 5V 2 3 GND CLK OUT 4 IRQ 5 CS 6 SDO 7 SDI 3.
PAGE 2
1 2: Putting the module on the carrier board with socket. 4. SPI Digital Interface All configurations of KWS7S3 are defined by the values of register map. The register map can be accessed via SPI digital interface coupled with external MCU. All configuration values need to be properly set into four types of register maps. The four types of register map are defined as, PMU registers, RF registers, BB registers and MAC registers.
PAGE 3
6. Coaxial Cable Specification Unit: mm Characteristics Frequency DC ~ 6GHz Impedance 50 Ohm S.W.R Insertion Loss <=2.0 <-1.5 dB Connector for reverse SMA of the Antenna 7. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
PAGE 4
To OEM installer: 1. FCC ID label on the final system must be labeled with "Contains FCC ID: TJI-KWS7S3" or "Contain transmitter module FCC ID: TJI-KWS7S3 ". 2. In the user manual, final system integrator must be ensured that there is no instruction provided in the user manual to install or remove the transmitter module. 3. Transmitter module must be installed and used in strict accordance with the manufacturer is instructions as described in the user documentation that comes with the product.
